LG 21HK512D
21" 3MP Diagnostic Monitor

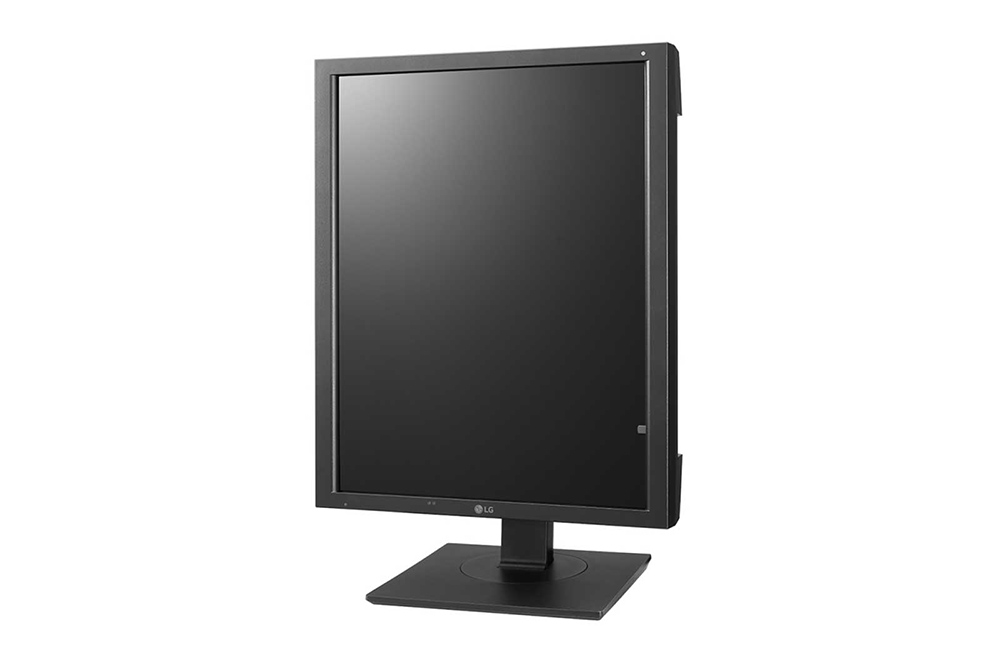

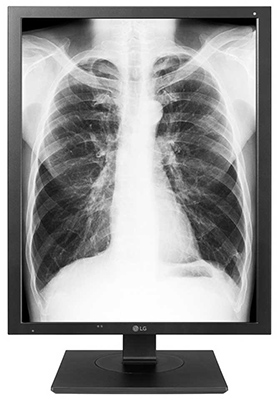

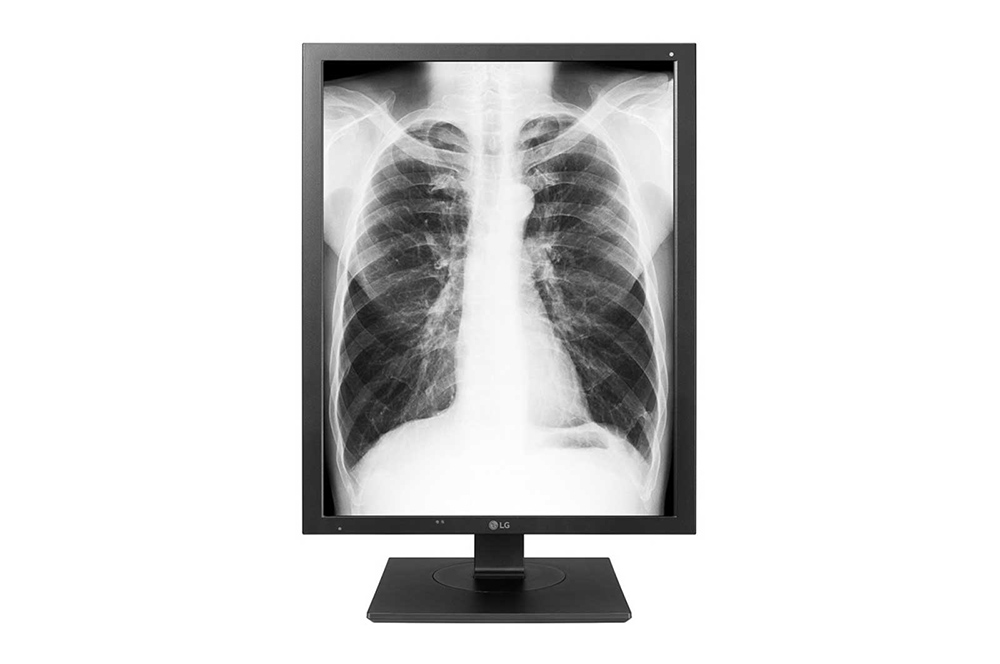

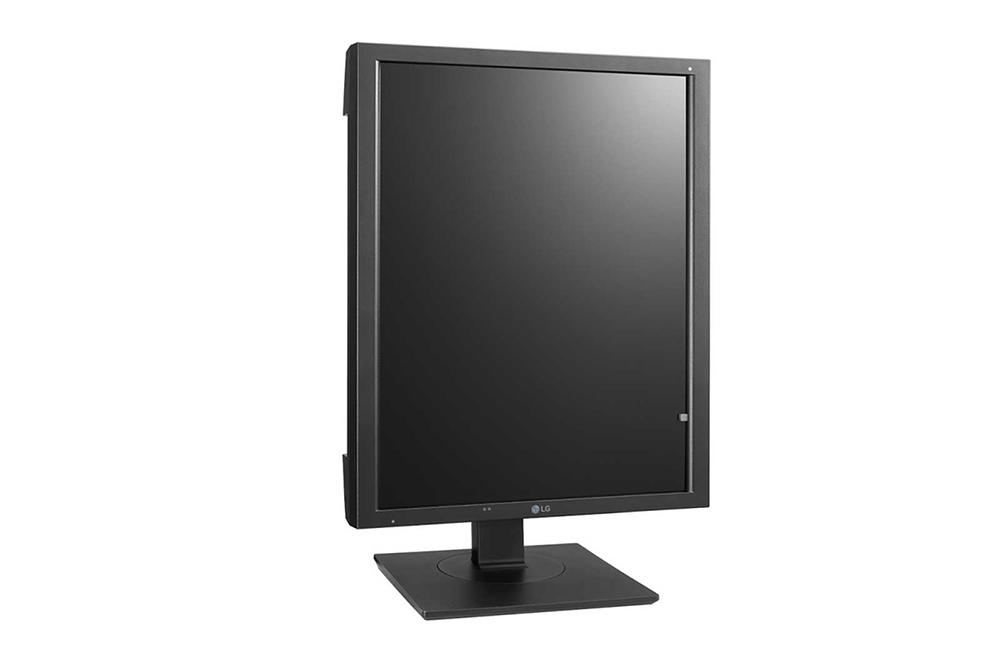

LG 21HK512D 21" Medical 3MP Diagnostic Monitor
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

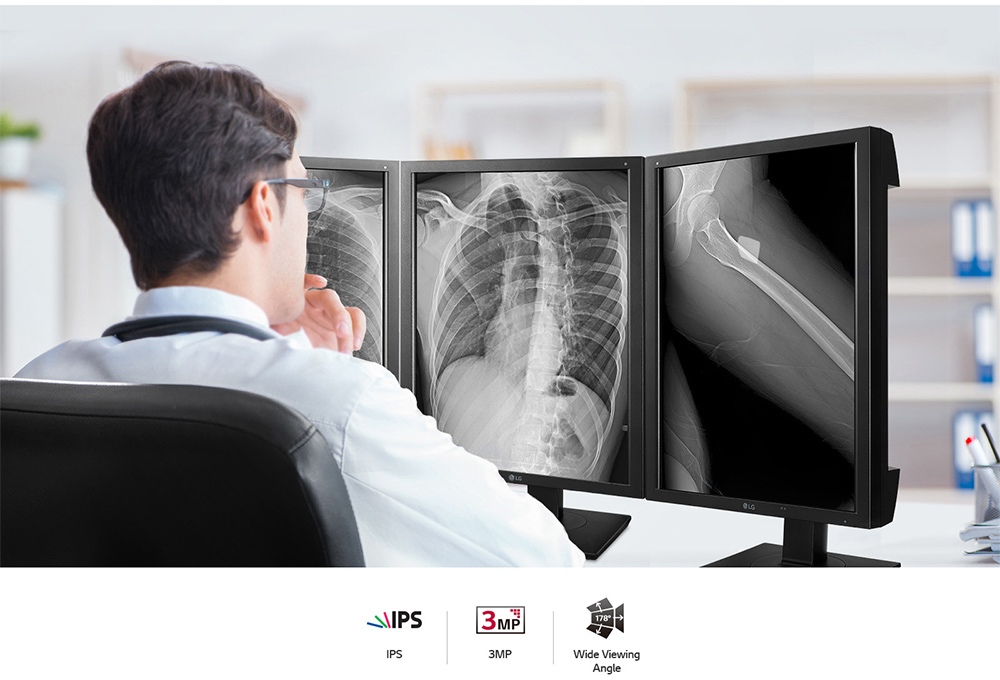

3MP IPS Display & 1000nits(Typ.), 800nits(Min.) with sRGB 99%
The 21.3-inch 3MP IPS display with 1000nits(Typ.), 800nits(Min.) brightness facilitates precise diagnoses of medical images from CT and Angiography, as it allows medical professionals to easily distinguish even delicate detail. Plus, it enhances the visibility of text and illuminates obscure abnormal findings through high brightness with drastic contrast.
- 21.3” IPS 3MP
- DICOM Part 14
- Auto Luminance Sensor
- Remote & Self Calibration
- Pivot
Features:
DICOM Part 14
Stable Grayscale Images
The standard DICOM Part 14 Gamma allows for accurate diagnostics as it adjusts the greyscale levels of medical images received from different types of image capturing devices. Plus, 18-bit LUT also makes enhanced, accurate grayscale image, smoothing out the transition between LUT values.

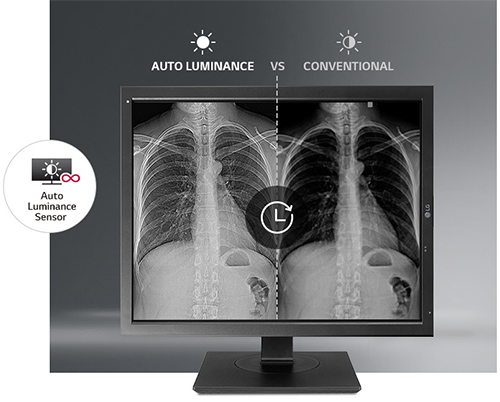

Auto Luminance Sensor
Automatic Brightness Stabilization
Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.

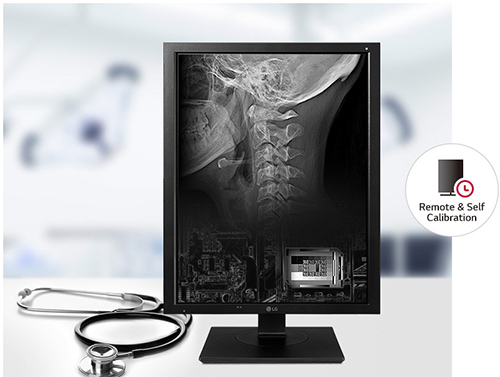

Remote & Self Calibration
Improved Productivity
Built-in Remote and Self Calibration helps to increase productivity and efficiency. It converts automatically the medical images to more suitable images to make a exact diagnosis.

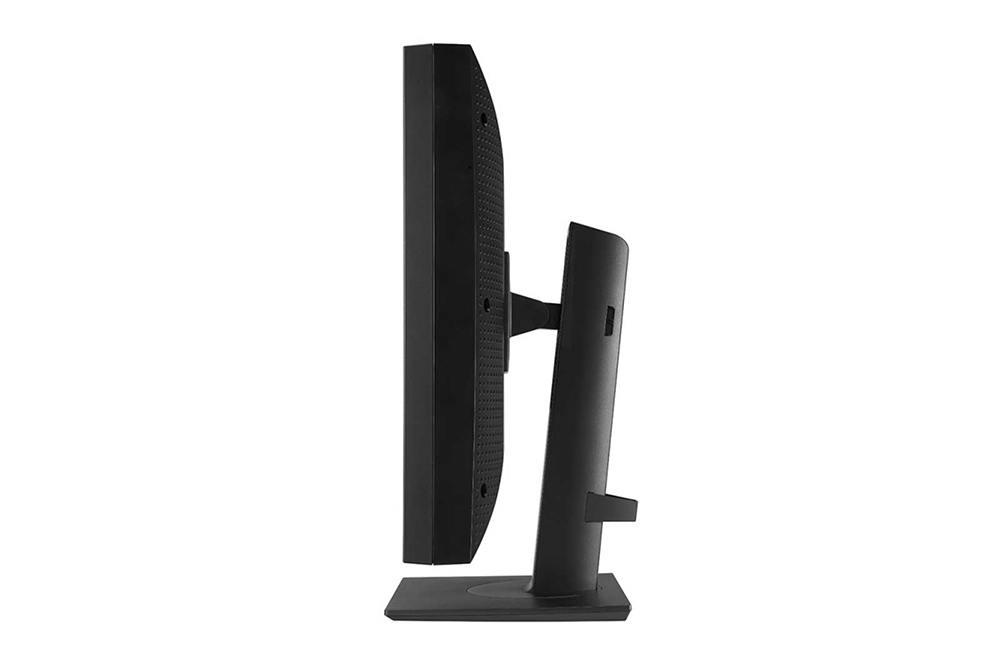

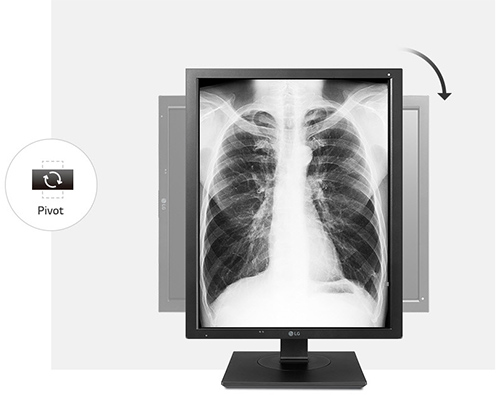

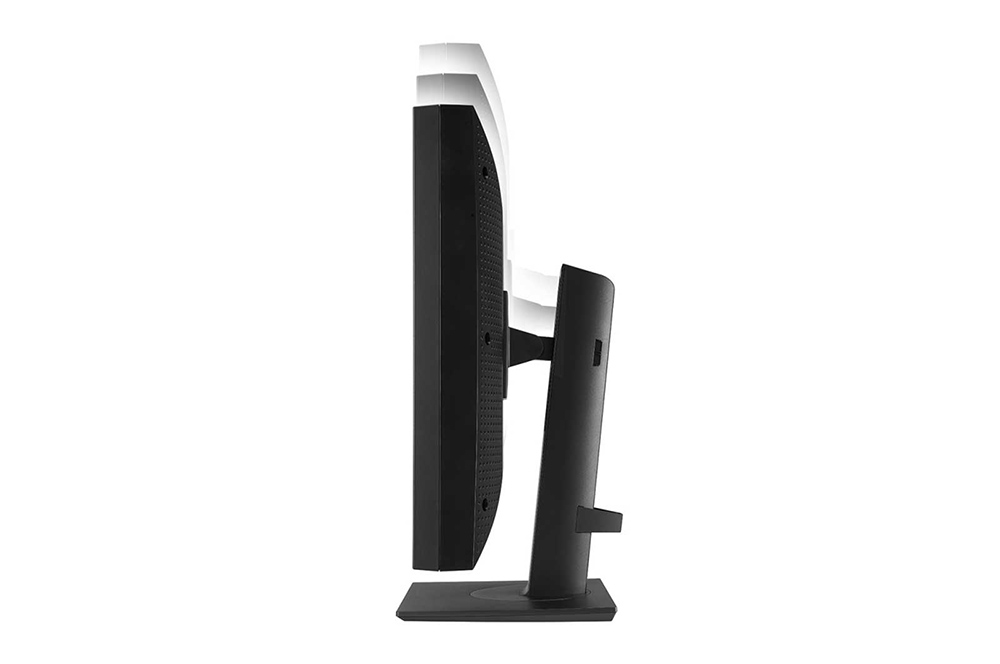

Pivot
Ergonomic Design
The Ergonomic Stand with pivot adjustment allows the user to create an optimized diagnostic workspace without any bothersome on-screen contents by its lower cover between two monitors.
Specifications:
| 21HK512D Specifications | |
|---|---|
| Panel | |
| Type | IPS |
| Size | 21.3’’ (4:3) |
| Native Resolution | 2048 x 1536 |
| Pixel Pitch | 0.2115 mm x 0.2115 mm |
| Display Colors | 10bit |
| Viewing Angle | 178/178 |
| Brightness | 1000cd/m2 (Typ.), 800cd/m2 (Min.) |
| Contrast Ratio | 1400:1 (Typ.) |
| Response Time | 30ms (Typ.) |
| Video Signals | |
| Input Terminals | DVI-D/DP1.1a |
| USB | |
| Function | 1 upstream, 2 downstream |
| Standard | USB/RJ45 |
| Power | |
| Power Requirements | 100-240Vac, 50/60Hz |
| Power Consumption | 85W |
| Features | |
| Sensor | Auto Luminance Sensor, HW Calibration(Remote/Self Calibration), Front Sensor |
| Certifications & Standards | |
| Certifications & Standards | UL60601 3.1rd, CB(EN60601-1-2 4th), CB(60590), CE MDD(Class 1) , FCC-B, AAPM TG18, DIN6868-157, JESRA X-0093, IEC62563-1 |
| Accessories | |
| Supplied Accessories | Power Cord, Factory Calibration Report, Warranty Card, DVI Cable, DP Cable, CD Manual |
| Physical Specifications | |
| Dimension with Stand (W x H x D) | 553.8 X 512.9 X 240 |
| Dimension without Stand (W x H x D) | 553.8 X 333.1 X 67.6 |
| Dimension in Shiping (W x H x D) | 626 X 474 X 194 |
| Weight with Stand | 6.1kg |
| Weight without Stand | 4kg |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) |
