LG 98UH5F-H
Overview:
Clear View with Non-glare Coating
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability.

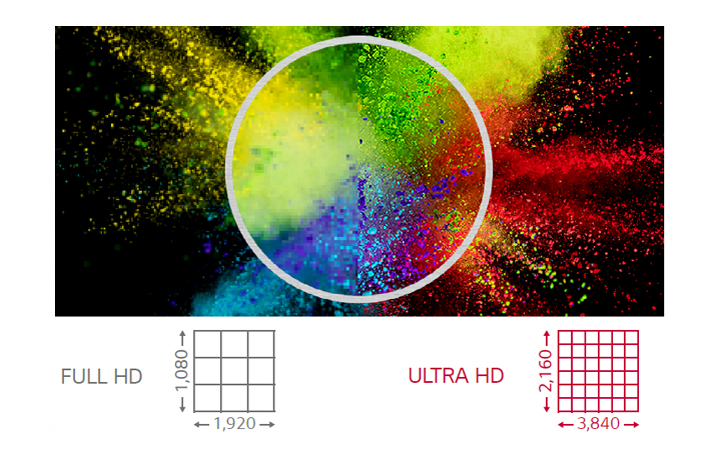

ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic.
In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion.
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Features:
Superior Picture Quality
ULTRA HD Resolution
With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion.
High Efficiency Video Coding
The UH5E and UH5F Series support HEVC* which efficiently compresses/ decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
Sleek and Practical Design
Slim Depth and Detachable Logo
Although UH5E and UH5F Series are large displays, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users flexibility to arrange the display.
Built-in Speakers
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Powerful webOS Smart Signage Platform
High-Performance with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.
Meeting Room Solution Compatibility
Compatibility with AV Control System
UH5F/E series digital signage has been Crestron Connected certified for high compatibility with professional AV controls to achieve virtually seamless integration and automated control,* boosting business management efficiency.
Compatibility with Video Conference System
For the optimum visual meeting, the UH5F/E series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, reducing the time spent setting up the picture quality or changing input on incoming calls.
User Convenience
Real-Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UH5F/E series displays in different locations in real time. It is available on Internet-connected devices, allowing you to rapidly and flexibly respond to critical display issues virtually anywhere.
Multi Screen with PBP/PIP
Picture-by-Picture (PBP) enables multiple screens in a single display with up to 4 input sources while Picture-in-Picture (PIP) supports playing both a main screen and a sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Specifications:
-
Panel
Panel spec Screen Size 98" Panel Technology IPS Native Resolution 3,840 × 2,160 (UHD) Brightness (Typ.) 500 Contrast Ratio 1,200 : 1 Dynamic CR 1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition. Color gamut NTSC 72% Viewing Angle (H x V) 178 × 178 Color Depth 1.06 Billion Colors (10 bit) Response Time 8 ms (G to G) Surface Treatment Haze 28% Operation Hours (Hours / Day) 24 / 7 Portrait / Landscape Yes / Yes -
Connectivity
Connectivity spec Input HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2) Output DP, Audio External Control RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In -
Mechanical Specification
Mechanical Specification spec Bezel Color Black Bezel Width 14.9 mm (Even Bezel) Weight (Head) 81.1 kg Monitor Dimension (W × H × D) 2,191.8 × 1,246.8 × 83.8 mm
(Without Handle and LG Logo)Handle Yes VESA™ Standard Mount Interface 800 × 400 mm -
Special Feature
Special Feature spec Overlay Touch Compatibility No -
Environment Conditions
Environment Conditions spec Operation Temperature 0°C to 40°C Operation Humidity 10% to 80% -
Power
Power spec Power Supply AC 100–240 V ~, 50/60 Hz Power Type Built-in Power -
Power Consumption
Power Consumption spec Typ./Max. 420 W / 560 W BTU (British Thermal Unit) 1,433.25 BTU/Hr(Typ.),
1,911 BTU/Hr(Max) -
Sound
Sound spec Speaker Yes -
Certification
Certification spec Safety CB, NRTL EMC FCC Class "A" / CE / KC ErP Yes -
OPS Compatibility
OPS Compatibility spec OPS Type Compatible No OPS Power Built In No -
Software Compatibility
Software Compatibility spec SuperSign CMS Yes SuperSign Control / Control+ Yes SuperSign WB Yes SuperSign Media Editor Yes Signage365Care Yes (The availability can differ by region.) -
Accessory
Accessory spec Basic Remote Controller, Power Cord, QSG, IR / Light Sensor Receiver, DP Cable (1.8 M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional -
Views:
Documentation:
Download the LG Ultra HD Signage - 98 - 98 - 75 UH5F Leaflet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
