LG 27HJ713C
27" 8MP Clinical Review Monitor


LG 27HJ713C

LG 27HJ713C 27" 8MP Clinical Review Monitor

27" IPS Panel, 3840 x 2160 (UHD), HDMI (2), DP, USB 3.0 (1 UP/2 DOWN), 3-Year Warranty

#27HJ713C-B
Our Price: $1,295.00


Click here to jump to more pricing!

Overview:

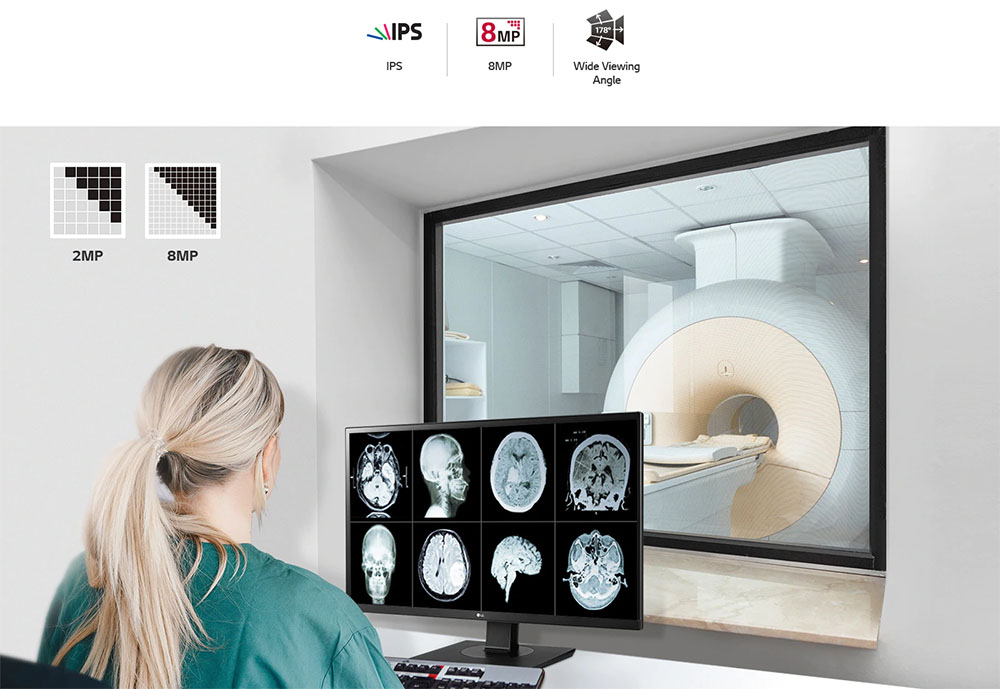

27” IPS 8MP Superior Image Quality

The 27-inch 8MP IPS display provides the ideal brightness for secondary review. The 178°-wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

  • 27” IPS 8MP
  • 350nits(Typ.) & sRGB 99%
  • DICOM Part 14
  • Brightness Stabilization
  • Flicker Safe
  • Two-way Pivot

27” IPS 8MP Superior Image Quality

Features:

350nits (Typ.) & sRGB 99%

Brighter and More Precise
350nits (Typ.) brightness and sRGB 99% of the color space guarantee brighter, more vivid color expression and better resolution for greater image accuracy.

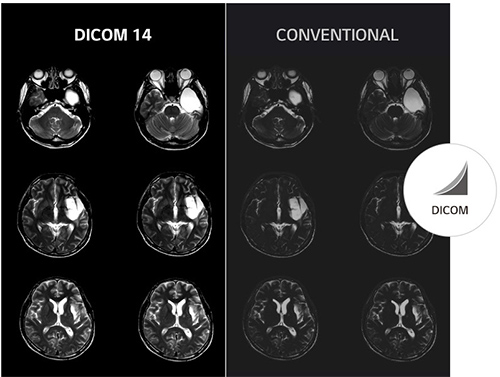

DICOM Part 14

Compliance with Medical Standards
The DICOM Part 14 Gamma adjusts the greyscale levels of medical images from various medical imaging modalities, helping more accurate review. Also, it ensures a 250 nit brightness compliant to the ACR-AAPM-SIIM secondary review brightness guideline*.

*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).

Stable Grayscale Images

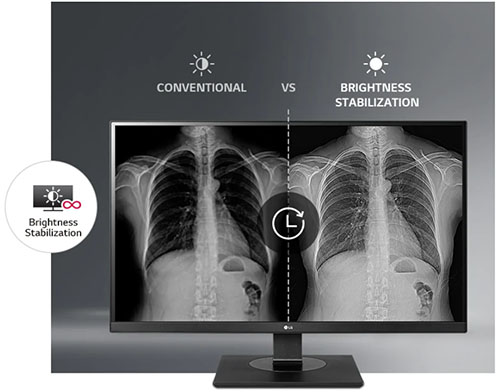

Brightness Stabilization

Consistently Stable Display
A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.

Consistently Stable Display

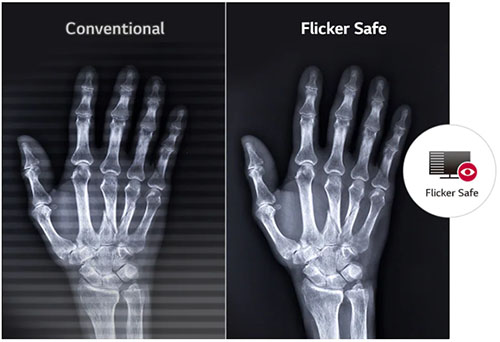

Flicker Safe

Long Lasting Eye Comfort
Flicker Safe technology virtually eliminates flickering to help prevent eye fatigue. This protects the vision of doctors and prevents them from slowing down their work flow.

Long Lasting Eye Comfort

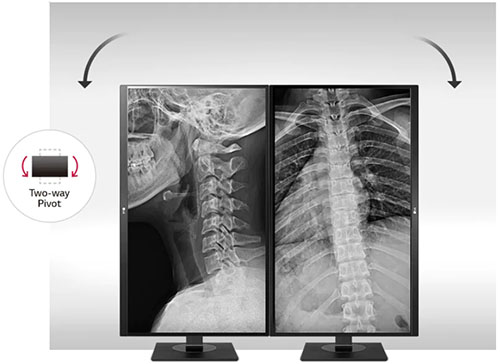

Two-Way Pivot

Ergonomic Design
The Ergonomic Stand with Two-Way Pivot adjustment realizes an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.

Ergonomic Design


Specifications:


27HJ713C Specifications
Panel
Type IPS
Size 27" class (27.0" diagonal)
Native Resolution 3840x2160
Pixel Pitch 0.1554mm x 0.1554mm
Aspect Ratio 16:9
Color Gamut (CIE 1931) sRGB 99%
Color Depth (Number of Colors) 1.07 B (10bit)
Viewing Angle 178/178
Brightness (Typ.) 350cd/m2 (Typ.)
Brightness (DICOM Calibrated) 250cd/m2 (Typ.)
Contrast Ratio 1000:1 (Typ.)
Response Time_Typ. (on/off) 14ms (Typ.)
(GTG) 5ms (High)
Viewing Angle(CR≥10) 178 / 178
Surface Treatment Anti-Glare 3H
Video Signals
Input Terminals HDMI x2 (2.0), DisplayPort x1 (1.2), USB3.0 1up 2down, Jack Location rear
Output Terminals Headphone Out, Jack Location rear
Frequency
H-Frequency (HDMI) 30~135kHz
V-Frequency (HDMI) 56~61Hz
H-Frequency (Display Port) 30~135kHz
V-Frequency (Display Port) 56~61Hz
Power
Type Adapter
Input 100-240Vac, 50/60Hz
Output 19V, 3.42A (65W)
Normal On (Max) (Brightness100 + 5V Load) 65W
Sleep Mode (Max) 0.5W
DC Off (Max) 0.3W
Resolution
Digital (HDMI) 3840x2160
Display Port 3840x2160
HDMI 3840x2160
Control Key
Key Number (Power Key Included) 5
Key Type Joystick
LED Color(On mode) White
LED Color(Power save mode) White Blinking
[ Key Location ] Bottom
Special Feature
Picture Mode Yes
Original Ratio Yes
PBP Yes
Super Resolution+ Yes
Gamma Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
Color Temperature 6500K / 8500K / 9300K, Manual (5000K ~ 10000K)
DICOM Mode Yes (Kδ <= 10%)
Factory Calibration Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
H/W Calibration Yes (Calibration 1-2 Mode)
Dynamic Sync Mode (Thru Mode) Yes
Flicker safe Yes
Brightness Stabilization Yes
Uniformity Compensation Yes
Quick Charge Yes
DDC/CI Yes
HDCP Yes
Key Lock Yes
Plug & Play Yes
Response Time Control Yes
DPM Yes
Color Calibrated Yes
Dual Controller Yes
Automatic Standby Yes
Six Axis Control Yes
Smart Energy Saving Yes (Conserve energy by using luminance compensation algorithm)
True Color Pro Yes
4 Screen Split Yes
On Screen Contro Yes
Color
Front Black
Back Cover Black
Stand Black
Base Black
Others Deco cover : Black
Stand
Base Detachable Yes
One Click stand set-up Yes
Tilt (Angle) Yes (-5o ~ 25o)
Height (mm) Yes (range 150mm)
Pivot 180o
Swivel (Angle) Yes (-45o ~ +45o)
Cabinet
Monitor (with Stand) 615.0 x 276.1 x 546.3 mm / 24.2" x 10.9" x 21.5"
Monitor (without Stand) 615.0 x 42.7 x 365.1 mm / 24.2" x 1.7" x 14.4"
Box 694 x 504 x 185 mm / 27.3" x 19.8" x 7.3"
VESA® Wall Mount 100 x 100
Weight (with Stand) 16.5 lbs / 7.5 kg
Weight (without Stand) 10.4 lbs / 4.7 kg
Weight (Box) 22.7 lbs / 10.3 kg
Standard
FDA (US) FDA Class I
MFDS (Korea) MFDS Class
CE MDD (EU) CE MDD Class I
CE (EU) Yes
CMDR (Canada) Yes
TGA/RCM (Australia) Yes
IEC (Global) IEC 60601-1
cUL (US/Canada) ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
EN (EU) CB (EU) EN 60601-1
CCC (China) Yes
CISPR (Global) Yes
FCC (US) FCC Part 15 Class A
ICES-003 Yes
RCM (Australia) Yes
Display Port Yes
RoHS / REACH / WEEE Yes
Windows 10 Yes
Accessories
Power Cord Yes (Black)
HDMI Yes (Black)
Display Port (1.2) Yes
USB Yes (USB3.0)
Manual Yes
Factory Calibration Report Yes
CD-ROM Yes (User Manual / True Color Pro/Dual controller)
Others Adapter
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor)

Views:

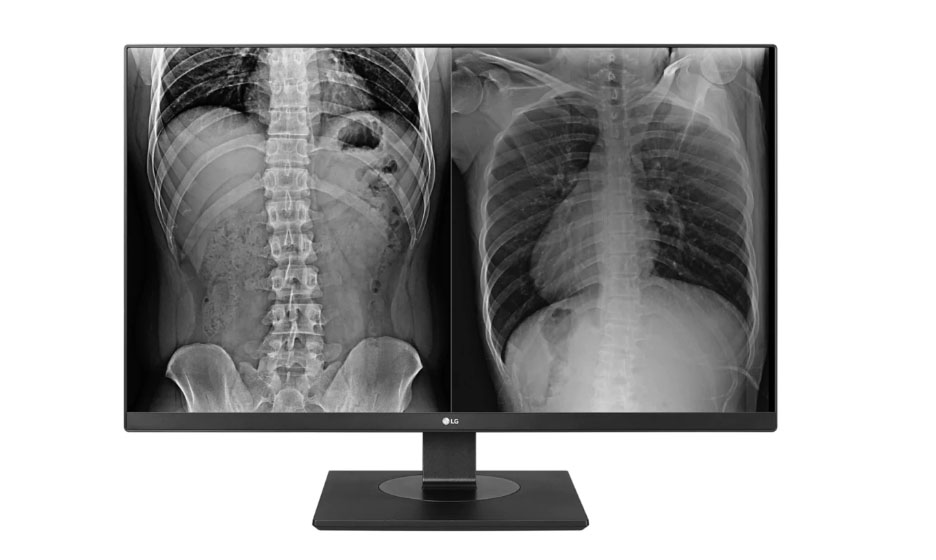

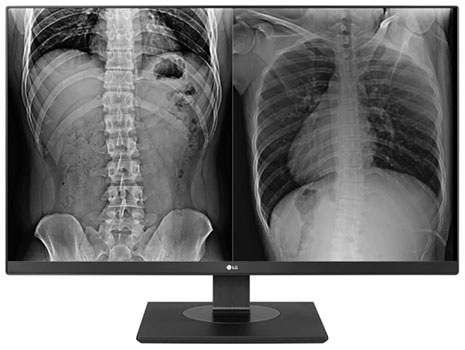

Front

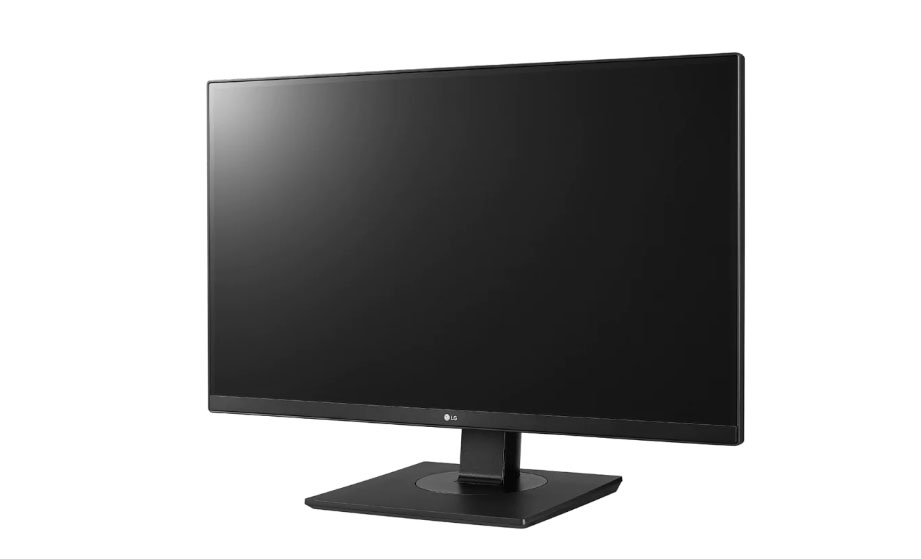

Right Perspective

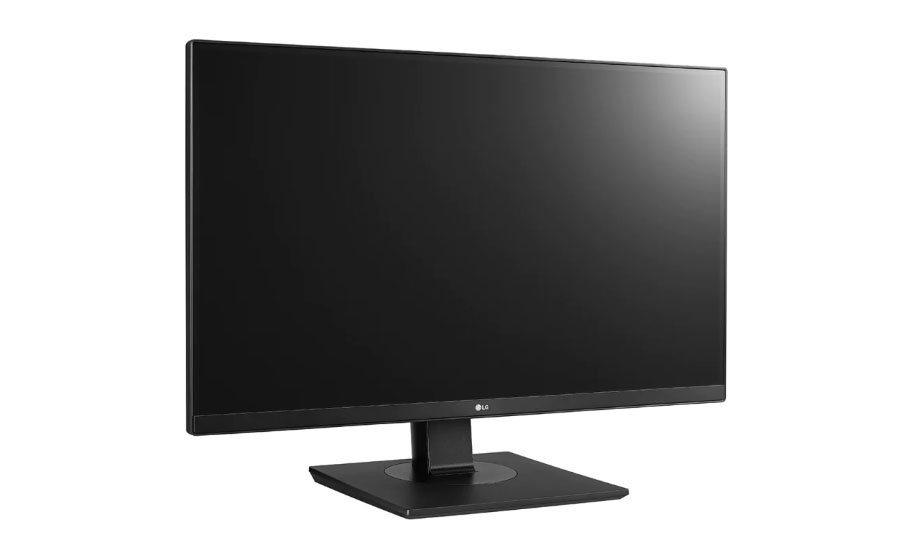

Left Perspective
Rear

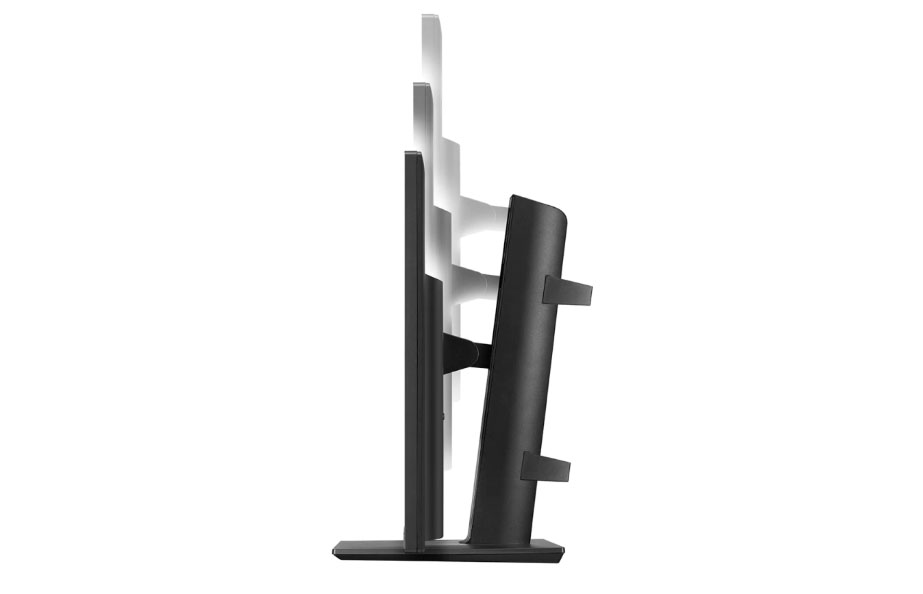

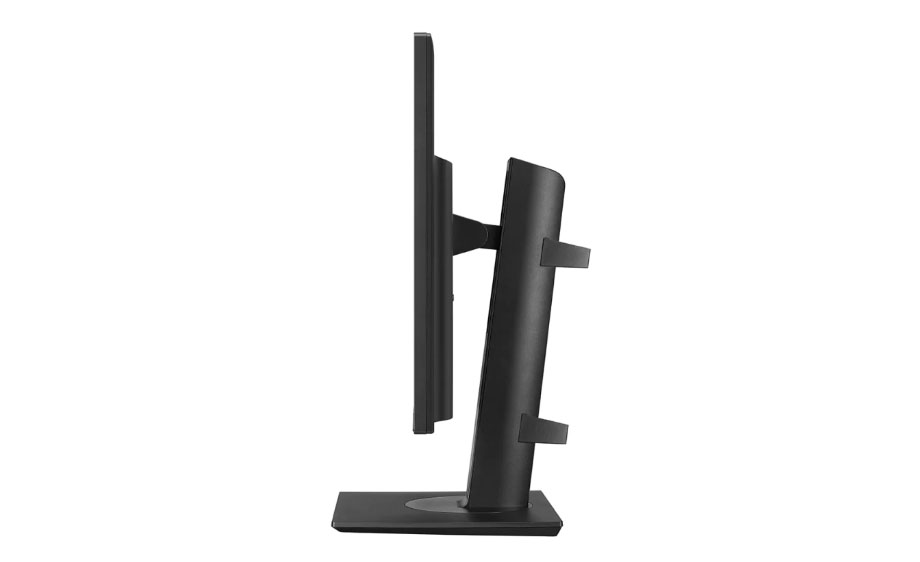

Right Side
Left Side

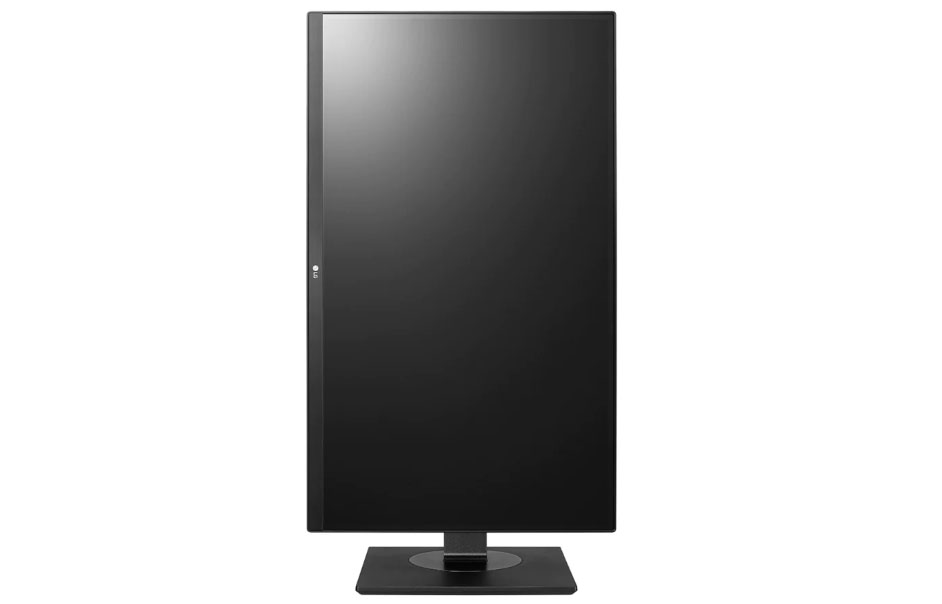

Vertical

Documentation:

Download the LG 27HJ713C-B 8MP Clinical Review Monitor Datasheet (.PDF)
