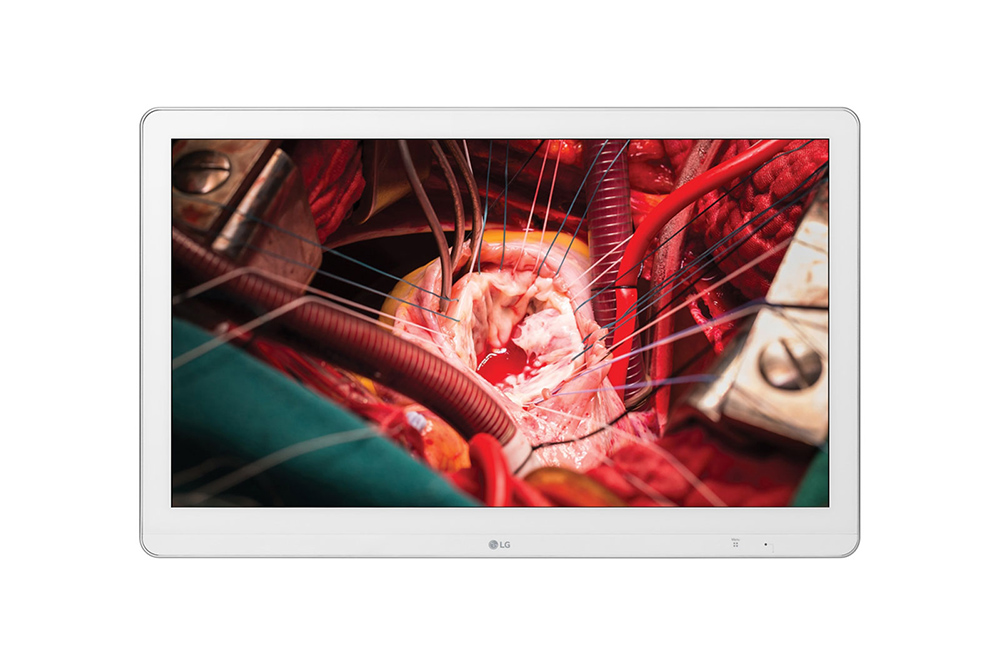

LG 27HK510S

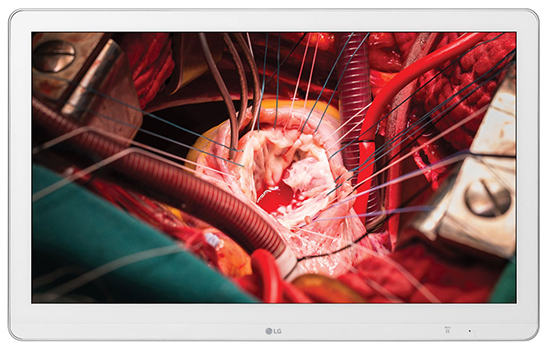

27" Full HD Surgical Monitor

LG 27HK510S

27" IPS Panel, 1920 x 1080 (FHD), HDMI, S-Video, Composite, 3G-SDI, DVI-I, 3G-SDI, DVI-I, 3-Year Warranty

LG 27HK510S 27" Full HD Surgical Monitor

In Stock

Click here to jump to more pricing!

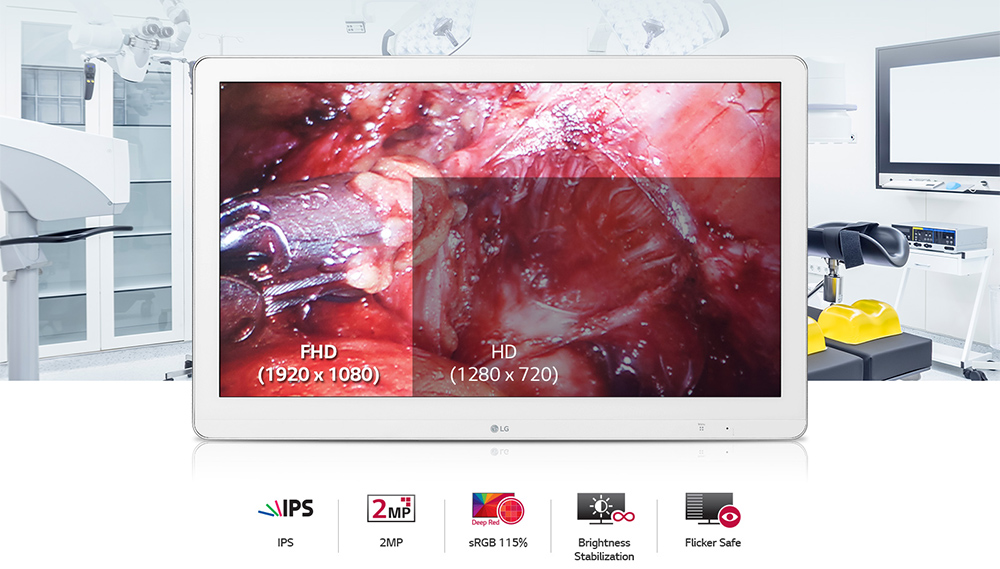

A Display Optimized for Compatibility

The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Full HD IPS Display, the LG surgical monitor improves work efficiency.

  • 27"FHD IPS Display (1920x1080)
  • sRGB 115%(Deep Red)
  • Dustproof & Waterproof
  • Protection Glass
  • Flicker Safe

A Display Optimized for Compatibility


Optimal Image Quality

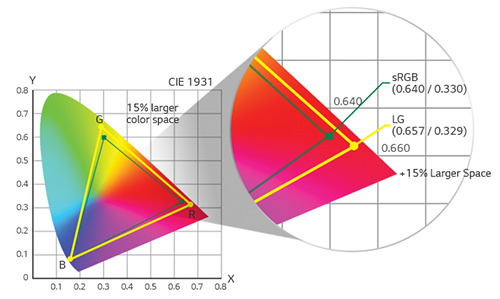

sRGB 115%(Deep Red)

The Full HD IPS display with sRGB 115% (Deep Red) is designed to fit with other Full HD surgical devices. It enables surgeons to view accurate, realistic images especially in the red color spectrum.

sRGB 115%(Deep Red)

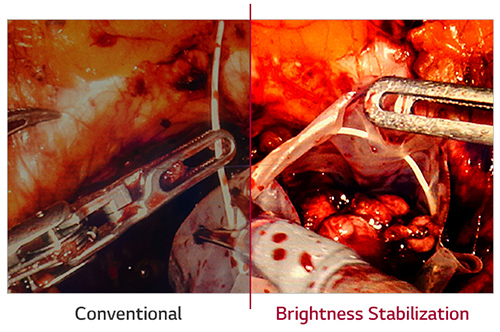

Brightness Stabilization

The LG surgical monitor carefully measures and sets every grayscale tone to create a monitor compliant with DICOM Part 14. Furthermore, LG’s surgical monitors offer stabilized brightness settings.

Brightness Stabilization

Designed for the Operating Room

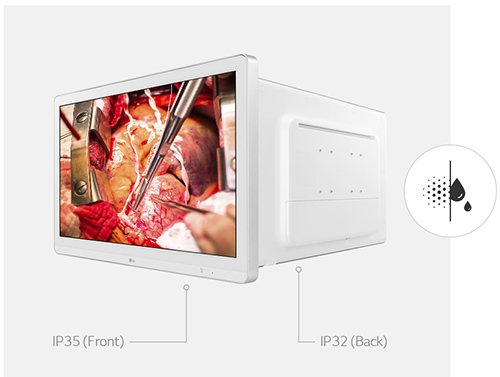

Dustproof & Waterproof

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the back, securing them from any direction.

Dustproof & Waterproof

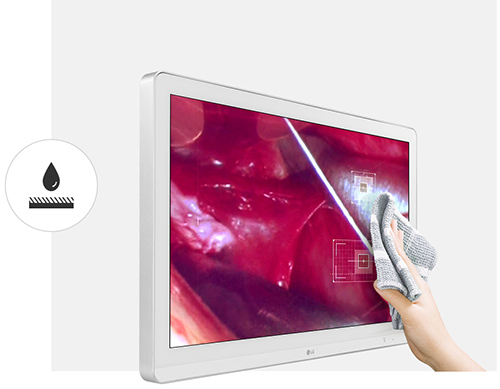

Protection Glass

The LG surgical monitor with protection glass provides a more durable display by safeguarding the monitor from water and bodily fluids and making it easier to clean.

Protection Glass

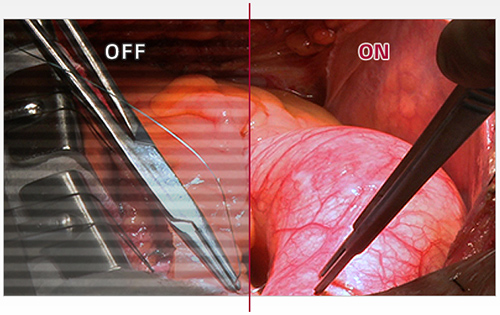

Reduces Visual Fatigue

Flicker Safe reduces the onscreen flicker level to almost zero, which helps minimize eye strain and eye fatigue. By combining Flicker Safe with the IPS technology, users can comfortably work throughout the day.

Reduces Visual Fatigue


27HK510S Specifications
Type IPS + Glass
Size 27” (16:9)
Native Resolution 1920 x 1080
Pixel Pitch 0.1554 mm x 0.1554 mm
Display Colors 10bit / sRGB 115%(Deep Red)
Viewing Angle 178/178
Brightness 1000cd/m2 (Typ.)
Contrast Ratio 1000:1 (Typ.)
Surface Treatment Protection Glass
Response Time 14ms (Typ.)
Video Signals
Input Terminals HDMI(1.4) x 1, S-Video x 1, Composite x 1, 3G-SDI x 1, DVI-I x 1(Compatible with D-sub & Component via adapter)
Output Terminals 3G-SDI x 1, DVI-I x 1
Digital Scanning Frequency (H/V) HDMI, DVI-D: 30~83kHz / 56~61Hz, D-sub: 30~83kHz / 56~61Hz
Sync Formats Dynamic Sync Mode (Thru Mode)
Function 1 upstream, 1 downstream (For Calibration)
Standard USB 3.0
Power Requirements 100-240Vac, 50/60Hz
Maximum Power Consumption 120W
Power Management 0.3W
Sensor Brightness Stabilization
Resistance Rating
Resistance Rating IP35 / IP32 (Front / Back), 8H Glass
Gamma Gamma 1.8 / Gamma 2.0 / Gamma 2.2 Gamma 2.4 / Gamma 2.6 DICOM Gamma curve
Certifications & Standards
Certifications & Standards IEC(IEC60601-1/ IEC60601-1-2, FCC(FCC part 15 Class A), CB, ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1, RoHS, REACH, WEEE, CE MDD(Class 1)
Supplied Accessories Power Cord, D-Sub to DVI-I adapter, DVI-D cable, HDMI cable, Adapter, CD/book manual
Physical Specifications
Weight without Stand 7.7kg
Warranty 3-Year Limited Warranty (Parts and Labor)

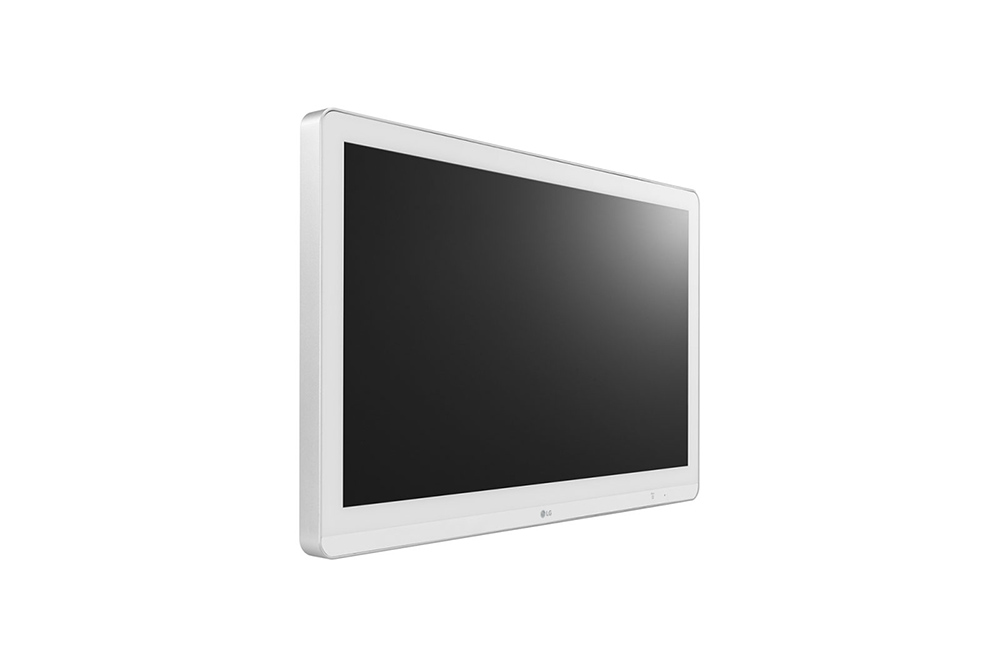

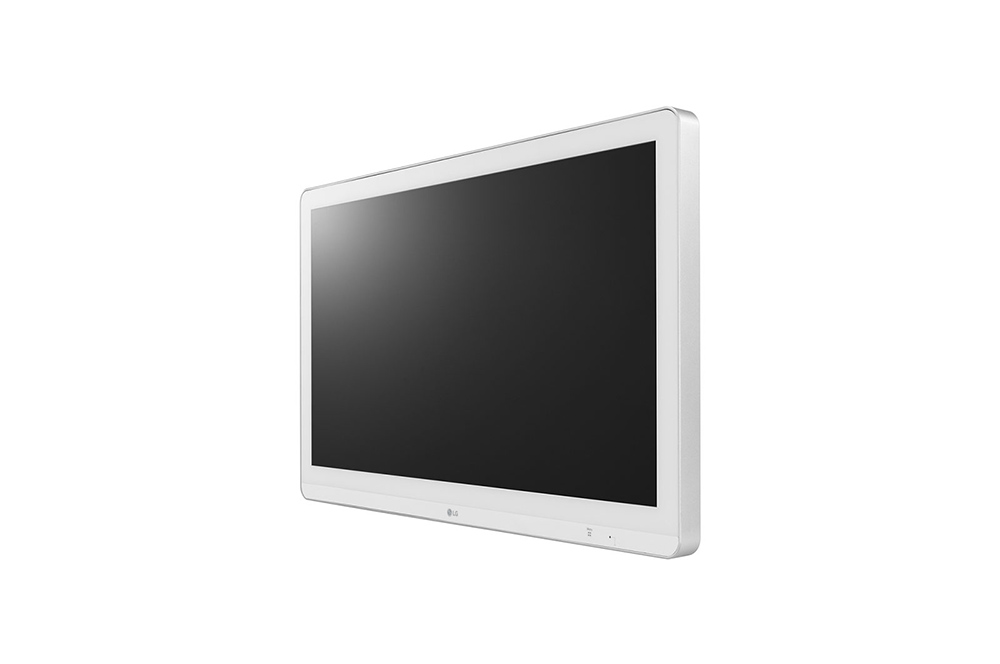

Right Perspective
Left Perspective

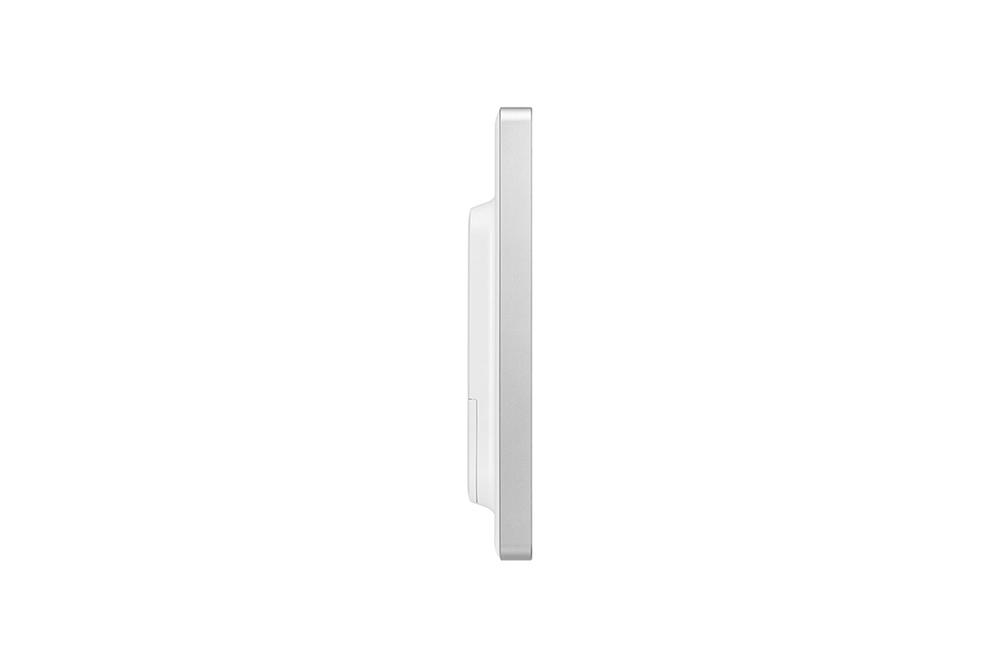

Right Side

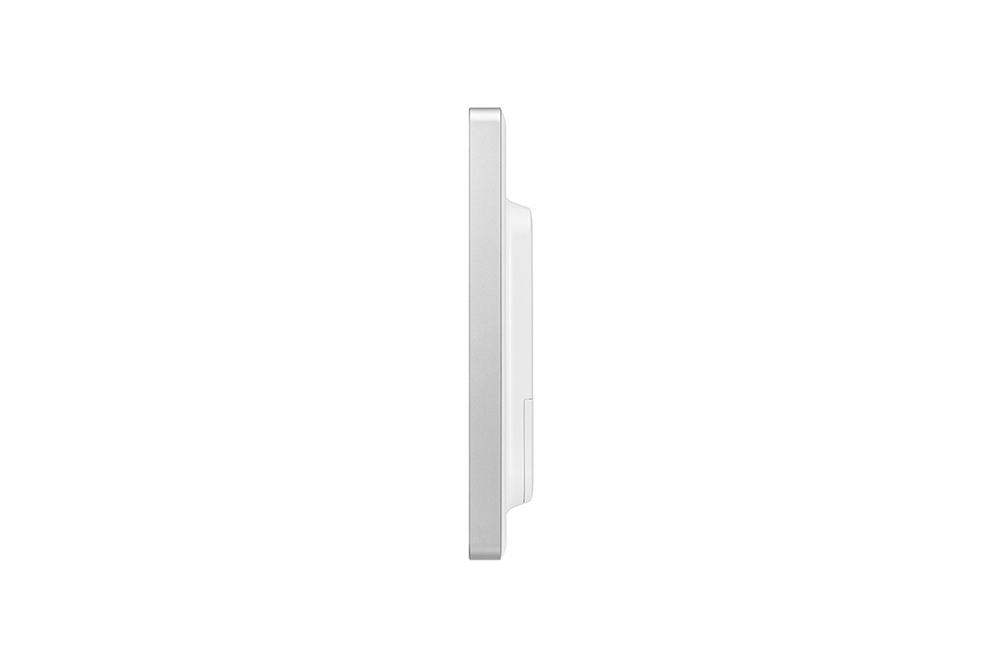

Left Side


Download the LG 27HK510S-W Full HD Surgical Monitor Datasheet (.PDF)
