LG 42SH7DB
42" Full HD Commercial IPS LED Display

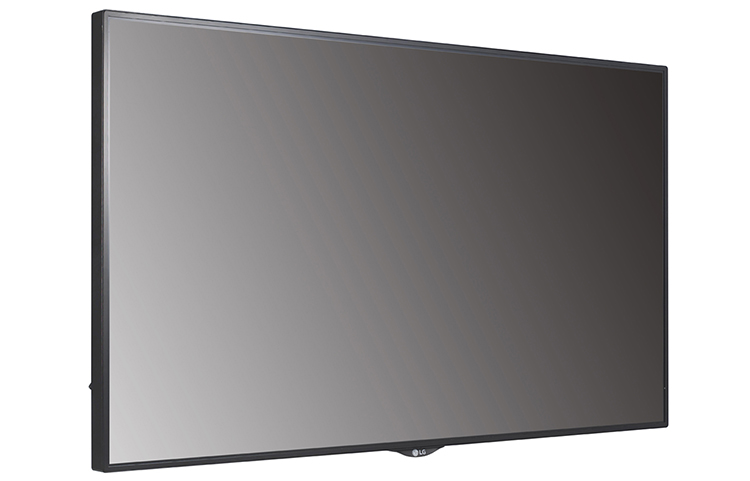

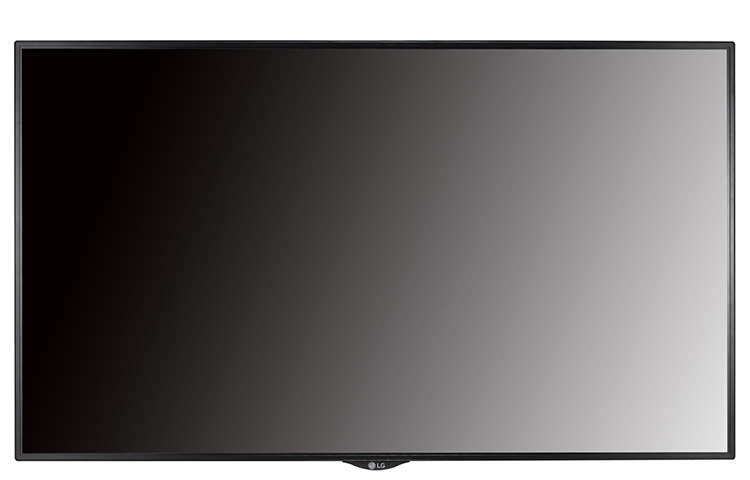

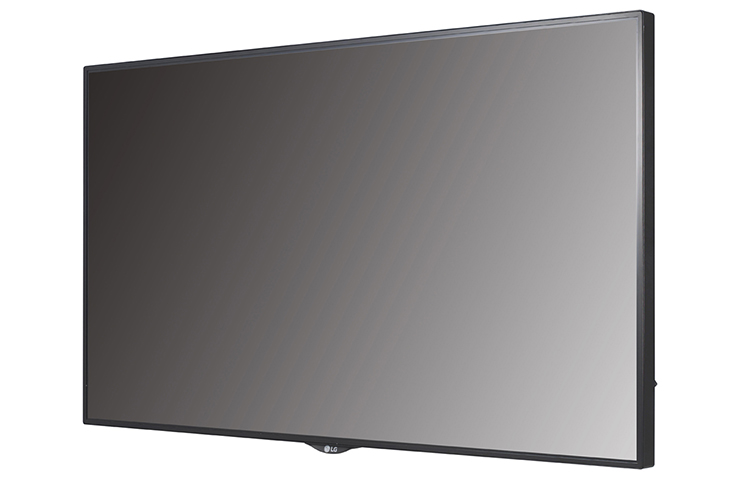

LG 42SH7DB 42" Full HD Commercial IPS LED Display
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

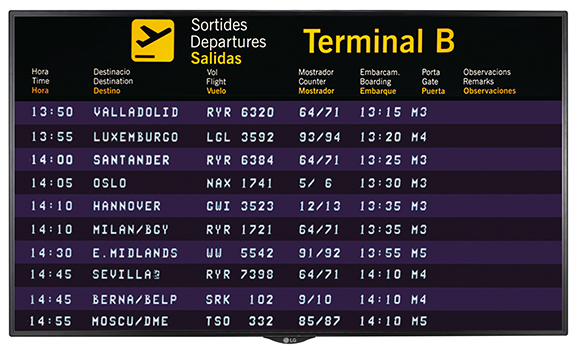

With its narrow even bezel, LG SH7DB enables you to create landscape or portrait walls in multiple installation scenes. It is enhanced in reliability and maintenance by protecting the circuit board from dust, iron fillings and humidity, and by detecting screen failures with SuperSign Software. Supporting convenient content management, this series are suitable for installation environments such as airport, retail and multiplex etc.
- Size: 49"
- Brightness(Typ.): 700 cd/m²
- Bezel: Top/Left/Right/Bottom 7.4mm
- Depth: 31.7mm
- Special: Wi-Fi Dongle Ready, SuperSign W/C/M
- Local Time Auto Setting
- DP, HDMI, DVI, RGB, RS232C, RJ45, IR (DP1.2 daisy-chain)
Features:
Simplified Installation

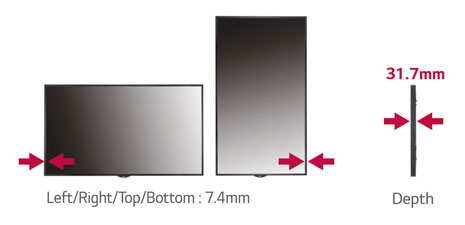

Narrow Even Bezel
Slim, sleek and stylish design, SH7DB has advantages for portrait and video wall scene.

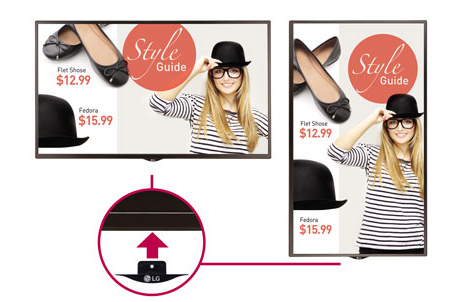

Detachable Logo
Portrait mode allows the logo to be positioned in the desired setting.
Supportive Convenience

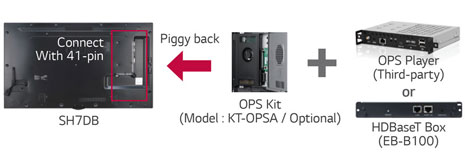

OPS* & HDBaseT Compatibility
The SH7DB provides an OPS Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS
Dust & Humidity Protection
Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Supportive Convenience

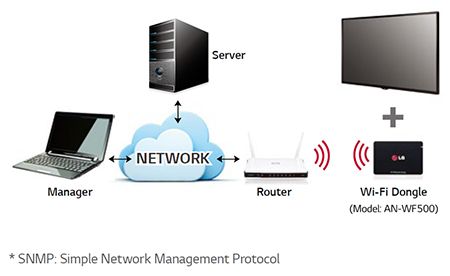

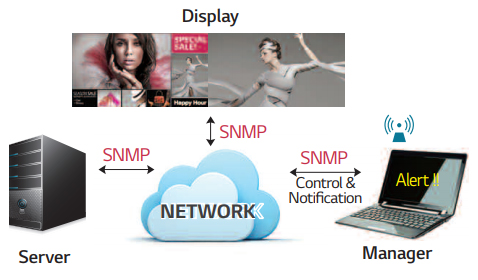

Simple Network Management Protocol
SNMP support ensures convenient network management.
Wi-Fi Support
SH7DB Series support Wi-Fi USB dongle connection for convenient content distribution.

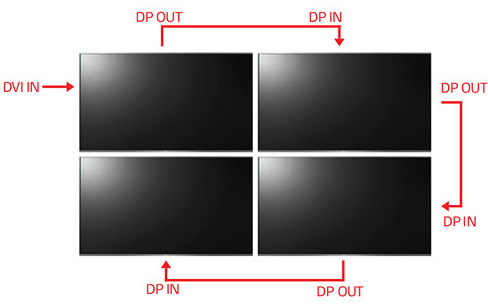

Digital input to Daisy Chain
Support DVI/HDMI digital signal turns to DP out.
Screen Management Mode

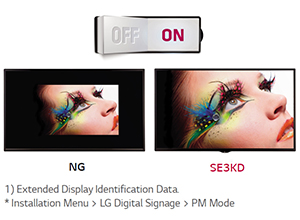

Aspect Ratio Sustainability*
Sustain the same resolution and picture quality while powering on/off by receiving EDID1) through switch IC.

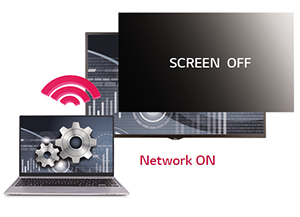

Stand-by Screen
Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
Scheduled Screen Wash**
Prevent residual images with the screen transition feature.
Content Management

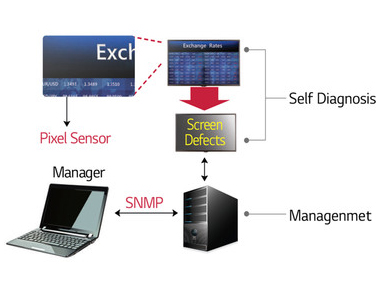

Screen Fault Detection
Detects screen failure and sends an alert log by email.

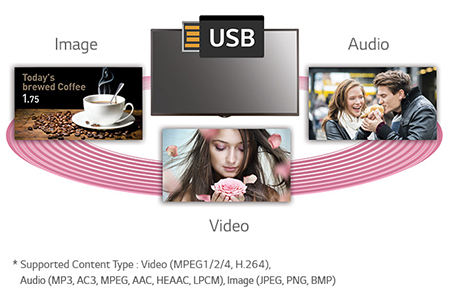

USB Content Scheduling
Play and schedule contents with a USB connection-no server connection required.

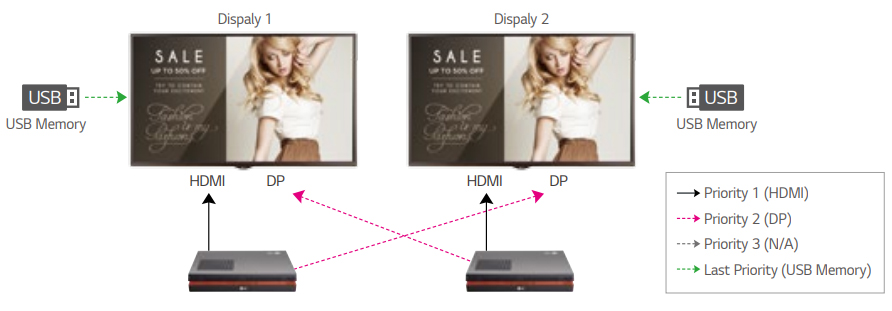

Advanced Failover
Enables content to be displayed without dead spots when none of the external inputs is working. The monitor performs the signal switching automatically.
Specifications:
| 42SH7DB Specifications | |
|---|---|
| Panel | |
| Screen Size | 42" |
| Panel Technology | IPS (PD) |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 700 cd/m2 |
| Contrast Ratio | 1,300:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G BW) |
| Surface Treatment | Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 10 % (Typ.)) |
| Guaranteed Operating Hour | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI, DP, DVI-D, RGB, Audio, USB |
| Output | DP, Audio, External Speaker |
| External Control | RS232C (In/Out), RJ45, IR Receiver, Pixel Sensor (Optional) |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 7.4mm (T/R/L/U even) |
| Monitor Dimension (W x H x D) | 37.4 x 21.4 x 1.2" |
| Weight (Head) | 27.6 lbs |
| Weight (Head + Stand) | 30.7 lbs |
| Monitor with Optional Stand & Speaker Dimensions (W x H x D) | 37.4 x 24.4 x 11.8" |
| Weight (Head + Stand + Speaker) | 32.4 lbs |
| Carton Dimensions (W x H x D) | 41.2 x 25.4 x 5" |
| Packed Weight | 32.7 lbs |
| VESA Standard Mount Interface | 400 mm x 400 mm |
| Special Features | |
| Special Features | USB Content Scheduling, Conformal Coating, SNMP Support, Wi-Fi Ready (Dongle), Power Management modes (Sustain Aspect Ratio/Stand-by Screen, etc.), No Signal Image setting, Enhanced ISM (Image Sticking Minimization) Mode, Holiday Schedule/Local Time Auto Setting, Fail-over (USB, RGB, DVI, HDMI), Wake on LAN, DVI/HDMI to DP out |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 140W |
| Power Consumption - Smart Enegy Saving | 95W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 6.0) |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes (MP500/MP700) |
| Software Compatibility | |
| SuperSign Premium | Yes |
| SuperSign Link | Yes |
| Accessory | |
| Basic | Remote Controller (2 batteries included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver |
| Optional | SP-2100 (External Speaker), ST200T, LSW440S, AN-WF500 (Wi-Fi USB Dongle), KT-OPSA (OPS Kits), KT-SP0 (Pixel Sensor) |
| Warranty | |
| Warranty | 3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available |
Views:
Documentation:
Download the LG Standard Performance - SH7DB Series Datasheet (.PDF)
