LG 49TA3E
49" Class TA3E Series - Effective Customer Engagement with LG Touch Display

LG 49TA3E

49" Display, 1920x1080 (FHD), 450 Nit, HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0, Black, 3-Year Warranty

LG 49TA3E 49" Class TA3E Series - Effective Customer Engagement with LG Touch Display


Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Effective Customer Engagement with LG Touch Display

The LG touch display TA3E series offers an all-in-one touch experience powered by a webOS Smart Signage Platform. The built-in touch capability and embedded writing app facilitates powerful and meaningful interactions between customers and your brand.

  • Size: 49"
  • Floating Tool Bar
  • SoC and LG webOS
  • IDB App for Efficient Collaboration
  • LG FHD Technology
  • LG IPS Panel with Wide Viewing Angles and True Color
  • Auto Signal/Touch Switching

Features:

All-in-one Touch Experience

Built-in Interactive Touch


The TA3E series is a built-in touch display that provides immediate touch experiences without the need to purchase any separate overlay touch accessories. Various touch-based solutions can be applied for customer interactions to promote your brand, with a maximum of 10 touch points* supported.

Built-in Interactive Touch

Embedded Writing Solution


The LG IDB, the embedded writing application, offers an all-in-one solution for advanced customer engagement. No separate PC or software is necessary for white board performance, so operators can easily create two-way communication channels.


Embedded Writing Solution


Simple Customization

User-friendly Smart Platform

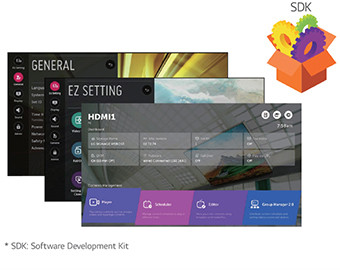

The LG webOS smart platform supports web-based HTML5 and offers SDK*, allowing SIs to easily build their own apps for customer solutions. Also, it enhances user convenience with an intuitive UI optimized for business purposes.

User-friendly Smart Platform

Compatibility with AV Control System

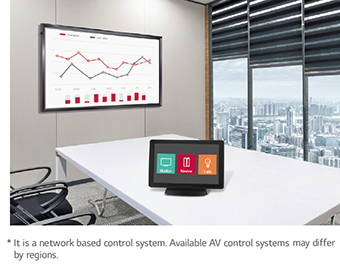

The TA3E series is compatible with network-based AV control systems**, with which users can easily manage, monitor and control LG commercial displays from one location.



Compatibility with AV Control System

Beacon Supported


With Beacon and Bluetooth Low Energy (BLE) support, the TA3E series enables stores to provide coupons and information in real-time, which increases interactivity with customers at the moments when it most counts.

Beacon Supported


User Convenience

Easy Touch Navigator on Display


The touch menu is a subsidiary menu introduced to improve user-friendliness. Users can run the desired function or change the settings from anywhere by softly pressing the screen to call up the touch menu. The SI folder is especially designed to gather and show customized apps, making it easy for users to find and use them.

Easy Touch Navigator on Display

Auto Signal Switching


The failover function enables the display to detect the available input signals and automatically change the source when the current signal is disconnected or other higher priority signals* are connected. Users can prepare backup sources for any unexpected error.

Auto Signal Switching

Multi Screen with PBP/PIP


PBP* features multi screen in a single display with up to 2 input sources, thus maximizing usability of the screen. In addition, PIP** supports playing both main screen and sub screen at the same time with various layouts, so users can arrange many different usage scenarios efficiently.

Multi Screen with PBP/PIP



High Reliability

Superior Picture Quality with IPS
The LG IPS panel has a wide viewing angle that delivers clear content, no matter where viewers see content on the display. Moreover, every pixel in the IPS panel truly reproduces the image colors without distorting them

Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.

High Reliability

Specifications:


49TA3E Specifications
Panel
Screen Size 49"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness* 450 cd/m2
Viewing Angle (H x V) 178 x 178
Response Time 12 ms (G to G BW), 10.1 ms (WOT)
Surface Treatment Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze Typ. 1%)
Lifetime 50,000 Hours
Operating Hour 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
Output DP, Audio Out
External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
Physical Specification
Bezel Color Black
Bezel Width 32.7 mm (Even)
Monitor Dimension (W x H x D) 1,142.2 x 672.4 x 71.4 mm / 45" x 26.5" x 2.8"
Weight (Head) 22.3 kg / 49.2 lbs
Carton Dimensions (W x H x D) 1,260 x 785 x 162 mm / 49.6" x 30.9" x 6.4"
Packed Weight 26.3 kg / 58 lbs
VESA Standard Mount Interface 300 x 300 mm
Special Features
Special Features Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning, Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected®**
Environmental Conditions
Operating Temperature Range1 0°C to 40°C / 32°F to 104°F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 85 W / 105 W
Power Consumption - Smart Enegy Saving 60 W
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KC
ErP / Energy Star N/A / Yes (EnergyStar 7.0)
ePEAT (US Only) N/A
Media Player Compatibility
OPS Type Compatible Yes
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Link
Accessory
Basic Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory Cover
Optional Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
Touch
Touch Type IR (Scattering)
Scan Time 10 ms ↓
Interface USB 2.0
Protection Glass Thickness 2.8T (Anti-glare)
Operating System Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
Multi Touch Point Max 10 Points
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available
* 325 cd/m2 with Protection Glass
** Network Based Control

Views:


Front
Right Perspective
Left Perspective
Rear

Right Side
Left Side

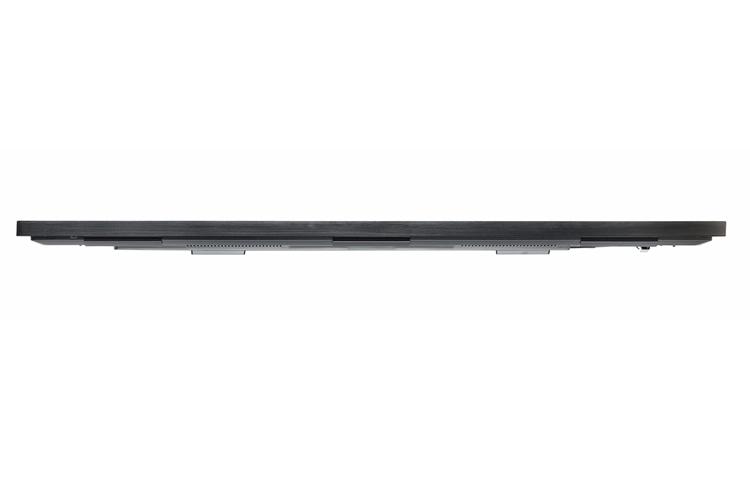

Top
Interface Detail

Documentation:

Download the LG Touch Display - TA3E Series Datasheet (.PDF)
