LG 49UH7F-H
49" Ultra HD Slim Indoor Digital Display with 700 nits brightness and LG webOS Smart Signage Platform


LG 49UH7F-H

LG 49" Ultra HD Slim Indoor Digital Display

49" Display, 3840 x 2160 (UHD), Edge LED, 700 Nits, HDMI (2), USB, RS232C , RJ45 (RGB Panel), Black, 3-Year Warranty

#49UH7F-H
Our Price: $1,395.00


Click here to jump to more pricing!

Overview:

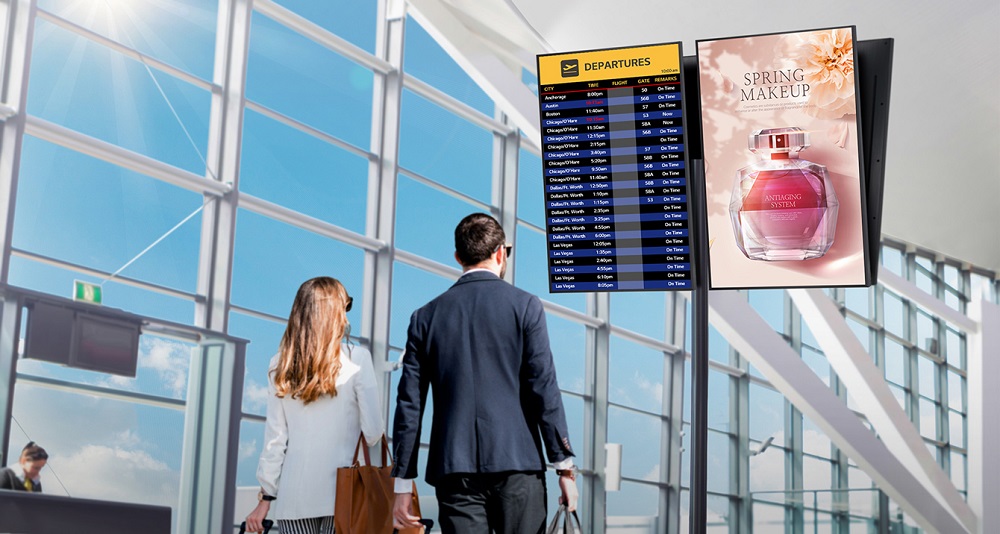

LG UHD Signage Provides Information Effectively

The UH7F-H series is a UHD signage that has been optimized for various indoor environments. It features bright, 700-nit UHD quality, slim design, external dust protection, and both portrait and landscape operation for flexible applications and installations.

  • Brightness(Typ.) : 700 cd/m²
  • Surface Treatment (Haze) : 28%
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker

LG UHD Signage

Features:

Superior Picture Quality

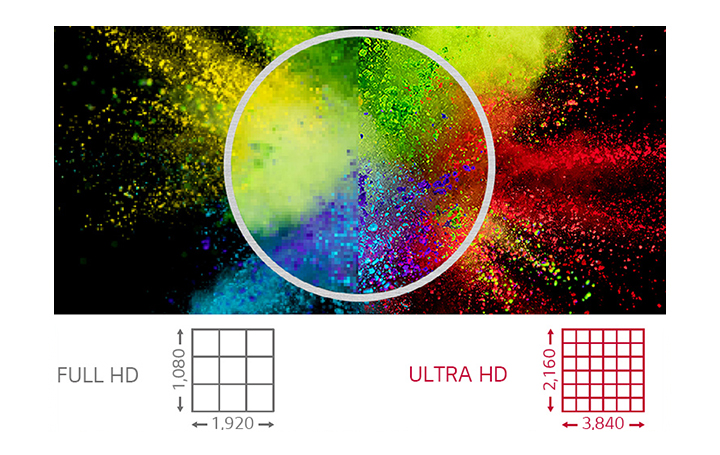

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents..

ULTRA HD Resolution

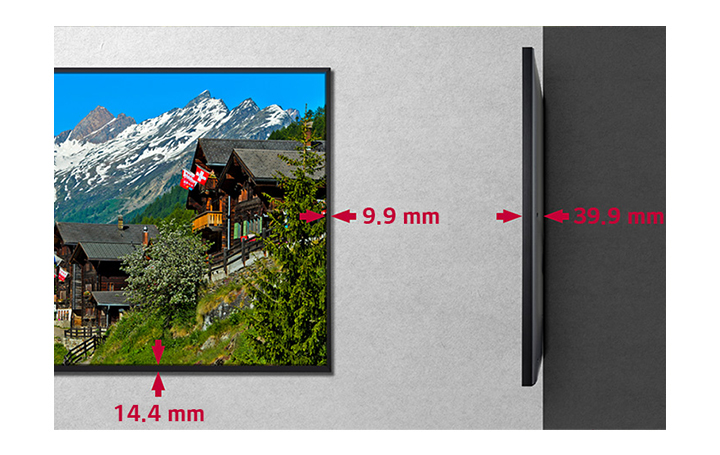

Narrow Bezel & Slim Depth

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Narrow Bezel & Slim Depth


Sleek and Practical Design

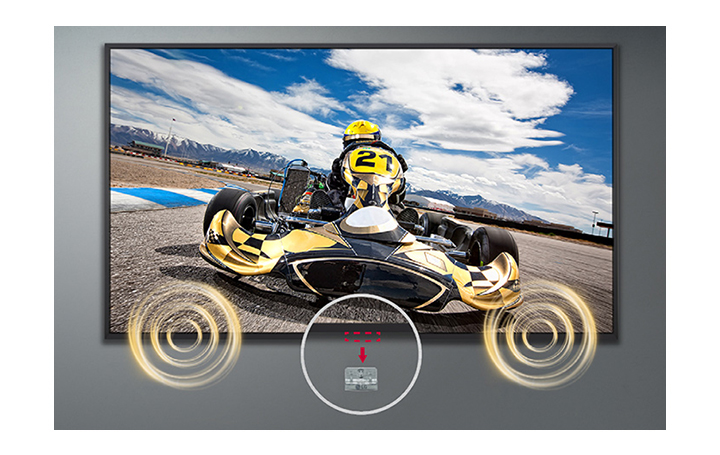

Detachable Logo and Built-in Speaker

This series is equipped with a new transparent logo which is well organized with surroundings. Also, its removable feature gives users flexibility for installation. Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Detachable Logo and Built-in Speaker

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

IP5x Certified Design


Product Reliability

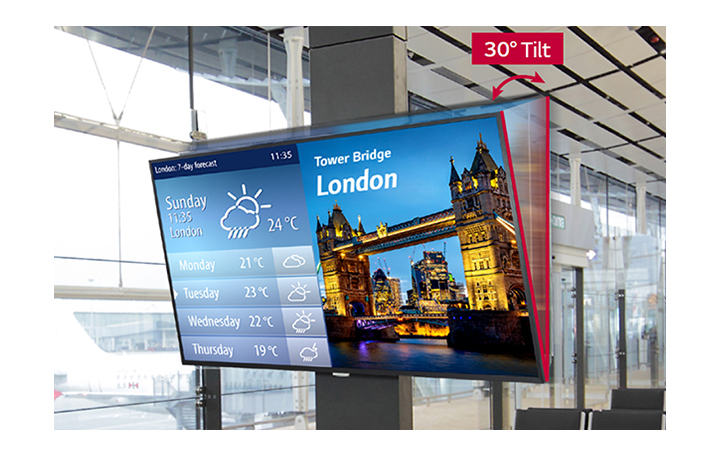

30° Tilting Installation

For the user's comfort viewing, UH7F-H supports the installation with 30 degrees of tilt* when it is installed at high places.

30° Tilting Installation

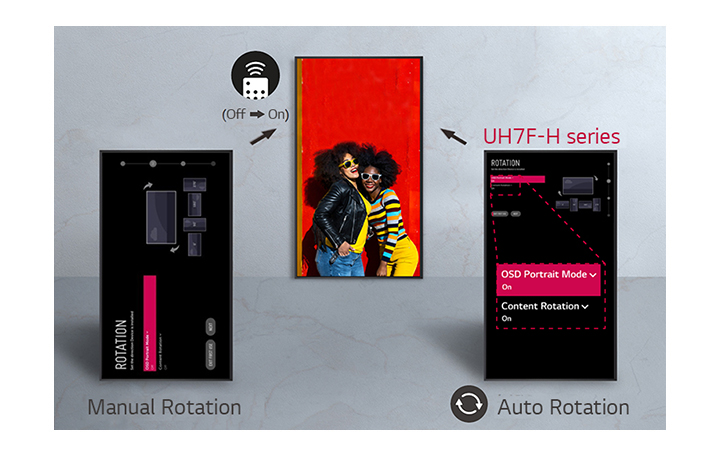

Auto Screen Rotation

This series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

Auto Screen Rotation


Specifications:


49UH7F-H Specifications
Panel
Screen Size 49"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness 700 cd/m²
Contrast Ratio 1,000:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Life Time (Min.) 50,000 hours
Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A
Output DP, Audio
External Control RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In
Physical Specification
Bezel Color Black
Bezel Width 9.9mm (T/R/L), 14.4mm (B)
Dimension (W x H x D) 43.3" x 25.4" x 1.6" / 1,098.6mm x 644.5mm x 39.9mm
Weight 34 lbs / 15.4 kg
VESA Standard Mount Interface 300 mm x 300 mm
Special Features
Special Features Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Built-in Speaker, Temperature Sensor, Auto Brightness Sensor, Acceleration Sensor, Local Key Operation, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Fail over, Image Customization (Booting Logo, No Signal), Content Sync (RS232C, Local Network), PIP/PBP(4), Screen Share, Video Tag(4), Play via URL, OSD Rotation, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 2.0, ISM Mode, Crestron Connected®1), DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting
Tilt (Facedown) Max. 30°
IP Rating IP5x
Environmental Conditions
Operating Temperature Range 32° F to 104° F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Warranty
Warranty 3 Year Limited Warranty

Views:


Front

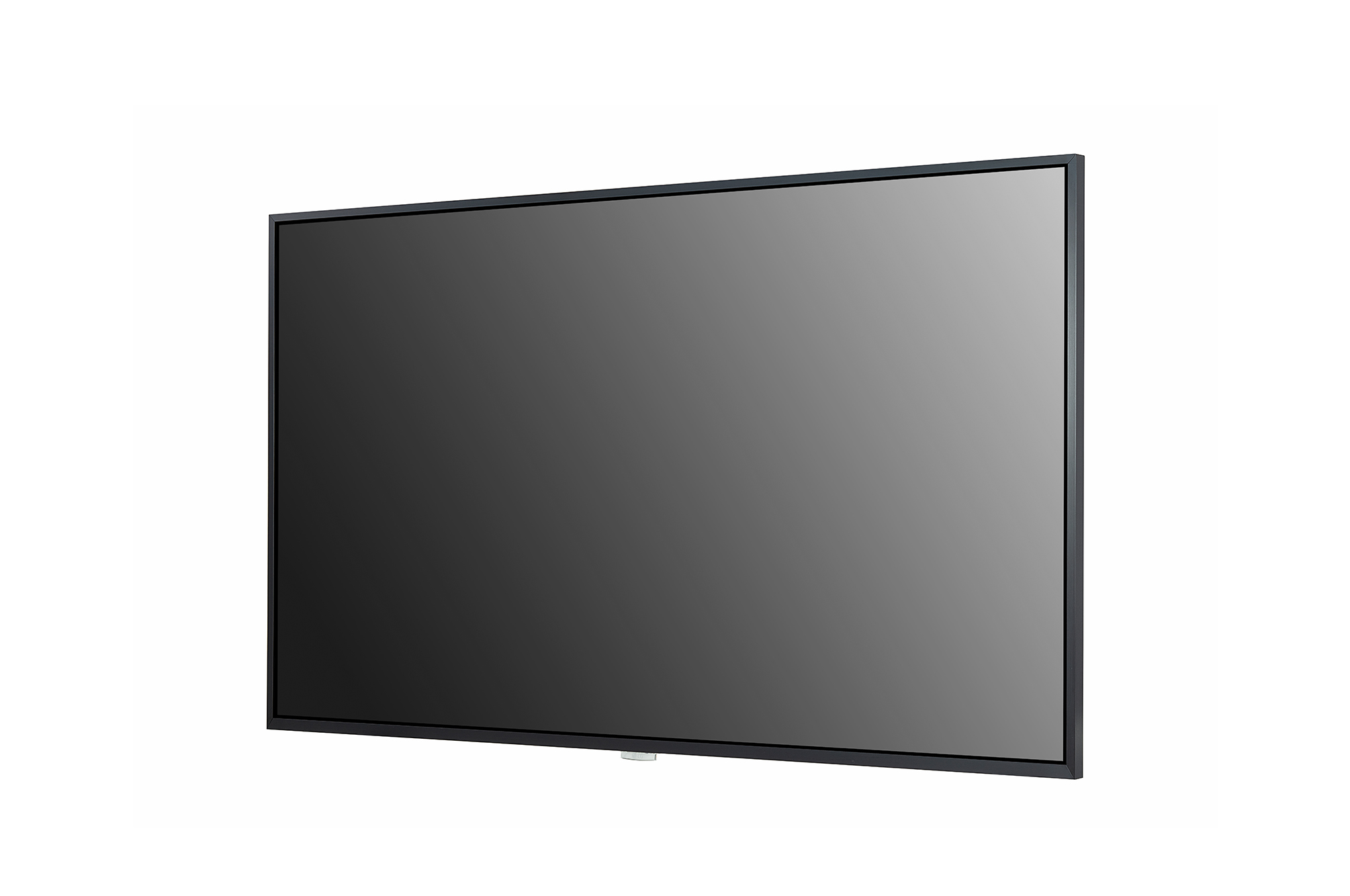

Right Perspective

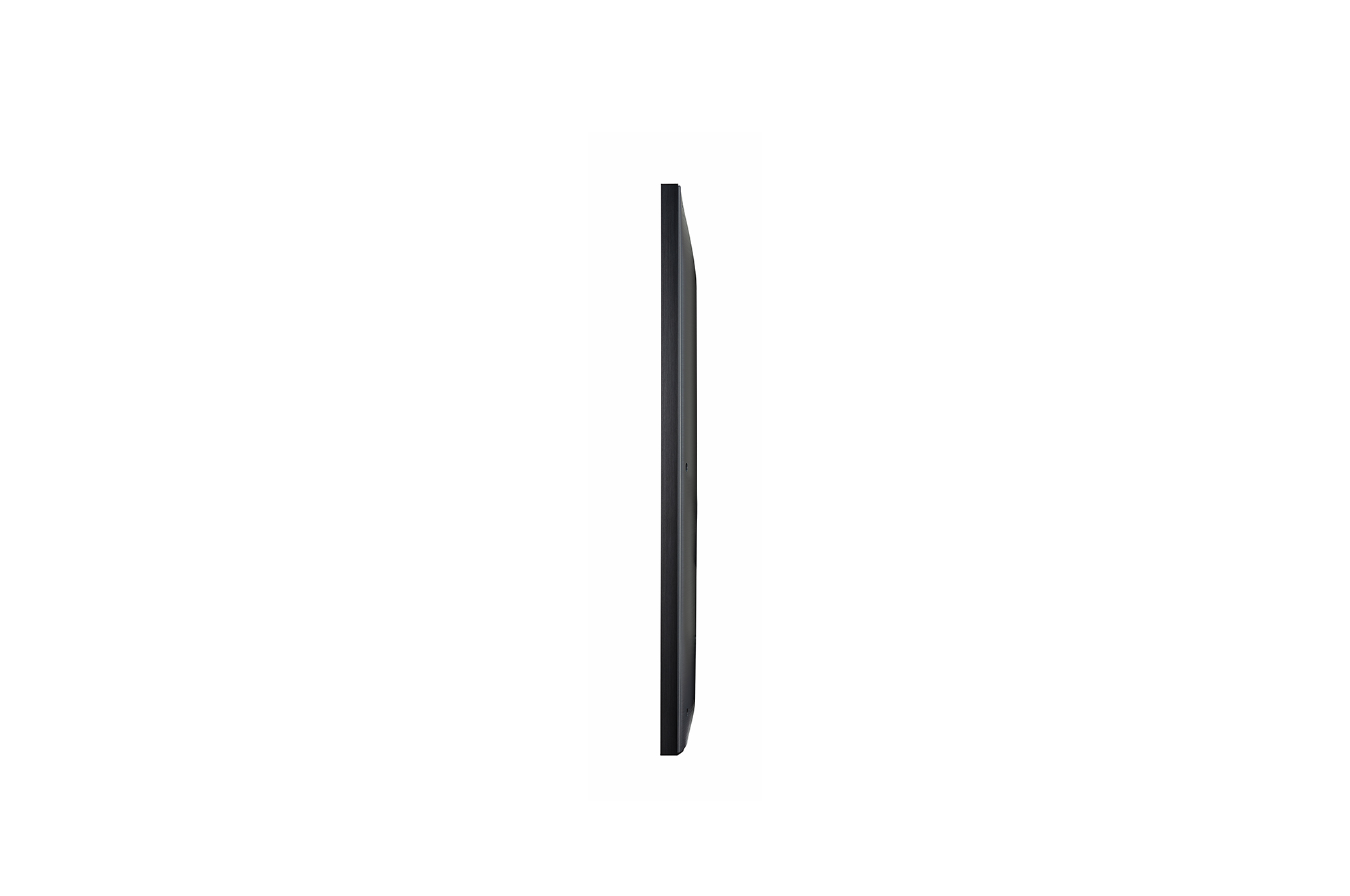

Side Perspective

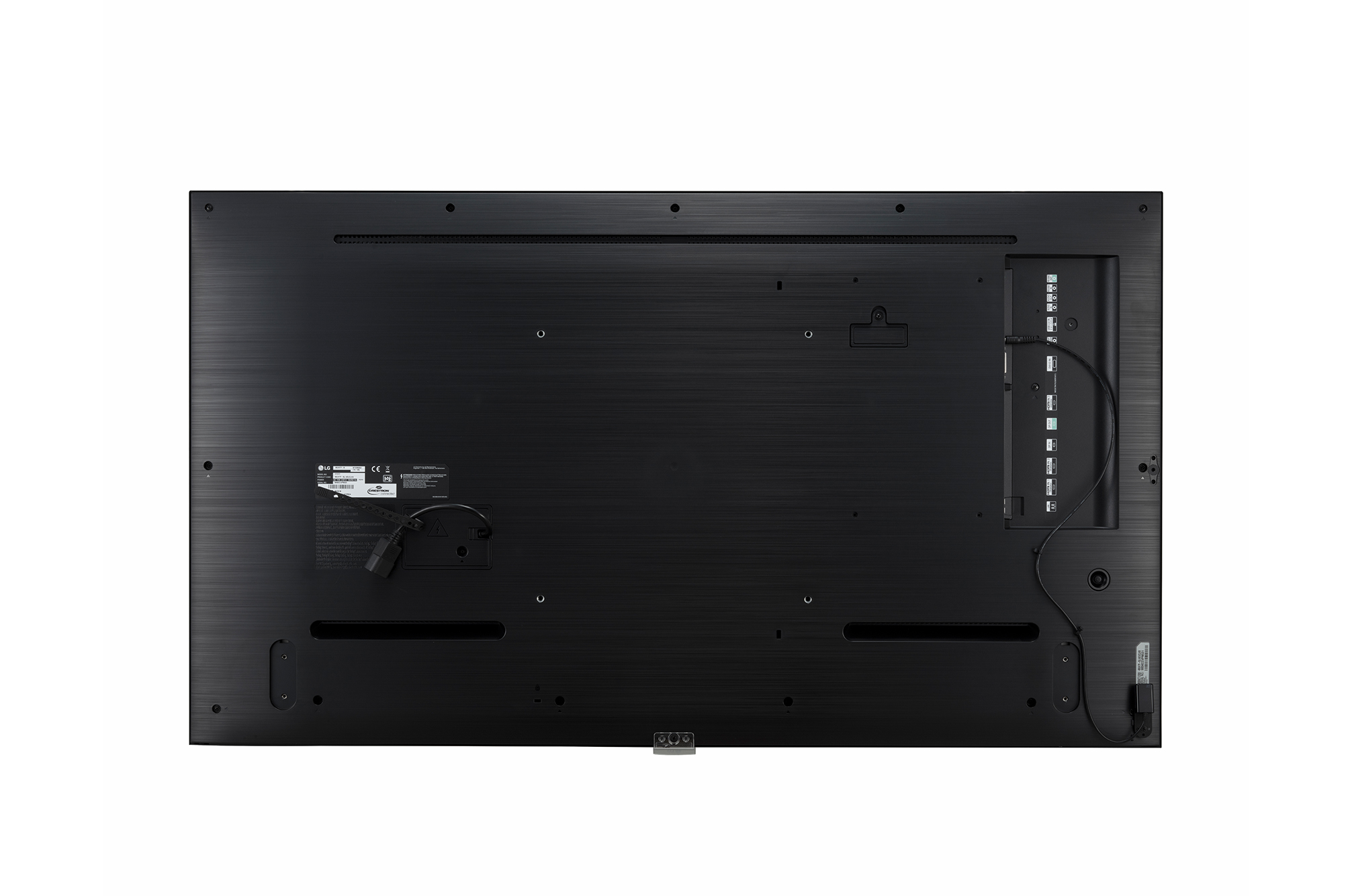

Rear

Documentation:

Download the LG Ultra HD Signage - UH7F-H Series Datasheet (.PDF)
