49" VM5E Series 0.9mm Bezel Video Wall Display TV with SoC & webOS Platform
49" Display, 1920x1080 (FHD), 500 Nit, HDMI, Disply Port, DVI-D, RGB, Black, 3-Year Warranty

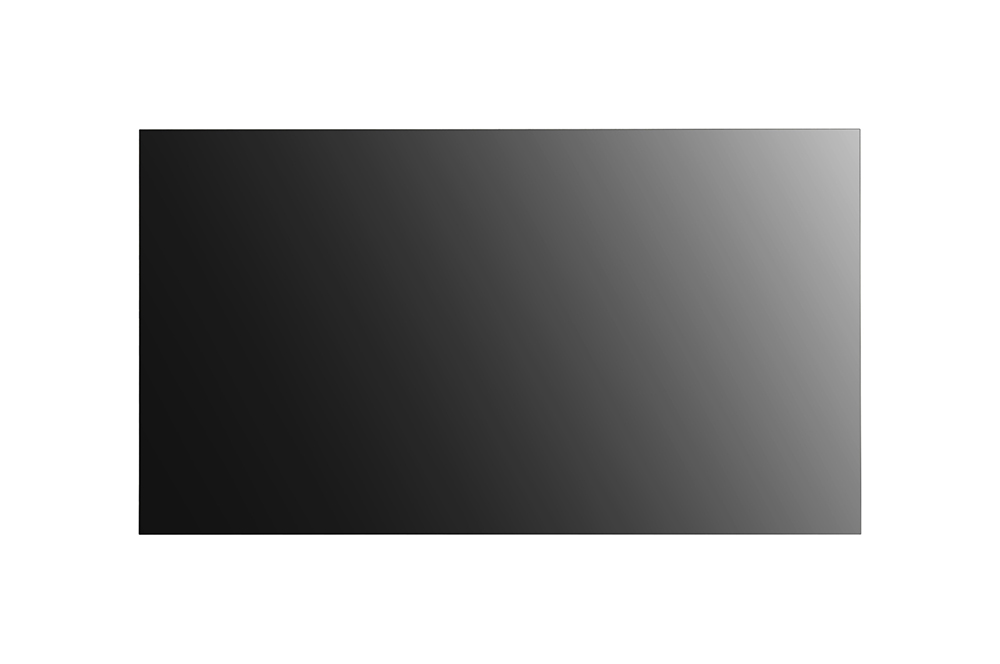

LG 49VM5E 49" 0.9mm Bezel Video Wall Display TV with SoC & webOS Platform
Artistic Immersion, Overwhelming Captivation
The impressive immersion generated by the extremely narrow 0.9 mm bezel becomes even more powerful with a state-of-the-art smart signage platform. Beyond the selfplaying feature, the VM5E series is capable of multitasking that raises brand awareness, drives traffic to your store, and engages customers in brand storytelling, all while providing user convenience with a simplified and more intuitive user interface.
- Size: 49"
- Brightness(Typ.) : 500 cd/m²
- Bezel : 0.9 mm (Even)
- Depth : 86.2 mm
- Interface : Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR
Achieving Incredible Immersion

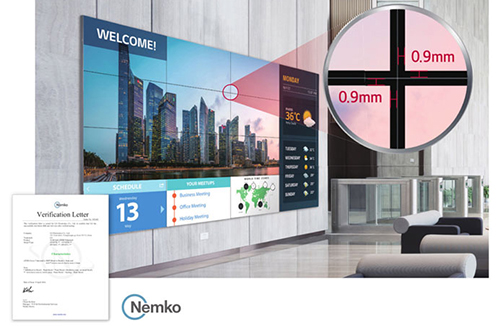

Seamless Large Screens with Extreme-Narrow Bezel
The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.
* The 0.9 mm even panel bezel and 1.8 mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

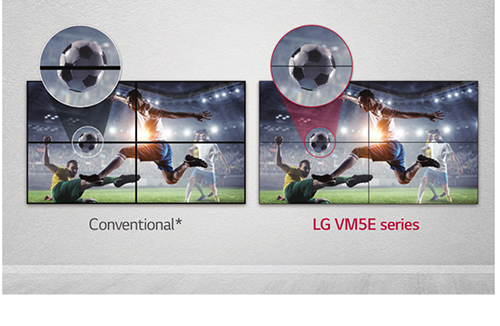

Image Gap Reduction
The 55VM5E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "Conventional" refers to displays which do not include an image improvement algorithm.
Vivid and Dynamic Picture Quality

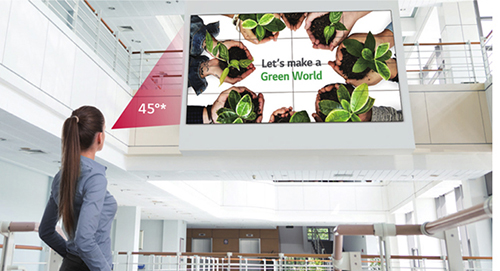

Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VM5E is high enough to display vivid colors throughout the screen with no distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

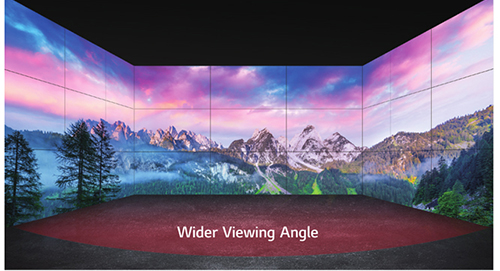

Wider Viewing Angle
It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. With IPS, the VM5E series captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
Powerful Smart Signage Platform

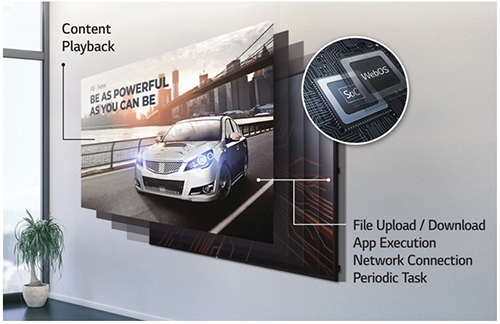

High Performance and Great Scalability
Thanks to its built-in System on Chip (SoC) and webOS smart signage platform, the 55VH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK(Soft Development Kit), it is even easier for system integrators to build and optimize their web apps.
Flexible Content Creation
Several different videos* can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming** is also available, providing the flexibility to organize and diversify content free from capacity limits.
* The current 2 video tags may expand to 4 video tags in the 3Q of 2019.
** Supported protocols: RTSP, RTP, HLS, UDP Multicast
User-Friendly Smart Signage UX

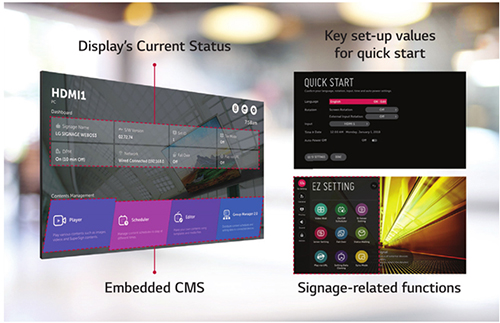

Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

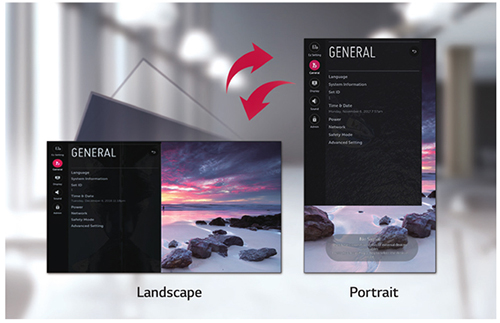

Dedicated GUI for Portrait Orientation
The conventional graphical user interface (GUI) was designed based on landscape-oriented consumer TV usage, so on screen display wasn’t well-suited for screens in portrait mode. The OSD of the 55VH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

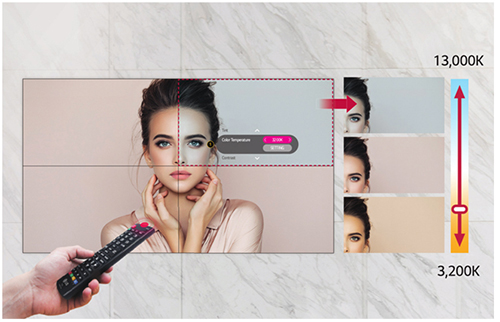

Easy Color Adjustment
Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment
In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55VH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

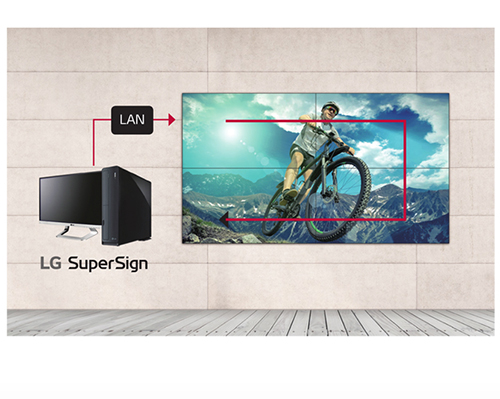

LAN Daisy Chain Management
A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.

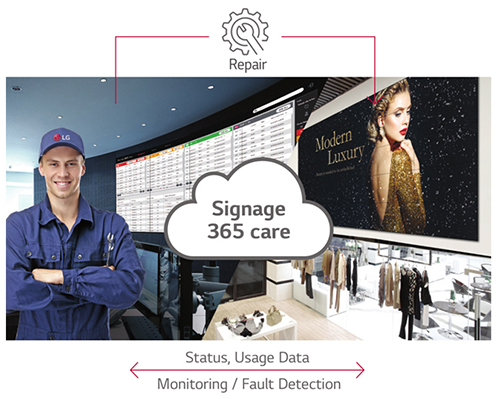

Real-Time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of your business.
* The availability of “Signage 365 Care” service can differ by region, so please contact the LG sales representative in your region for further details.
|Aspect Ratio||16 : 9|
|Native Resolution||1920 x 1080 (FHD)|
|Brightness (Typ.)||500 cd/m2|
|Viewing Angle (H x V)||178 x 178|
|Color Depth||1.07 Billion|
|Response Time||8 ms (G to G)|
|Surface Treatment||Haze 3%|
|Operation Hours||24 Hours|
|Orientation||Portrait & Landscape|
|Input||HDMI (2), DP, DVI-D, Audio, USB 2.0|
|External Control||RS232C In/out, RJ45 (LAN) In/out, IR In|
|Bezel Width||0.9 mm (Even), B to B* 1.8 mm|
|Monitor Dimension (W x H x D)||42.4" x 23.9" x 3.4" / 1,075.7 × 605.8 × 86.2 mm|
|Weight (Head)||38.6 lbs / 17.5 kg|
|Carton Dimensions (W x H x D)||47.8" x 30.5" x 10.4" / 1,214 × 775 × 263 mm|
|Packed Weight||51.1 lbs / 23.2 kg|
|VESA Standard Mount Interface||600 x 400 mm|
|Special Features||Internal Memory 8GB (System 4GB + Available 4GB), Temperature Sensor,
Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select,
Smart Energy Saving, Contents Scheduling (USB, Internal Memory),
USB Cloning, Calibration Mode, Sync Mode, PM Mode, Firmware Update (LAN),
HDMI-CEC**, Wake on LAN, Fail Over, No Signal Image, Embedded Template,
OPS Power Control, Scan Inversion (with Pivot Mode)
|Operating Temperature Range1||0°C to 40°C / 32°F to 104°F|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max||120 W / 140 W|
|Power Consumption - Smart Enegy Saving||70 W|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KC|
|ErP / Energy Star||N/A / Yes (Energy Star 7.0)|
|Media Player Compatibility|
|OPS Type Compatible||Yes (Piggyback)|
|External Media Player Attachable||Yes (MP500/MP700/WP320)|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control/Control+|
|Basic||Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual|
|Optional||Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V)|
|Warranty||3-Year Limited Warranty|
** Compatibility may differ by equipment
Download the LG Video Wall Display TV with SoC & webOS Platform - VM5E Series Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
LG Display Products
Video Wall Display TV
LG 49VM5E 55" 0.9mm Bezel Video Wall Display TV with SoC & webOS Platform
49" Display, 1920x1080 (FHD), 500 Nit, HDMI, Disply Port, DVI-D, RGB, Black, 3-Year Warranty#49VM5E-A
Our Price: $2,395.00
