LG 49XEB3E
49" Outdoor Commercial Signage


LG 49XEB3E

49" Display, 1920 x 1080 (FHD), 3000 nit, HDMI, DP, DVI-D, Audio In, USB 3.0, Black, 3-Year Limited Warranty

LG 49XEB3E-B 49" XEB3E Series Outdoor Commercial Display


Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Outstanding Visiblity with High Reliability

The XE series provides the optimal solution to satisfy the high demand for accurate information. With superior picture quality and excellent durability, this outdoor display delivers eye-catching content to captivate customers even under direct sunlight or extreme changes in the environment.

  • Size: 49"
  • Brightness: 3,000 cd/m2 (Typ.)
  • Life Time: 50,000 hours
  • Operation Temperature: -22°F to 122°F / -30°C to 50°C
  • IP56 Design
  • Interface: HDMI, DP, DVI-D, USB, External Speaker, RS232C, RJ45

Features:

Outstanding Visibility

High Brightness
With a powerful brightness of 3,000 cd/m2 and wide viewing angles, the XE series delivers content clearly and catches the attention of viewers no matter where they are, making it the ultimate display for outdoor visibility.

High Brightness

Visible with Polarized Sunglasses
QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in daylight for better visibility, and it is decreased in darker environments for efficient power management.

Smart Brightness Control

No Blackening
Even under direct sunlight exposure, the open frame XE series remains free from blackening defects in temperatures below 230°F / 110°C, providing superior quality for outdoor usage.

No Blackening


Outdoor Reliability

Secured Protection with IP56 Design
The XE series is sealed with IP56 rated design for reliable operation. It’s designed to be not only water resistant but also resistant against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

Secured Protection with IP56 Design

Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board protects against dust, iron powder, humidity, etc.

Conformal Coating

Electrical Safety
An electrical circuit breaker and surge suppressor are integrated inside ensuring absolute protection from overcurrent short circuits, and unwanted voltages. This helps prevent equipment damage and safety hazards in the future.

Electrical Safety

Protective Glass
Tempered and laminated front glass ensures protection, from outdoor extremities allowing minimal damage from external impacts.

Protective Glass

Wide Range of Operating Temperatures
The panel offers superb reliablity under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

Wide Range of Operating Temperatures

Enhanced Thermal Management
The patented thermal management technology efficiently cools down the heat generated from every part of the product, preventing outside air from entering.

Enhanced Thermal Management


Easy Management

Replaceable Front Glass
In case of outdoor accidents or vandalism, the protective glass of 49XEB3E can be detached from its main body which allows for an instant replacement on site.

Replaceable Front Glass

Web Monitoring
The LG Control Manager is an embedded web monitoring program that allows a variety of parameters to be diagnosed in real time such as temperature, pixel status, door status, ambient light, filter*, and gyro sensors. The LG Control Manager can be easily monitored at all times.

Web Monitoring

Optional Configuration
Optional stand accessories are provided to allowthe panelto stand freely on the ground and facilitate easy cable management. For the 49XEB3E there is an exclusive stand for 1x3 configuration available to meet various business requirements.

Optional Configuration


Specifications:


49XEB3E Specifications
Panel
Screen Size 49” Class (48.50” Diagonal)
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD), M+ (WRGB)
Brightness 3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.)
Viewing Angle (H x V) 178 x 178
Response Time 8 ms (G to G BW, Typ.)
Surface Treatment Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Haze 3% (Typ.)), QWP
QWP Polarizer Yes
Lifetime 50,000 Hours
Operating Hour 24 Hours
Orientation Portrait Only
Connectivity
Input HDMI, DP, DVI-D, Audio In, USB 3.0
Output DP, External Speaker Out
External Control RS232C In/out, RJ45 In
Physical Specification
Front glass 6.8 mm (AR, Tempered & Laminated Glass)
Bezel Color Black
Bezel Width 103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)
Monitor Dimension (W x H x D) 701 x 1,445 x 180.9 mm / 27.6” x 56.9” x 7.1”
Weight (Head) 58.6kg / 129.1 lbs
Monitor with Optional Stand Dimensions (W x H x D) 745 x 1,980 x 321 mm / 29.3” x 78.0” x 12.6”
Weight (Head+Stand) 100kg / 220.4 lbs
Packing Dimensions (W x H x D) 863 x 1,624 x 333 mm / 34.0” x 63.9” x 13.1”
Packed Weight 73.4kg / 161.8 lbs
Special Features
Special Features Temperature Sensor, Auto Brightness Sensor, Pixel Sensor, Cooling FAN, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory 8GB (System 4GB + Available 4GB), USB Cloning, Easy Brightness Control, Wake on LAN, Fail Over, DP Daisy Chain, Control Manager
Environmental Conditions
Operating Temperature -22°F to 122°F / -30°C to 50°C
Operating Humidity 5% to 100%
Dust / Water Proofing IP56
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 270 W / 400 W
Power Consumption - Smart Enegy Saving 145 W
Standard (Certification)
Safety UL / cUL / CB
EMC FCC Class "A" / CE / KCC
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Link
Accessory
Basic Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable
Optional Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:

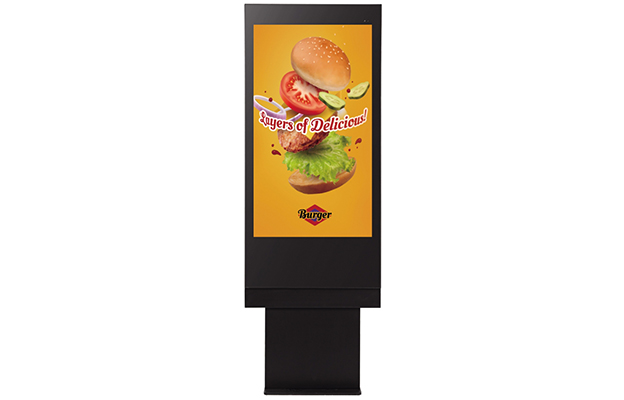

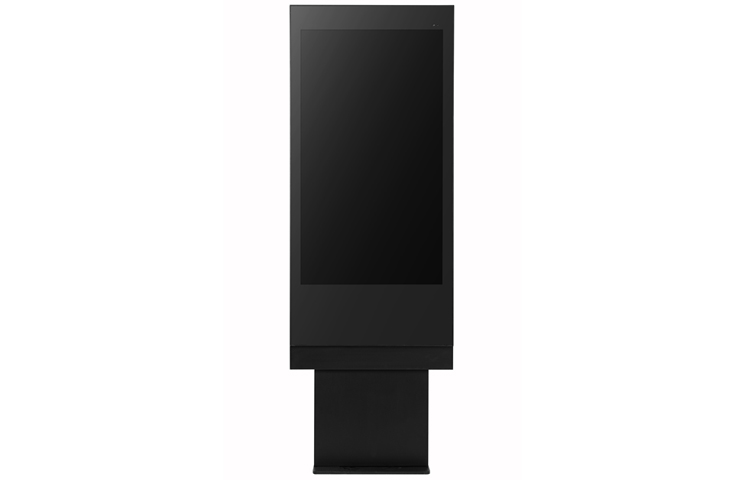

Front

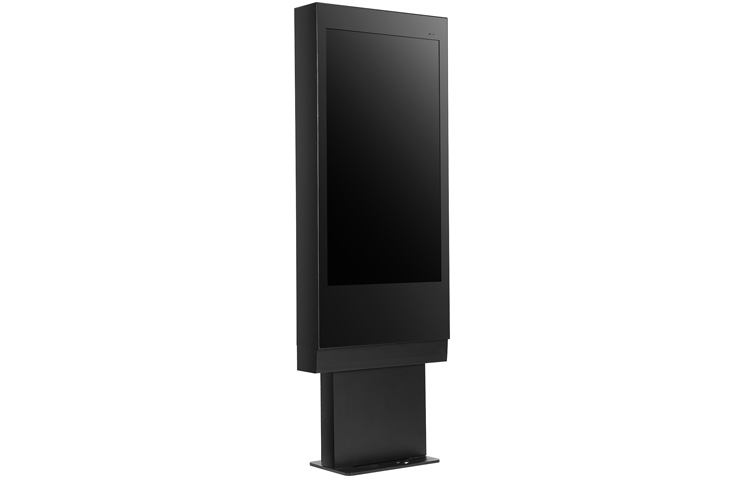

Right Perspective

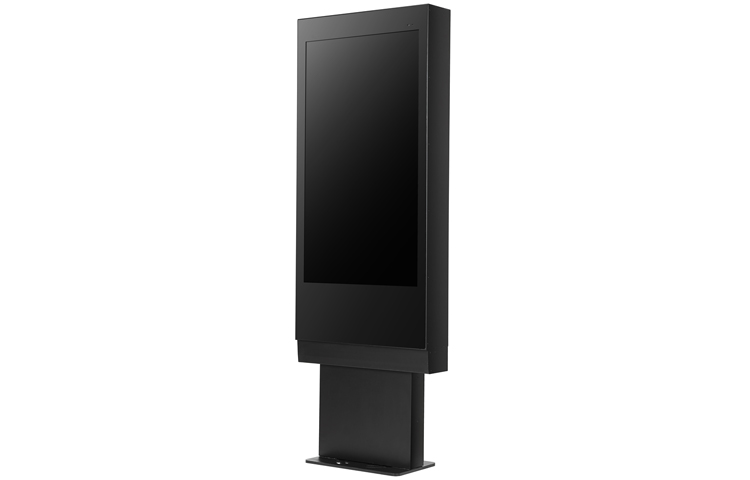

Left Perspective

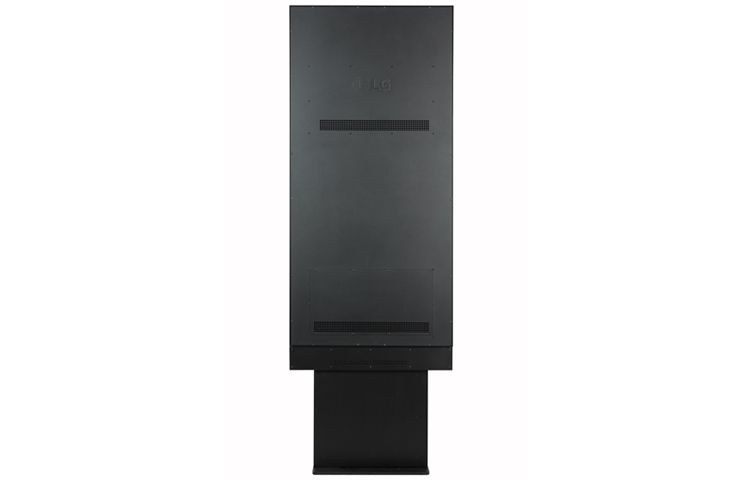

Rear

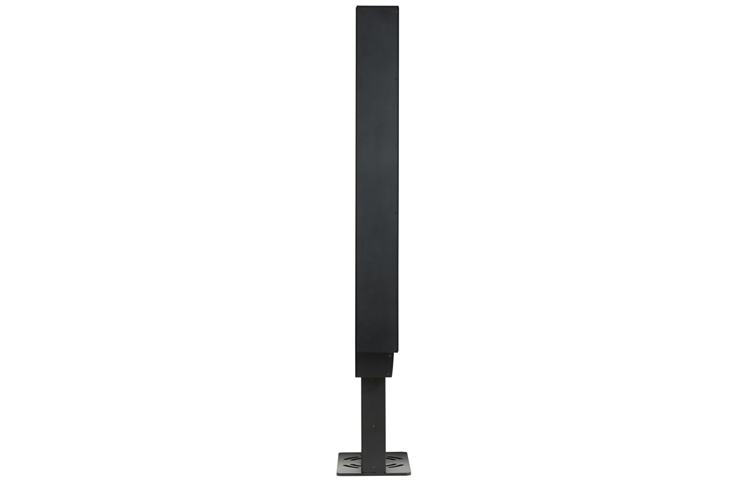

Right Side

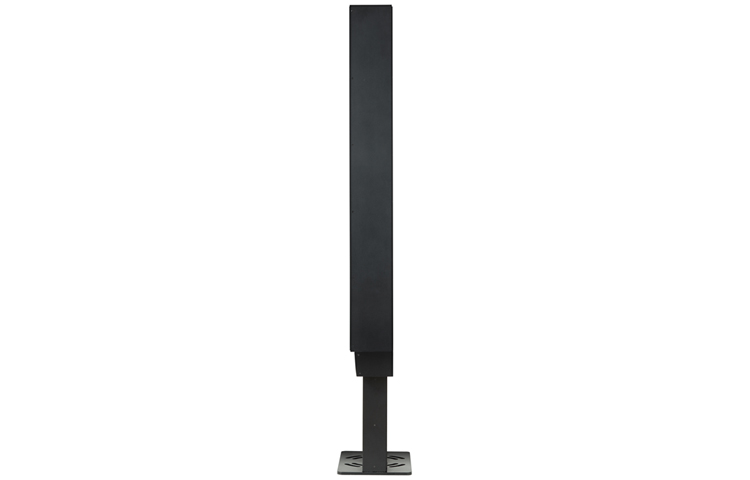

Left Side

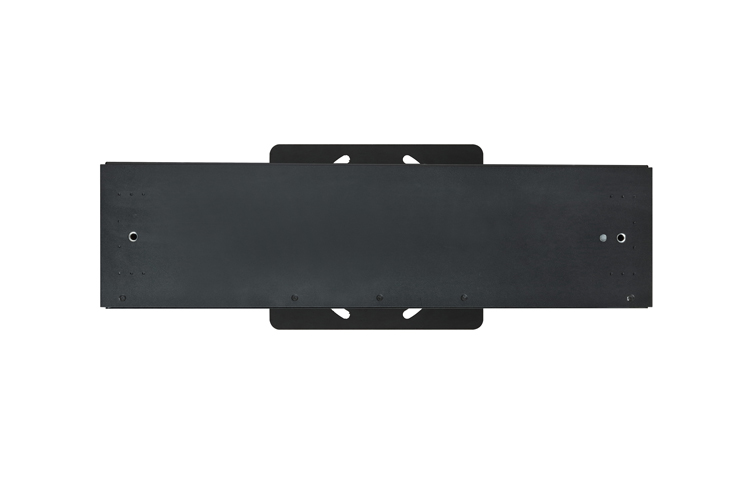

Bottom

Documentation:

Download the LG Outdoor Commercial Signage - XE Series Datasheet (.PDF)
