LG 50UL3J-E
50" webOS UHD Signage

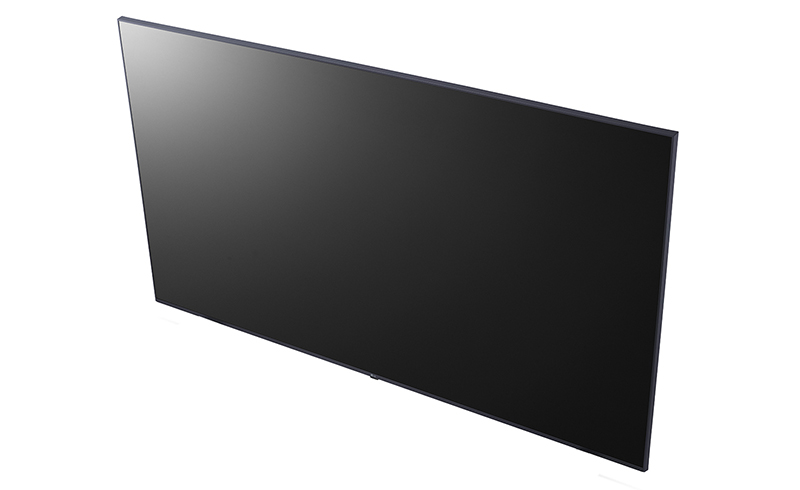

LG 50UL3J-E 50" UHD Digital Signage Display with webOS 6.0 & Built-in Speakers
#50UL3J-E
Our Price: $1,247.00
Call a Specialist Today! 855-958-0757
LG 50UL3J-E
Click here to jump to more pricing!
Overview:
Clear Color Expression of UHD Content
The UL3J-E series is an ultra HD digital display that features webOS 6.0. This high performance EPEAT display is Crestron Connected & Cisco compatible. It is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. With the display's USB dongle button and incorporated Wi-Fi, you can easily share your own PC screen and alter the basic settings - volume, picture mode, auto bright, without using a remote control. Additionally, the Office Meeting Mode allows you to view the agenda and take notes before the meeting begins.
- Size: 50"
- Brightness(Typ.) : 400 nits
- Resolution : ULTRA HD (3,840 x 2,160)
- webOS-based High Performance
- Built-in Speaker
- Compatible with LG's One:Quick Share
- Compatible with AV Control Systems
Features:
LG’s Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.
Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.
Compatible with AV Control Systems
The UL3J series supports Crestron Connected* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.
Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.
Sophisticated Slim Design
This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
* Compared to LG's UL3G series
High Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.**
* SoC : System On Chip
** GUI : Graphical User Interface
Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
* e.g. showing specific promotional information according to weather change to store visitors
** External sensors need to be purchased separately and tested for compatibility with webOS platform.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Easy Content Distribution & SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
EPEAT Registered
The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL3J is EPEAT Bronzecertified display which means that it meets all the required criteria in Computers and Displays category.
LG's Simple Advertisement Helper, Promota
Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
Specifications:
PANEL |
MODEL NAME |
43UL3J-E |
50UL3J-E |
55UL3J-E |
65UL3J-E | 75UL3J-E | 86UL3J-E | |
|---|---|---|---|---|---|---|---|---|
Screen Size |
43" |
50" |
55" |
65" |
75" |
86" |
||
Panel Technology |
IPS |
IPS |
IPS |
IPS |
IPS |
IPS |
||
Native Resolution |
3,840 X 2,160 (UHD) |
3,840 X 2,160 (UHD) |
3,840 X 2,160 (UHD) |
3,840 X 2,160 (UHD) |
3,840 X 2,160 (UHD) |
3,840 X 2,160 (UHD) |
||
Brightness (Typ.) |
300 nit |
400 nit |
400 nit |
400 nit |
330 nit |
330 nit |
||
Contrast Ratio |
1,300:1 |
1,200:1 |
1,300:1 |
1,200:1 |
1,200:1 |
1,200:1 |
||
Dynamic CR |
1,000,000 : 1 |
1,000,000 : 1 |
1,000,000 : 1 |
1,000,000 : 1 |
1,000,000 : 1 |
1,000,000 : 1 |
||
Color gamut |
DCI 80 % |
DCI 80 % |
DCI 80 % |
DCI 80 % |
DCI 80 % |
DCI 80 % |
||
Viewing Angle(H x V) |
178° x 178° |
178° x 178° |
178° x 178° |
178° x 178° |
178° x 178° |
178° x 178° |
||
Color Depth |
10-bit(D), 1.07Billon colors | 10-bit(D), 1.07Billon colors | 10-bit(D), 1.07Billon colors | 1.07Billon colors(8bit + FRC) | 1.07Billon colors(8bit + FRC) | 1.07Billon colors(8bit + FRC) | ||
Response Time |
8ms (G to G) |
12ms (G to G) |
8ms (G to G) |
8ms (G to G) |
8ms (G to G) |
8ms (G to G) |
||
Surface Treatment |
3% |
3% |
3% |
3% |
3% |
3% |
||
| Operation Hours (Hours / Days) | 16 / 7 |
16 / 7 |
16 / 7 |
16 / 7 |
16 / 7 |
16 / 7 |
||
| Portrait / Landscape | Yes / Yes |
Yes / Yes |
Yes / Yes |
Yes / Yes |
Yes / Yes |
Yes / Yes |
||
CONNECTIVITY |
Input |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
|
Output |
Audio |
Audio |
Audio |
Audio |
Audio |
Audio |
||
External Control |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
||
MECHANICAL |
Bezel Color |
Ashed Blue |
Ashed Blue |
Ashed Blue |
Ashed Blue |
Ashed Blue |
Ashed Blue |
|
Bezel Width |
Off : 6.9/6.9/6.9/18.4 |
Off : 7.3/7.3/7.3/18.4 |
Off : 6.9/6.9/6.9/18.4 |
Off : 6.8/6.8/6.8/18.4 |
Off : 7.9/7.9/7.9/18.4 |
Off : 6.9 / 6.9 / 6.9 / 18.4 mm |
||
Weight (Head) |
8.8 kg |
11.7 kg |
14.0 kg |
12.5 kg |
31.4 kg |
45.2 kg |
||
Monitor Dimensions (W × H × D) |
967 x 564 x 57.1 mm |
1,121 x 651 x 57.1 mm |
1,235 x 715 x 57.5 mm |
1,454 x 838 x 57.7 mm |
1,678 x 964 x 59.9 mm |
1927 x 1104 x 59.9 mm |
||
Carton Dimensions (W × H × D) |
1,055 x 660 x 142 mm (Box outer size) |
1,215 x 775 x 152 mm (Box outer size) |
1,360 x 810 x 162 mm (Box outer size) |
1,600 x 970 x 172 mm (Box outer size) |
1,820 x 1,115 x 200 mm (Box outer size) |
2115 x 1215 x 228 mm (Box outer size) |
||
Handle |
No |
No |
No |
No |
No |
No |
||
VESA Standard Mount Interface |
200 × 200 mm |
200 × 200 mm |
300 × 300 mm |
300 × 300 mm |
400 ×400 mm |
600 ×400 mm |
||
ENVIRONMENT CONDITIONS |
Operation Temperature |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
|
Operation Humidity |
10 % to 80 % |
10 % to 80 % |
10 % to 80 % |
10 % to 80 % |
10 % to 80 % |
10 % to 80 % |
||
POWER |
Power Supply |
AC 100-240V~, 50/60Hz |
AC 100-240V~, 50/60Hz |
AC 100-240V~, 50/60Hz |
AC 100-240V~, 50/60Hz |
AC 100-240V~, 50/60Hz |
AC 100-240V~, 50/60Hz |
|
Power Type |
Built-In Power |
Built-In Power |
Built-In Power |
Built-In Power |
Built-In Power |
Built-In Power |
||
POWER CONSUMPTION |
Typ./Max. |
80W / 120W |
105W / 150W |
105 W / 160 W |
130 W / 187 W |
155 W / 220 W |
220 W / 300 W |
|
BTU (British Thermal Unit) |
273 BTU/Hr(Typ.), 409 BTU/Hr(Max.) |
358 BTU/Hr(Typ.), 512 BTU/Hr(Max.) |
358.274BTU/Hr(Typ.), 545.943BTU/Hr(Max.) |
443.578BTU/Hr(Typ.), 638.071BTU/Hr(Max.) |
528.882BTU/Hr(Typ.), 750.671BTU/Hr(Max.) |
751BTU/Hr(Typ.), 1024BTU/Hr(Max.) |
||
POWER CONSUMPTION |
Safety |
CB / NRTL |
CB / NRTL |
CB / NRTL |
CB / NRTL |
CB / NRTL |
CB / NRTL |
|
EMC |
FCC Class "A" / CE |
FCC Class "A" / CE |
FCC Class "A" / CE |
FCC Class "A" / CE |
FCC Class "A" / CE |
FCC Class "A" / CE |
||
ErP |
Yes (NewErP) |
Yes (NewErP) |
Yes (NewErP) |
Yes (NewErP) |
Yes (NewErP) |
Yes (NewErP) |
||
SOFTWARE COMPATIBILITY |
SuperSign CMS |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
SuperSign Control / Control+ |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||
SuperSign WB |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||
SuperSign Media Editor |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||
LG ConnectedCare |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
||
Promota |
Yes (Not available for EU/CIS) |
Yes (Not available for EU/CIS) |
Yes (Not available for EU/CIS) |
Yes (Not available for EU/CIS) |
Yes (Not available for EU/CIS) |
Yes (Not available for EU/CIS) |
||
SOUND |
Speaker |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
SOUND |
Basic |
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
||||||
Views:
Documentation:
Download the LG webOS UHD Signage - UL3J-E Series Datasheet (.PDF)
