LG 55EG5CE
55" In-Glass Wallpaper OLED Signage Display

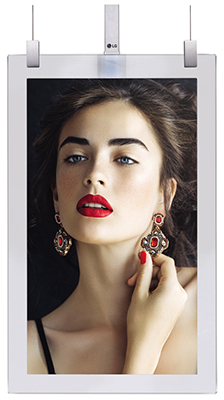

LG 55EG5CE 55" In-Glass Wallpaper OLED Signage Display - Ceiling
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Artistic Space beyond Display LG OLED Signage
This is an innovative display option in which OLED panels are fixed between two layers of tempered glass, one at the front and one at the back. As the surrounding structure is transparent, the display gives the impression that the signage is floating in the air and that the projection is coming directly from the glass pane.
- Size: 55"
- Brightness(Typ.): 400 cd/m² (APL 25%)
- Depth: 13 mm (Head)
- Interface: HDMI/ DP/ USB(2)/ RS232C/ RJ45/ Audio / IR
- Wallpaper OLED in glass design
Features:
Unrivaled Picture Quality
Perfect Black - Limitless contrast and the deepest blacks
Self-lighting pixels switch off completely to reproduce absolutes blacks with no light bleed, offering infinite contrast.

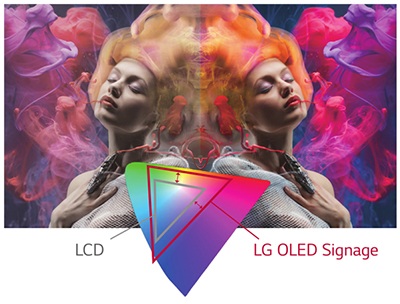

Perfect Color - Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.
Perfect Viewing Screen
Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.
Ultimate Elegance of Design
Perfect Design

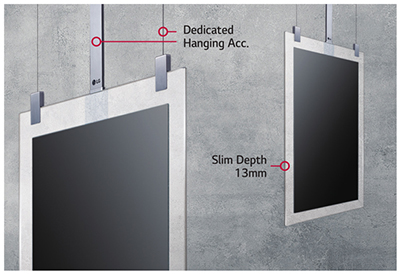

With its unbelievably slim display, LG’s OLED technology unlocks a new world of design flexibility. A dedicated hanging accessory supports the display, making it look like it is floating in the air and giving a supernatural effect.
Perfect Design
OLED in Glass Design

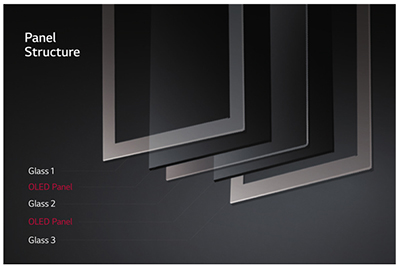

Consisting of slim glass panes and OLED panels, the wallpaper OLED signage in glass provides viewers with the impression that content is being projected directly from the glass itself.
Extraordinary Viewing Experience
Two Displays for Multiple Use
Wallpaper OLED signage in glass is a double-sided display which provides a two-way media experience while requiring less space thanks to its innovative slim and hanging design. It is an excellent way to partition space while communicating your message using both sides of the panel.
Specifications:
| 55EG5CE Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" |
| Panel Technology | OLED |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 400/150 cd/m2 (Average Picture Level 25%/100%) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 1 ms (G to G), 8 ms (MPRT) |
| Surface Treatment (Haze) | Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Reflectance Typ. 1.2%) |
| Life time (Typ.) | 30,000 Hrs |
| Operating Hour | 18 hrs/7 days (Moving video only) |
| Orientation | Landscape & Portrait |
| Connectivity | |
| Input | HDMI, DP, USB (2) |
| Output | DP, Audio |
| External Control | RS232C In/Out, RJ45 (LAN) In/Out, IR In |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 104.4 / 83.7 / 83.7 / 84.4 mm (T/B/L/R) * Off-bezel, w/ Glass 108.3 / 87.6 / 93.3 / 88.3 mm (T/B/L/R) * On-bezel, w/ Glass 3.5 / 3.5 / 3.5 / 6.9 mm (T/B/L/R) * On-bezel, w/o Glass |
| Monitor Dimension (W x H x D) | (Head) 861.3 x 1,406.2 x 13 mm * w/o Hanging Acc. (Signage Box) 413 x 353 x 57.3 mm |
| Weight (Head) | (Head) 28.5 kg (Signage Box) 3.5 kg |
| Carton Dimensions (W x H x D) | 1,880 x 1,015 x 363 mm (Pallet : 1,800 x 363 x 120 mm) |
| Packed Weight | 64.0 kg (incl. Glass Module 1ea, Signage Box 2ea) |
| Special Features | |
| Special Features | Internal Memory (64GB), Temperature Sensor, Embedded CMS, Fail Over, Content Sync., OSD Rotation, Lock Mode, Content Rotation, Gapless Playback, Tile Mode Setting, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, Control Manager, Crestron ConnectedⓇ1), DPM, PM Mode, Wake on LAN, HDMI-CEC2), SI Server Setting |
| Environmental Conditions | |
| Operating Temperature Range | 0°C to 40°C |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 309 W *8 color bar |
| Power Consumption - Max. | 318 W *8 color bar |
| Standard (Certification) | |
| Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
| EMC | FCC Class "A" / CE / KC |
| ErP / Energy Star | Yes / No |
| Media Player Compatibility | |
| OPS Type Compatible | No |
| External Media Player Attachable | Yes |
| Software Compatibility | |
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign Control/Control+ |
| Accessory | |
| Basic | Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG In-glass Wallpaper OLED Signage - 55EG5CE Datasheet (.PDF)
