LG 55EH5C
55" Dual-View Flat OLED Signage Display

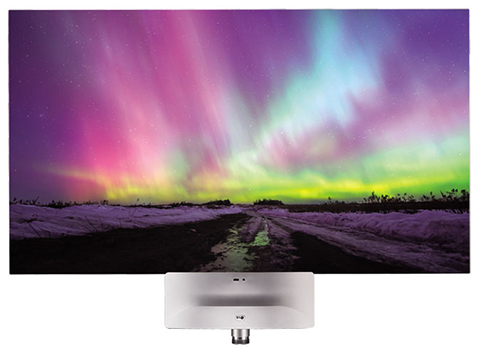

LG 55EH5C 55" Dual-View Flat OLED Signage Display
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Moving Beyond Limits
With cutting-edge OLED technology, LG Electronics introduces an innovative Dual-view Flat OLED Signage that has perfect picture quality and revolutionary pencil-thin design, adding artistic value to its display functionality.
- Size: 55"
- Brightness(Typ.): 400 cd/m² (APL 25%) *Average Picture Level
- Bezel: 2, 2, 2, 2 mm (U, B, L, R *Off-bezel)
- Depth: 7.94 mm
- Interface: HDMI, DP, DVI, RS232C, RJ45, IR In, USB, Audio
- SuperSign W / Lite / C / N
Features:
Perfect Black
Limitless contrast and deepest black
Self-lighting pixels switch off completely to reproduce black. No light bleed. Absolute black offers infinite contrast.

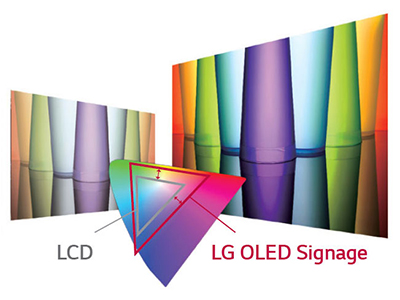

Amazing color
Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.
Perfect Viewing Screen
Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.
Crisp, Clear Motion
Faster response time
LG OLED Signage provides a 5,000-times faster motion-picture response time, for perfectly clear images without blurring.

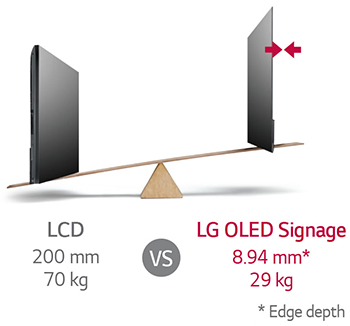

Perfect Design
Slim and light
With just two layers, the LG OLED Signage display is unbelievably lightweight and thin.
Two Displays for Multi-Use
Two-way media experience and space saving thanks to innovative slim depth.

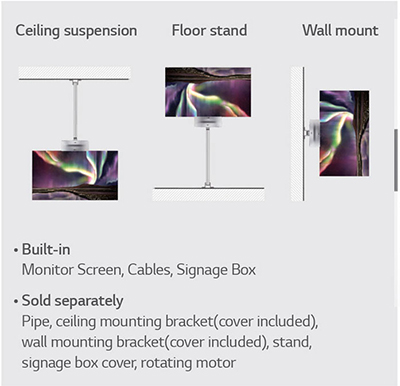

Three Types of Installation
Dedicated accessories available for ceiling, stand and wall mount.

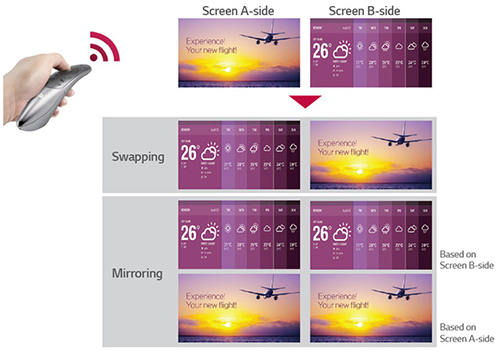

Dual Screen Mode (Swapping/Mirroring)
Dual-view screens are controlled with remote control. Swapping and mirroring of content are possible by just pressing a button.
Specifications:
| 55EH5C Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" (54.64" diagonal) |
| Panel Technology | OLED |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 100/400 cd/m2 (APL 100% / 25%) * Average picture level |
| Contrast Ratio | 100,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 1 ms (G to G), 8 ms (MPRT) |
| Surface Treatment | Hard coating (2H), Anti-reflection treatment of the front polarizer (Reflectance Typ.1.0%) |
| Life time (Min.) | 20,000 hours |
| Guaranteed Operating Hour | 18 hrs/7 days (Moving video only) |
| Orientation | Landscape & Portrait |
| Connectivity | |
| Input | HDMI (1+1), DP (1+1), DVI-D (1+1) |
| Output | Audio (1+1) |
| External Control | RS232C (1+1), RJ45 (1+1), IR Receiver, USB 2.0 (2), USB 3.0 (2) |
| Physical Specification | |
| Bezel Color | Silver |
| Bezel Width | 2, 2, 2, 2 mm (U, B, L, R *Off-bezel) |
| Monitor Dimension (W x H x D) | Head : 48.3" x 27.7" x 0.3" (Edge depth : 0.36") Signage Box : 18.5" x 15.9" x 3" |
| Weight (Head) | Head : 46.3 lbs / Signage Box : 17.6 lbs |
| Carton Dimensions (W x H x D) | 53" x 38.9" x 10.6" (Inner) |
| Packed Weight | 80.5 lbs |
| Special Features | |
| Special Features | Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Motion Eyecare, Power Indicatior On/Off, File Play with USB, Internal Memory (8 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local time auto setting, Fail over, Mirroring, SoftAP, BEACON |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 375 W |
| Power Consumption - Smart Enegy Saving | 3 W |
| Power Consumption - Power off | 0.5 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | Yes / NA |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes |
| Software Compatibility | |
| SuperSign W-Lite | SuperSign Premium |
| SuperSign C | SuperSign Link |
| Accessory | |
| Basic | Remote Controller (included 2ea batteries), Power Cord, QSG, Mini HDMI Cable (3M x 2ea, for connection between head and signage box), Power Hanness Cable (3M x 2ea, for connection between head and signage box), Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket |
| Optional | OPS Kit (KT-OPSA), Fixed Ceiling Mount Kit (ACC-CF-EH5C), Rotational Ceiling Mount Kit (ACC-CR-EH5C), Wall Mount Kit (ACC-W-EH5C), Stand Kit 1 (ACC-S-EH5C), Stand Kit 2 (ACC-S1-EH5C), Signage Box Cover (ACC-C-EH5C) |
| Other | |
| UPC | 7 19192 60623 4 |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:

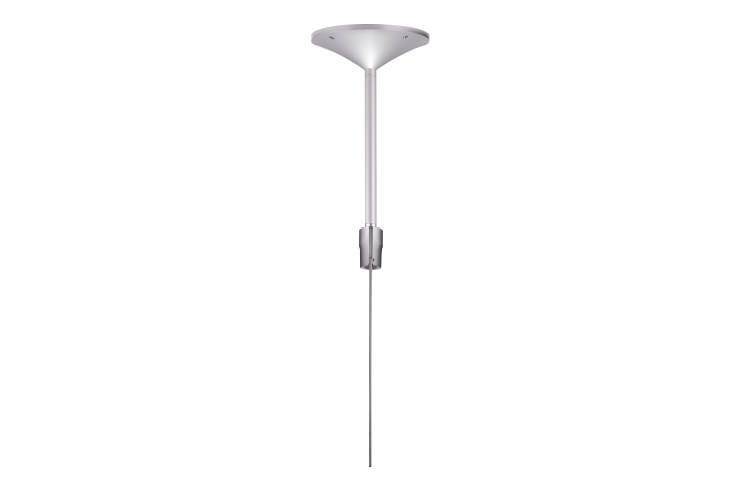

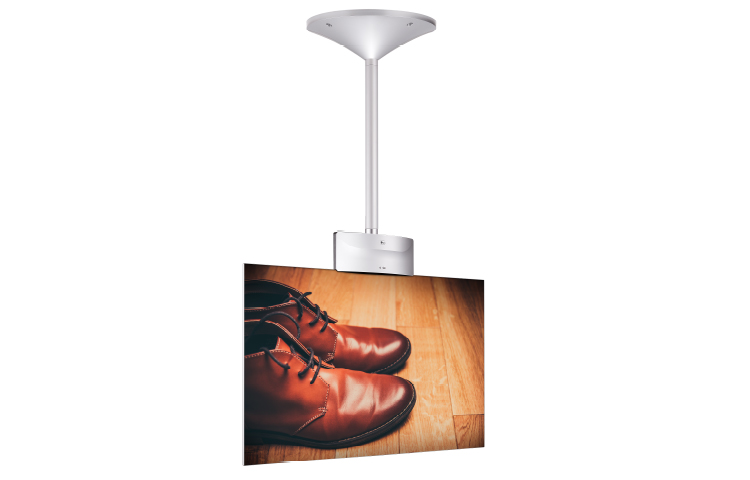

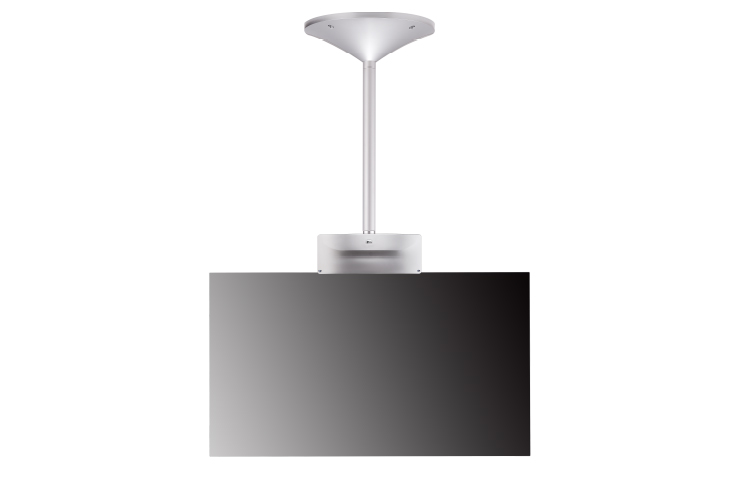

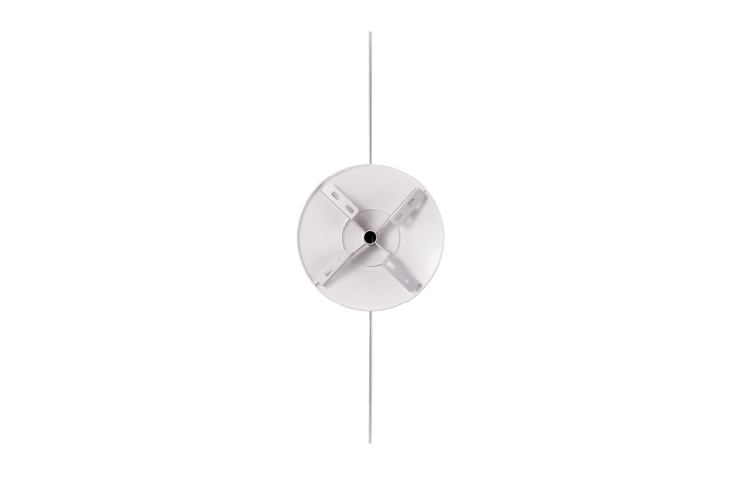

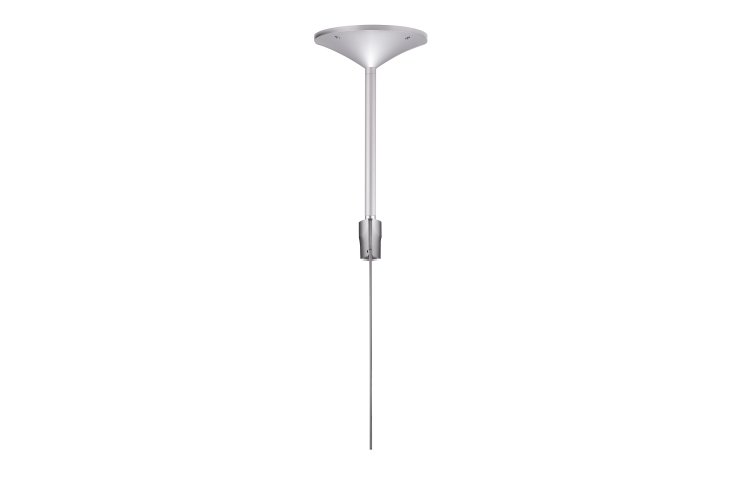

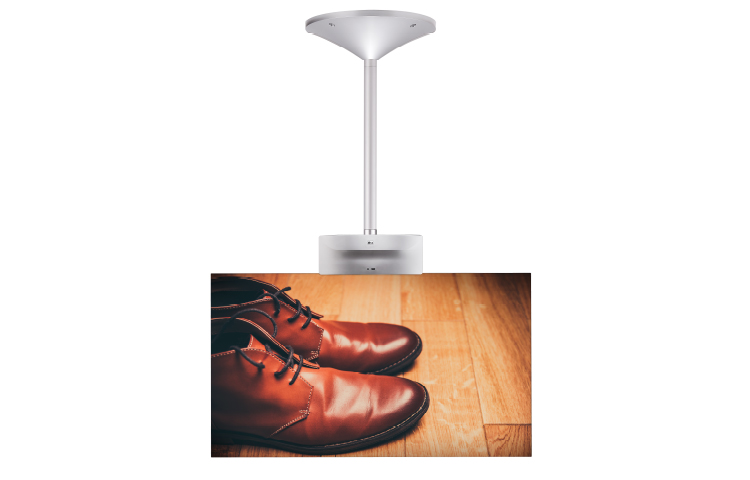

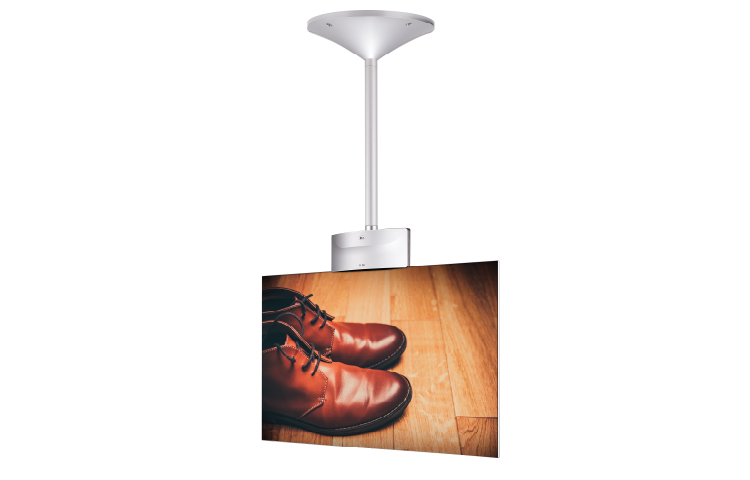

Ceiling Mount

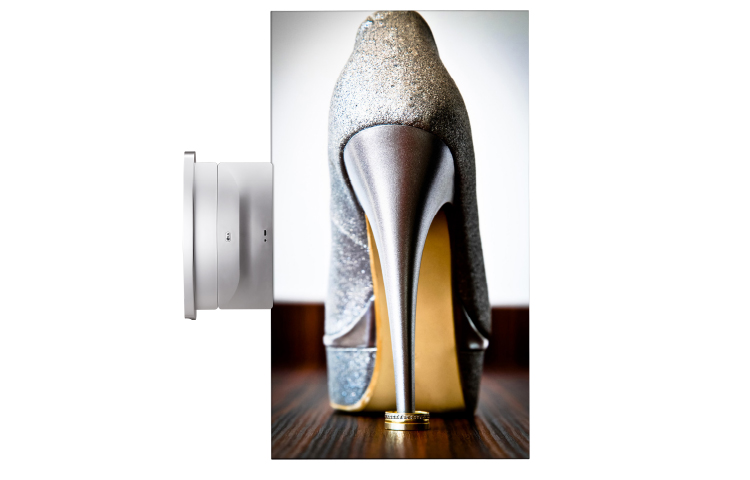

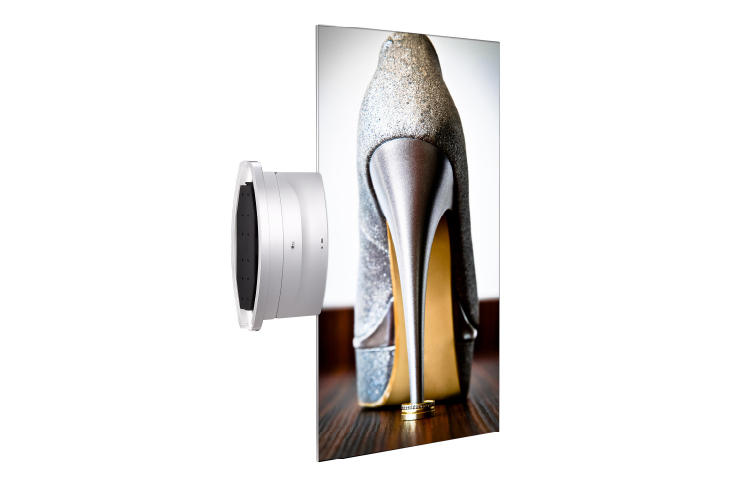

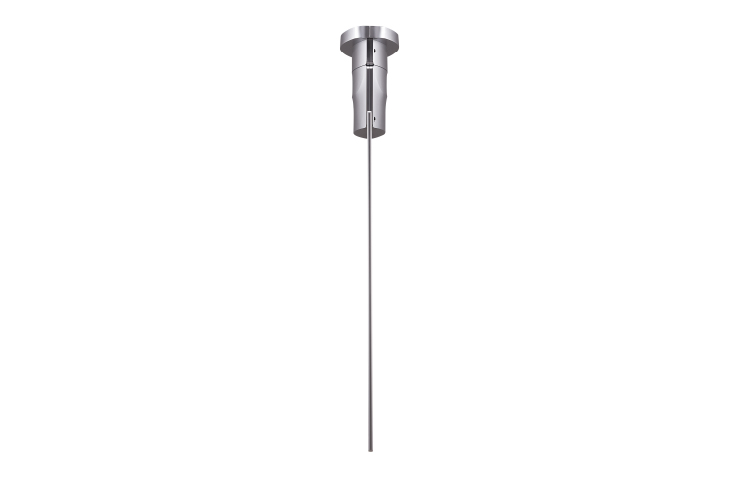

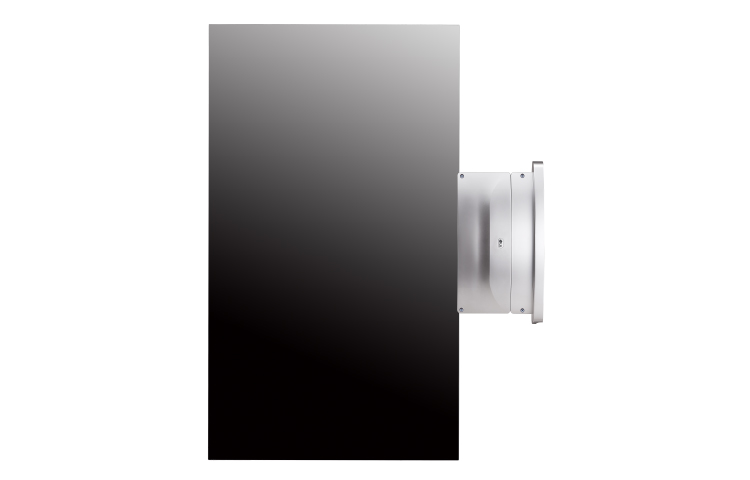

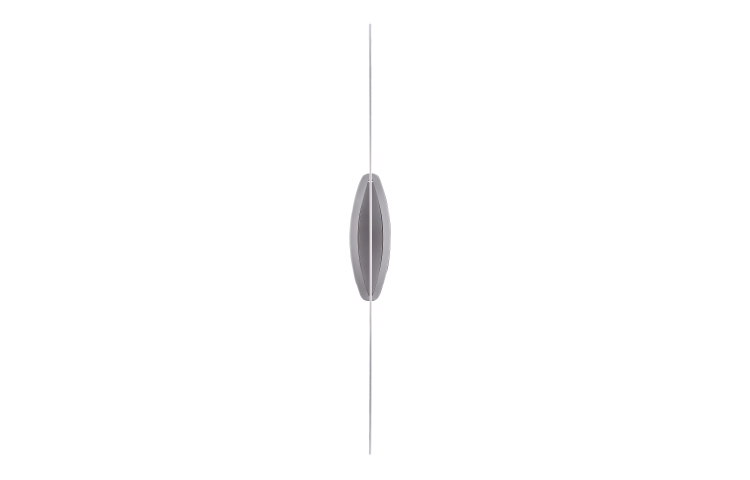

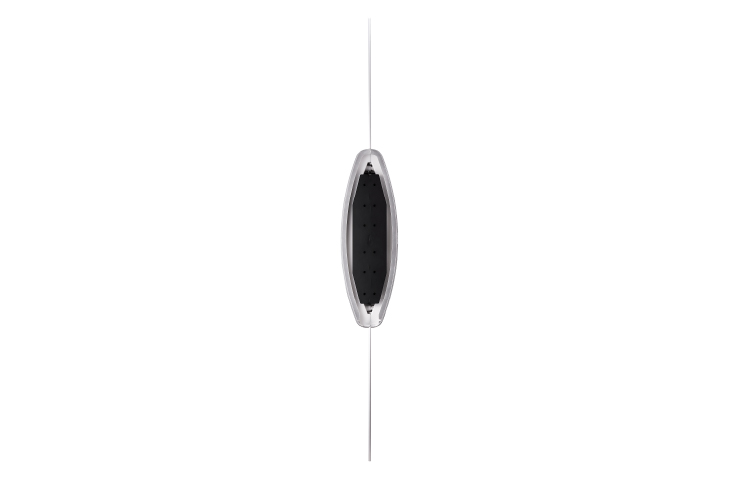

Wall Mount
Documentation:
Download the LG Dual-View Flat OLED Signage - 55EH5C Datasheet (.PDF)
