LG 55SVM5F
55" SVH7F Series 0.44mm Even Bezel with Clear and Flawless Vision


LG 55SVM5F

LG 55SVM5F 55" 0.44mm Even Bezel FHD IPS Video Wall

55" LCD, 1920x1080 (FHD), LED, 700 Nit, 1080p, HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0, Black, 3-Year Warranty

#55SVM5F-H
Our Price: $4,760.00


Click here to jump to more pricing!

Overview:

0.44mm Even Bezel Video Wall

Making use of LG’s pioneering display technology, the 0.44 mm Even-Bezel Video Wall provides the perfection of a truly seamless view along with vivid color representation throughout the assembled large screen. Minimizing bezel visibility unlocks great opportunities in various markets, even in places that previously had avoided video walls due to the visible bezels.

  • Size: 55"
  • Brightness(Typ.) : 700 cd/m²
  • Bezel : 0.44 mm (Even)
  • Depth : 86.5 mm
  • Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
  • Smart Calibration

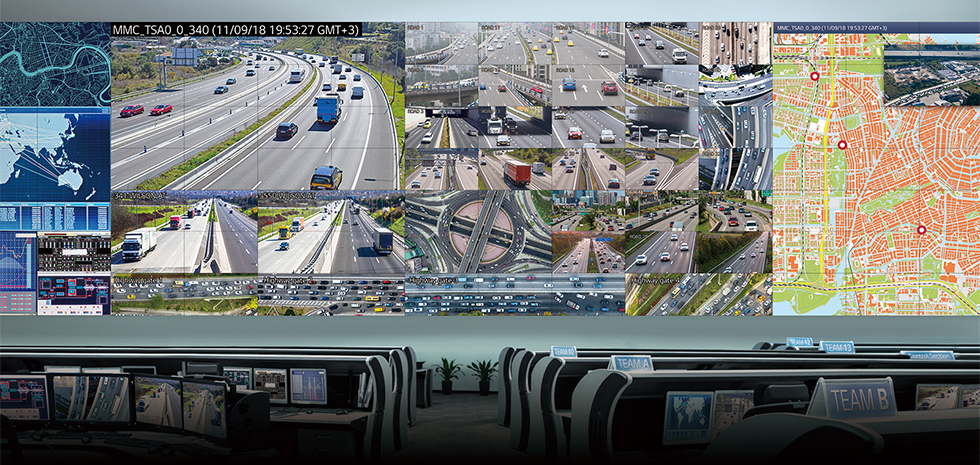

Zero. Video Wall.

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the 55SVM5F-H will provide an even more immersive experience to viewers.

Groundbreaking 0.44mm Even Bezel

Features:

Vivid and Dynamic Picture Quality


Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVM5F-H is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

Higher Viewing Angle

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVM5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Wider Viewing Angle

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the 55SVM5F has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Uniform Color Expression

Image Gap Reduction

The 55SVM5F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Image Gap Reduction


Smart Calibration

Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays.

Smart Calibration

Powerful Smart Signage Platform


High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVM5F can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Soft Development Kit), it is even easier for SIs to build and optimize.

High Performance and Great Scalability

Flexible Content Creation

Several different videos* can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming** is also available, providing the flexibility to organize and diversify content free from capacity limits.

Flexible Content Creation


User-Friendly Smart Signage UX


Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

Intuitive Menu Structure

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVM5F, however, consists of a long range menu with bigger font sizes and a 9:16 ratio.

Dedicated GUI for Portrait Orientation


User Convenience


Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Easy Color Adjustment

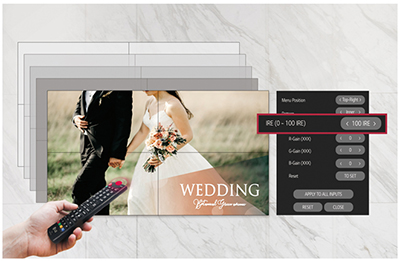

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVM5F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Simple White Balance Adjustment

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.


LAN Daisy Chain Management

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Real-Time Care Service


Specifications:


55SVM5F-H Specifications

Panel

Screen Size

55"

Panel Technology

IPS

Native Resolution

1,920 × 1,080 (FHD)

Brightness (Typ.)

500 nit

Contrast Ratio

1,100 : 1

Dynamic CR1)

500,000 : 1

Color Gamut

NTSC 72 %

Viewing Angle (H × V)

178 × 178

Color Depth

1.07 Billion Colors (10 bit)

Response Time

8 ms (G to G)

Surface Treatment

Haze 28 %

Operation Hours (Hours / Day)

24 / 7

Portrait & Landscape

Yes / Yes



Connectivity

Input

HDMI (2), DP, DVI-D, Audio, USB 2.0 Type A

Output

DP, Audio

External Control

RS232C In / Out, RJ45 (LAN) In / Out, IR In





Mechanical Specification

Bezel Color

Black

Bezel Width

0.44 mm (Even Bezel)

Monitor Dimension (W × H × D)

1,210.51 × 681.22 × 86.5 mm

Weight (Head)

16.8 kg

Handle

Yes

VESATM Standard Mount Interface

600 × 400 mm







Key Feature

Internal Memory (8 GB), Temperature Sensor, Current Sensor, BLU Sensor, Local Key Operation, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over,

Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (2), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15),

Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®2), Smart Energy Saving, PM Mode, Wake on LAN, HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom,

W/B Setting by Grey Scale, Scan Inversion

Environmental Conditions

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %





Power

Power Supply

AC 100 - 240 V ~, 50 / 60 Hz

Power Type

Built-In Power



Power Consumption

Typ. / Max.

200 W / 250 W

BTU

(British Thermal Unit)

682 BTU / Hr (Typ.), 853 BTU / Hr (Max.)



Certification

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC

ErP

Yes (EU Only)

Media player Compatibility

OPS Type Compatible

Yes (Piggyback)

Software Compatibility



SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Signage365Care4)



Accessories

Basic

Remote Controller, Power Cord, RS232C Cable,

LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)

Special Feature

Smart Calibration

Yes

Views:


Front

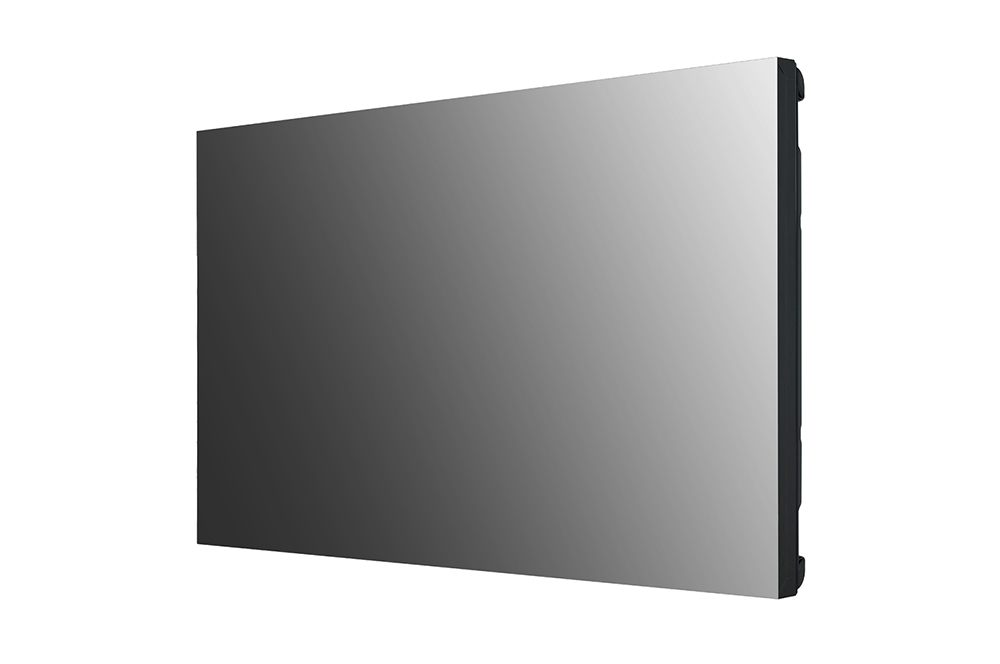

Left Perspective
Front
Left Perspective

Right Perspective

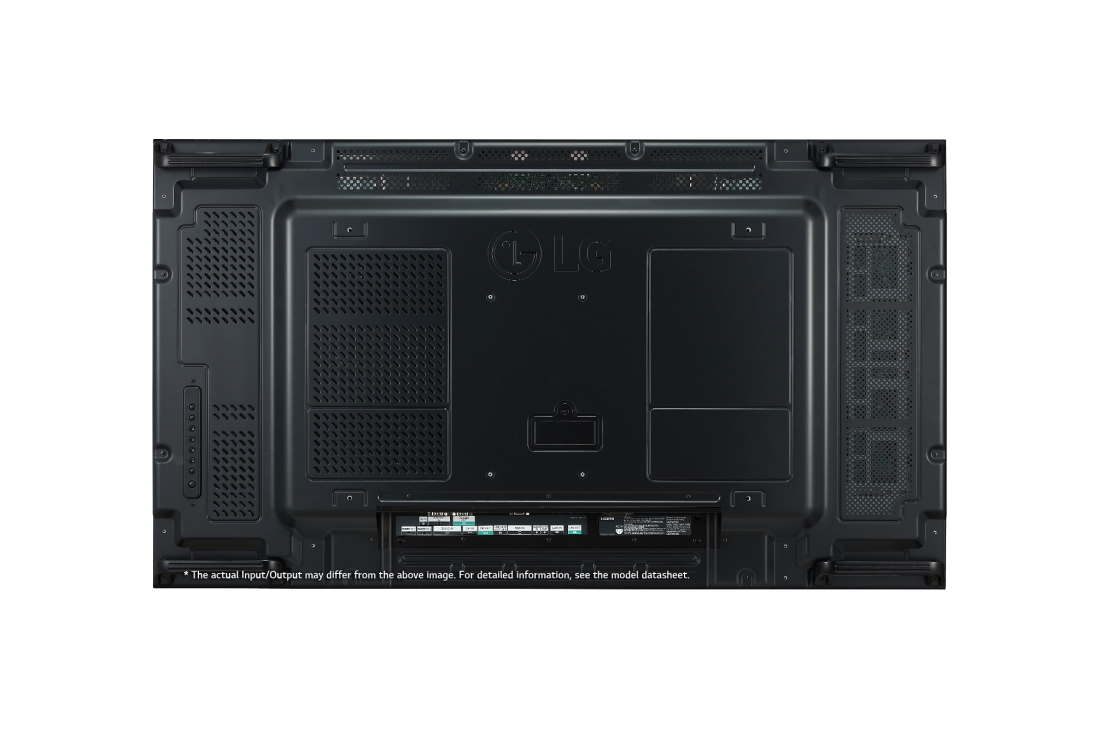

Rear
Left Side
Right Side

Top
Side Ports

Documentation:

Download the LG 0.44mm Even Bezel Video Wall - 55SVM5F Datasheet (.PDF)
