LG 55UR340C9UD
55” UR340C Series UHD Commercial TV with Management Software, Scheduler and Certified Crestron Connected
55 in. UR340C Series UHD Commercial TV with Management Software, Scheduler and Certified Crestron Connected
#55UR340C9UD
Get a Quote!
Overview:
High Picture Quality
With the ultra HD resolution, the UR340C series makes the color and details vivid and realistic. The 4K Upscaler automatically upgrades FHD content to UHD quality through the upscaling process. Moreover, the UR340C series can deliver more intense colors and deep black by supporting HDR10.

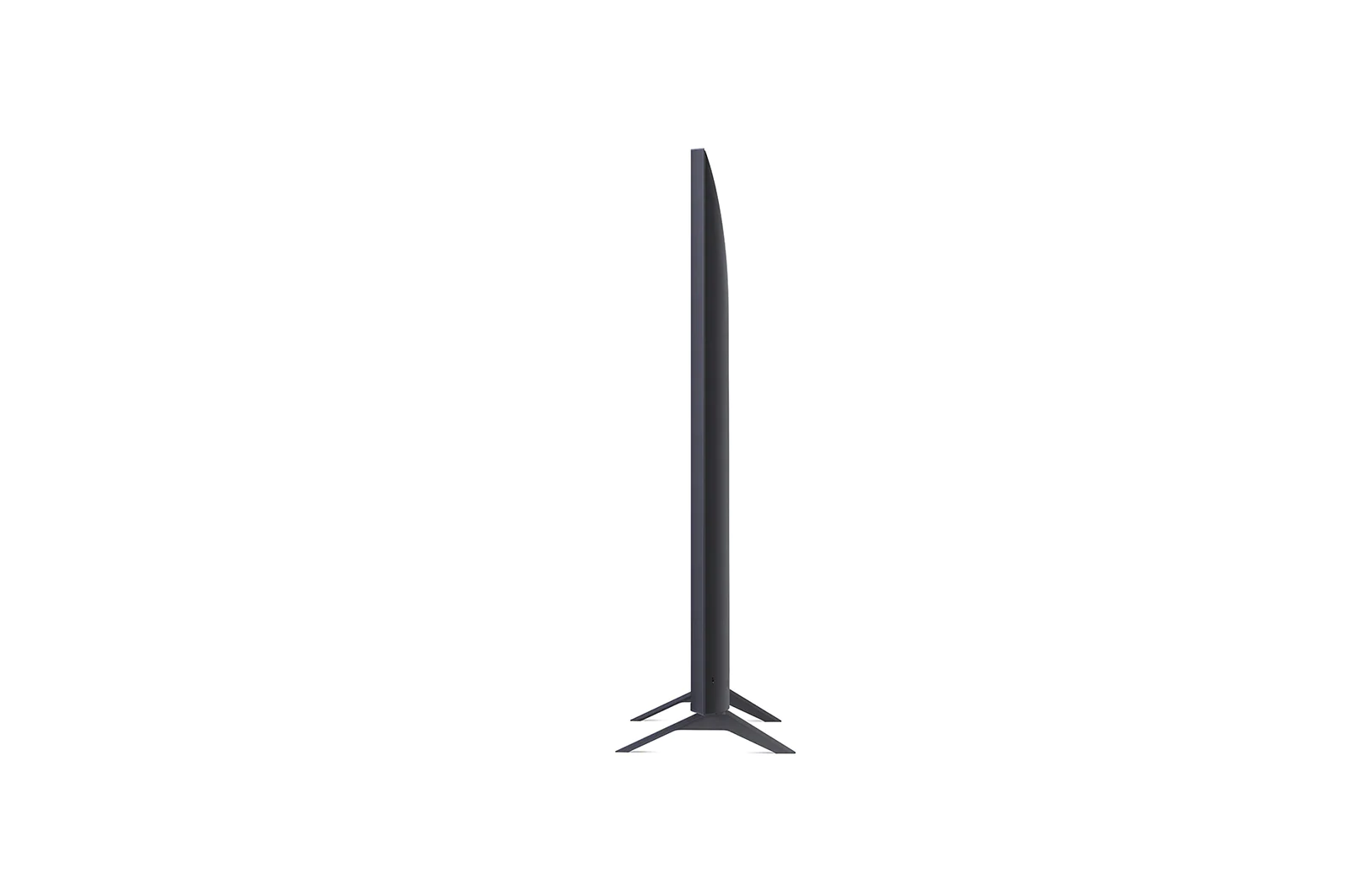

Space-fitting Slim Design
The UR340C Series is thinner than its predecessor the US340C. This space saving design is easy to install and blends nicely with its surroundings.
Customizable Screen
The UR340C series allows for a variation of greeting messages to make customers feel more welcome and cared for. Also, if there is no input signal, it is possible to show the content preset by the user instead of the conventional No Signal message.
Compatibility with AV Control Systems
The UR340C series has been certified Crestron Connected®, which means it has a high level of compatibility with professional AV controls. This results in virtually seamless integration and automated control, boosting business management efficiency.
USB Auto Playback
USB data cloning makes managing multiple displays efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and then that data will be sent to the other displays through a USB plug-in.
DPM (Display Power Management)
Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently.
Time Scheduler
Create your own time scheduler on your TV. Once you set opening / closing hours and holidays, the TV will turn on / off according to work schedule.
Quick & Easy Signage Control with LG SuperSign Control
SuperSign Control is the basic control software, and it can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
Specifications:
| Diagonal |
86" |
75" |
65" |
55" |
50" |
43" |
|
|---|---|---|---|---|---|---|---|
DISPLAY |
Diagonal |
86" | 75" | 65" | 55" | 50" | 43" |
Resolution |
3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | 3840 X 2160 (UHD) | |
Brightness |
330 nits | 330 nits | 400 nits | 400 nits | 400 nits | 300 nits | |
Dynamic Contrast Ratio (Dynamic MCI (Hz)) |
1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | 1,000,000:1 | |
Static (Panel) Contrast Ratio |
1200:1 | 1200:1 | 1200:1 | 1300:1 | 5000:1 | 1200:1 | |
Response Time (G to G) |
5 ms | 8 ms | 8 ms | 14 ms | 18 ms | 8 ms | |
| Refresh Rate | 120 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | |
| Life span | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours | |
HDR_HDR 10 Pro |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
HDR_HLG |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
AUDIO |
Built-in Speakers |
10 W + 10 W |
10 W + 10 W |
10 W + 10 W |
10 W + 10 W |
10 W + 10 W |
10 W + 10 W |
Speaker System |
2.0 ch |
2.0 ch |
2.0 ch |
2.0 ch |
2.0 ch |
2.0 ch |
|
LG Sound Sync (Bluetooth Required) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
FEATURES |
Broadcasting System |
ATSC, Clear QAM, Analog NTSC | ATSC, Clear QAM, Analog NTSC | ATSC, Clear QAM, Analog NTSC | ATSC, Clear QAM, Analog NTSC | ATSC, Clear QAM, Analog NTSC | ATSC, Clear QAM, Analog NTSC |
SW Clock (World Clock / Alarm) |
Yes | Yes | Yes | Yes | Yes | Yes | |
HDMI-ARC |
ARC, HDMI2 | ARC, HDMI2 | ARC, HDMI2 | ARC, HDMI2 | ARC, HDMI2 | ARC, HDMI2 | |
USB Cloning |
Yes | Yes | Yes | Yes | Yes | Yes | |
WOL |
Yes | Yes | Yes | Yes | Yes | Yes | |
SNMP |
Yes | Yes | Yes | Yes | Yes | Yes | |
| Self Diagnostics (USB) | Yes | Yes | Yes | Yes | Yes | Yes | |
| SI Compatible Protocol | TVLink Tuner | TVLink Tuner | TVLink Tuner | TVLink Tuner | TVLink Tuner | TVLink Tuner | |
HTNG-CEC |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Simplink (HDMI-CEC) |
Yes (1.4) |
Yes (1.4) |
Yes (1.4) |
Yes (1.4) |
Yes (1.4) |
Yes (1.4) |
|
IR Out |
Yes (RS-232C) |
Yes (RS-232C) |
Yes (RS-232C) |
Yes (RS-232C) |
Yes (RS-232C) |
Yes (RS-232C) |
|
Multi-code IR |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Hotel Mode / PDM / Installer Menu |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Lock mode |
Yes (Limited) |
Yes (Limited) |
Yes (Limited) |
Yes (Limited) |
Yes (Limited) |
Yes (Limited) |
|
Welcome Video |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Welcome Screen (Splash Image) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Insert Image |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
RJP (remote jack pack) Compatibility |
Teleadapt/Guestlink (HDMI CEC) |
Teleadapt/Guestlink (HDMI CEC) |
Teleadapt/Guestlink (HDMI CEC) |
Teleadapt/Guestlink (HDMI CEC) |
Teleadapt/Guestlink (HDMI CEC) |
Teleadapt/Guestlink (HDMI CEC) |
|
USB Auto playback |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Moving Picture Playback (SD/HD/Plus HD) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Auto Off / Sleep Timer |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Energy Saving mode |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Motion Eye Care |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Crestron Compatibility |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
DPM (Digital Power management) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Time scheduler |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
RTC (Real Time Clock) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
NTP sync timer |
Yes (Clock Setup) |
Yes (Clock Setup) |
Yes (Clock Setup) |
Yes (Clock Setup) |
Yes (Clock Setup) |
Yes (Clock Setup) |
|
SuperSign Control |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
CONNECTIVITY |
HDMI 2.0 In |
Yes (x3) |
Yes (x3) |
Yes (x3) |
Yes (x3) |
Yes (x3) |
Yes (x3) |
USB In |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
RF In |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Digital Audio Out (Optical) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
RS-232C |
3.5mm (4 pole) | 3.5mm (4 pole) | 3.5mm (4 pole) | 3.5mm (4 pole) | 3.5mm (4 pole) | 3.5mm (4 pole) | |
LG SVC only |
3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | 3.5mm | |
RJ45 (LAN) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
MECHANICAL |
Color |
Navy Blue (Almost Black) | Navy Blue (Almost Black) | Navy Blue (Almost Black) | Navy Blue (Almost Black) | Navy Blue (Almost Black) | Navy Blue (Almost Black) |
VESA Compatible |
600 x 400 | 400 x 400 | 300 x 300 | 300 x 300 | 200 x 200 | 200 x 200 | |
Kensington Lock |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Weight without Stand |
99.6 lbs / 45.2 kg | 69.2 lbs / 31.4 kg | 47.4 lbs / 21.5 kg | 30.9 lbs / 14.0 kg | 25.8 lbs / 11.7 kg | 19.4 lbs / 8.8 kg | |
Weight with Stand |
101.2 lbs / 45.9 kg | 70.8 lbs / 32.1 kg | 48.1 lbs / 21.8 kg | 31.3 lbs / 14.2 kg | 26.2 lbs / 11.9 kg | 19.6 lbs / 8.9 kg | |
Shipping Weight |
128.8 lbs / 58.4 kg | 91.5 lbs / 41.5 kg | 61.3 lbs / 27.8 kg | 41.9 lbs / 19.0 kg | 32.2 lbs / 14.6 kg | 24.3 lbs / 11.0 kg | |
Size without Stand |
75.9 x 43.5 x 2.4 in 1927 x 1104 x 59.9 mm |
66.1 x 38.0 x 2.4 in 1678 x 964 x 59.9 mm |
57.2 x 33.0 x 2.3 in 1454 x 838 x 57.7 mm |
48.6 x 28.1 x 2.3 in 1235 x 715 x 57.5 mm |
44.1 x 25.6 x 2.2 in 1121 x 651 x 57.1 mm |
38.1 x 22.2 x 2.2 in 967 x 564 x 57.1 mm |
|
Size with Stand |
75.9 x 45.9 x 14.3 in 1927 x 1167 x 362 mm |
66.1 x 40.4 x 14.3 in 1678 x 1027 x 362 mm |
57.2 x 35.4 x 10.7 in 1454 x 899 x 271 mm |
48.6 x 30.4 x 9.1 in 1235 x 772 x 232 mm |
44.1 x 27.9 x 9.1 in 1121 x 708 x 232 mm |
38.1 x 24.5 x 8.5 in 967 x 622 x 216 mm |
|
Size in Shipping |
83.3 x 47.8 x 9.0 in 2115 x 1215 x 228 mm |
74.0 x 43.9 x 7.9 in 1880 x 1115 x 200 mm |
63.0 x 38.2 x 6.8 in 1600 x 970 x 172 mm |
53.5 x 31.9 x 6.4 in 1360 x 810 x 162 mm |
47.8 x 30.5 x 6.0 in 1215 x 775 x 152 mm |
41.5 x 26.0 x 5.6 in 1055 x 660 x 142 mm |
|
Bezel Width (L/R/T/B): On Bezel |
15.9 / 15.9 / 15.9 / 19.9 mm | 13.9 / 13.9 / 13.9 / 19.9 mm | 12.8 / 12.8/ 12.8 / 19.9 mm | 12.8 / 12.8 / 12.8 / 19.9 mm | 12.8 / 12.8 / 12.8 / 19.9 mm | 12.8 / 12.8 / 12.8 / 19.9 mm | |
Bezel Width (L/R/T/B): Off Bezel |
6.9 / 6.9 / 6.9 / 18.4 mm | 7.9 / 7.9 / 7.9 / 18.4 mm | 6.8 / 6.8 / 6.8 / 18.4 mm | 6.9 / 6.9 / 6.9 / 18.4 mm | 7.3 / 7.3 / 7.8 / 18.4 mm | 6.9 / 6.9 / 6.9 / 18.4 mm | |
POWER |
Power Supply (Voltage, Hz) |
120 Vac, 50/60 Hz |
120 Vac, 50/60 Hz |
120 Vac, 50/60 Hz |
120 Vac, 50/60 Hz |
120 Vac, 50/60 Hz |
120 Vac, 50/60 Hz |
Max Power Consumption |
339 W |
228 W |
174.4 W |
165 W |
144.8 W |
119.6 W |
|
Typical Power Consumption |
313 W |
202 W |
148.3 W |
135.3 W |
118.8 W |
97.2 W |
|
Standby Power Consumption |
Less than 0.5W |
Less than 0.5W |
Less than 0.5W |
Less than 0.5W |
Less than 0.5W |
Less than 0.5W |
|
WARRANTY & OTHER |
Warranty |
3 Year Limited |
3 Year Limited |
3 Year Limited |
3 Year Limited |
3 Year Limited |
3 Year Limited |
UPC |
195174023747 |
195174023761 |
195174023785 |
195174023808 |
195174023822 |
195174023846 |
|
Country of Origin |
Mexico |
Mexico |
Mexico |
Mexico |
Mexico |
Mexico |
|
FCC (Regulatory) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
UL (Certification) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
EPEAT (Environmental) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
ISTA6 (Packaging) |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Accessories |
Chromecast anti-theft cover (optional), RS232 9-pin to 3.5mm adapter, 2m power cable (attached), remote control (L-Con) |
Chromecast anti-theft cover (optional), RS232 9-pin to 3.5mm adapter, 1.8m power cable (detached), remote control (L-Con) |
|||||
Views:
Documentation:
Download the LG UHD Commercial TV - UR340C Series Datasheet (.PDF)
