LG 55VH7E
55" VH7E Series 0.9mm Bezel Video Wall Display TV with SoC & webOS Platform

LG 55VH7E

55" Display, 1920x1080 (FHD), 700 Nit, HDMI (2), DP, DVI-D, Audio, USB 2.0, Black, 3-Year Warranty

LG 55VH7E 55" 0.9mm Bezel Video Wall Display TV with SoC & webOS Platform


Sorry, this product is no longer available, please contact us for a replacement.


Click here to jump to more pricing!

Overview:

Artistic Immersion, Overwhelming Captivation

The impressive immersion generated by the extremely narrow 0.9 mm even-bezel becomes even more powerful with a high haze value. The 55VH7E delivers vivid content with no reflections, even under bright lights, allowing it to effectively captivate viewers and drive traffic to areas where it is installed.

  • Size: 55"
  • Brightness(Typ.) : 700 cd/m²
  • Bezel : 0.9 mm (Even)
  • Depth : 86.5 mm
  • Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

Features:

Achieving Incredible Immersion

Seamless Large Screens with Extreme-Narrow Bezel


The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.


Seamless Large Screens

* The 0.9 mm even panel bezel and 1.8 mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction


The 55VH7E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.


Image Gap Reduction

* The "Conventional" refers to displays which do not include an image improvement algorithm.


Vivid and Dynamic Picture Quality

Higher Viewing Angle


Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55VH7E is high enough to display vivid colors throughout the screen with no distortion.


Higher Viewing Angle

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

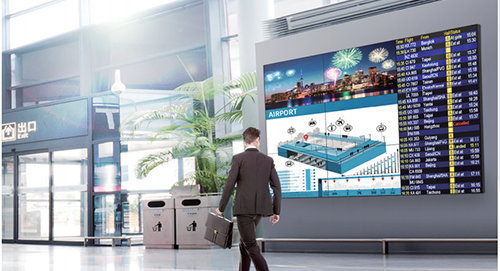

Clear View with Anti-Glare Coating


Viewers can easily become frustrated by unnecessary reflections when watching a screen under brightly lit conditions. The 55VH7E has resolved this problem by increasing the haze value up to 44%, enhancing content visibility and text readability.



Clear View


Powerful Smart Signage Platform

High Performance and Great Scalability


Thanks to its built-in System on Chip (SoC) and webOS smart signage platform, the 55VH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK(Soft Development Kit), it is even easier for system integrators to build and optimize their web apps.

High Performance

Flexible Content Creation


Several different videos* can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming** is also available, providing the flexibility to organize and diversify content free from capacity limits.


Flexible Content Creation

* The current 2 video tags may expand to 4 video tags in the 3Q of 2019.
** Supported protocols: RTSP, RTP, HLS, UDP Multicast


User-Friendly Smart Signage UX

Intuitive Menu Structure


The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Intuitive Menu Structure

Dedicated GUI for Portrait Orientation


The conventional graphical user interface (GUI) was designed based on landscape-oriented consumer TV usage, so on screen display wasn’t well-suited for screens in portrait mode. The OSD of the 55VH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Dedicated GUI


User Convenience

Easy Color Adjustment


Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.


Easy Color Adjustment

Simple White Balance Adjustment


In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55VH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Simple White Balance Adjustment


LAN Daisy Chain Management


A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.





LAN Daisy Chain Management

Real-Time Care Service


The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of your business.

Real-Time Care Service

* The availability of “Signage 365 Care” service can differ by region, so please contact the LG sales representative in your region for further details.

Specifications:


55VH7E Specifications
Panel
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness (Typ.) 700 cd/m2
Contrast Ratio 1,200:1
Dynamic CR 30,000:1
Viewing Angle (H x V) 178 x 178
Color Depth 1.07 Billion
Response Time 8 ms (G to G)
Surface Treatment Haze 44%
Lifetime 60,000 Hours
Operation Hours 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI (2), DP, DVI-D, Audio, USB 2.0
Output DP, Audio
External Control RS232C In/out, RJ45(LAN) In/out, IR In
Mechanical Specification
Bezel Color Black
Bezel Width 0.9 mm (Even), B to B* 1.8 mm
Monitor Dimension (W x H x D) 47.7" x 26.9" x 3.4" / 1,211.4 x 682.2 x 86.5 mm
Weight (Head) 41 lbs / 18.6 kg
Carton Dimensions (W x H x D) 53.3" x 33.7" x 10.4" / 1,353 x 855 x 263 mm
Packed Weight 55.87 lbs / 25.3 kg
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features Internal Memory 8GB (System 4GB + Available 4GB), Temperature Sensor,
Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select,
Smart Energy Saving, Contents Scheduling (USB, Internal Memory), USB Cloning,
Calibration Mode, Sync Mode, PM Mode, Firmware Update (LAN), HDMI-CEC**,
Wake on LAN, Fail Over, No Signal Image, Embedded Template,
OPS Power Control, Scan Inversion (with Pivot Mode)
Environmental Conditions
Operating Temperature Range1 0°C to 40°C / 32°F to 104°F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 220 W / 260 W
Power Consumption - Smart Enegy Saving 110 W
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP / Energy Star N/A / Yes (Energy Star 7.0)
Media Player Compatibility
OPS Type Compatible Yes (Piggyback)
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/Control+
Accessory
Basic Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
Warranty
Warranty 3-Year Limited Warranty
* B to B: Panel bezel to panel bezel
** Compatibility may differ by equipment

Views:


Front
Right Perspective
Left Perspective
Rear

Right Side
Left Side
Top
Interface Detail
