LG 55VL5F
55" 3.5mm Narrow Bezel Video Wall


LG 55VL5F

LG 55VL5F 55" 3.5mm Narrow Bezel Video Wall

55" Display, 1920x1080 (FHD), 500 Nit, HDMI, DVI-D, RGB, Black, 3-Year Warranty

#55VL5F-A
Our Price: $3,052.00


Click here to jump to more pricing!

Overview:

Incredible Immersion with Ultra-Narrow Bezel

The VL5F series provides all-encompassing screen immersion thanks to its narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.

  • Size: 55"
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
  • Depth : 93.1 mm
  • Interface : HDMI (2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Features:

Achieving Incredible Immersion

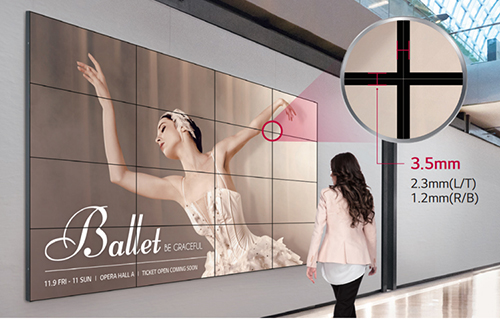

Seamless Large Screens with Extreme-Narrow Bezel


The narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large viewing area it generates is enough to captivate the attention of passersby.


Seamless Large Screens

Image Gap Reduction


The 49VL5F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Image Gap Reduction

* The "Conventional" refers to displays which do not include an image improvement algorithm.


Vivid and Dynamic Picture Quality

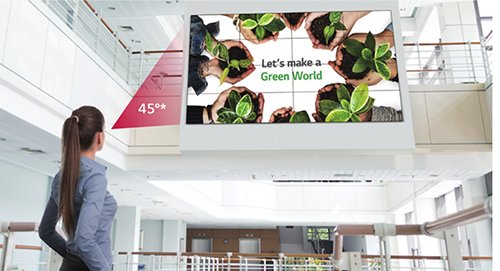

Higher Viewing Angle


Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 49VL5F is high enough to display vivid colors throughout the screen with no distortion.


Higher Viewing Angle
45°* High Viewing Angle

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

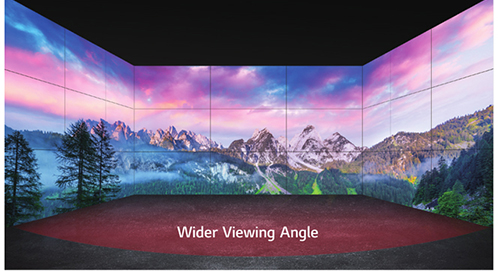

Wider Viewing Angle


It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Wider Viewing Angle


User Convenience

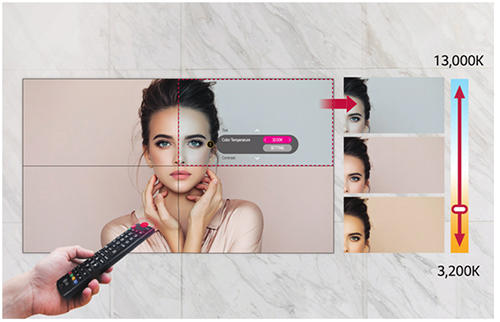

Easy Color Adjustment


Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.


Easy Color Adjustment

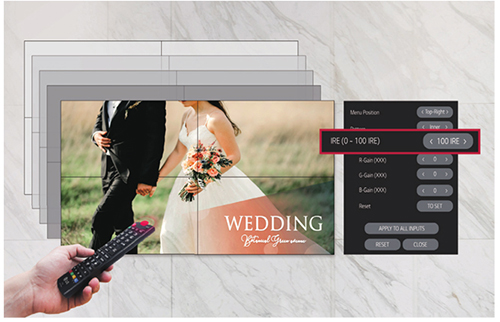

Simple White Balance Adjustment


In conventional video walls, white balance was adjustable only in “full-white” mode, but the 49VL5F allows you to modify each value of gray scale to achieve more detailed and precise white balance adjustment.

Simple White Balance Adjustment

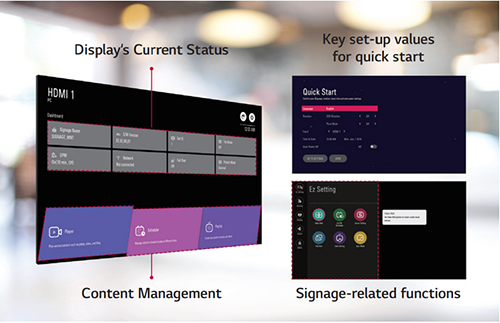

User-Friendly Menu Structure


The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive user interface for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

User-Friendly Menu Structure

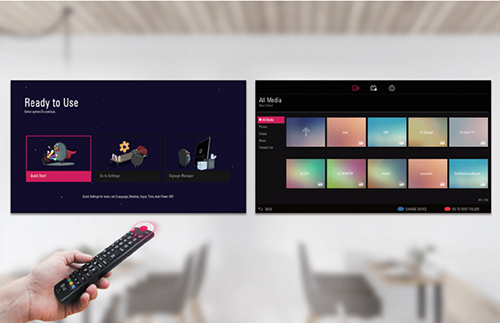

Intuitive GUI


The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

Intuitive GUI

Specifications:


55VL5F Specifications
Panel
Screen Size 49"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness (Typ.) 500 cd/m2
Contrast Ratio 1,200:1
Dynamic CR 500,000:1
Viewing Angle (H x V) 178 x 178
Response Time 8 ms (G to G)
Surface Treatment Haze 3%
Lifetime 50,000 Hours
Operation Hours 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI(2), DP, DVI-D, Audio, USB 2.0
Output DP, Audio
External Control RS232C In/out, RJ45 (LAN) In, IR In
Mechanical Specification
Bezel Color Black
Bezel Width 2.25 mm (T/L) / 1.25 mm(B/R)
Monitor Dimension (W x H x D) 47.8" x 26.9" x 3.7" / 1,213.4 x 684.2 x 93.1 mm
Weight (Head) 23 lbs / 23kg
Carton Dimensions (W x H x D) 52.6" x 32.6" x 9.4" / 1,337 x 828 x 239 mm
Packed Weight 66.8 lbs / 30.3kg
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, ISM Method, DPM Select, Smart Energy Saving, USB Cloning, Easy Brightness Control, Contents Scheduling (USB), Calibration Mode, Sync Mode, PM Mode, HDMI-CEC*, Wake on LAN, OSD Portrait Mode, Fail Over, No Signal Image, OPS Power Control, Scan Inversion (with Pivot Mode)
Environmental Conditions
Operating Temperature Range1 0°C to 40°C / 32°F to 104°F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 130 W / 150 W
Power Consumption - Smart Enegy Saving 62 W
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP / Energy Star Yes (EU Only) / Yes (Energy Star 8.0)
Media Player Compatibility
OPS Type Compatible No
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/Control+
Accessory
Basic Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
Warranty
Warranty 3-Year Limited Warranty
* Compatibility may differ by equipment.

Views:

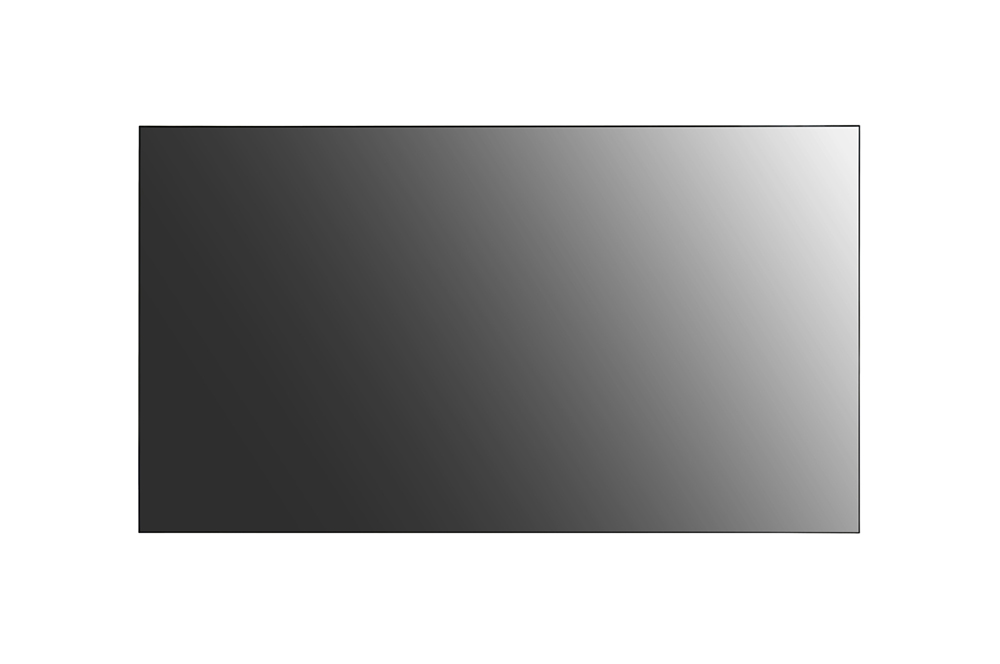

Front

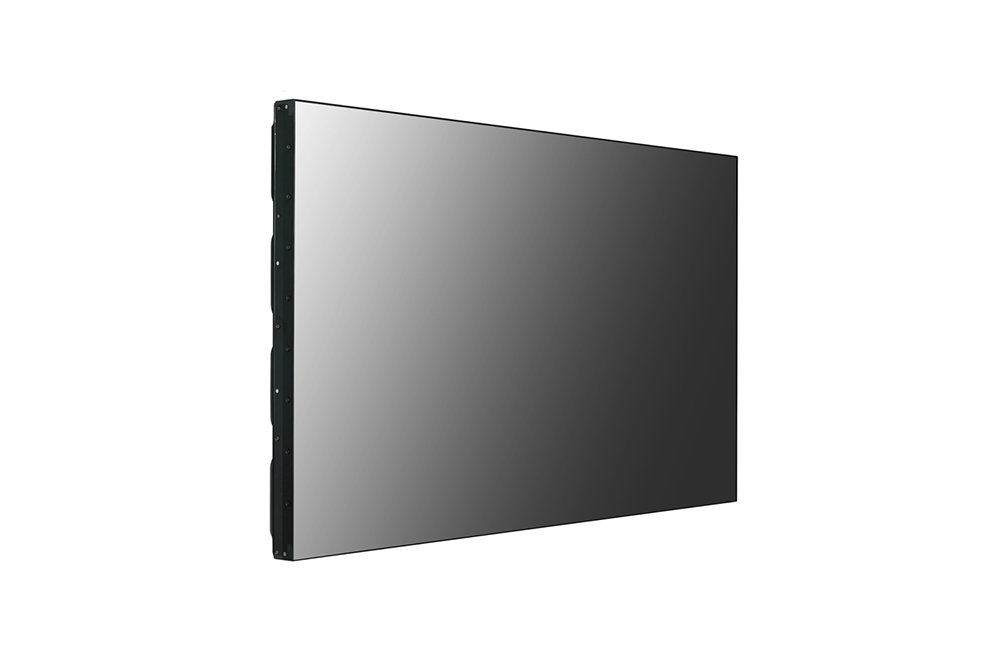

Right Perspective

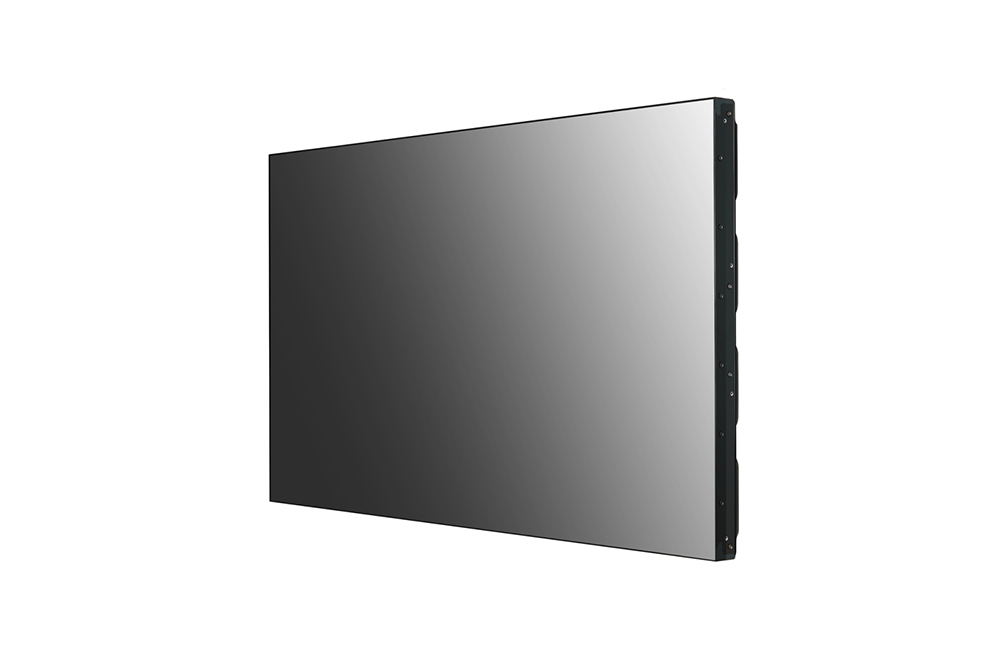

Left Perspective

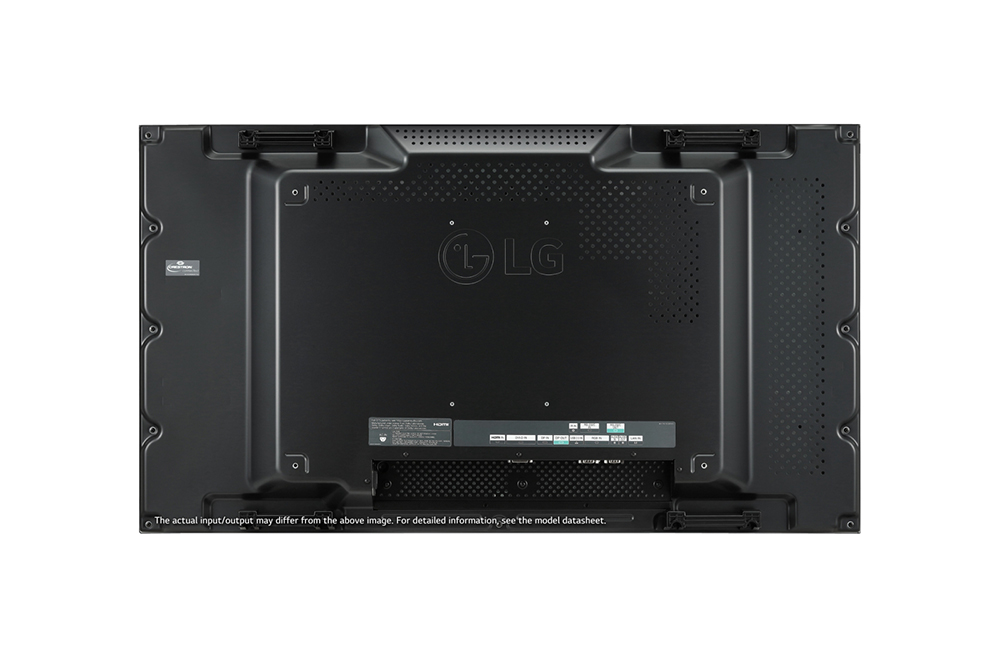

Rear

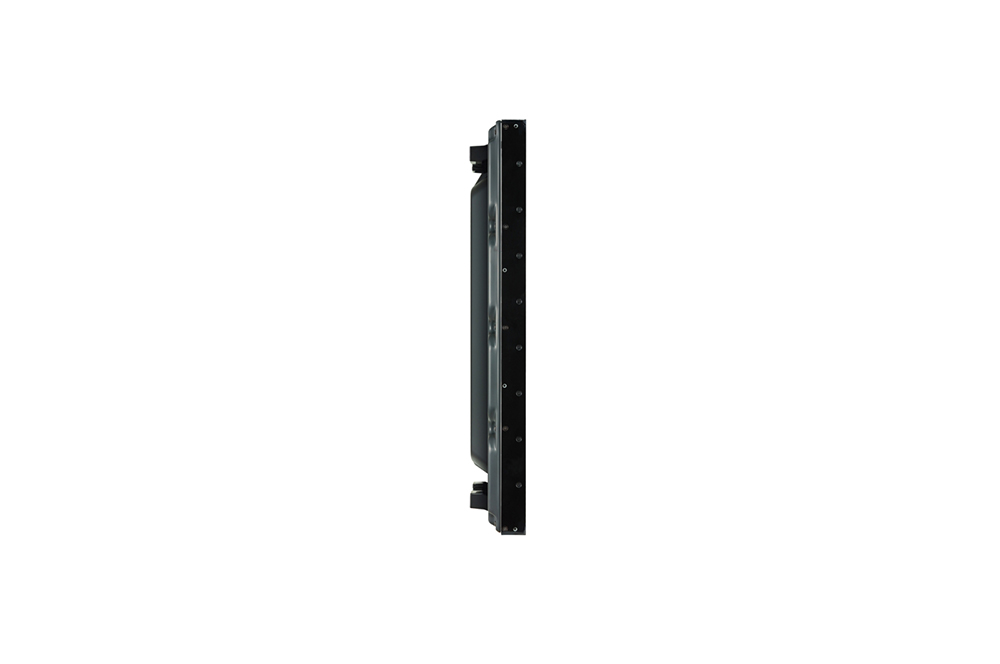

Right Side

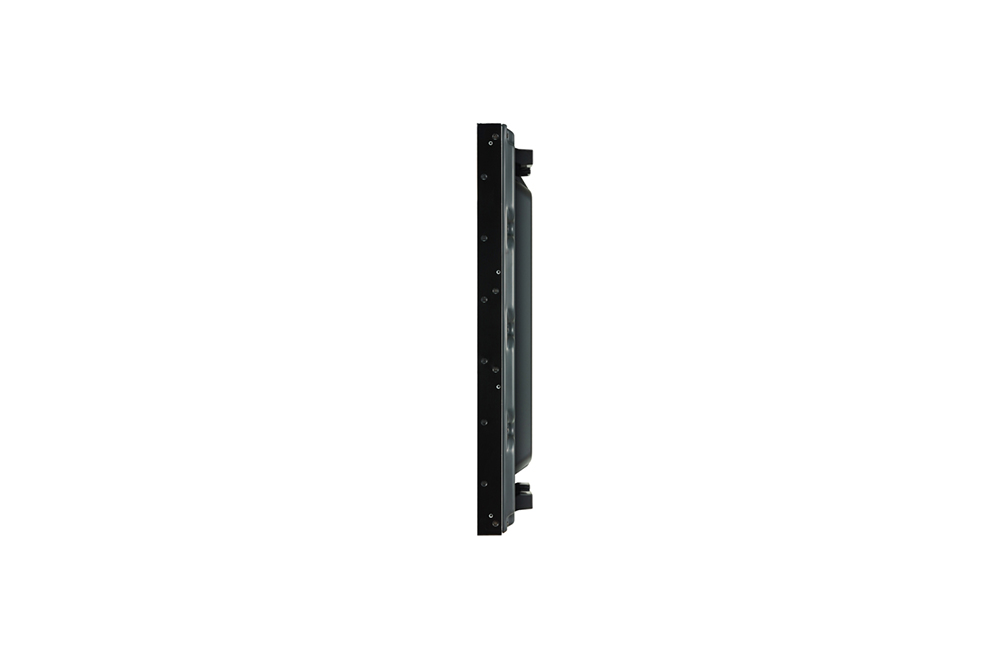

Left Side

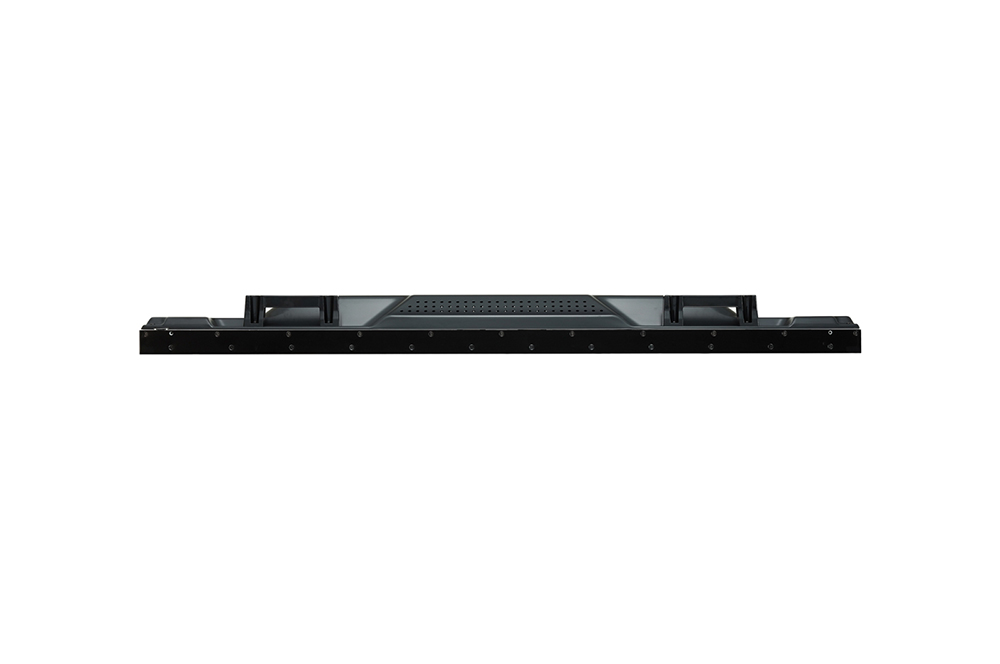

Top

Documentation:

Download the LG VL5F Series Datasheet (.PDF)
