55" Ultra-Narrow Bezel Video Wall
55" LCD, 1920x1080, LED, 500 Nit, 1080p, HDMI, DisplayPort, DVI-D, OPS, USB 2.0/USB 3.0, RGB, IR Receiver, Ethernet, Black, 3-Year Warranty

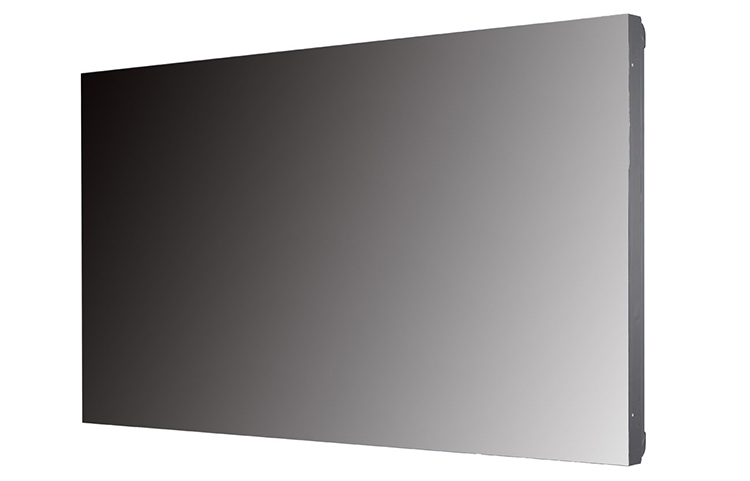

LG 55VM5B 55" Ultra-Narrow Bezel Video Wall
Sorry, this product is no longer available.
Please Contact Us for a replacement.
Impressive Engagement and Overwhelming Attraction
With their slim bezels and virtually borderless designs, the 55VH7B, 55VM5B and 49VM5C video walls offer maximum immersion. Their quad-core SoC system plays various types of content without the need for an external media player, with easy and efficient management tools. These video walls have been designed to raise engagement in areas such as museums, airports, galleries and large retail spaces.
- Size: 55"
- Brightness(Typ.): 500 cd/m²
- Bezel : 0.9mm (T/B/L/R even bezel)
- Depth : 86.2 mm
- Interface : HDMI, DVI, RGB, IR, Daisy-chain (DP, RS232C, RJ45)

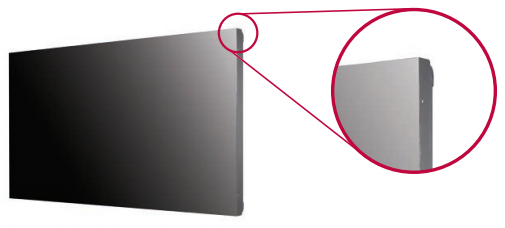

The borderless design with its 0.9 mm even panel bezel* and 1.8 mm BtB (Bezel to Bezel)** size, verified by Nemko***, enables an immersive and virtually seamless viewing experience on assembled video walls.
*Panel Bezel: The black matrix section where an image is not displayed on the front panel.
**BtB (Bezel to Bezel): Panel Bezel + Panel Bezel (Borderless type, no metal bezel)
***Nemko (Nogerois Elektriske Materiellkontroll) was established in 1933 as an institution for mandatory safety testing and national approval of electrical equipment to be marketed and sold in Norway. Since it was transformed into independent, self-owned foundation in 1991, it has provided worldwide testing and certification.

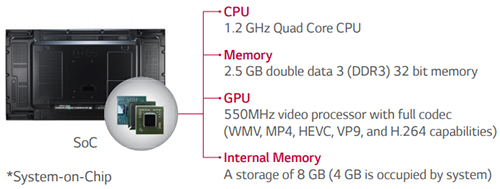

Built-in SoC* and Synced Playback
The optimized built-in quad-core SoC in the 55VH7B, 55VM5B and 49VM5C can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.

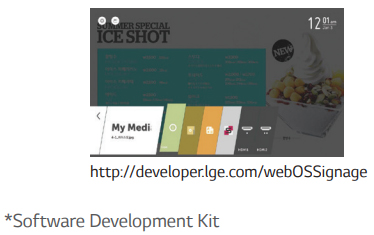

The webOS platform provides easy and convenient tools to create contents. LG’s SDK* and technical supports make content development and management easier.
Superior Picture Quality

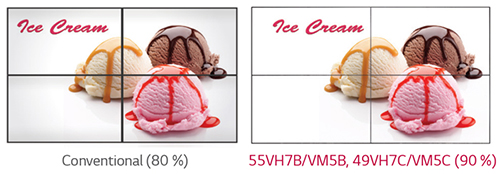

Clear Viewing Angle
The 55VH7B, 55VM5B and 49VM5C ensure clear picture quality, even when installed in arrays of more than four, ideal for installations in large spaces.
LG’s LED backlight technology provides high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new 55VH7B, 55VM5B and 49VM5C generate high visibility and a consistent brightness across the whole screen.
Video Wall Image Creation Technology
Through Video Wall Image Creation (VIC) technology; color and brightness differences are compensated for by an algorithm within the circuitry that gives the panels the same characteristics, enabling the video wall to maintain a consistent white balance from panel-to-panel.

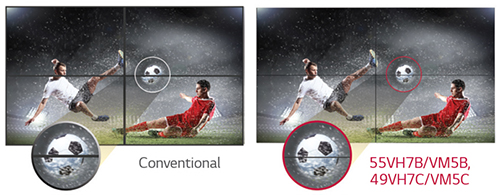

Image Gap Reduction
The 55VH7B, 55VM5B and 49VM5C include an image-improvement algorithm that can adjust to images moving within the boundaries of the bezels, enabling a seamless viewing experience from screen-to-screen.
Enhanced Content Management

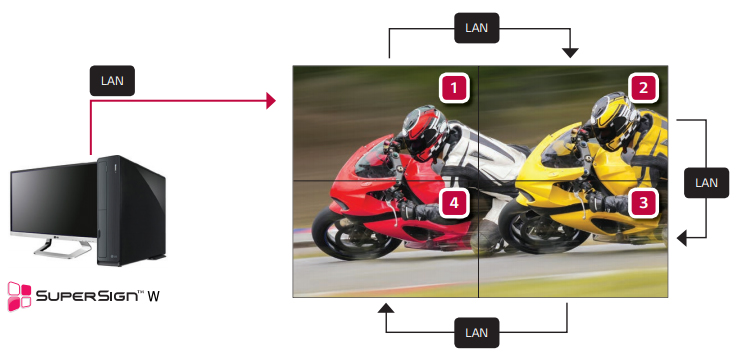

LAN Daisy Chain Performance
The LAN daisy chain allows you to execute commands to control and monitor the screens, and even update their firmware.

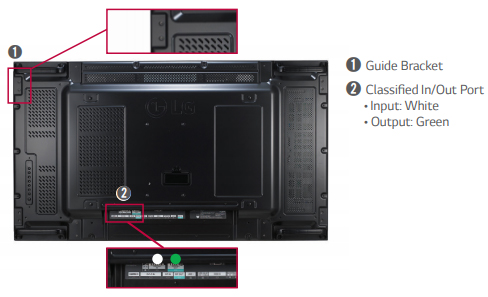

Guide Bracket / Classified Port
A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.

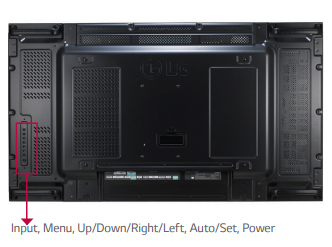

With 8 control buttons, it’s easy to operate various functions of the 55VH7B, 55VM5B and 49VM5C, such as controlling the OSD (On Screen Display) and changing the input source.
|Aspect Ratio||16 : 9|
|Native Resolution||1920 x 1080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Response Time||8ms (G to G)|
|Life time (Typ.)||60,000 Hours|
|Surface Treatment||Hard coating(2 H), Anti-glare treatment of the front polarizer (Haze 10 %)|
|Guaranteed Operating Hour||24 Hours|
|Orientation||Portrait & Landscape|
|Input||HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB|
|External Control||RS232C, RJ45, IR Receiver|
|Bezel Width||0.9 mm (Top/Bottom/Left/Right even bezel) / 1.8 mm *B to B : Panel Bezel + Panel Bezel|
|Monitor Dimension (W x H x D)||47.7" x 26.7" x 3.4"|
|Weight (Head)||41.0 lbs|
|Carton Dimensions (W x H x D)||53.3" x 855 x 263mm|
|Packed Weight||55.8 lbs|
|Special Features||Temperature Sensor, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Energy Saving, Smart Energy Saving, File Play with USB, Internal Memory (8 GB, System 4 GB + Available 4 GB), Wi-Fi Dongle Ready, USB Cloning, Content Scheduling, Fail over (USB, RGB, DVI, HDMI, Internal Memory)|
|Operating Temperature Range||32 °F to 104 °F|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ.||150W|
|Power Consumption - Smart Enegy Saving||80 W|
|Safety||UL / cUL / CB / TUV / KC|
|EMC||FCC Class "A" / CE / KCC|
|ErP / Energy Star||NA / Yes (Energy Star 7.0)|
|Media Player Compatibility|
|OPS Type Compatible||Yes|
|External Media Player Attachable||Yes (MP500/MP700)|
|Content Management Software||SuperSign W/Lite|
|Control and Monitoring Software||SuperSign C|
|Basic||Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws|
|Optional||Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)|
|Warranty||3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available|
Download the LG Ultra-Narrow Bezel Video Wall - VH & VM Series Datasheet (.PDF)
