LG 55XE4F-M
55" High Brightness Outdoor Display
LG 55" High Brightness Outdoor Display
#55XE4F-M
Our Price: $8,260.00
Call a Specialist Today! 855-958-0757

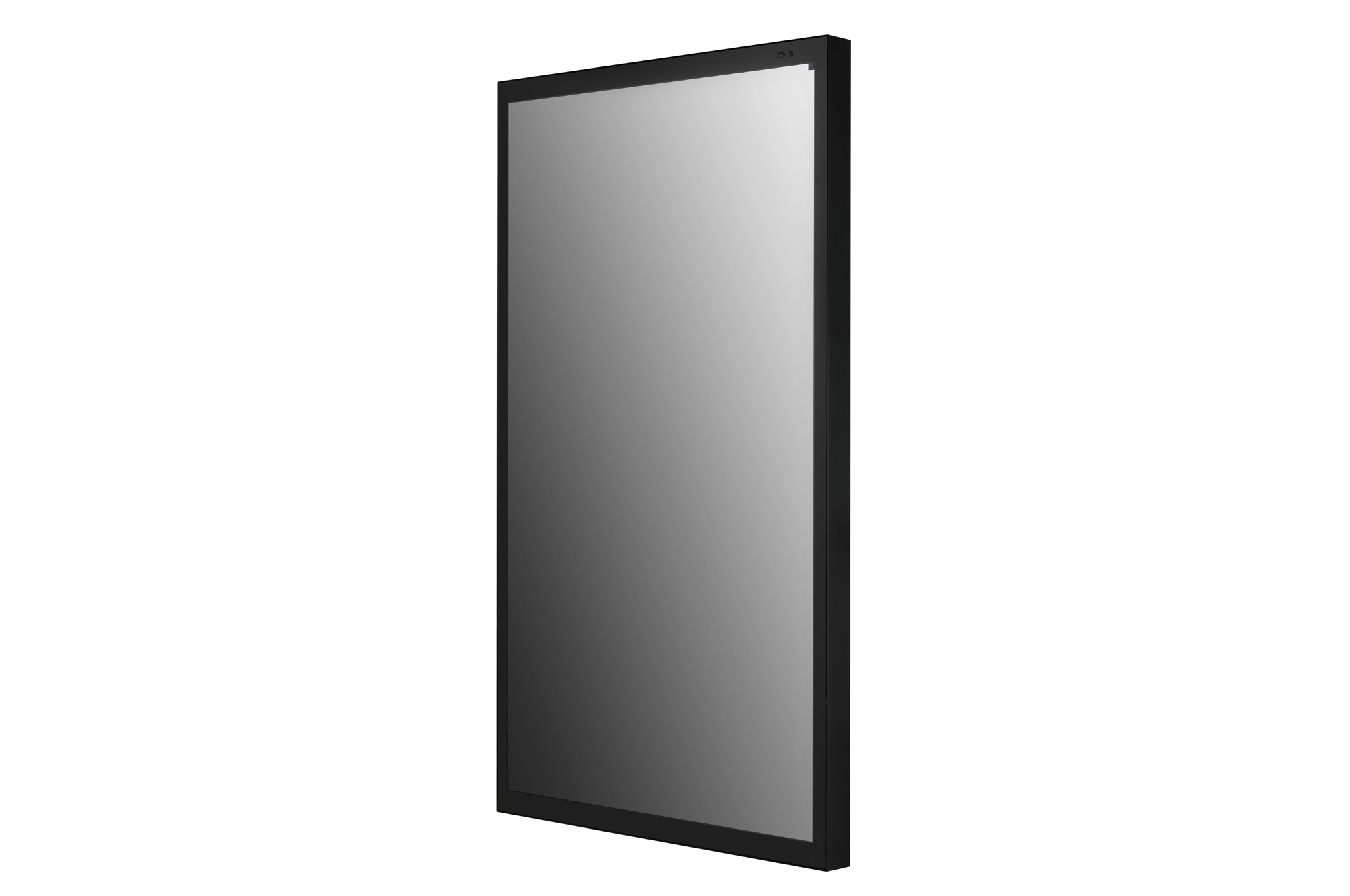

LG 55XE4F-M
Overview:

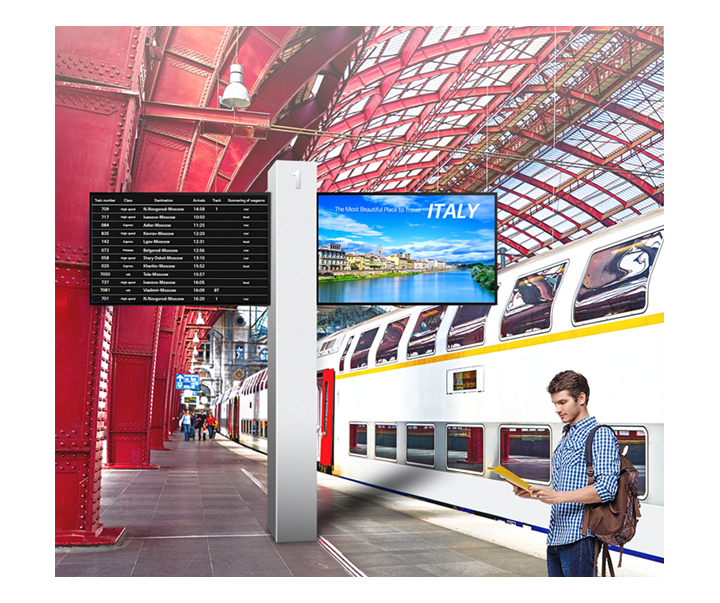

LG High Brightness Outdoor Display
- Brightness(Typ.) : 4,000 cd/m²
- Bezel : 38.4 mm (T/B), 26.0 mm (L/R)
- Interface : HDMI/ DP/HDBaseT/USB/ Audio/ RS232C/ RJ45
- Anti-Reflection Coating
- IP56 Design, IK10 Protective Glass

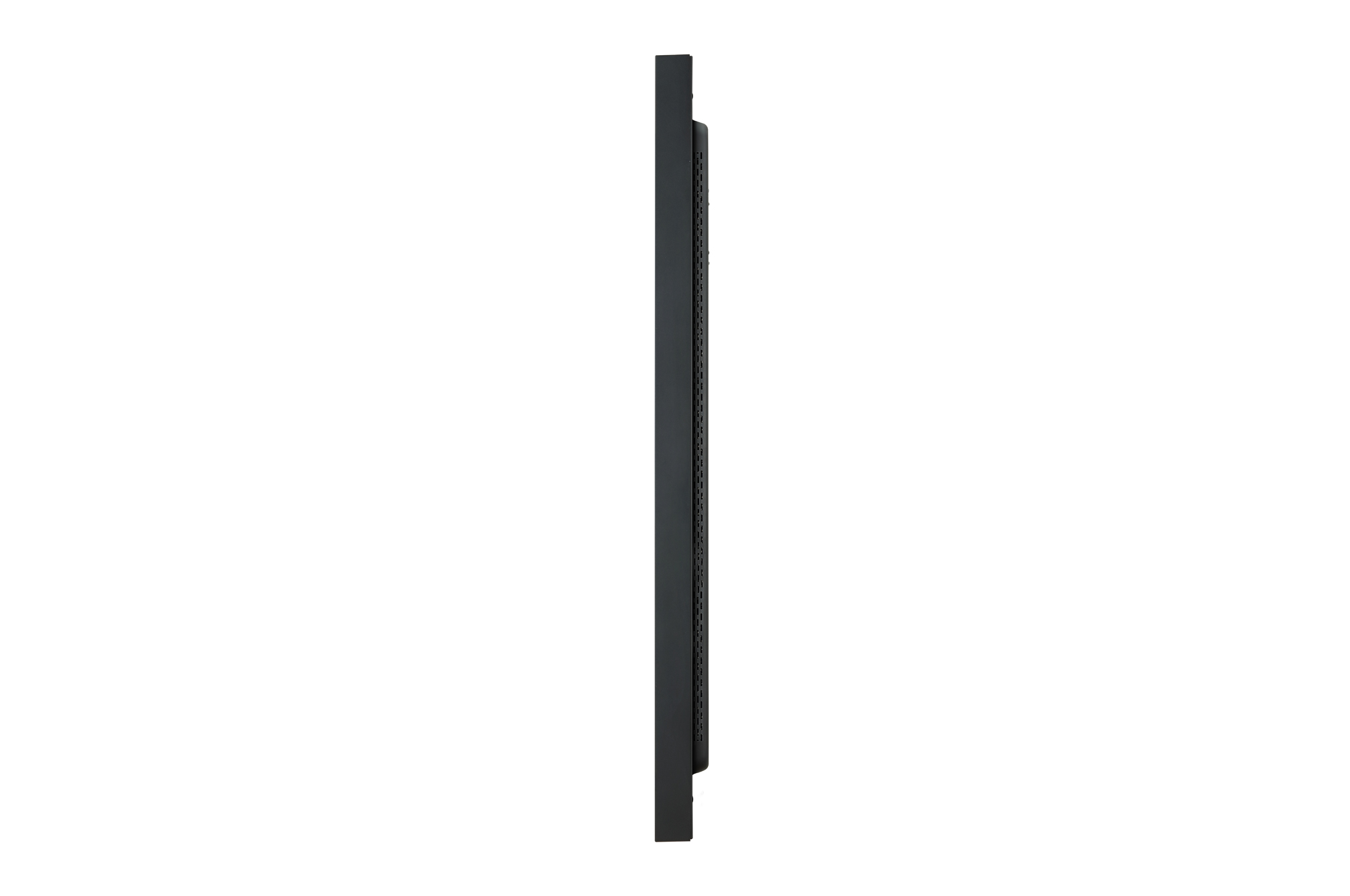

Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.
Features:

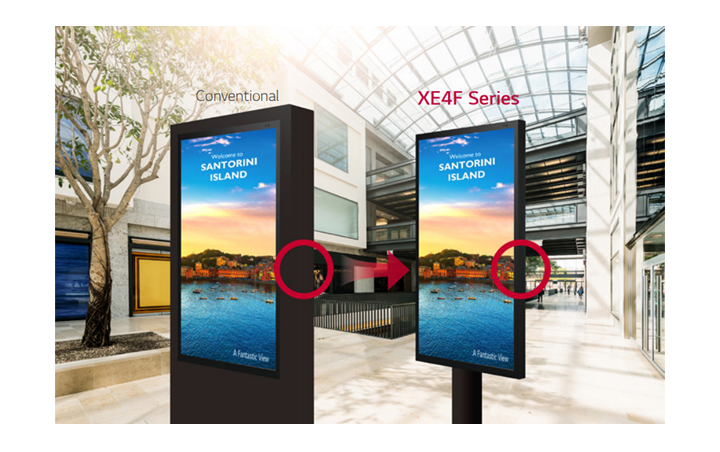

Slim & Light Design
XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.

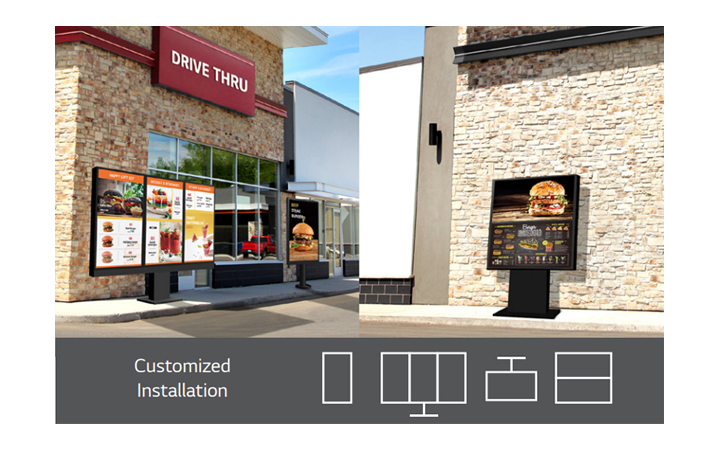

Easy integration for partner’s customized design
The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.

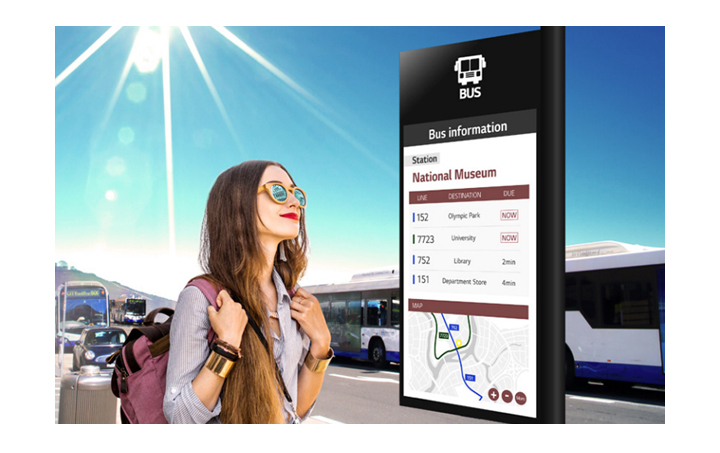

Bright & Brilliant
The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.

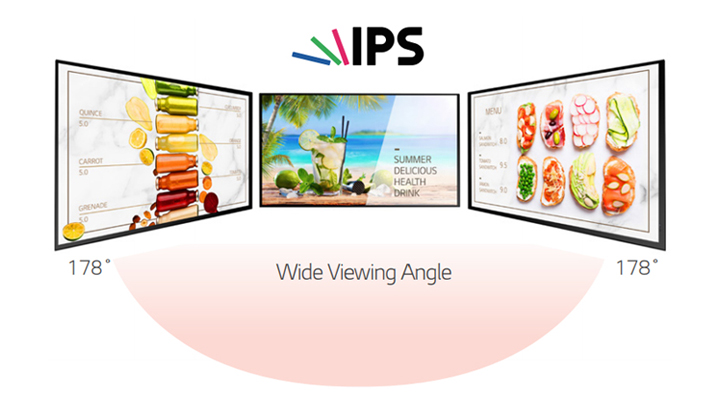

Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.

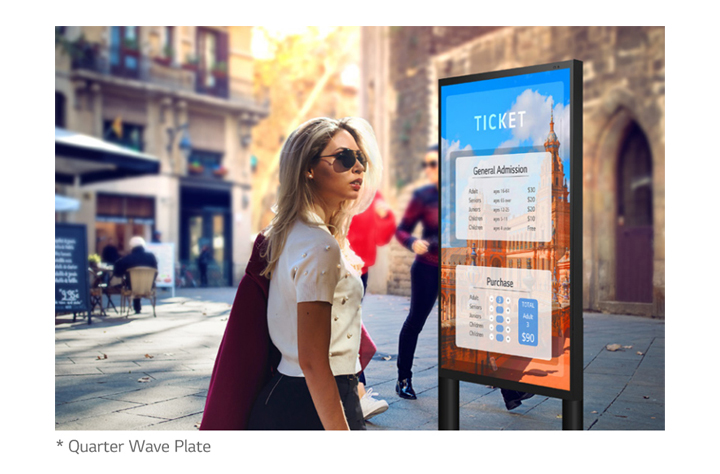

Visible with Polarized Sunglasses
Quarter Wave Plate enables clear visibility even when the viewer is wearing polarized sunglasses.
Specifications:
|
PANEL |
Model |
55XE4F |
49XE4F |
|
SOFTWARE |
Model |
55XE4F |
49XE4F |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Screen Size |
55" |
49" |
webOS ver. |
webOS 4.0 |
webOS 4.0 |
||||||
|
Panel Technology |
IPS |
IPS |
Embedded CMS |
USB Auto Playback |
Yes |
Yes |
|||||
|
Back Light Type |
Direct |
Direct |
|||||||||
|
Aspect Ratio |
16 : 9 |
16 : 9 |
Local Contents Scheduling |
Yes |
Yes |
||||||
|
Native Resolution |
1,920 x 1,080 (FHD, WRGB) |
1,920 x 1,080 (FHD, WRGB) |
|||||||||
|
Refresh Rate |
60Hz |
60Hz |
Group Manager |
Yes |
Yes |
||||||
|
Brightness |
Typ. 4,000nit, Min. 3,200nit |
Typ. 4,000nit, Min. 3,200nit |
Fail over |
Yes |
Yes |
||||||
|
Contrast Ratio |
1,200:1 |
1,300:1 |
Image Customization |
Booting Logo |
Yes |
Yes |
|||||
|
Dynamic CR |
500,000:1 |
500,000:1 |
No Signal |
Yes |
Yes |
||||||
|
Color gamut |
72% |
72% |
Content Sync. |
RS-232C |
Yes |
Yes |
|||||
|
Viewing Angle(H x V) |
178 x 178 |
178 x 178 |
|||||||||
|
Backlight sync |
Yes |
Yes |
|||||||||
|
Color Depth |
1.07 Billon (10bit) |
1.07 Billon (10bit) |
|||||||||
|
Response Time (G to G) |
8 ms |
8 ms |
Local Network |
Yes |
Yes |
||||||
|
Multi-screen |
PIP |
Yes |
Yes |
||||||||
|
Surface Treatment(Haze) |
Haze 3% |
Haze 3% |
PBP |
Yes (2) |
Yes (2) |
||||||
|
QWP(Quarter Wave Plate) |
Yes |
Yes |
Screen Share |
No |
No |
||||||
|
Life time(Typ.) |
50,000 Hrs |
50,000 Hrs |
Video Tag |
Yes (4) |
Yes (4) |
||||||
|
Operation Hours |
24 Hrs |
24 Hrs |
Play via URL |
Yes |
Yes |
||||||
|
Orientation |
Portrait & Landscape |
Portrait & Landscape |
OSD Rotation |
Yes |
Yes |
||||||
|
INPUT |
Digital |
HDMI |
Yes (2), HDCP2.2 |
Yes (2), HDCP2.2 |
Lock mode |
Yes |
Yes |
||||
|
DP |
Yes (1), HDCP1.3 |
Yes (1), HDCP1.3 |
Content Rotation |
Yes |
Yes |
||||||
|
DVI-D |
No |
No |
|||||||||
|
HDBaseT |
Yes |
Yes |
Gapless Playback |
Yes |
Yes |
||||||
|
Analog |
RGB |
No |
No |
Tile Mode Setting |
Yes (Max.15x15) |
Yes (Max.15x15) |
|||||
|
Audio In |
No |
No |
Setting Data Cloning |
Yes |
Yes |
||||||
|
External Control |
RS232C IN |
Yes |
Yes |
Firmware Update by Network |
Yes |
Yes |
|||||
|
RJ45(LAN) |
Yes |
Yes |
SNMP |
Yes |
Yes |
||||||
|
USB |
Yes (2), USB2.0 |
Yes (2), USB2.0 |
ISM Mode (Image Sticking Minimization) |
Yes |
Yes |
||||||
|
OUTPUT |
External Speaker Out |
Yes (1, L/R) |
Yes (1, L/R) |
||||||||
|
External Control |
RS232C OUT |
Yes (1) |
Yes (1) |
Auto Set ID |
Yes |
Yes |
|||||
|
RJ45(LAN) |
Yes (1), HDBaseT |
Yes (1), HDBaseT |
Status Mailing |
Yes |
Yes |
||||||
|
MECHANICAL SPECIFICATION |
Protection Glass |
Depth |
5 mm |
5 mm |
"Outdoor API control (Backlight, Fan, Illuminance, Humidity, Door, check screen, rotation)" |
Yes |
Yes |
||||
|
Degree of Protection |
IK10 |
IK10 |
|||||||||
|
Tempered |
Yes |
Yes |
|||||||||
|
Anti-Reflective |
Yes |
Yes |
Control Manager |
Yes |
Yes |
||||||
|
Infrared - Resistance (IR) |
Yes |
Yes |
3rd Party Control Compatibility |
Crestron Connected |
No |
No |
|||||
|
Shatter-Proof |
Yes |
Yes |
Power Mgmt. |
DPM |
Yes |
Yes |
|||||
|
Bezel Color |
Black |
Black |
On/Off Schedule |
Yes |
Yes |
||||||
|
Bezel Width |
38.4mm(T/B), 26.0mm(L/R) |
38.4mm(T/B), 26.0mm(L/R) |
|||||||||
|
Holiday Schedule |
Yes |
Yes |
|||||||||
|
Monitor Dimension (W x H x D) |
29" x 50.9" x 3.1" / 737.4 x 1,292.5 x 88.0mm |
25.8" x 45.4" x 3.5" / 656.2 x 1153x 88.0mm |
|||||||||
|
Power on Status |
Yes (Standby, Power On, Last Status) |
Yes (Standby, Power On, Last Status) |
|||||||||
|
Handle |
No |
No |
|||||||||
|
VESATM Standard Mount Interface |
No (non-standard) |
No (non-standard) |
Energy Saving |
Yes |
Yes |
||||||
|
Smart Energy Saving |
Yes |
Yes |
|||||||||
|
HARDWARE |
Internal Memory |
16GB (System 4GB + Available 12GB) |
16GB (System 4GB + Available 12GB) |
||||||||
|
PM mode |
Yes |
Yes |
|||||||||
|
Wi-Fi |
Built-in |
No |
No |
Wake on LAN |
Yes |
Yes |
|||||
|
Dongle ready |
No |
No |
Power on Delay |
Yes |
Yes |
||||||
|
Daylight Saving Time |
Yes |
Yes |
|||||||||
|
Sensors |
Temperature Sensor |
Yes (Panel Front, M/Board, LCM , Inside) |
Yes (Panel Front, M/Board, LCM , Inside) |
||||||||
|
Beacon |
Yes |
Yes |
|||||||||
|
Auto Brightness sensor |
Yes |
Yes |
HDMI-CEC |
Yes |
Yes |
||||||
|
SI Server Setting |
Yes |
Yes |
|||||||||
|
HDbaseT |
Yes |
Yes |
|||||||||
|
BLU Sensor |
Yes |
Yes |
WOL |
Yes |
Yes |
||||||
|
Pixel sensor |
Yes |
Yes |
webRTC |
Yes |
Yes |
||||||
|
ENVIRONMENT CONDITIONS |
Operation Temperature |
-22°F to 122°F / -30°C to 50 °C |
-22°F to 122°F / -30°C to 50 °C |
||||||||
|
Proximity Sensor |
No |
No |
Operation Humidity |
5 % to 100 % |
5 % to 100 % |
||||||
|
SOUND Speaker |
No |
No |
|||||||||
|
Gyro Sensor |
Yes |
Yes |
|||||||||
|
CERTIFICATIONS |
Safety |
UL / cUL / CB |
UL / cUL / CB |
||||||||
|
Humidity Sensor |
Yes |
Yes |
EMC |
FCC Class "A" / CE / KCC |
FCC Class "A" / CE / KCC |
||||||
|
ErP / Energy Star |
Yes / No |
Yes / No |
|||||||||
|
Current Sensor |
Yes |
Yes |
SOFTWARE COMPATIBILITY |
SuperSign CMS |
Yes |
Yes |
|||||
|
Power Indicator |
No |
No |
|||||||||
|
Local Key Operation |
No |
No |
SuperSign Control/Control+ |
Yes/Yes |
Yes/Yes |
||||||
|
SuperSign White Balance |
No |
No |
|||||||||
|
FAN |
Yes (Open Loop , Closed Loop) |
Yes (Open Loop , Closed Loop) |
|||||||||
|
Signage 365 Care |
Yes |
Yes |
|||||||||
|
Dust / Water Proof |
IP56 |
IP56 |
|||||||||
|
Direct Sunlight |
Yes |
Yes |
LANGUAGE Languages |
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Persian |
|||||||
|
ELECTRICAL |
Power Supply |
100-240V~, 50/60Hz |
100-240V~, 50/60Hz |
||||||||
|
Power Type |
Built-In Power |
Built-In Power |
ACCESSORIES & OTHER |
Basic |
Remote Controller, Manual(EIG, ESG), Regulation Book, Phone to RS232C Gender, HDMI Cable |
||||||
|
DPM |
1W |
1W |
|||||||||
|
Warranty |
3 Year Limited |
3 Year Limited |
|||||||||
|
Power off |
0.5W |
0.5W |
|||||||||
|
|
|||||||||||
Views:
Documentation:
Download the LG High Brightness Outdoor Display - XE4F-M Series Datasheet (.PDF)
