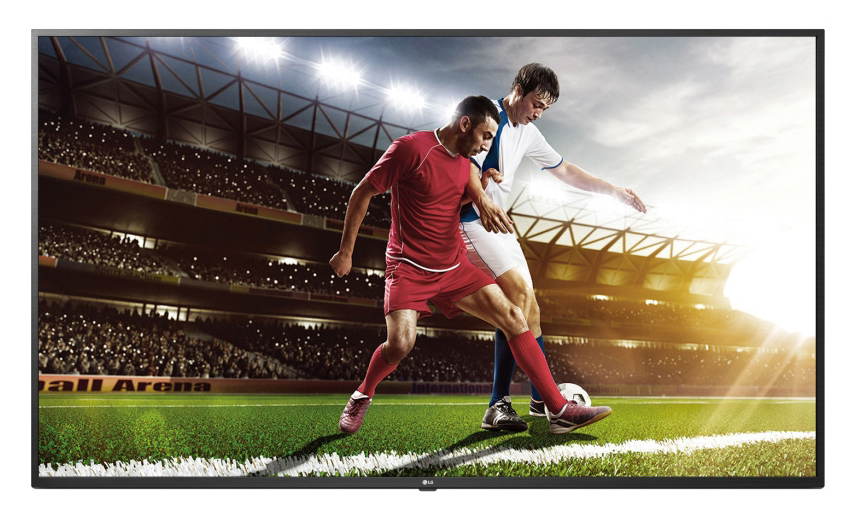

LG 65UT640S0UA
65" UT640S Series UHD Commercial Signage TV
This product is no longer available.
Please Contact us for more information.
This product has been replaced by the 65UR640S0UD.
Overview:
The UT640S Series is specifically designed for diverse business environments. By providing compatibility with AV Control systems and DPM (Display Power Management) as well as its smart connectivity, simple user friendly interface, and UHD picture quality, the UT640S series enhances ease of use while facilitating communications between businesses and their target audiences.
- Size: 65"
- Content Management/Group Management
- SuperSign Control
- Simple Network Management Protocol (SNMP)
- Wake-up On Lan
- Crestron Connected® (Network Based Control)
Features:
Simple Content Management
Embedded Content & Group Management
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control Signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management much easier and more user-friendly.
SuperSign Control
SuperSign Control is free, basic LG control software that can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.
USB Data Cloning
USB data cloning increases efficiency when managing multiple displays, since installers don't have to set up each display one by one. Once installers copy data to a USB device from one display, it can be easily imported on other displays of the same model through the USB port.
Real-Time Remote Monitoring
Malfunctions or errors can be easily handled through real-time remote care. When an error occurs, notifications can be sent via SNMP (Simple Network Management Protocol).
Easy Remote Power-On
WOL (Wake-on-LAN) enables users to turn on displays* by sending messages through the network.
Higher Visibility
True Color, Immersive View
The large size and Ultra HD resolution of the UT640S series enhances the visibility of content and captivates viewers. The LG IPS panel provides a wide range of viewing angles so that content can be clearly seen, regardless of the viewer's position. Each pixel in the IPS panel reproduces true-to-life colors without distorting images.
Amazing Picture Quality and Color
Enjoy Full HD content in 4K Ultra HD quality, optimized by the 4K Upscaler. The 4K upscaler automatically upgrades Full HD content to Ultra HD through several upscaling processes so that images look crisp and clear in any viewing situation. This LG TV can also express intense highlights, vivid colors, and deep black hues on the screen through HDR10.
Better Usability
Compatibility with AV Control Systems
The UT640S series has been certified Crestron Connected®, proving that it has a higher level of compatibility with professional AV controls. This results in seamless integration and automated control*, boosting business management efficiency.
DPM (Display Power Management)
Display Power Management (DPM) can be configured to only be On when there is a TV signal present to manage power more efficiently.
Specifications:
| 65UT640S Specifications | ||
|---|---|---|
| DESIGN | Stand Type | 2 Pole |
| Front Color | Ceramic Black | |
| DISPLAY | Diagonal Class | 65" |
| Resolution | 3840 X 2160 (UHD) | |
| Brightness (nits) | 360 | |
| BROADCASTING SYSTEM | Digital | NTSC / ATSC / clear QAM |
| VIDEO | HDR (10 Pro / HLG) | Yes / Yes |
| AUDIO | Audio Output | 10W + 10W |
| Speaker System | 2.0 ch | |
| LG Sound Sync | Bluetooth required | |
| SUPERSIGN SW COMPATIBILITY | Content Management Software (CMS), Control and Monitoring Software (Control/Control+), Simple Editor | |
| SIGNAGE FEATURES | Crestron Connected® (Network Based Control), DPM (Digital Power management), Time scheduler, RTC (Real Time Clock), NTP sync timer, BEACON, Embedded CM (contents manager), Embedded GM (Group manager) | |
| SMART FEATURES | webOS 4.5, Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube only), Soft AP, WiFi (bandwidth)(ac), Screen Share (Miracast), LG TV Plus App Compatibility, DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay | |
| HOSPITALITY FEATURES | Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen (Boot Logo), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Variable /Fixed, 3.5mm, Stereo (GND, R, L), Max1W with 8Ω), VLAN, Teleadapt/Guestlink (HDMI CEC), Moving Picture Playback (SD/HD/Plus HD), Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care | |
| MAINTENANCE FEATURES | USB Cloning, WOL, SNMP, Diagnostics (Self Diagnostics (USB)), NTSC / ATSC / QAM, Simplink(HDMI-CEC)(1.4), IR Out (RS-232C), Multi-code IR | |
| JACK INTERFACE | Side | HDMI In 2(2.0), USB (2.0) |
| Rear | HDMI In (HDCP) 2.0, RF In (tuner), AV In (3.5mm), Digital Audio Out (Optical), RS-232C (D-Sub 9pin, Control & Service), RJ45 2 (Ethernet, SNMP), External Speaker Out (3.5mm, Stereo, Max 1W with 8Ω), Service Only (3.5mm) | |
| MECHANICAL | VESA (W x H) | 300 x 300 |
| W x H x D / Weight (with stand) | 57.6" x 36" x 10.6" / 47.6 lbs 1,463 x 914 x 269 / 21.6 kg |
|
| W x H x D / Weight (without stand) | 57.6" x 33.3" x 3.5" / 47 lbs 1,463 x 845 x 87.8 / 21.3 kg |
|
| W x H x D / Weight (Shipping) | 63" x 38.2" x 7.5" / 62.6 lbs 1,600 x 970 x 190 / 28.4 kg |
|
| ELECTRICAL | Voltage | AC 120 V ~ 50 / 60 Hz |
| Power Consumption (Typical) | 180.3W | |
| Standby Power | Under 0.5W | |
| OTHER | Warranty | 3 Year Parts and Labor |
| Accessories | S-Con Remote, 1.8m Right-Angle Power Cord | |
| UPC | 7 19192 63320 9 | |
* Specifications are subject to change without notice, so please reach us to ensure before order.
Views:
Documentation:
Download the LG UHD Commercial TV with Essential Smart Function - UT640S Series Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
