LG 86BH5F-B
86" Ultra Stretch Signage


LG 86BH5F-B

LG 86" Ultra Stretch Signage

86" Display, 3840 x 2160 (UHD), Edge LED, 700 Nits, HDMI (2), USB, RS232C , RJ45 (RGB Panel), Black, 3-Year Warranty

#86BH5F-B
Our Price: $4,550.00



Overview:

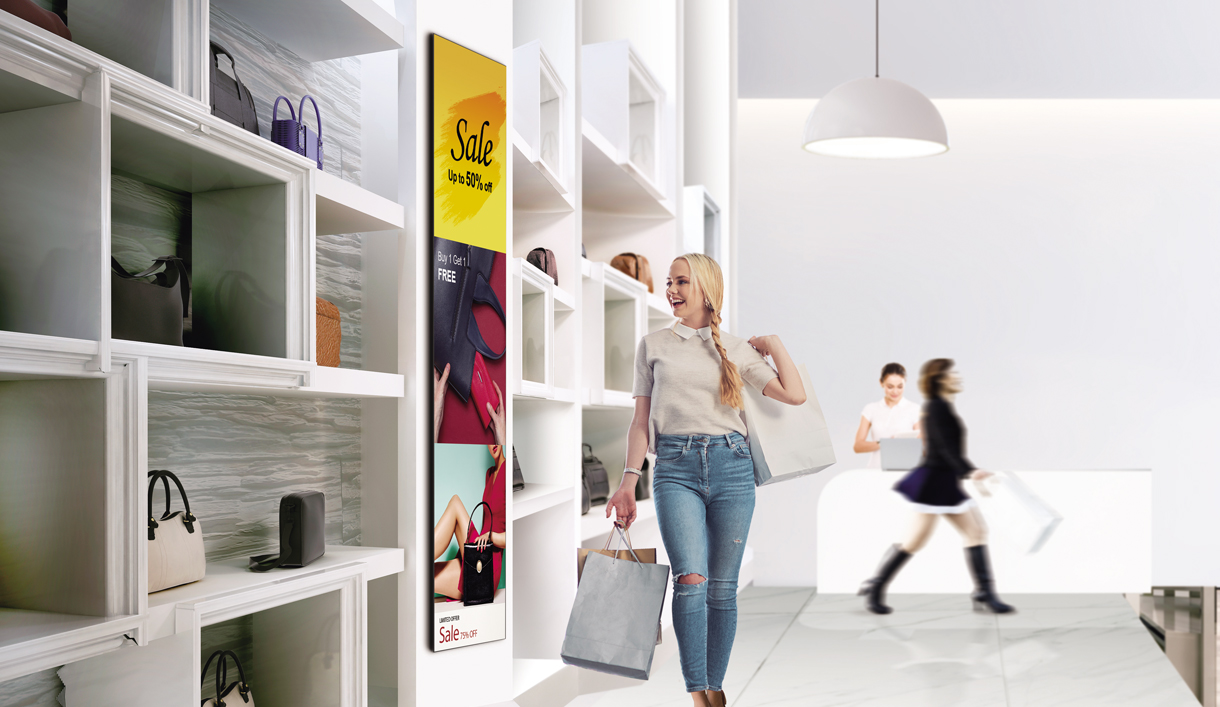

LG UHD Signage Provides Information Effectively

The 86BH5F-B series is a UHD signage that has been optimized for various indoor environments. It features bright, 700-nit UHD quality, slim design, external dust protection, and both portrait and landscape operation for flexible applications and installations.

  • Brightness(Typ.) : 500 cd/m²
  • Aspect Ratio: 58:9
  • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
  • Depth: 81.7mm
  • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

LG UHD Signage

Features:

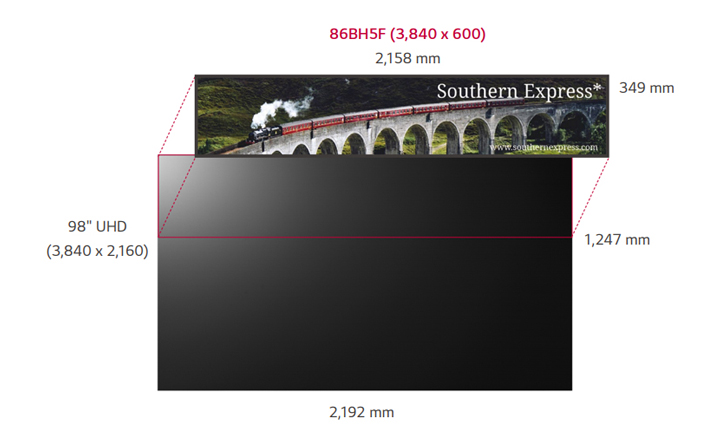

ULTRA HD Resolution

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

ULTRA HD Resolution

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

Multi Screen Mode with 4PBP

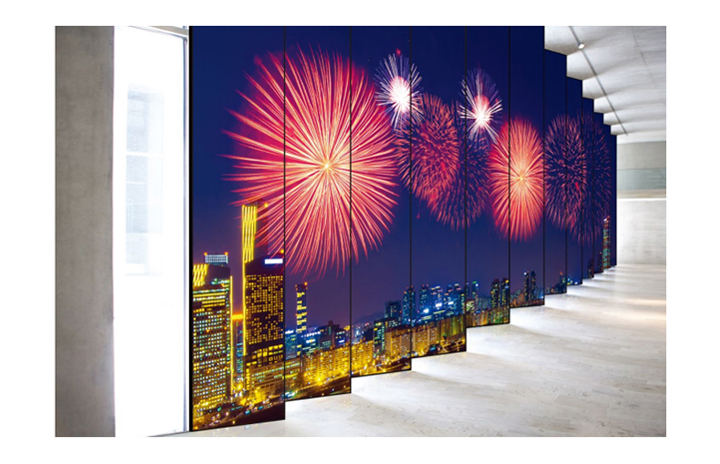

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

Tiled Scene with Immersive View

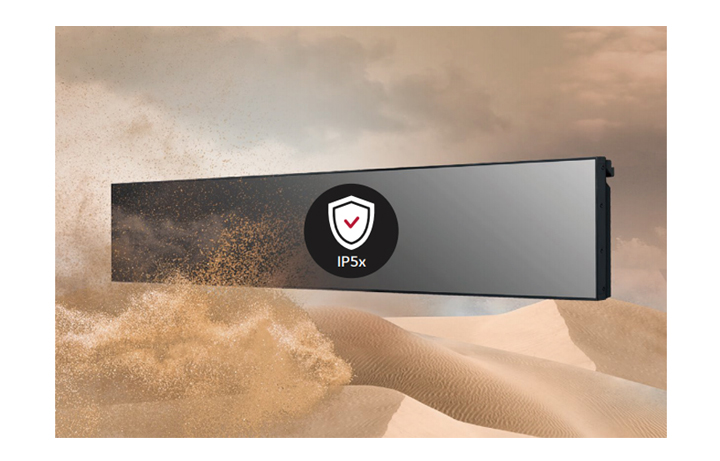

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

IP5x Certified Design

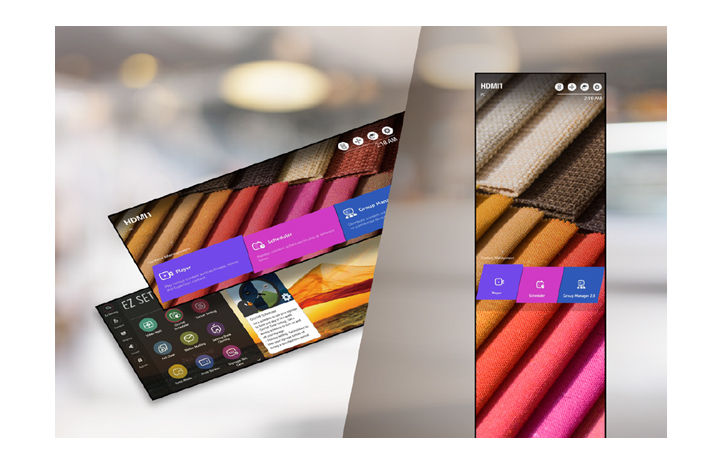

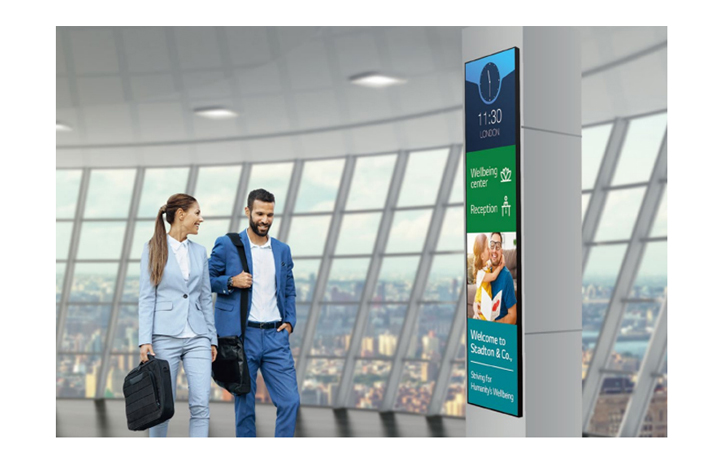

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

User-Friendly UX

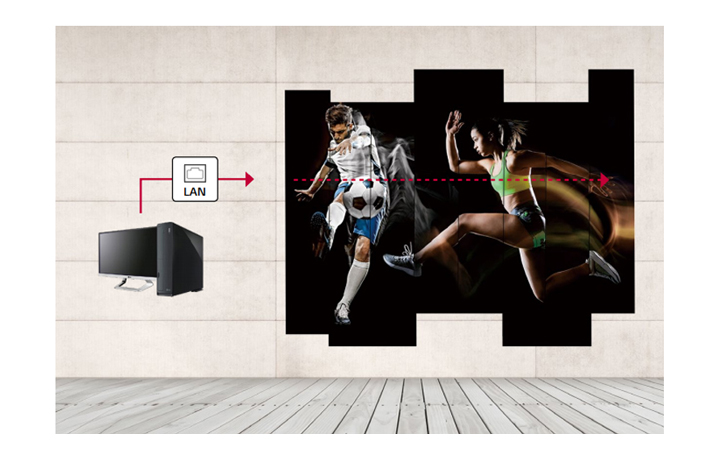

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

LAN Daisy Chain Management


Specifications:


86BH5F-B













Panel

Screen Size

86"

Panel Technology

IPS

Native Resolution

3,840 x 600

Brightness (Typ.)

500 nit

Contrast Ratio

1,100 : 1

Dynamic CR1)

500,000 : 1

Color Gamut

NTSC 72 %

Viewing Angle (H x V)

178 x 178

Color Depth

1.07 Billion Colors (10bit)

Response Time

8 ms (G to G)

Surface Treatment (Haze)

10 %

Operation Hours (Hours / Day)

24 / 7

Portrait / Landscape

Yes / Yes



Connectivity



Input

HDMI (3 HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4),

Audio, USB 2.0 Type A (2)

Output

DP, Audio

External Control

RS232C In / Out, RJ45 (LAN) In / Out, IR In



Physical Specification

Bezel Color

Black

Bezel Width

4.4 mm (R/L), 5.9 mm (T/B)

Monitor Dimensions (W x H x D)

2,158.3 x 348.5 x 81.7 mm

Weight (Head)

20.5 kg

VESA™ Standard Mount Interface

600 x 200 mm





Special Features



Internal Memory (8GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Local Key Operation, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager),

USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-Screen (PBP (4)), Rotation (Screen Rotation,

External Input Rotation), Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®2), Smart Energy Saving, PM Mode, Wake on LAN, Beacon, HDMI-CEC3), webRTC

Environment Conditions

Operation Temperature Range

0 °C to 40 °C

Operation Humidity Range

10 % to 80 %



Power

Power Supply

AC 100 - 240 V ~, 50 / 60 Hz

Power Type

Built-in Power

Power Consumption

Typ. / Max.

220 W / 240 W

BTU (British Thermal Unit)

751 BTU/Hr (Typ.), 819 BTU/Hr (Max.)

Sound

Speaker

No



Certification

Safety

CB, NRTL

EMC

FCC Class "A" / CE / KC

ErP

Yes

Media Players Compatibility

OPS Type Compatible

Yes (Piggyback)

OPS Power Built In

No

Software Compatibility



SuperSign CMS4), SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, ConnectedCare5)



Accessories



Basic

Remote Controller, Power Cord, DP Cable, RS-232C Cable, IR/Light Sensor Receiver, Manual

Optional

OPS Kit (KT-OPSF)

Views:


Front

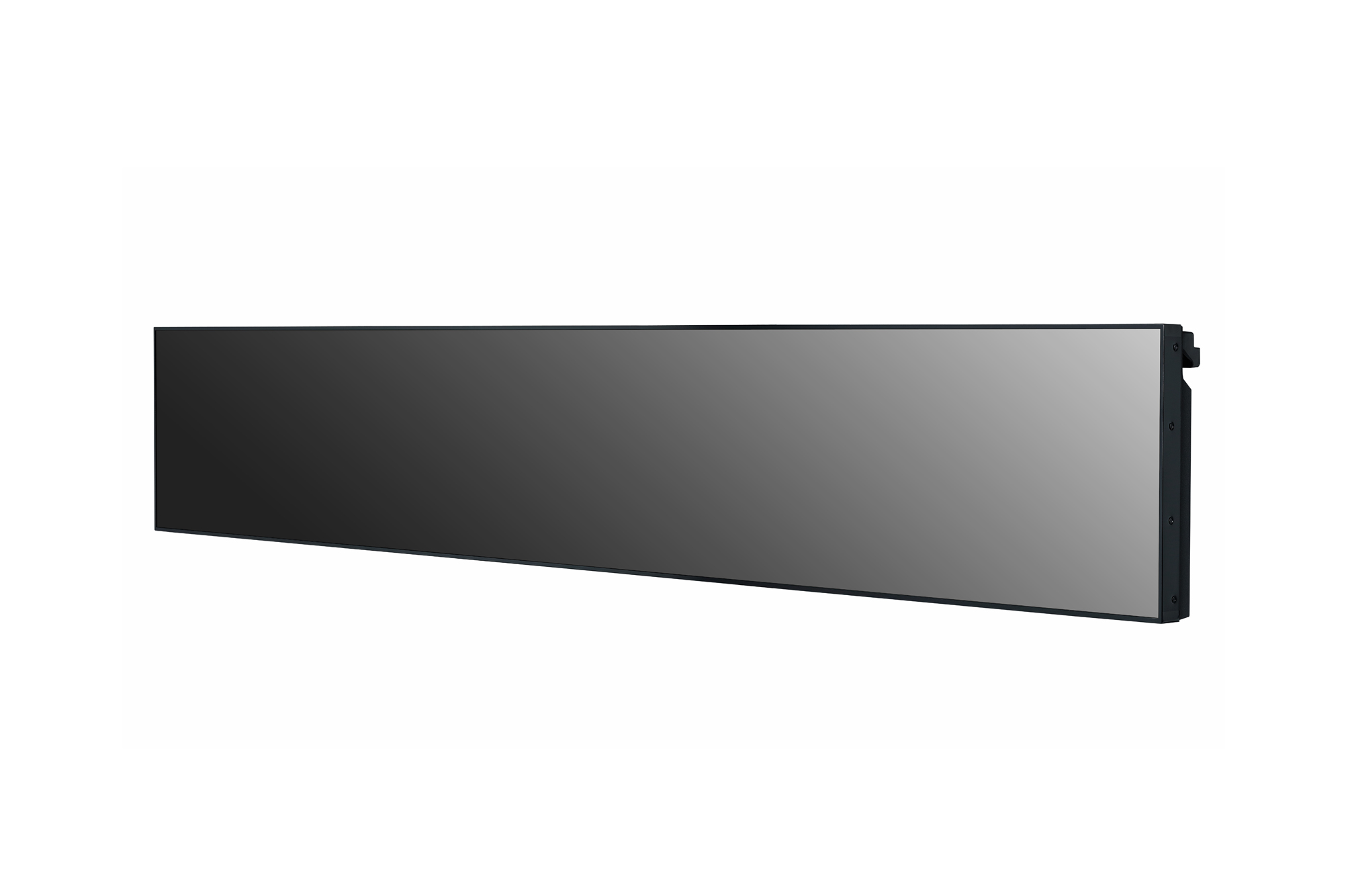

Right Perspective

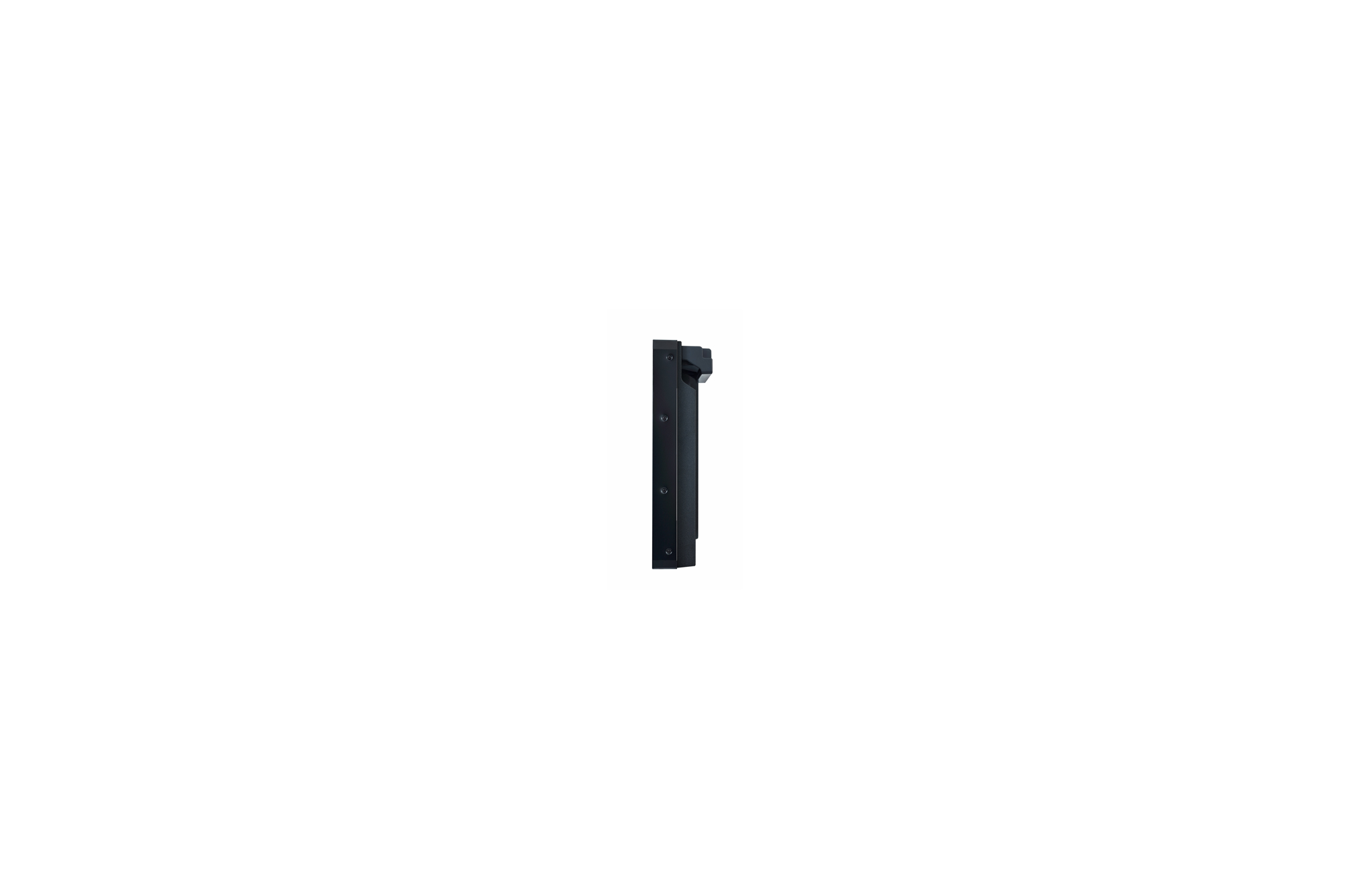

Side Perspective

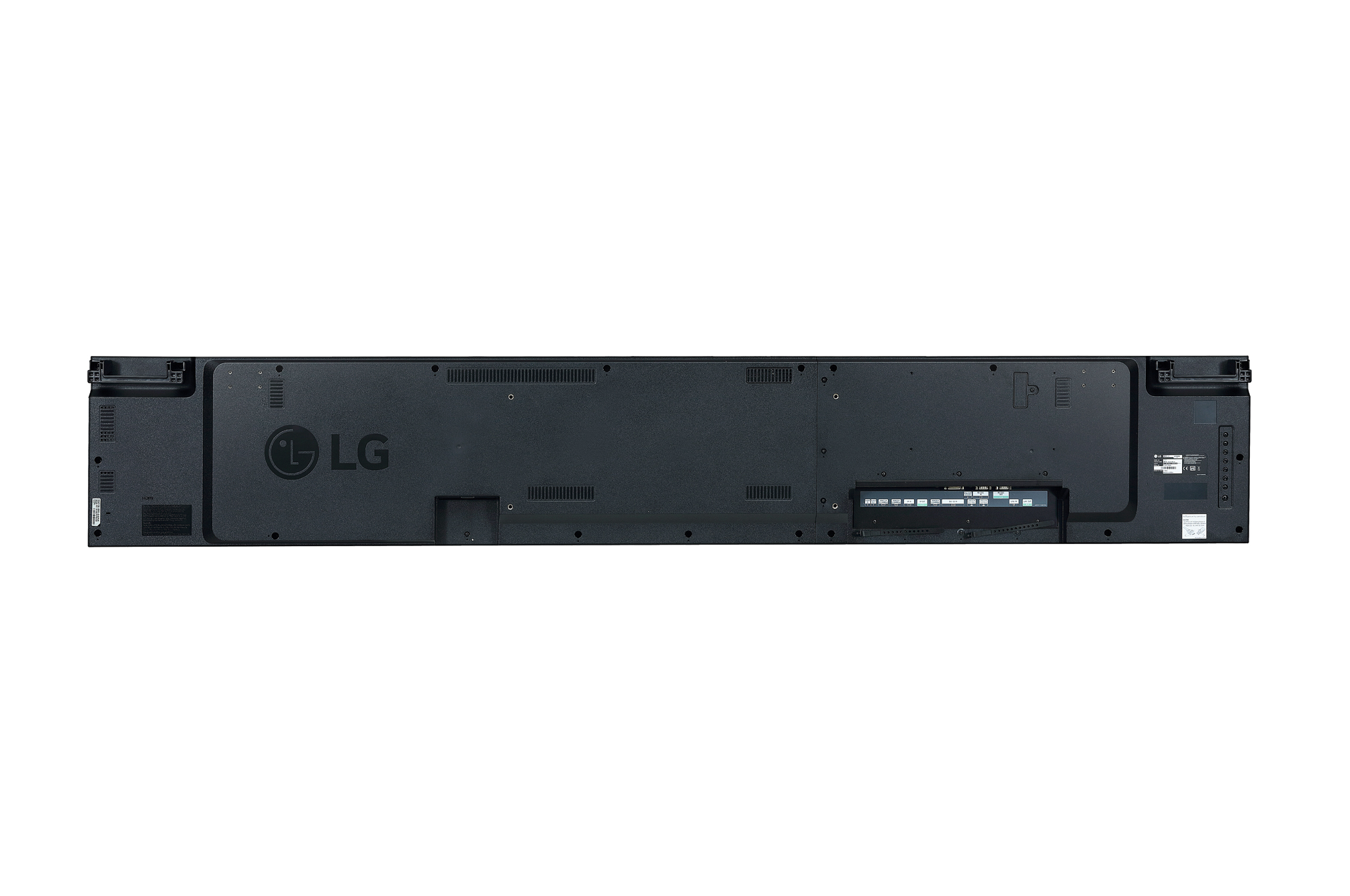

Rear

Documentation:

Download the LG Ultra Stretch Signage - 86BH5F-B Datasheet (.PDF)
