LG 88BH7D
88" Ultra-Stretch Digital Signage

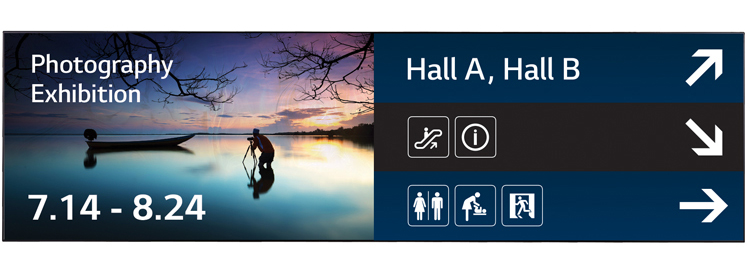

LG 88BH7D 88" Ultra-Stretch Digital Signage
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

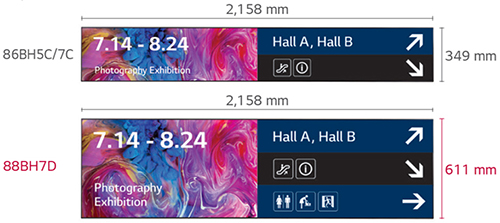

32:9 Aspect Ratio for Unique Installations
The 88BH7D is a new signage format with a 32:9 “stretch” widescreen aspect ratio plus Ultra HD 4K resolution. Turn heads and engage customers as never before with installations that can maximize this dramatic effect in a variety of new ways. A work of art in itself, the Ultra-Stretch 88BH7D elevates virtually any space.
- Size: 88"
- Brightness(Typ.): 700 cd/m²
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 84.8mm
- Ultra HD Resolution (3840 x 1080)
- 32:9 Extended Wide Format
- PBP with Four Divisions in Landscape or Portrait
- 32:9 Content Editing
- Multimedia Content Creation
- Lateral Tiling with Daisy Chain
- Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C
Features:
New Design Configuration
Ultra HD Resolution (3,840 x 1,080)
The large Ultra HD screen delivers an immersive viewing experience.

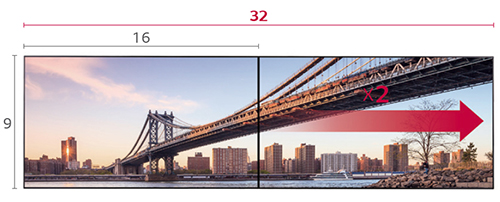

32:9 Extended Wide Format
Dynamic, enhanced content can now be delivered on a single screen thanks to the new 32:9 format.

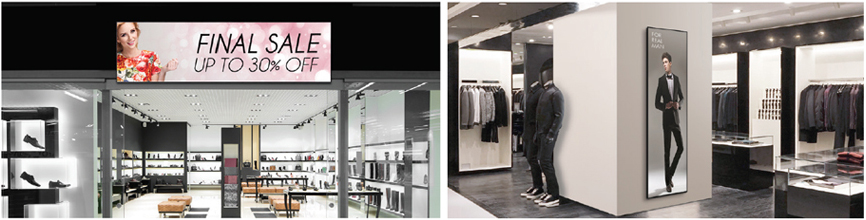

Sleek Design for Space
Ultra-Stretch Signage delivers seamless content as an in-store signboard, digital banner and more, thanks to its generous aspect ratio. Installed on a wall, on a pillar or perhaps over the entrance, it adds premium style while uniquely engaging with all who behold its striking form factor.
Multiple Screens

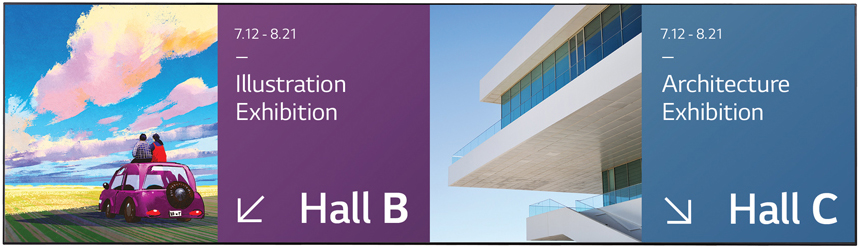

PBP with Four Divisions in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into up to four parts, in landscape or portrait installations. It is a very effective and convenient way to deliver several advertisements or pieces of information at the same time.
Content Management

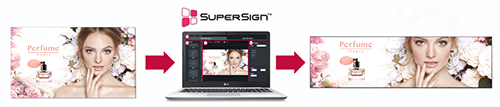

32:9 Content Editing
Easily edit images and video clips of original content to fit the 32:9 format using the included LG SuperSign Media Editor

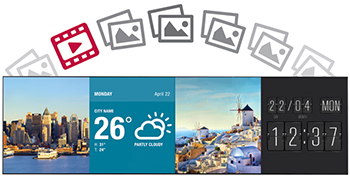

Multimedia Content Creation
Combine video with up to 20 still photos in a single piece of content for an engaging new multimedia presentation.
Convenient Connectivity Support

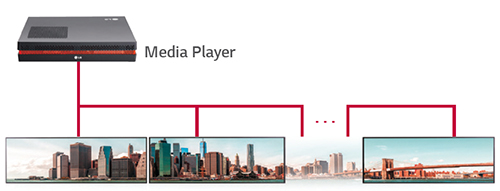

Tiling Scene with Daisy Chain
This product supports side-by-side tiling for 1x4 or 4x1 installations (landscape of portrait orientation) and up to a 4x4 installation with a daisy chain configuration.

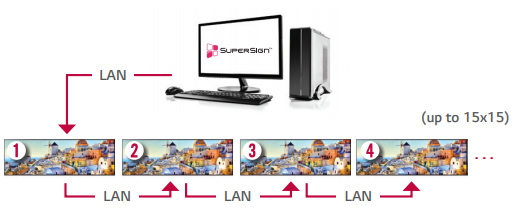

LAN Daisy Chain
Control and monitor devices, distribute content and even update firmware over the LAN daisy chain.
Specifications:
| 88BH7D Specifications | |
|---|---|
| Panel | |
| Screen Size | 88” Class (87.80” Diagonal) |
| Panel Technology | IPS |
| Aspect Ratio | 32:9 |
| Native Resolution | 3840 x 1080 (UHD) |
| Brightness | 700 cd/m2 (Typ.) |
| Contrast Ratio | 1,100:1 (Typ) |
| Dynamic CR | 500,000:1 (Typ) |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G BW) typ |
| Surface Treatment | AGLR (Haze 3%) |
| Orientation | Landscape & Portrait Mode |
| Connectivity | |
| Input | HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card |
| Output | DP, Analog Audio |
| External Control | RS232C In/Out, RJ45 In/Out, IR & Light Sensor, Pixel Sensor |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 4.4 mm (L/R), 5.9 mm (U/D) |
| Monitor Dimension (W x H x D) | 85" x 26" x 4.1" |
| Weight (Head) | 75.4 lbs |
| Carton Dimensions (W x H x D) | 89.5" x 28.2" x 8.3" |
| Packed Weight | 112.9 lbs (Pallet included) |
| Special Features | |
| Special Features | Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, 2/3/4PBP, Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready(Support Beacon function), 4K Up Scaling |
| Environmental Conditions | |
| Operating Temperature | 32 °F to 104 °F |
| Operating Humidity | 10% to 80% |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. / Max | 400 W / 500 W |
| Power Consumption - Smart Enegy Saving | 30% of typical |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KC |
| ErP / Energy Star | Yes / No |
| Media Player Compatibility | |
| OPS type compatible | Yes |
| External Media player Attachable | No |
| Software Compatibility | |
| Content Management Software | SuperSign Premium |
| Control and Monitoring Software | SuperSign C |
| Accessory | |
| Basic | Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload) |
| Optional | AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |

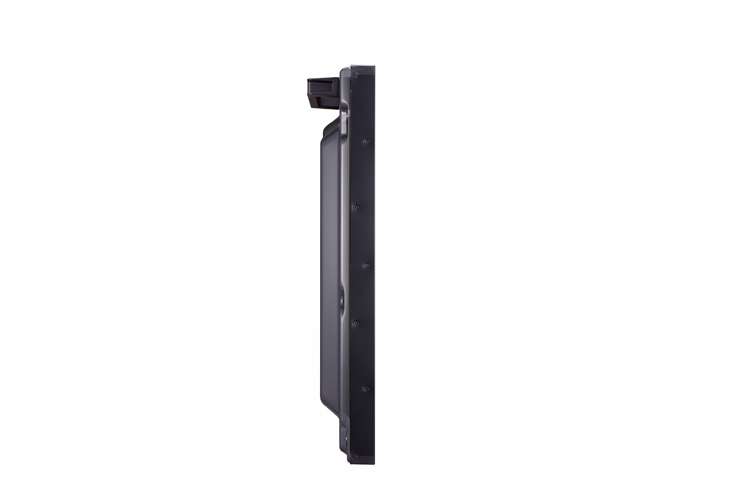

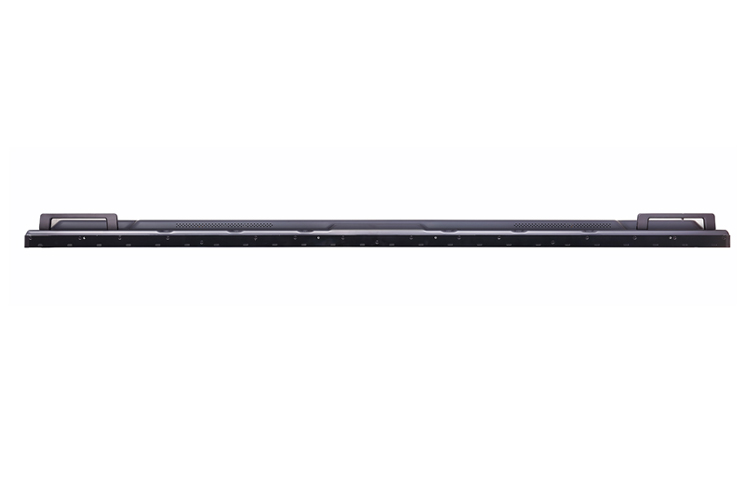

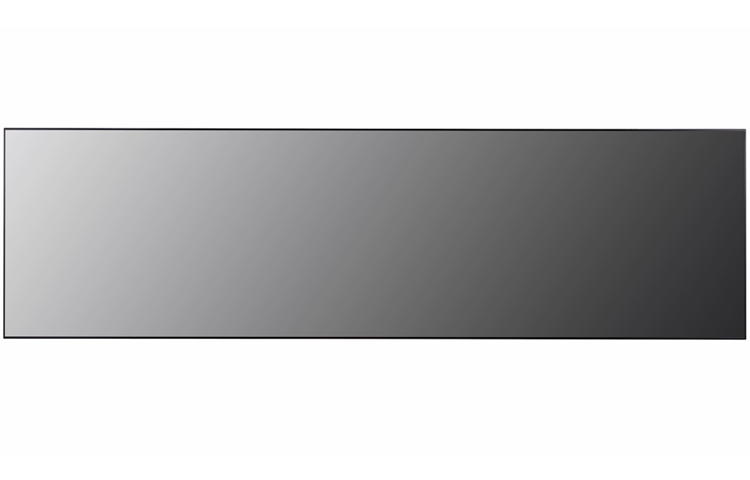

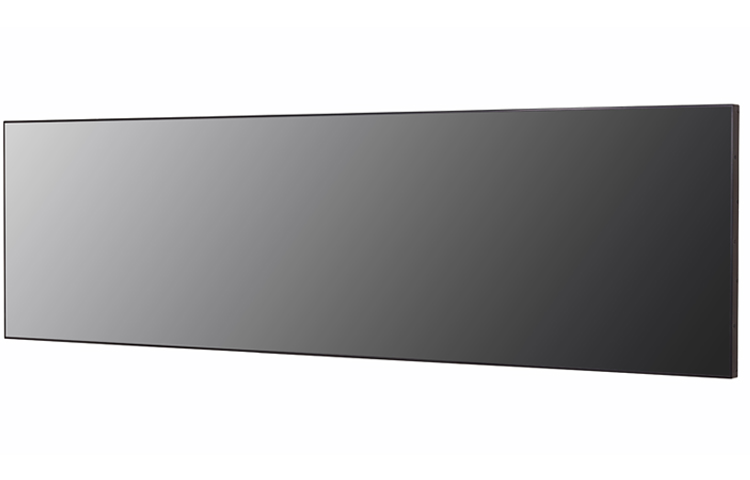

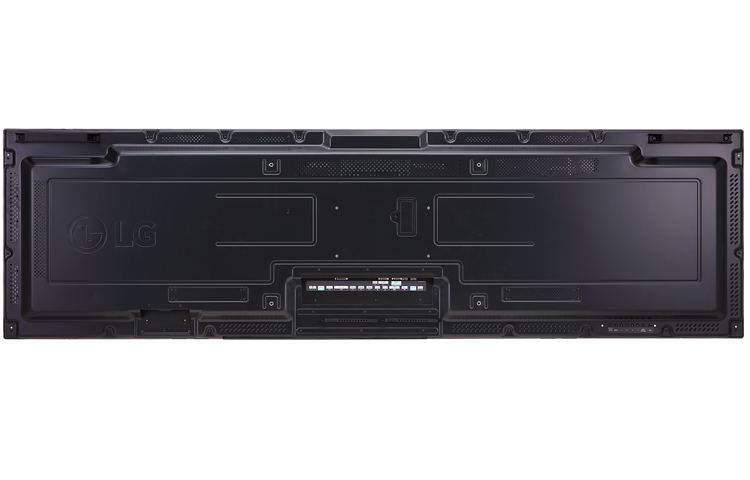

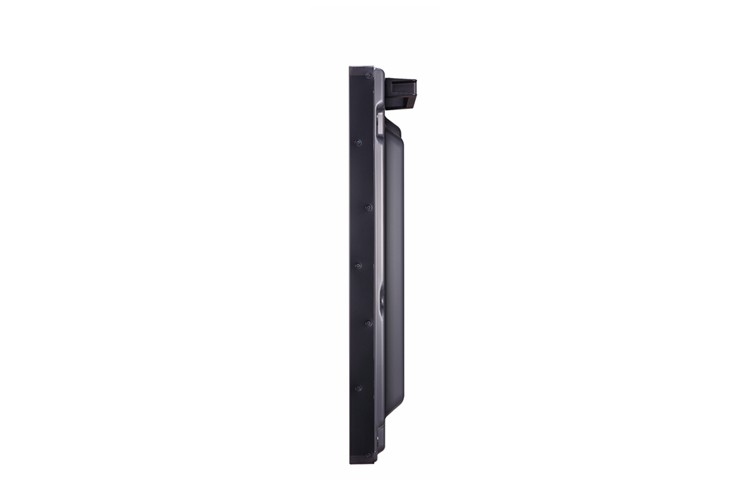

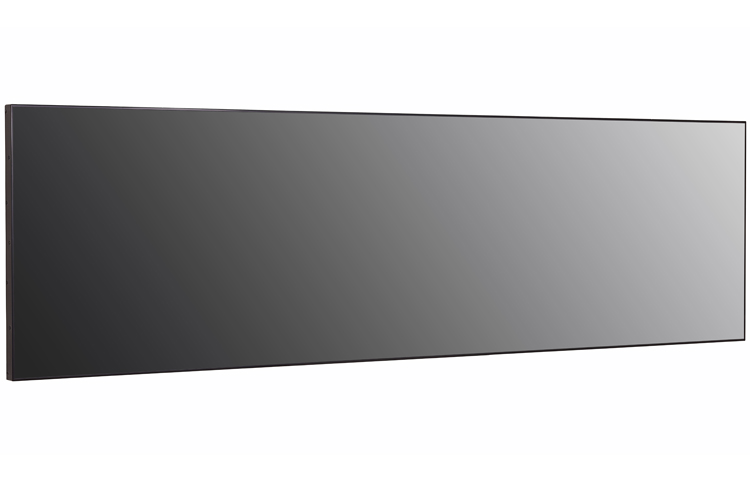

Views:
Documentation:
Download the LG Ultra-Stretch Digital Signage - 88BH7D Datasheet (.PDF)
