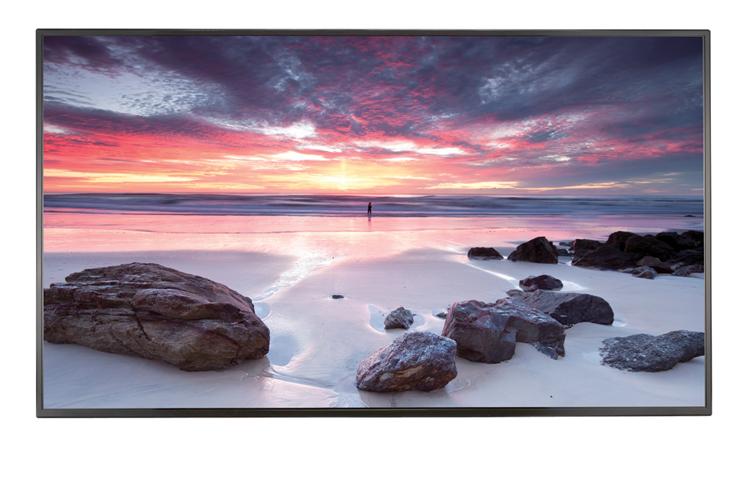

LG 49 inch class - Ultra HD UH5C Series
Immersive Screen with Smart Platform, Quad Core SoC, WebOS 3.0, Group Manager
49UH5C-B Display Products
LG Supersign TV's
-
LG 49 inch class - Immersive Screen with Smart Platform Ultra HD UH5C Series
Quad Core SoC, WebOS 3.0, Group Manager, PBP (Picture-By-Picture) / PIP (Picture-In-Picture)#49UH5C-B
List Price:$1,431.00
Our Price: $837.50
Click here to jump to more pricing!
Overview:

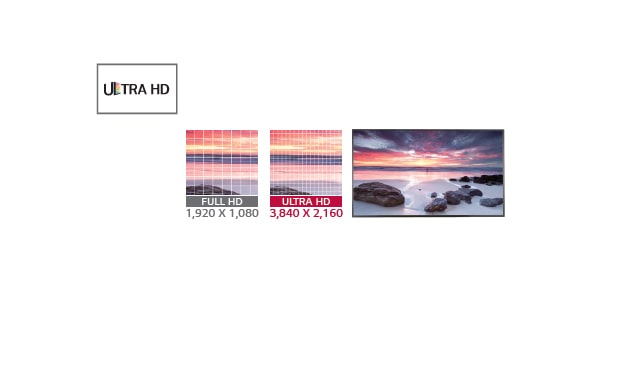

Ultra HD Resolution (3,840 x 2,160)
Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.

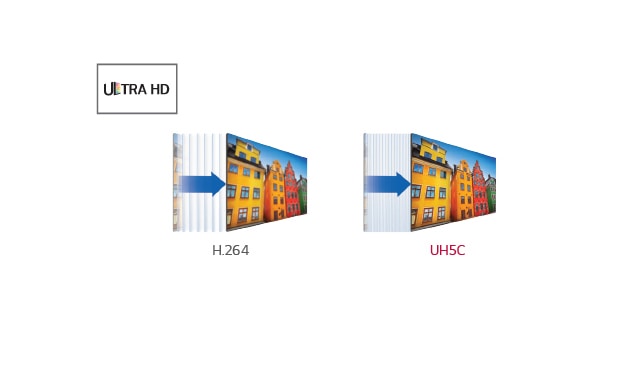

High Efficiency Video Coding
Supports HEVC-based content which has the double data compression ratio than the H.264, so network traffic can be reduced by half.

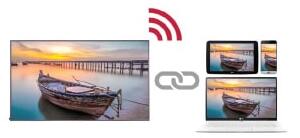

Mirroring
Content sharing is more convenient on a Wi-Fi network.
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31 compared to conventional RGB panels*.

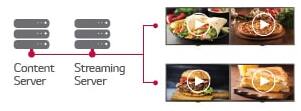

* RTSP (Real-Time Streaming Protocol), RTP (Real-time Transport Protocol), MMS (Microsoft Media Server), HLS (http live streaming)
Secure Communication Protocol
By supporting HTTPS* protocol, communication between server and signage is more secure.
* HTTPS : Hypertext Transfer Protocol over Secure Socket Layer
Proxy Server
Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Features:

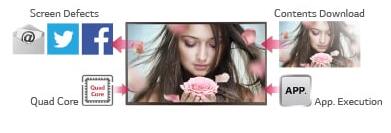

Quad Core SoC*
The high-performance SoC can execute several tasks at the same time and provides smooth content playback.
*SoC : System-on-Chip
WebOS 3.0
The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.

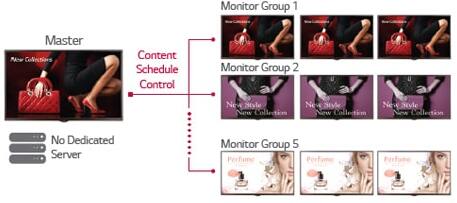

Group Manager
Content can be created, distributed and controlled by a signage without a dedicated PC or server.
Soft AP
The UH5C with Soft AP software can operate as a wireless access point for mobile devices.
PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.
Specifications:
| 49UH5C-B Specifications | |
|---|---|
| PANEL | |
| Screen Size | 49" |
| Panel Technology | IPS |
| Contrast Ratio | 1,100:1 |
| Response Time | 8 ms (G to G) |
| Dynamic Contrast Ratio | 1,000,000 : 1 |
| Brightness | 500cd/m2 |
| Aspect Ratio | 16:09 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Viewing Angle (H x V) | 178°/178° |
| Surface Treatment | Low Haze 1% |
| Orientation | Portrait & Landscape |
| Lifetime (Typ.) | 50,000 Hrs |
| Operation Hours | 24 hours |
| CONNECTIVITY | |
| Input | HDMI, DP, DVI-D, Audio, USB 3.0, SD Card |
| Output | DP, External Speaker out |
| External Control | RS232C, RJ45, IR Receiver, Pixel Sensor |
| PHYSICAL SPECIFICATIONS | |
| Bezel Color | Black |
| Bezel Width | 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B) |
| Monitor Dimension (W x H x D) | 1,103.2 x 648.0 x 38.6 mm |
| Weight (Head) | 13.3 kg |
| VESA TM Standard Mount Interface | 300 x 300 mm |
| Carton Dimensions (W x H x D) | 1197 x 760 x 166 mm |
| Packed Weight | 17.7 kg |
| SPECIAL FEATURES | |
| Yes | Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature Range | 0°C to 40°C / 32°F to 104°F |
| Operating Humidity Range | 10 % to 80 % |
| POWER | |
| Power Supply | 100–240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption (Smart Energy Saving) | 70 W |
| Power Consumption-Typ | 102 W |
| STANDARD CERTIFICATIONS | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP/Energy Star | Yes (EU Only) / Yes (Energy Star 8.0) |
| MEDIA PLAYER COMPATIBILITY | |
| External Media Player Attatchable | Yes (MP500/MP700) |
| OPS Type Compatible | Yes |
| SOFTWARE COMPATIBILITY | |
| SuperSign-C | Yes |
| SuperSign W-Lite | Yes |
| ACCESSORIES | |
| Basic | Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover |
| Optional | Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100) |
| WARRANTY | |
| Limited Warranty | 3 years |
Documentation:
Download the LG 49 inch class - Immersive Screen with Smart Platform Ultra HD UH5C Series - 49UH5C-B Datasheet (.PDF)
Pricing Notes:
- Pricing and product availability subject to change without notice.
