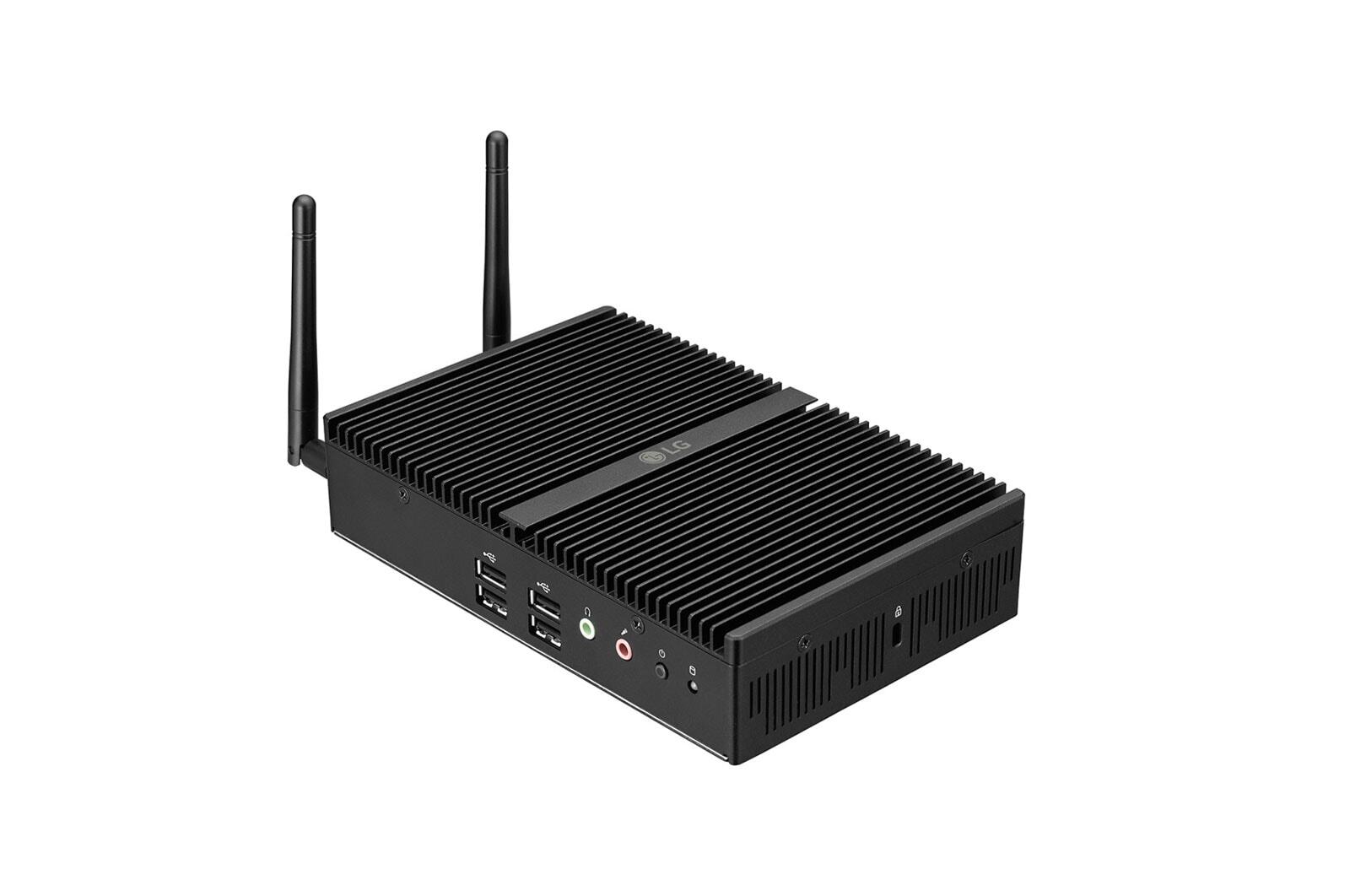

LG Box Type Thin Client CK500N-3C
AMD PRARIE FALCON GX-212JJ, 4GB DDR4, 32GB SSD, TAA
LG Box Type Thin Client
AMD PRARIE FALCON GX-212JJ, 4GB DDR4, 32GB SSD, TAA#CK500N-3C
Our Price: $464.60
Click here to jump to more pricing!
Overview:
Why Cloud Computing
Productivity and Efficiency
LG offers various Thin Client form factors. LG’s excellence in display products can add value to your work environment with better performance.
Simple but Powerful Box
Powerful Compatibility
With LG’s CK500N-3C, transitioning from a multiple monitor environment to a Cloud environment more easily.
Fanless Design
Only the Fanless Design
The fanless design of the CK500N-3C helps to create a more pleasant office environment by decreasing the noise from the Thin Client as well as decreasing the heat it emits.
Features:
Fanless Design
Only the Fanless Design
The fanless design of the CK500N-3C helps to create a more pleasant office environment by decreasing the noise from the Thin Client as well as decreasing the heat it emits.
Fanless Design
Only the Fanless Design
The fanless design of the CK500N-3C helps to create a more pleasant office environment by decreasing the noise from the Thin Client as well as decreasing the heat it emits.
Fanless Design
Only the Fanless Design
The fanless design of the CK500N-3C helps to create a more pleasant office environment by decreasing the noise from the Thin Client as well as decreasing the heat it emits.
Specifications:
| CK500N-3C Specifications | |
|---|---|
| ACCESSORY | |
| CD (Manual / Software) | YES(Paper Manual) |
| DisplayPort | No |
| D-Sub | No |
| DVI to VGA Gender | YES |
| DVI-D | No |
| Easy Setup Guide | No |
| External Antenna (Wi-Fi) | Yes |
| External Calibrator | No |
| HDMI | No |
| HDMI to VGA Gender | No |
| Input Device | No |
| PC Audio | No |
| Power Adapter | Yes |
| Power Cord | Yes |
| RJ45 Gender | No |
| USB | No |
| VESA Bracket | YES |
| COLOR | |
| Back Cover | Matt Black (Texture) |
| Front | Matt Black (Texture) |
| CONTROL KEY | |
| [ Key Location ] | Front |
| Key Description | Power |
| Key Number | 1 |
| Key Type | Tact |
| LED Color(On Mode) | White (PC Power / HDD) |
| LED Color(Power save mode) | LED OFF |
| ETC | |
| Humidity Range | Operating : 20%~80%, Storage : 10%~90% |
| Temperature Range | Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C |
| Warranty | 3 Years |
| INTERFACE | |
| Audio Input - [ Jack Location ] | Horizontal |
| Audio Input - Mic In | Yes |
| Audio Input - PC Audio In | No |
| Audio Output - [ Jack Location ] | Horizontal |
| Audio Output - Headphone Out | Yes |
| Audio Output - Line-out | No |
| Audio Output - Optical out | No |
| Audio Output - RCA | No |
| DC-In | Yes |
| Networking - BT | BT4.0 |
| Networking - Fiber | No |
| Networking - LAN | 1 x RJ45 : Ethernet 10/100/1000 (Support Wake on LAN) |
| Networking - LTE Communication | No |
| Networking - Wireless | Intel Dual Band Wireless-AC 3168 1x1 AC (AGN support, BT 4.0 + LE Combo), External Antenna (Dipole) |
| Signal Input - [ Jack Location ] | Horizontal |
| Signal Input - DC-in | Yes |
| Signal Input - DisplayPort | No |
| Signal Input - D-Sub | No |
| Signal Input - DVI | No |
| Signal Input - HDMI | No |
| Signal Input - mini DisplayPort | No |
| Signal Input - Thunderbolt (Ver) | No |
| Signal Output - DisplayPort Out | Yes(1.2) |
| Signal Output - DVI out | YES |
| Signal Output - HDMI Out | YES |
| USB | 4 x USB2.0, 2 x USB3.0 |
| PC | |
| Certifications (Based on US ratings) | No |
| Display Support | 4096x2160@50Hz, 3840x2160@60Hz (via DisplayPort 1.2 out), 4096x2160@24Hz, 3840x2160@30Hz, 2560x1440@60Hz (via HDMI1.4 out), 1600x1200@60Hz (via DVI out) |
| Expansion Slot | M.2 Slots x 2 (Slot 1 : 32GB SSD, Slot 2 : WiFi + Bluetooth card) * Note: Slot 1 should be capable of supporting both SATA and PCIe NVMe SSDs. SO-DIMM x 1 (Slot 1 : 4GB DDR4) |
| Graphics | Integrated Graphics |
| Management Console | No |
| ODD | No |
| Operation System | Non OS |
| Processor | AMD Pairie Falcon GX-212JJ |
| S/W (Pre-Installed App) | No |
| Storage | 32GB (M.2 SSD), M.2 2280/2242 SSD Supported (SATA/PCIe supported) |
| System Memory | 8GB DDR |
| TPM (Trust Platform Module) | Software TPM |
| POWER | |
| Consumption - DC Off(Max) | 0.6Watt |
| Consumption - Long Idle(Display OFF) | 6.0Watt |
| Consumption - Short Idle(Display ON) | 10Watt |
| Consumption - Sleep Mode(Max) | 1.0Watt |
| Consumption - TEC (kWh) | 41.4 kWh |
| Input | 100~240V (50/60Hz) |
| Output | 48 Watt |
| Type | Adapter |
| SECURITY | |
| Kenshinton Lock Slot | Yes |
| SIZE/WEIGHT | |
| Dimension (WxDxH) - Box (mm) | 231mm x 81mm x 179mm |
| Dimension (WxDxH) - Set (without Stand, mm) | 180mm x 39.9mm x 117mm |
| Dimension (WxDxH) - VESA / Wall Mount (mm) | 100 x 100, 75 x 75 (wall mount) |
| Stuffing - Pallet(20ft/40ft/40ft HC) | 2,500/5,250/-(Air), 3,000/6,300/-(Vessel) |
| Weight - Box (Kg) | 1.85kg |
| Weight - Set (without Stand, Kg) | 1kg |
| SPEAKER | |
| Audio output (watt) | No |
| Type | No |
| SPECIAL FEATURE | |
| General Function - DDC/CI | No |
| General Function - HDCP | No |
| General Function - Intelligent Auto (Auto Adjustment) | No |
| General Function - Key Lock | No |
| General Function - Plug & Play | No |
| General Function - Remote Control | No |
| General Function - Response Time | No |
| General Function - sRGB | No |
| PC Features - Etc. | No |
| PC Features - SD Card Slot | No |
| PC Features - Webcam | No |
| Picture - PBP / PIP | No |
| Picture - Picture Mode | No |
| Picture - Ratio | No |
| Picture - Reader Mode | No |
| Sound - Maxx Audio | No |
| Special Feature - Color Calibrated | No |
| Special Feature - Dual Control | No |
| Special Feature - Dual Smart Solution (Dual web, Dual Display, Smart Resolution ) | No |
| Special Feature - Flicker safe | No |
| Special Feature - Motion Energy Saver | No |
| Special Feature - Off Timer | No |
| Special Feature - OSC (On Screen Control / Screen Split) | No |
| Special Feature - Power Charge | No |
| Special Feature - SIX Axis Control | No |
| Special Feature - Smart Energy Saving | No |
| Special Feature - Super Resolution+ | No |
| Special Feature - Touch | No |
| Special Feature - True Color Pro / Finder | No |
| STANDARD | |
| Bluetooth | No |
| CB | Yes |
| CE | Yes |
| DisplayPort | No |
| EPA | No |
| EPEAT | No |
| FCC-B | Yes |
| IEC60601 | No |
| ISO 9241-307 | No |
| PVC-Free | No |
| ROHS, REACH | ROHS, REACH |
| TCO (Ver.) | No |
| TUV-Ergo | Yes |
| TUV-GS | Yes |
| TUV-Type | Yes |
| UL(cUL) | Yes |
| Wi-Fi | No |
| Windows | No |
| WRAP | |
| Box Printing Type | Flexo |
| Handle | No |
| Packing Material | A-Flute |
| Stacking Type | Vertical |
| Stand Packing Type | No |
Documentation:
Download the LG Box Type Thin Client - CK500N-3C Datasheet (.PDF)
