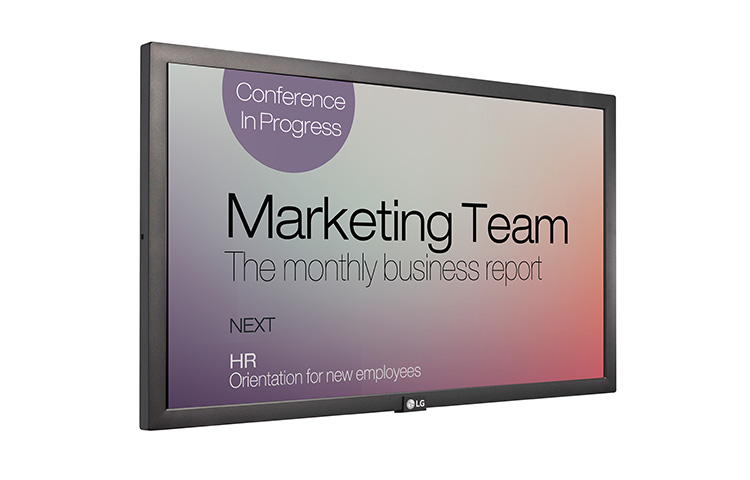

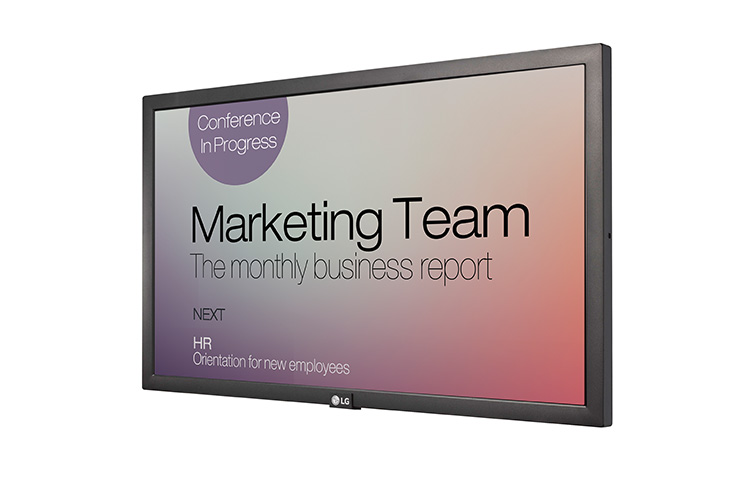

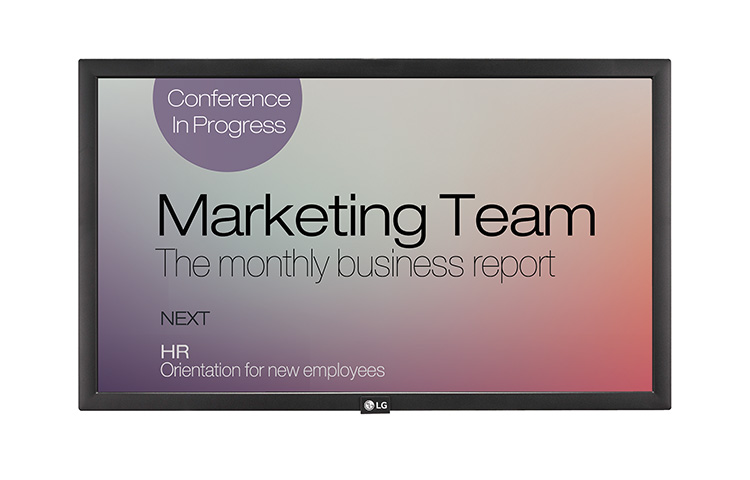

22" Class (21.5 Diagonal) Small Signage
22" LCD, 1920x1080, LED-Lit, 250 Nit, 1080p, HDMI, USB, RGB, Wireless LAN, Ethernet, Black, 3-Year Warranty
The 22SM3G with the smart platform of webOS, you are able to simplify the content management process. With built-in Wi-Fi, it provides network convenience to streamline the installation and manage content efficiently. It is ideal for small spaces to deliver promotional messaging and event information at in-store end caps. meeting rooms, conference rooms and more.
- Screen Size: 22”
- Brightness : 250 cd/m
- Bezel : Top/Left/Right/Bottom 16.3mm (Even Bezel)
- Depth : 2.1"
- Interface : HDMI / USB / RGB / RJ45 / IR

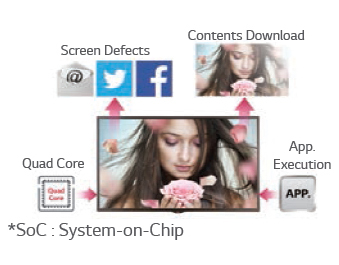

Quad Core SoC*
The High Performance SoC can execute several tasks at the same time and provides smooth content playback.

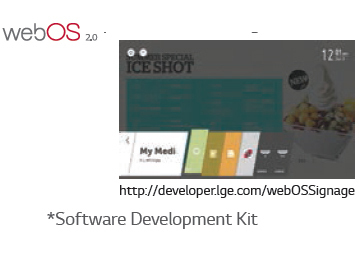

The webOS 2.0 platform provides easy and convenient tools to create content. LG’s SDK* and technical support make content development and management easier

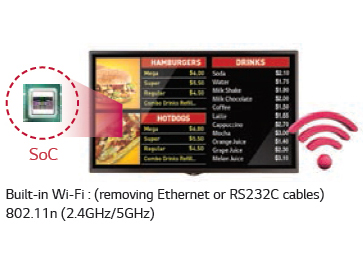

Installation has been simplified by removing the external media player and Ethernet/RS232C cables.

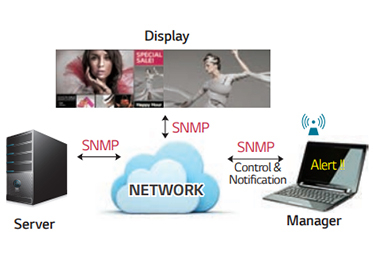

Simple Network Management Protocol
SNMP support ensures convenient network management.
Content sharing is more convenient on a Wi-Fi network.

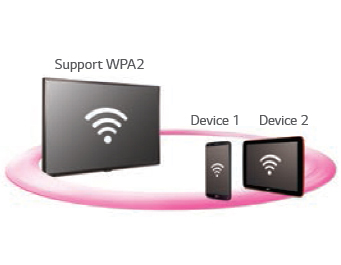

The 22SM3B with SoftAP software can operate as a wireless access point for mobile devices.

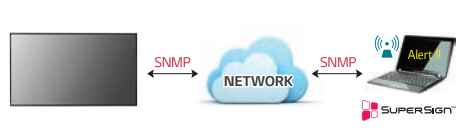

Real-Time Remote Monitoring
When an alarm occurs, an e-mail notification is sent using SuperSign C or System Integrators/3rd party software SI SW through the SNMP Protocol. In case of malfunctions or errors, real-time remote care is available.

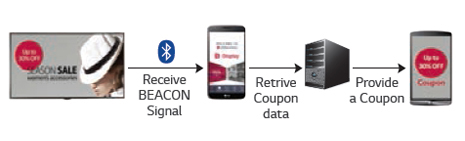

With BEACON and Bluetooth Low Energy (BLE) supported by 22SM3B, retail stores can provide coupons and information in real-time.
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Surface Treatment||Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))|
|Guaranteed Operating Hour||18 Hours|
|Orientation||Portrait & Landscape|
|Input||HDMI, RGB, Audio, USB 3.0, SD card|
|Output||External Speaker (L/R)|
|External Control||RS232C In, IR Receiver, Pixel Sensor|
|Bezel Width||16.3mm (T/R/L/B)|
|Monitor Dimension (W x H x D)||20.1" x 11.9" x 2.1"|
|Carton Dimensions (W x H x D)||22.2 " x 14.1" x 4.1"|

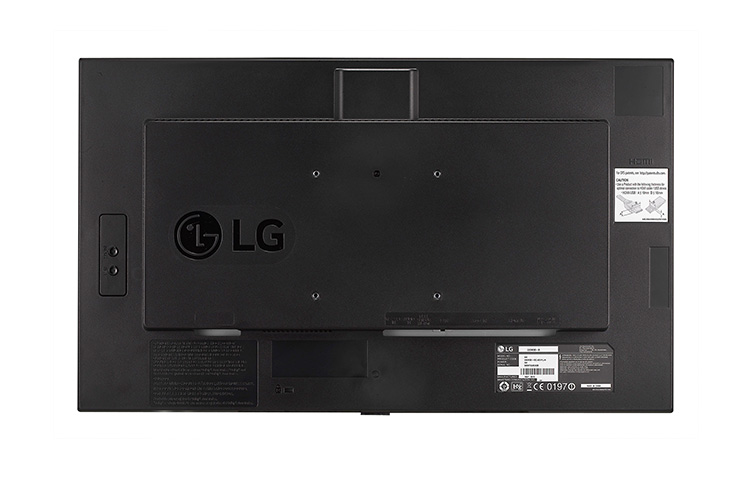

|VESA Standard Mount Interface||100 x 100|
|Special Features||ISM Method, Internal Memory (4GB), Wi-Fi (802.11n combo built-in), USB Cloning, Local contents scheduling, Sync Mode, PM Mode, Local Time Auto Setting, Wake on LAN, Pivot Mode, Content Rotation 0,90,270, Fail Over, BEACON On/Off, Embedded Template|
|Operating Temperature Range||32 °F to 104 °F|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ.||35W|
|Power Consumption - Smart Enegy Saving||On 25.13W / Off 29.76W|
|Safety||UL / cUL / CB / TUV|
|EMC||FCC Class "B" / CE|
|Basic||Remote Controller (include 2ea batteries), Power Cord, QSG, RGB Cable, Phone to RS232C Gender|
|Optional||Pixel sensor (KT-SP0)|
|Warranty||3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available|
|UPC||7 19192 19839 5|
Download the LG Small Signage 22SM3G-B Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
LG Display Products
Small Signage Displays
LG 22SM3G-B 22" Class Small Signage
22" LCD, 1920x1080, LED-Lit, 250 Nit, 1080p, HDMI, USB, RGB, Wireless LAN, Ethernet, Black, 3-Year Warranty#22SM3G-B
Our Price: $345.00
3 Years Warranties
3 Years TTL Term Coverage with 24 Hour Quick Swap for 22'' Small Format#MN22N0S100U
Our Price: $75.00
3 Years TTL Term Coverage with 48 Hour Quick Swap for 22'' Small Format#MN22N0S200U
Our Price: $70.00
4 Years Warranties
4 Years TTL Term Coverage with 24 Hour Quick Swap for 22'' Small Format#MN22E1S100U
Our Price: $115.00
4 Years TTL Term Coverage with 48 Hour Quick Swap for 22'' Small Format#MN22E1S200U
Our Price: $108.00
5 Years Warranties
5 Years TTL Term Coverage with 24 Hour Quick Swap for 22'' Small Format#MN22E2S100U
Our Price: $158.00
5 Years TTL Term Coverage with 48 Hour Quick Swap for 22'' Small Format#MN22E2S200U
Our Price: $148.00
