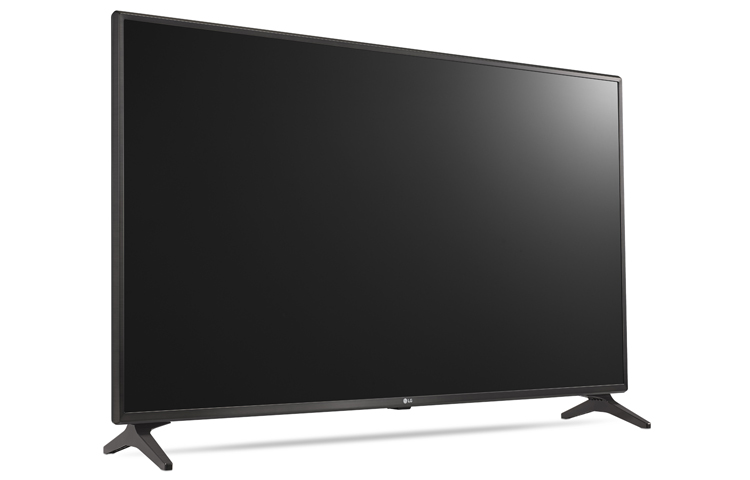

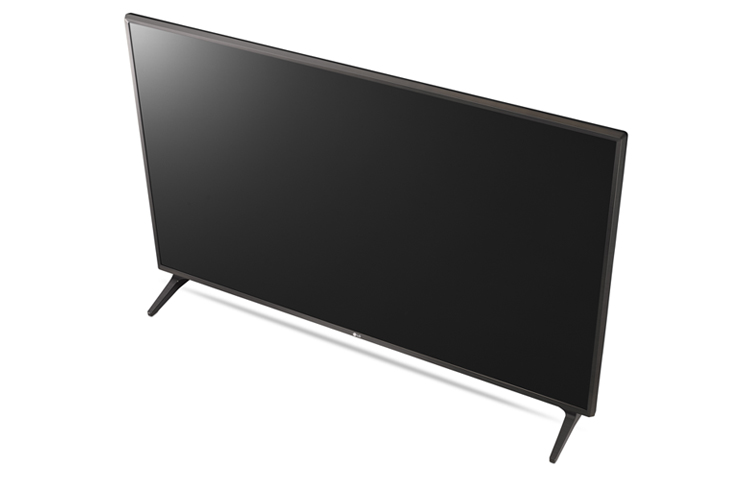

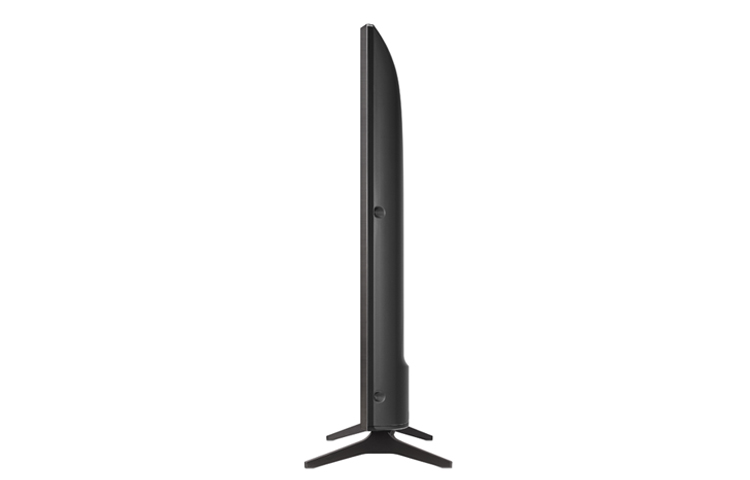

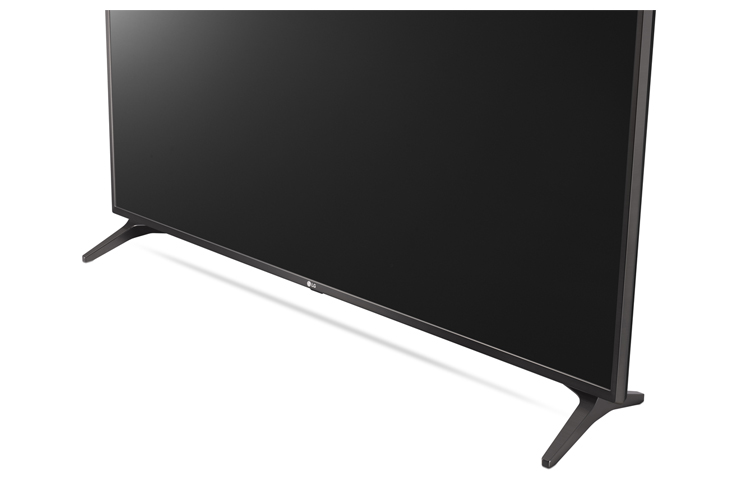

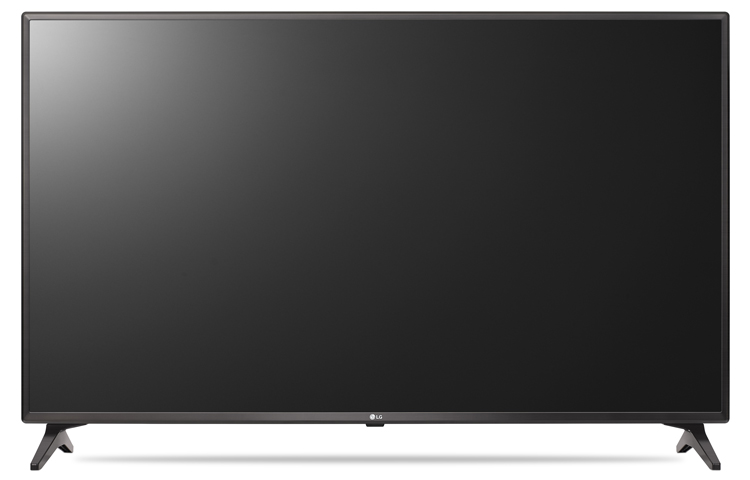

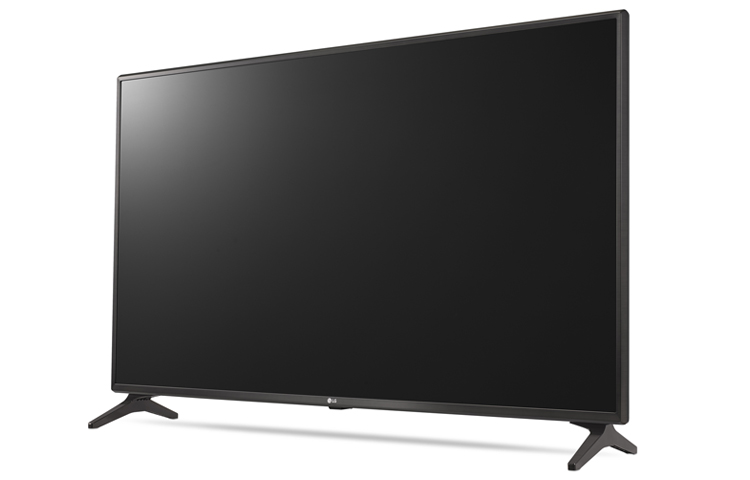

LG 43LV640S
43” Smart TV Signage
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

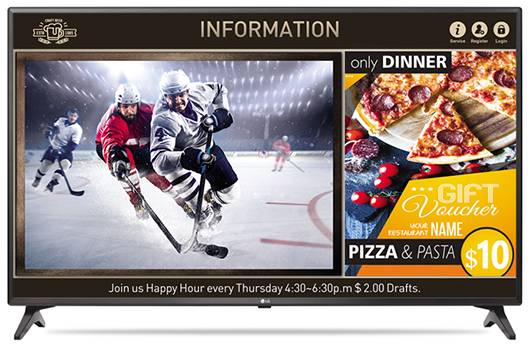

The LV640S Series of Smart TV signage provides easy and convenient on-screen content management. It has been designed for simultaneously broadcasting TV programs and delivering advertisements via the built-in TV tuner. With its assortment of content management solutions, including embedded content management tools and the preloaded YouTube app, the LV640S is a perfect display for virtually any high-traffic environment.
- Size: 43"
- Embedded Content Management
- Crestron Connected Certified Display
- WOL (Wake on LAN)
- SNMP (Simple Network Management Protocol)
- Enriched Smart Content via Pre-loaded YouTube App and web browser
- Built-in WiFi
- WOL (Wake on LAN) & SNMP
Features:
Embedded Smart Content Management
Content Manager
Without extra PC, content can be easily created using embedded templates and can be played according to its schedule managers set.

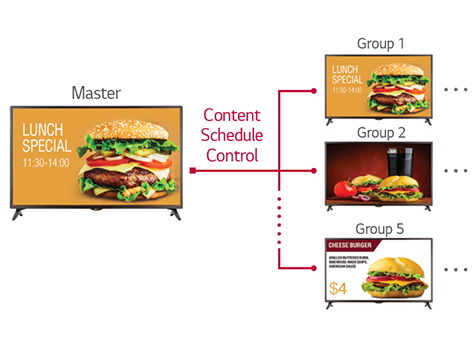

Group Manager
A Smart TV Signage itself works as a server, so without any extra device, a master TV can distribute content and set data on a selected group within the same network.
Compatible LG SW for Smart TV Signage
The compatible LG SW for Smart TV Signage includes LG Simple Editor, SuperSign Link to provide digital media editing, scheduling, distribution and management capabilities.
Smart Connectivity & Experience

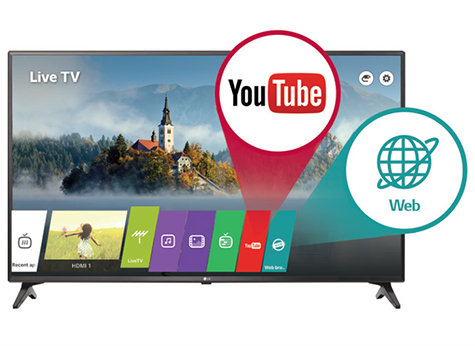

Enriched Smart Content
Customers can easily access to various content via preloaded YouTube app, web browser as well as live channel.

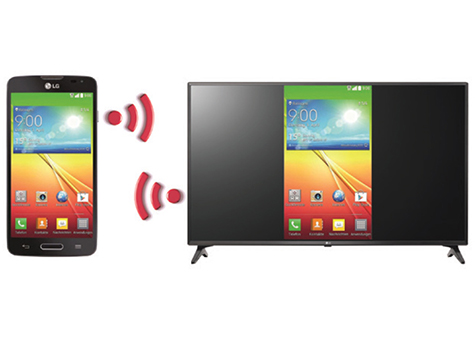

ScreenShare
Connect a smartphone or a laptop PC to TV via a Wi-Fi Direct connection. The TV will display the device's screen, and users can share their content and memories together
Easy Management

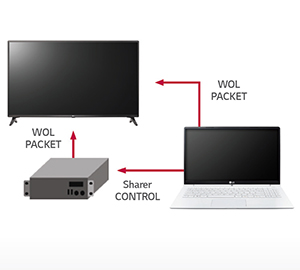

WOL
WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet program to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.

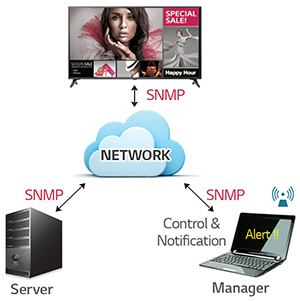

SNMP
SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.
Built-in WiFi
With built-in WiFi, installation and content distribution have been simplified.

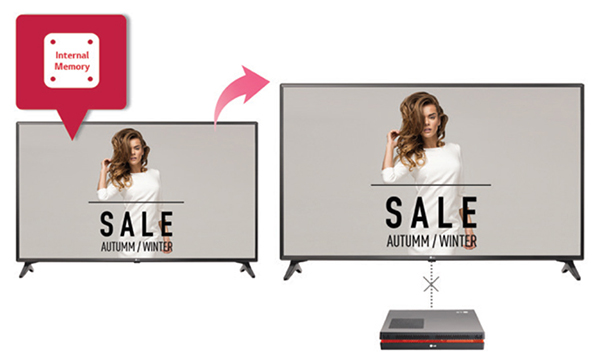

Fail Over (Internal Memory only)
The USB fail over function enables content to be displayed without dead spots when no input signal is available. This feature supports files in JPG format with a maximum file size of 10 MB.
RTC
Save time and improve convenience with RTC (Real Time Clock). When the TV's power is off, time information is stored on the RTC module via an internal memory, and a time sync process can be omitted as the TV turns on.

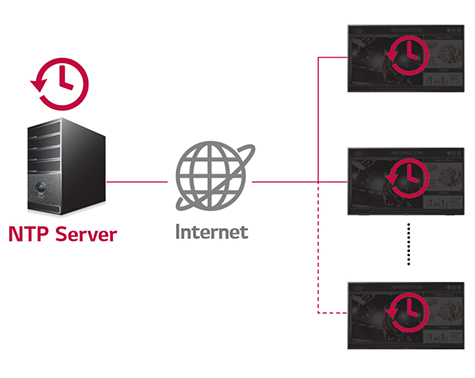

NTP
With NTP (Network Time Protocol), the TV receives real time updates from the network and synchronizes its time accordingly.
Specifications:
| 43LV640S Specifications | |
|---|---|
| Display | |
| Screen Size | 43" |
| Diagonal Size | 42.5" |
| Type | Direct LED |
| Resolution | 1,920 x 1,080 (FHD) |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Static (Panel) Contrast Ratio | 1,100:1 |
| Brightness | 400cd/m2 |
| Viewing Angle Degree | 178° / 178° |
| Response Time | 9 |
| Broadcasting System | |
| Analog | NTSC |
| Digital | ATSC / VSB / Clear QAM |
| Video | |
| Picture Engine | XD Engine |
| Real Cinema 24p (3:3 Pull down) | Yes |
| Aspect Ratio | 6 modes (16:9, Just scan, Set by program, 4:3, Zoom, Cinema zoom1) |
| Audio | |
| Audio Output / Speaker System | 10W + 10W / 2.0 ch |
| Sound Mode | 6 modes (Standard, News, Music, Cinema, Sport, Game) |
| Clear Voice | Yes |
| Smart Features | |
| Smart UX | webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded YouTube Apps, Magic Remote (Optional) |
| Connectivity | SoftAP, WiFi, SmartShare, ScreenShare (Miracast), DIAL, Bleutooth Sound Sync, LG Sound Sync |
| Hospitality Features | |
| Hospitality Features | Hotel Mode, Lock Mode, Welcome Screen / Video, Insert Image, External Speaker Out, Time Scheduler / First Use, Content Manager, Group Manager, Crestron Connected Certification, RTC (Real Time Clock), NTP sync timer |
| General Features | |
| Installation | USB Cloning |
| Management | WOL (Wake on LAN), SNMP (Simple Network Management Protocol), Self Diagnosis via USB, Multi IR Code, HDMI-CEC |
| Setting Option | Auto Off/Sleep Timer, Smart Energy Saving, Motion Eye care |
| USB | Moving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac) |
| LG Software Compatibility | |
| LG Software Compatibility | SuperSign Simple Editor, SuperSign Lite* |
| Interface | |
| Side | HDMI In, USB (2) |
| Rear | RF, AV In, Component In (RCA5), Optical Digital Audio Out, HDMI Input (2), RGB In, PC Audio Input (Sharing with Component Audio), RS-232C, RJ45 (Ethernet), External Speaker, Debug (Service) |
| Dimension | |
| Vesa | 200 x 200 (mm) |
| W x H x D / weight (with stand) | 38.3" x 24.6" x 8.7" / 20.5lb |
| W x H x D / weight (without stand) | 38.3" x 22.5" x 2.8" / 20.3lb |
| W x H x D / weight (Packing) | 41.7" x 26.0" x 6.0" / 24.9lb |
| Power (Unit : Watts) | |
| Voltage, Hz | 100-240V, 50/60Hz |
| Typical | 38 |
| Stand-by | < 0.5 |
| Software Compatibility | |
| Safety | UL |
| Environment | FCC |
| ETC | RoHS, UL, NOM |
*CMS and remote control are available with SuperSign Lite.
Views:
Documentation:
Download the LG Smart TV Signage - LV640S Series Datasheet (.PDF)
