LG 43SL5B
43" Full HD Standard Essential Commercial Display
LG 43SL5B 43" HD Standard Essential Display
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
With its narrow even bezel, LG SL5B enables you to create landscape or portrait wallsin multiple installation scenes. It is enhanced in reliability and maintenance by protecting the circuit board from dust, iron fillings and humidity, and by detecting screen failures with SuperSign™ Software. Supporting convenient content management, this series are suitable for installation environments such as airport, retail and multiplex etc.
Display your digital signage content with the LG 43SL5B 43"-Class Full HD Commercial Display. This model has a 43"-class IPS LED display and features a Full HD 1920 x 1080 native resolution for viewing detailed high-definition content. The 450 cd/m² brightness output allows the display to perform in well-lit areas.
The SL5B is suitable for digital signage applications, and is equipped with HDMI, VGA, DVI-D, and two USB inputs for interfacing a variety of external devices. The USB port supports playback of various popular file types, including MPEG4, H.264, JPEG, MP3, and more. Integrated RS-232C and LAN interfaces allow you to control the display remotely.
- Size: 43"
- Brightness (Typ.): 450 cd/m
- Bezel: Top/Left/Right 11.9 mm (Bottom 18.0 mm)

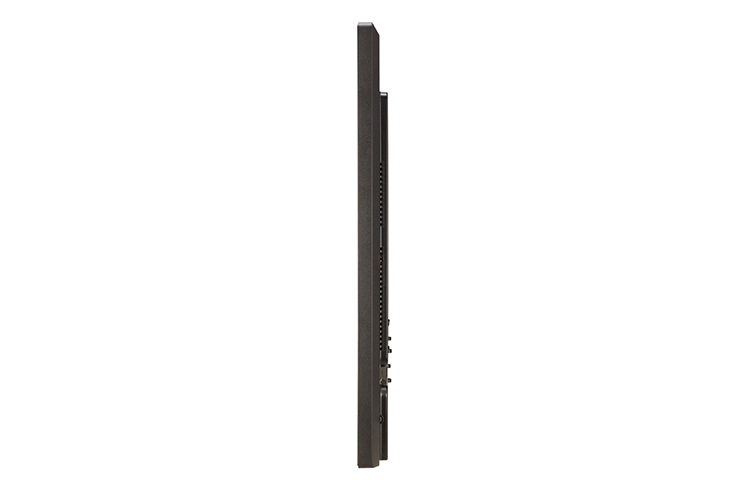

- Depth: 38.6mm

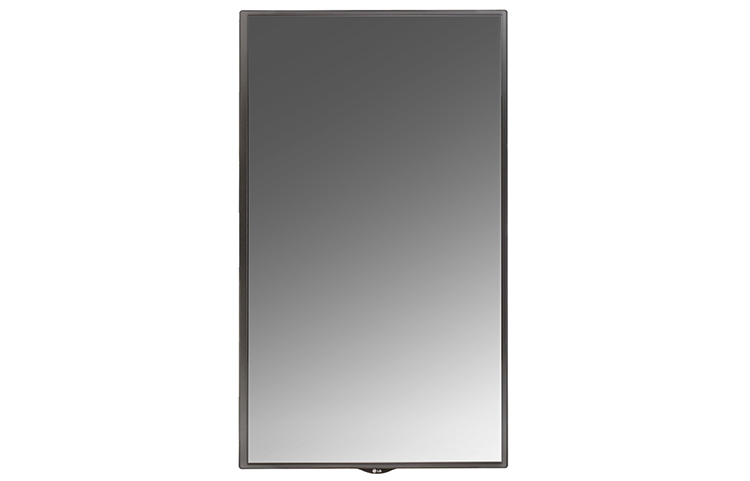

- Orientation: Landscape & Portrait mode
- Interface: HDMI, DVI, RGB, RJ45, USB, RS232C
- 18/7 Operation
Features:

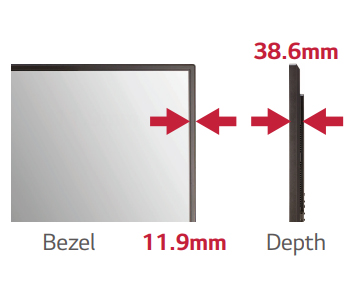

Sleek Design
Slimmer Bezel | Narrow Bezel
LG’s monitorsfeaturing a Direct-LED Backlight, have a stylishly slim design that fit perfectly into narrow spaces while ensuring high energy efficiency. The slim bezels are a perfect fit in confined areas and are easy to install.
Detachable Logo
The detachable logo can be removed and repositioned to the desired setting. Perfect when using in Portrait Mode.
Convenient Management
Wi-Fi Support
SL5B Series support Wi-Fi USB dongle connection for convenient content distribution.
Simple Network Management Protocol
SNMP support ensures convenient network management.

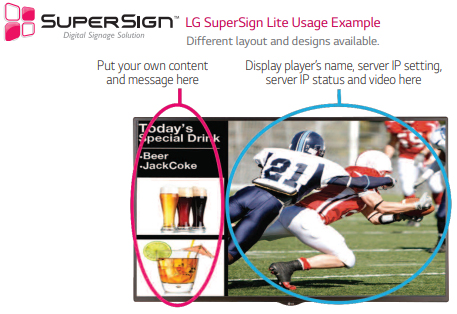

LG SuperSign
SuperSign
Run messages on up to 50 display screens in the form of a billboard without any additional hardware. Advertisements, information and broadcast content can be arranged on the same screen to attract attention and deliver specific messaging to your customer base.

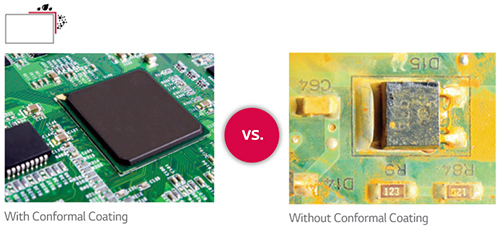

Dust & Humidity Protection
Conformal Coating
Conformal coating helps protect against water, dust and iron powder deposits which accumulate in harsh environments, saving on expensive installation and added enclosure costs.
USB Content Management
USB Content Scheduling
Play and schedule your content via a USB connection, with no Internet or server connection required*.

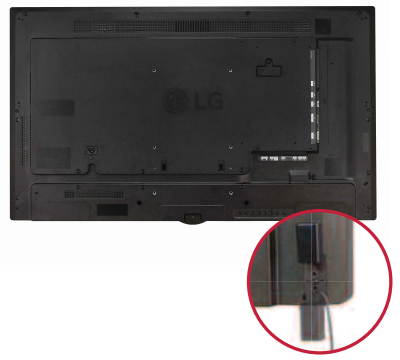

Cable Management & Built-in Receiver
Cable Management
The well-organized cable terminals optimize available space and the built-in receiver has detachable features that can adjust to any environment.
Convenient Screen Mode
Aspect Ratio Sustainability*
Sustain the same resolution and picture quality while powering on/off by receiving EDID1) through switch IC.
Stand-by Screen
Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
Scheduled Screen Wash**
Prevent residual images with the screen transition feature.
Specifications:
| 43SL5B Specifications | |
|---|---|
| Panel | |
| Screen Size | 43" class (42.5" diagonal) |
| Panel Technology | IPS (PD) |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Pixels (H x V x 3) | 6,220,800 |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 500,000:1 |
| Color Gamut | 68% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 16.7 Million |
| Response Time | 12ms(G to G BW) |
| Surface Treatment | Hard Coating (3H), Anti-glare treatment of the front polarizer (Haze 1% (Typ.)) |
| Guaranteed Operating Hour | 18 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI (1), DVI, Analog, Audio, USB |
| HDTV Formats | HDMI : 720p, 1080i, 1080p |
| Output | Audio, External Speaker Out (L/R) |
| External Control | RS232C (In/Out), RJ45, IR Receiver |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 11.9mm (T/R/L), 18mm (B) |
| Monitor Dimension (W x H x D) | 38.2” x 22.2” x 1.5” |
| Weight (Head) | 21.6 lbs |
| Monitor with Optional Stand Dimensions (W x H x D) | 38.2” x 24.5” x 7.6” |
| Weight (Head + Stand) | 27.1 lbs |
| Monitor w/Optional Stand & Speakers (W x H x D) | 38.2” x 24.5” x 7.6” |
| Monitor w/Optional Stand & Speakers Weight | 28.22 lbs |
| Carton Dimensions (W x H x D) | 41.4” x 25.6” x 4.8” |
| Packed Weight | 27.3 lbs |
| VESA Standard Mount Interface | 200 mm x 200 mm |
| Special Features | |
| Special Features | Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode @ Tile Mode, Source Selection (RGB, HDMI, DVI, USB1, USB2), Brightness/Con- trast/Backlight, Position/Size, Auto Config/Phase, Input Label (PC/DTV), Power on Status, Key Operation (IR operation, Local key operation), DPM Select, DPM Wake Up, Energy Saving, Smart Energy Saving, File Play with USB, Wi-Fi (Dongle Ready), USB Cloning, Easy Brightness Control, Contents Scheduling, Calibration Mode, DST, Screen Off Schedule, Time Sync Clock, PM Mode, Holiday Schedule, Firmware Update (LAN), Local time Auto Setting, Overlay Touch, Still Image, HDMI-CEC, Limited Mode, Power on Default, Wake on LAN, Digital Audio Input, Power on Delay (0 ~ 255), Pivot Mode, OSD Portrait Mode (0,90,270), Intelligent Auto, Password Change, Set ID Setup (Manual, Auto), Configuration Setup, Lock Mode, Fail Over, SuperSign Server Setup, No Signal Image (Up to 5MB) |
| Language (OSD) | English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Por- tuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Portuguese (Europe), Dutch, Czech, Greek |
| ISM Method | Normal, White Wash, Color Wash, Orbiter, inversion, Washing Bar, User image |
| Advanced | Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma |
| Time | Clock, On/Off Time, Auto Off, Automatic Standby |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 65W |
| Power Consumption - Smart Enegy Saving | 50W |
| DPM | 0.7W |
| Power Off | 0.5W |
| Audio | |
| Balance | Yes |
| Audio Power | 20W(10W x 2) for External Speaker |
| Speaker On/Off | Yes |
| Clear Voice II | Yes |
| Virtual Surround | Yes |
| Equalizer | Yes |
| Sound Mode | Standard, News, Music, Cinema, Sport, Game |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | Yes / Yes (ENERGY STAR 6.0) |
| Media Player Compatibility | |
| OPS Type Compatible | No |
| External Media Player | Yes (MP500 / MP700) |
| Software Compatibility | |
| Content Management Software | SuperSign W Lite |
| Control and Monitoring Software | SuperSign C |
| Accessory | |
| Basic | Remote Controller (includes 2 batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver |
| Other | UPC - 7 19192 19668 1 |
| Warranty | |
| Warranty | 3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available |

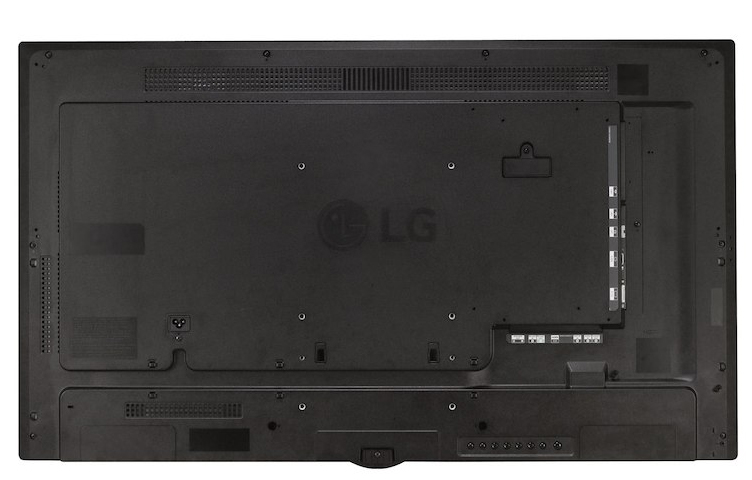

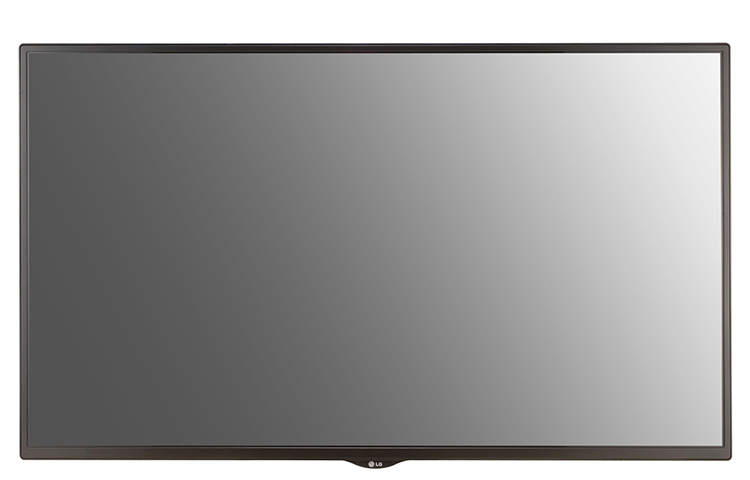

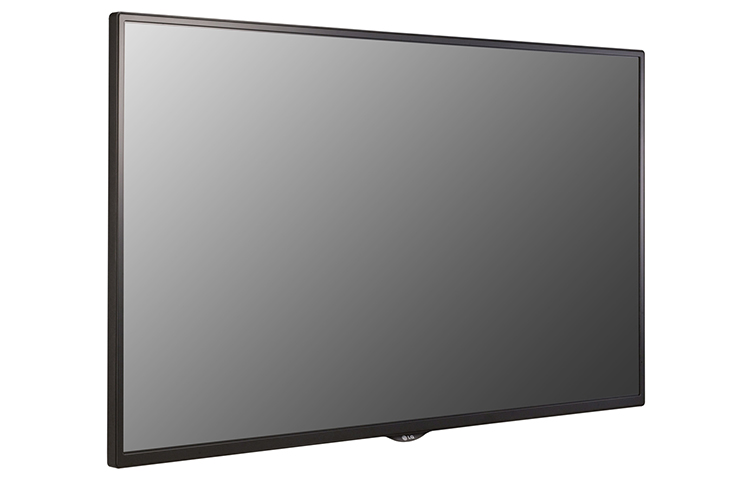

Views:
Documentation:
Download the LG Standard Essential Displays - SL5B Series Datasheet (.PDF)
