LG 49UH5C
49" Ultra HD Immersive Screen with Smart Platform
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
The new Ultra HD display, UH5C Series supports displaying Ultra HD content as well as a divided content layout to show up to 2 split images on one screen. Its benefit enables you to create various formats of content to deliver commercial message effectively.
- Size: 49"
- Brightness(Typ.): 500 cd/m²
- Bezel: 11.9 mm (T), 12.4 mm (L/R), 15.5 mm (B)
- Depth: 38.6 mm
- Interface: HDMI, DVI, DP, RGB, RJ45, IR, RS232C, SD Card, USB
Outstanding Picture Quality
UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.
High Performance Smart Platform
Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.
Simply Play and Schedule Content
There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

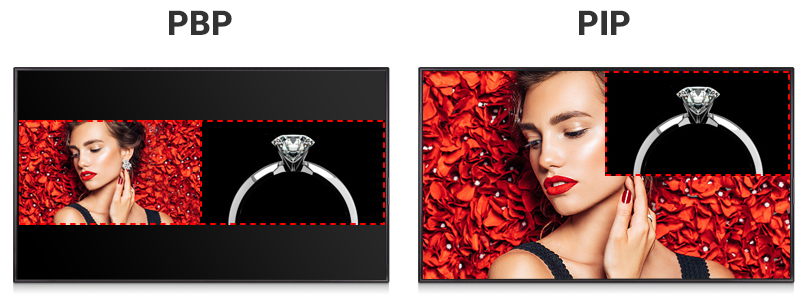

Multiple Screen Composition
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.
Wireless Solutions
Content Sharing
Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.
Real-Time Remote Monitoring
In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.
Easy Content Management
The LG group manager allows users to distribute content and set data on a selected group within the same network without the need for a separate PC or a server.
High Compatibility
UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.
Features:
Ultra HD
Ultra HD Resolution (3,840 x 2,160)
Ultra HD Large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD.
High Efficiency Video Coding
Supports HEVC-based content which has the double data compression ratio than the H.264, so network traffic can be reduced by half.
Built-in Wi-Fi
Mirroring
Content sharing is more convenient on a Wi-Fi network.
SoftAP
The UH5C with Soft AP software can operate as a wireless access point for mobile devices.
Cost Effectiveness
Low Power Consumption Using The M+ Panel
The M+ panel offers excellent energy efficiency and cost savings and decreases power consumption by approx. 31% compared to conventional RGB panels*.
Smart Platform
Quad Core SoC*
The high-performance SoC can execute several tasks at the same time and provides smooth content playback without an external media player.
webOS 3.0
The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.
Group Manager
Content can be created, distributed and controlled by a signage without a dedicated PC or server

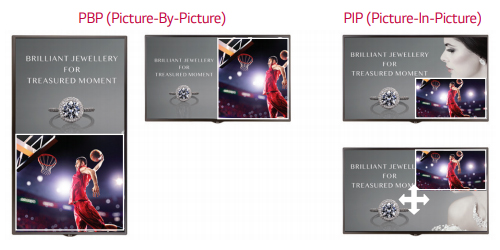

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
PBP (Picture-By-Picture) and PIP (PictureIn-Picture) features enable you to compose various layouts for several digital devices.
Support Network Protocol
IP Streaming Protocol
Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.
Secure Communication Protocol
By supporting HTTPS* protocol, communication between server and signage is more secure.
Proxy Server
Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Specifications:
| 49UH5C Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 1,000,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment | Low Haze 1% |
| Life Time (Min.) | 50,000 hours (Typ.) |
| Guaranteed Operating Hour | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI, DP, DVI-D, Audio, USB 3.0, SD Card |
| Output | DP, Audio, Externel Speaker Out |
| External Control | RS232C, RJ45, IR Receiver, Pixel Sensor |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 11.9 mm (T), 12.4 mm (R/L), 15.5 mm (B) |
| Monitor Dimension (W x H x D) | 43.4 x 25.5 x 1.5" |
| Weight (Head) | 29.3 lbs |
| Carton Dimensions (W x H x D) | 47.0 x 30.0 x 6.5" |
| Packed Weight | 37.3 lbs |
| VESA Standard Mount Interface | 300 mm x 300 mm |
| Special Features | |
| Special Features | Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi built-in (802.11n), USB Cloning, Content Scheduling, Sync mode, PM mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240 V~, 50/60 Hz |
| Power Type | Built-In Power |
| Power Switch | No |
| Power Consumption - Typ. | 102W |
| Power Consumption - Smart Enegy Saving | 70W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes (MP500/MP700) |
| Software Compatibility | |
| SuperSign Premium | Yes |
| SuperSign Link | Yes |
| Accessory | |
| Basic | Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover |
| Optional | Speaker (SP-5200), Stand (ST-201T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100) |
| Warranty | |
| Warranty | 3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available |
Views:
Documentation:
Download the LG Immersive Screen with Smart Platform - Ultra HD UH5C Series Datasheet (.PDF)
