LG 49VL7D
49" Class Video Wall with Clear Visibility and Great Immersion
Call a Specialist Today! 855-958-0757
LG 49VL7D
This product is no longer available.
Overview:
The 49VL7D creates entertaining and memorable experiences for passengers while providing various types of information and enhancing the value of the space. This model effectively delivers clear and vivid content with 700 cd/m2 brightness, which is recommended for brightly lit locations such as airports or large-scale shopping malls.
- Size: 49"
- Brightness(Typ.) : 700 cd/m²
- Bezel: 2.3mm(Left/Top) / 1.2mm(Right/Bottom)
- Depth : 89.7mm
- Interface : HDMI/ DVI-D/ RGB/ RJ45/ RS232C/ USB
Features:

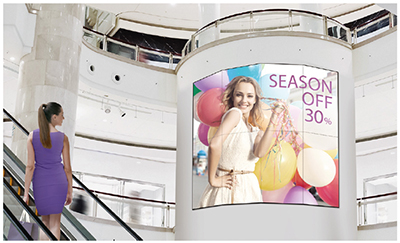

Clear Visibility
High Visibility
The 700 cd/m2 brightness is enough to stand out against the surrounding background, so signage can attract passerby and delivers content vividly and effectively.
Consistent White Balance
Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.
Immersive Viewing Experience

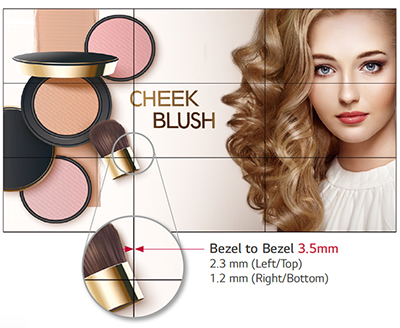

Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

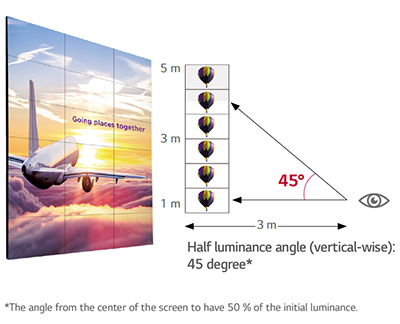

Wide Viewing Angle
Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VL7D delivers the best picture quality from any viewer position.
Convenient Management

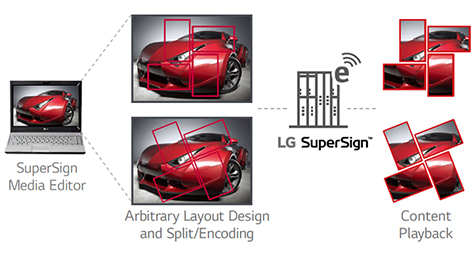

Dynamic Configuration
Flexible content editing is possible in various layouts, including a regular matrix grid or an irregular video-wall, in a timely and cost-effective manner without the need for an expensive video wall console.
Conformal Coating
Conformal Coating power board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Specifications:
| 49VL7D Specifications | |
|---|---|
| Panel | |
| Screen Size | 49" (48.50" diagonal) |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1920 x 1080 (FHD) |
| Brightness | 700 cd/m2 |
| Viewing Angle (H x V) | 178 x 178 |
| Surface Treatment | Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 3%) |
| Life Time (Typ.) | 50,000 Hours |
| Operation Hours | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI, DVI-D, RGB, USB |
| Output | DVI-D |
| External Control | RS232C In/out, RJ45 In, IR Reveiver In |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 2.3 mm (L/T) / 1.2 mm (R/B) |
| Monitor Dimension (W x H x D) | 1,077.6 x 607.8 x 89.7 mm |
| Weight (Head) | 39.3 lbs / 17.8 kg |
| Carton Dimensions (W x H x D) | 1,214 x 778 x 263 mm |
| Packed Weight | 50.3 lbs / 22.8 kg |
| VESA Standard Mount Interface | 600mm x 400mm |
| Special Features | |
| Special Features | Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F / 0°C to 40°C |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 130 W |
| Power Consumption - Smart Energy Saving | 50 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Energy Star 7.0 (US Only) |
| Media Player Compatibility | |
| Slot PC compatible (optional) | No |
| External Media player Attachable | Yes |
| Software Compatibility | |
| Content Management Software | SuperSign CMS |
| Control and Monitoring Software | SuperSign C |
| Accessory | |
| Basic | Remote Controller, Power Cable, DVI Cable, Manual, IR Receiver, RS232C Cable, Guide Bracket, Screw |
| Optional | Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |

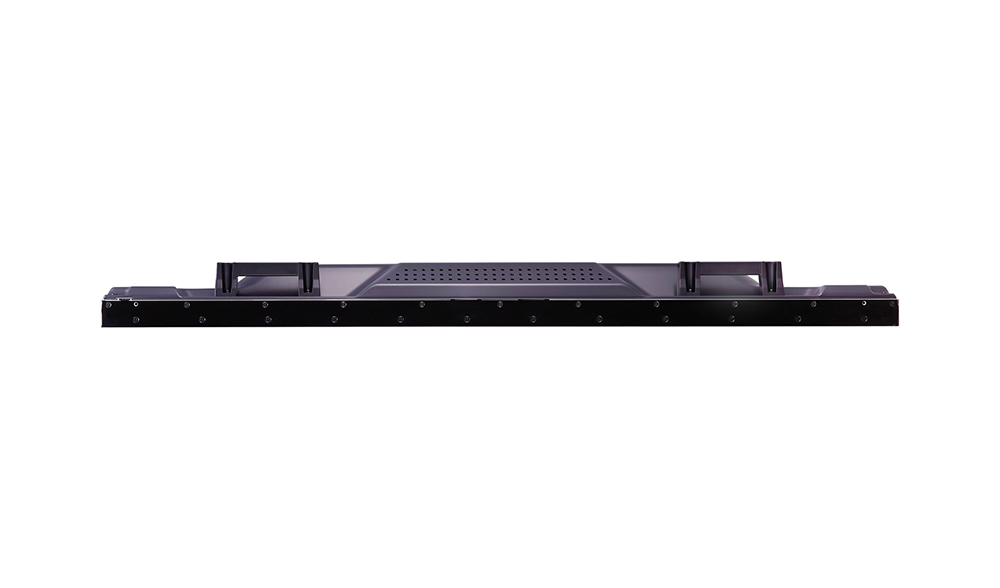

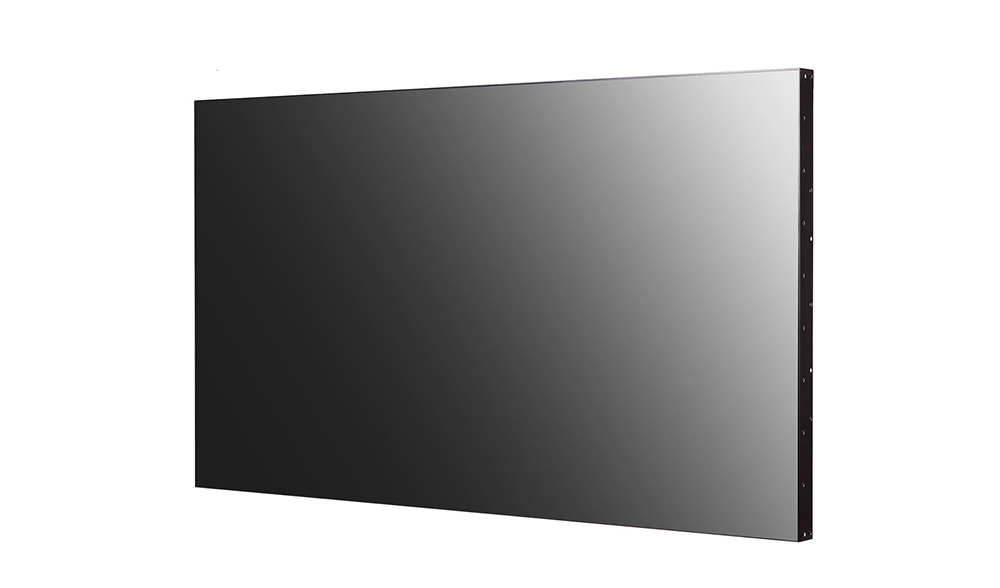

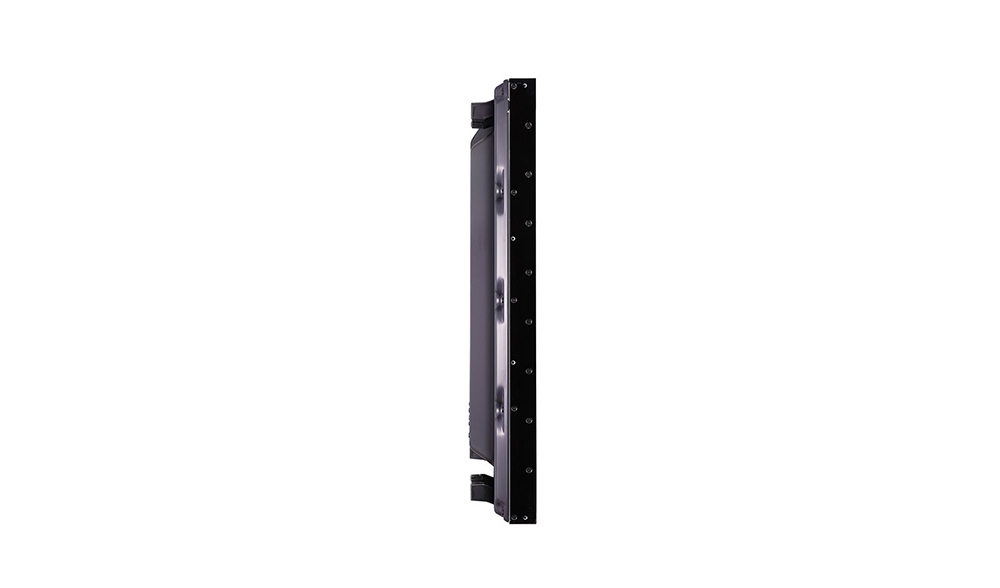

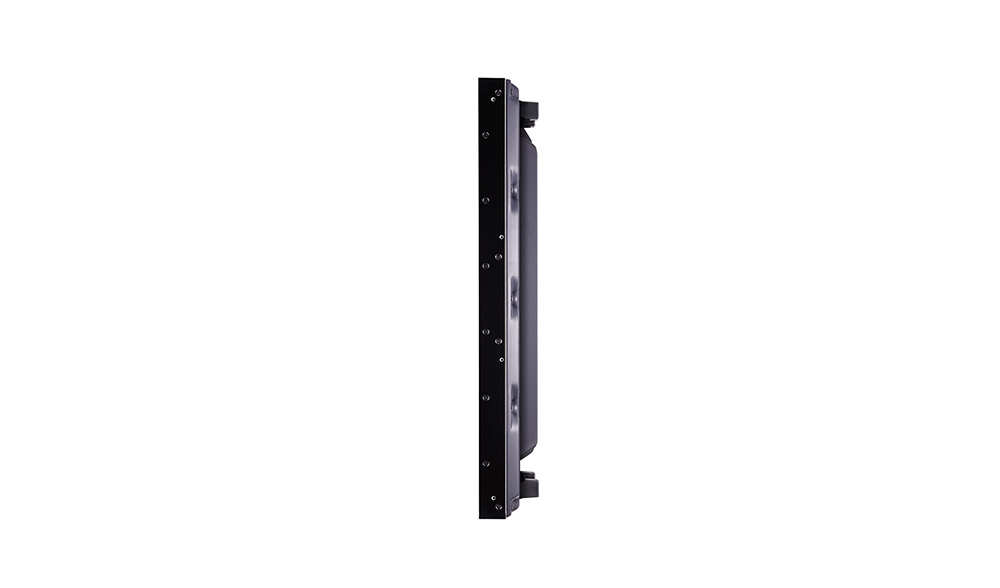

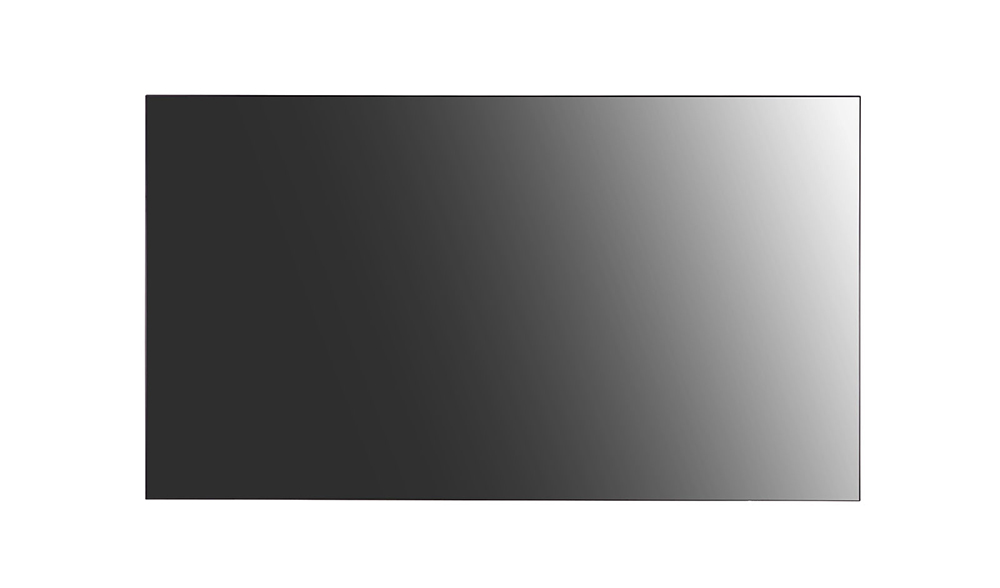

Views:
Documentation:
Download the LG Video Wall with Clear Visibility and Great Immersion - 49VL7D Datasheet (.PDF)
