LG 55EJ5D
55" Wallpaper OLED Signage Display
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Engaging Spaces Beyond Displays
LG's OLED Wallpaper Signage is surprisingly slim, light and space saving. Providing an extraordinary customer experience is second nature to OLED Wallpaper, upgrading virtually any space. It also can be used as a video wall when easily attached to the wall with the included wall mount.
- Size: 55"
- Brightness(Typ.): 400 cd/m² (APL 25%)
- Bezel: 1.2 mm (Off bezel)
- Depth: 3.65 mm (Module)
- Interface: HDMI, DP, RS232C, RJ45, IR In, USB 3.0, USB 2.0
- SuperSign CMS / Link
Features:
Perfect Black
Limitless contrast and deepest black
Self-lighting pixels switch off completely to reproduce black. No light bleeding. Absolute black offers infinite contrast.

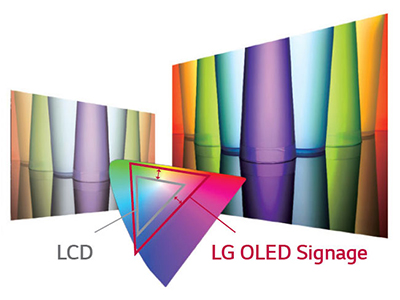

Amazing color
Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.
Perfect Viewing Screen
Wide viewing angle
LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.
Crisp, Clear Motion
Faster response time
LG OLED Signage provides a 5,000-times faster motion-picture response time, for perfectly clear images without blurring.

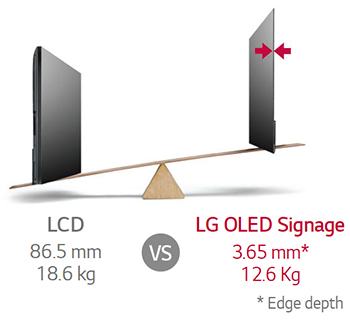

Perfect Design
Slim and light
With just two layers, the LG OLED Signage display is unbelievably lightweight and thin.

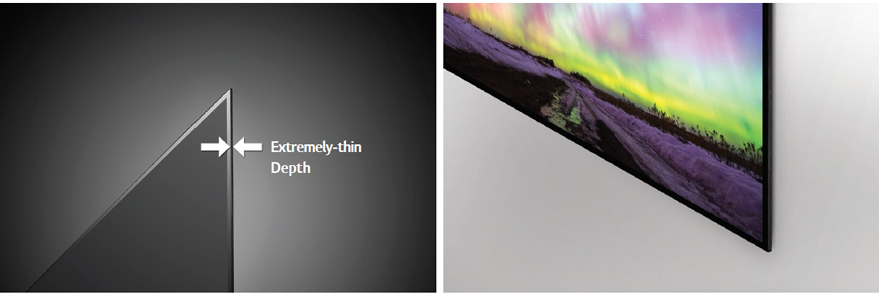

Hide in Plain Sight
Its paper-thin depth gives the space an integrated look.

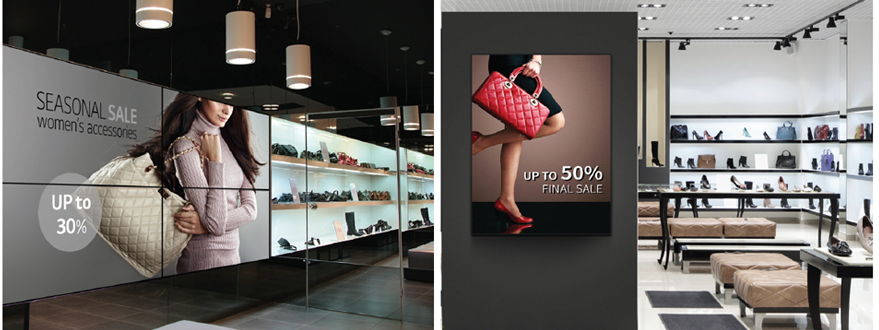

Easy Installation & Video-Wall Tiling
As LG wallpaper OLED signage is extremely slim and light, it can be hung on the wall with dedicated slim brackets for video-wall usage.
Specifications:
| 55EJ5D Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" (54.64" diagonal) |
| Panel Technology | OLED |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 100/400 cd/m2 (APL 100% / 25%) * Average picture level |
| Contrast Ratio | 100,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 1 ms (G to G), 8 ms (MPRT) |
| Surface Treatment | Hard coating (2H), Anti-reflection treatment of the front polarizer (Reflectance typ. 1.0%) |
| Guaranteed Operating Hour | 18 hrs/7 days (Moving video only) |
| Orientation | Landscape & Portrait |
| Connectivity | |
| Input | HDMI, DP |
| Output | DP, Audio |
| External Control | RS232C in/out, RJ in/out, IR Receiver, USB 2.0, USB 3.0 |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 1.2, 1.2, 1.2, 1.2 mm (U, B, L, R *Offset bezel) |
| Monitor Dimension (W x H x D) | Head: 1,227 x 702.1 x 3.65 mm, Signage Box: 420 x 230 x 75 mm |
| Weight (Head) | Head: 12.2 lbs, Signage Box: 11.7 lbs, Wall Bracket: 4.0 lbs |
| Carton Dimensions (W x H x D) | 54.4" x 32.8" x 9.9" |
| Packed Weight | 49.6 lbs |
| Special Features | |
| Special Features | Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Motion Eyecare, File Play with USB, Internal Memory (64 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local Time Auto Setting, Failover, Mirroring, SoftAP, BEACON, DP daisy chain |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 190W |
| Power Consumption - Smart Enegy Saving | Less than 3 W |
| Power Consumption - Power off | Less than 0.5 W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | Yes / NA |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes |
| Software Compatibility | |
| Content Management Software | SuperSign Premium |
| Control and Monitoring Software | SuperSign Link |
| Accessory | |

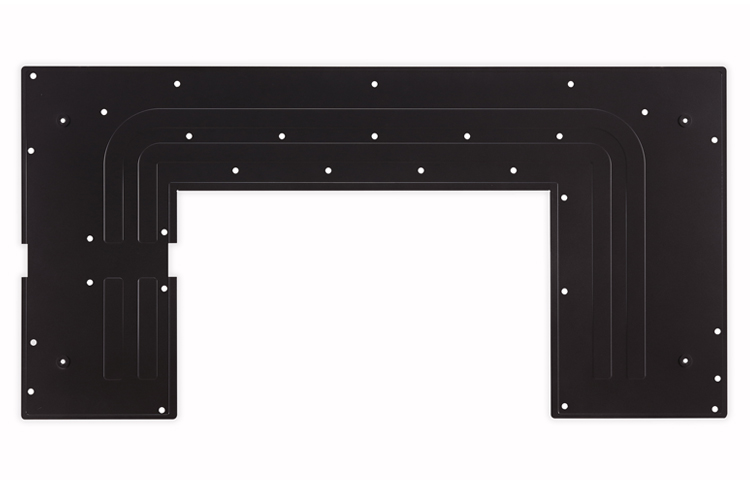

| Basic | Remote controller (includes 2 batteries), FPC Extension cable (connection between screen and signage box), Power cord, DP cable, RS-232C cable, RS-232C gender, LAN cable, IR receiver, Manual (ESG, EIG), Wall-mount plate (includes screws), Harness locking cover, Set install guide, Signage box bracket (U-Leg), FPC cable cover |
| Optional | OPS Kit (KT-OPSA) |
| Warranty | |
| Warranty | 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available |
Views:
Documentation:
Download the LG Wallpaper OLED Signage - 55EJ5D Datasheet (.PDF)
