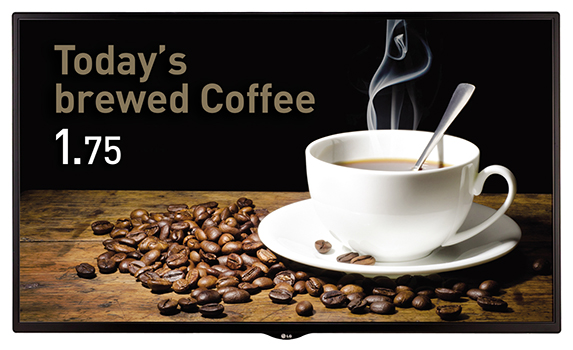

LG 55SE3D
55" Full HD Standard Essential Commercial Display
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Simplify promotion content or sales information management with the LG SE3D Series that satisfies a wide range of display purposes in your business. This series has a practical design with a slimmer bezel and depth for optimum space utilization. Multiple screen sizes ensure the best selection for your business environment.
- Size: 55"
- Edge-lit LED
- Brightness(Typ.): 350 cd/m²
- Bezel: T/L/R 11.9 mm, B 18.0 mm
- Depth: 38.6 mm
- HDMI (2) / DVI / RGB / RJ 45, RS232C in/out, USB 2.0
Features:
Sleek Design

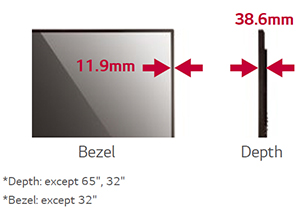

Slimmer Bezel
The thin bezel & depth allows a perfect fit for a sleek look.
Detachable Logo
Portrait mode allows the logo to be positioned in the desired setting.
Cable Management
The well-organized cable terminals in the back optimize available space.
USB Content Management
USB Content Scheduling
Play and schedule your content via a USB connection, with no Internet or server connection required*.
Dust & Humidity Protection
Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Convenient Management
Enhanced Connectivity
Through its diverse interface, the signage lets you connect more than one device for optimal use.
Wi-Fi Support
SE3D Series supports Wi-Fi USB dongle connection for convenient content distribution. And SNMP support ensures convenient network management.
Convenient Screen Mode
Aspect Ratio Sustainability*
Sustain the same resolution and picture quality while powering on/off by receiving EDID1) through switch IC.
Stand-by Screen
Even without signal from the media player, the network does not turn off completely, so remote control is possible, which prevents unnecessary power usage and enables efficient management.
Scheduled Screen Wash**
Prevent residual images with the screen transition feature.
Specifications:
| 55SE3D Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 350cd/m2 |
| Contrast Ratio | 1,100:1 |
| Dynamic CR | 500,000:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 12 ms (G to G BW), 9.0 ms (WOT) |
| Surface Treatment | Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1 % (Typ.)) |
| Guaranteed Operating Hour | 18 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI (2), DVI-D, RGB, Audio in, USB 2.0 |
| Output | Audio out, External Speaker out |
| External Control | RS232C (In/Out), RJ45, IR Receiver |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 11.9 mm (T/R/L), 18 mm (B) |
| Monitor Dimension (W x H x D) | 48.7" x 28.1" x 1.2" |
| Weight (Head) | 38.2 lbs |
| Weight (Head + Stand) | 45.4 lbs |
| Monitor with Optional Stand & Speaker Dimensions (W x H x D) | 48.7" x 30.4" x 8.6" |
| Weight (Head + Stand + Speaker) | 46.5 lbs |
| Carton Dimensions (W x H x D) | 52.4" x 31.8" x 6.7" |
| Packed Weight | 47.4 lbs |
| VESA Standard Mount Interface | 300 mm x 300 mm |
| Special Features | |
| Special Features | USB Content Scheduling, SNMP Support, Wi-Fi Ready (Dongle), PM Mode, No Signal Image Setting, ISM Mode, Holiday Schedule, Local Time Auto Setting, Fail Over (USB, RGB, DVI, HDMI), Wake on LAN |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Consumption - Typ. | 70W |
| Power Consumption - Smart Enegy Saving | 55W |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| Media Player Compatibility | |
| OPS Type Compatible | No |
| External Media Player Attachable | Yes (MP500 / MP700) |
| Software Compatibility | |
| Content Management Software | SuperSign W |
| Control and Monitoring Software | SuperSign C |
| Accessory | |
| Basic | Remote Controller (include battery 2ea), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver |
| Optional | Speaker (SP-5000), Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S) |
| Warranty | |
| Warranty | 3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available |
Views:
Documentation:
Download the LG Standard Essential SE3D Series Datasheet (.PDF)
