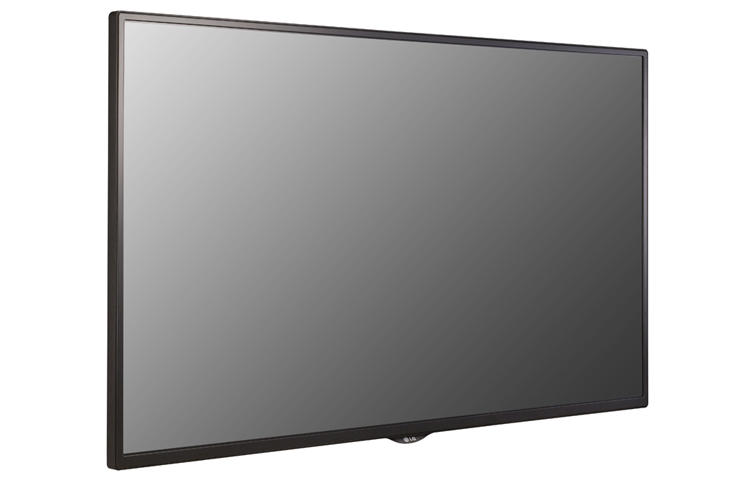

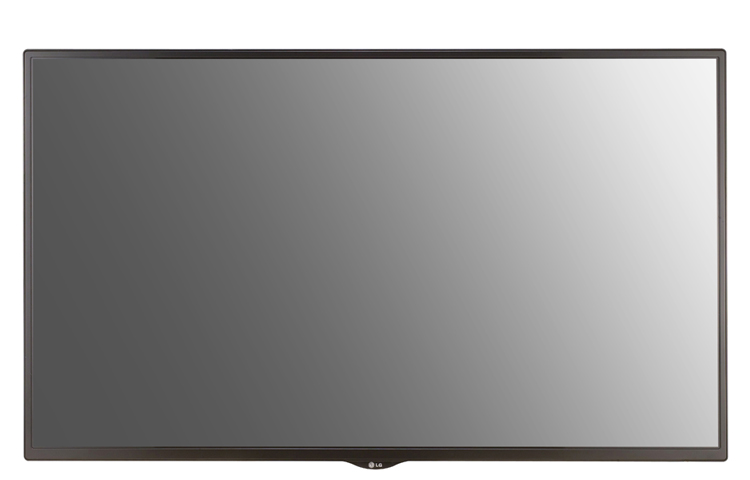

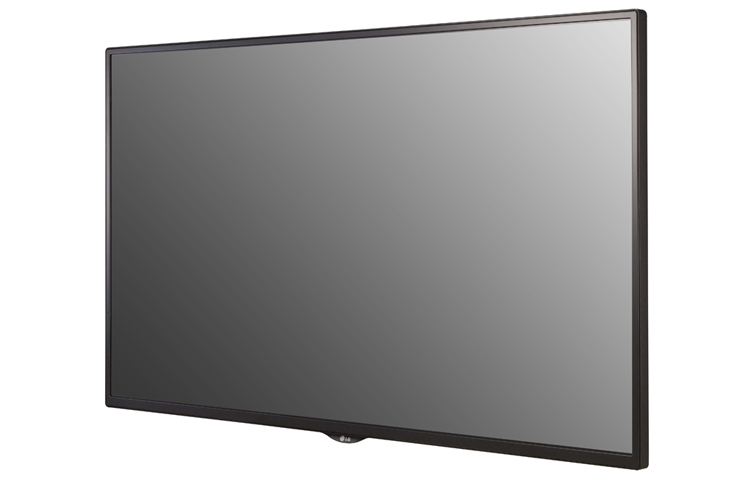

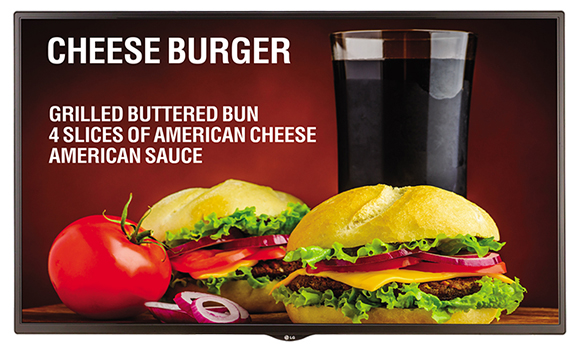

LG 55SM5KD
55" Full HD Standard Performance Commercial Smart LED Display
Sorry, this product is no longer available, Please contact usfor a replacement.
Click here to jump to more pricing!
Overview:
The SM5KD Signage Series provides the ability to easily create customized apps using LG's Software Development Kit. This webOS 3.0 signage has built-in Wi-Fi and SoC technologies, helping to simplify installation and conveniently manage content.
- Size: 55"
- Brightness(Typ.): 450 cd/m
- Bezel: T/L/R 11.9 mm, B 18.0 mm

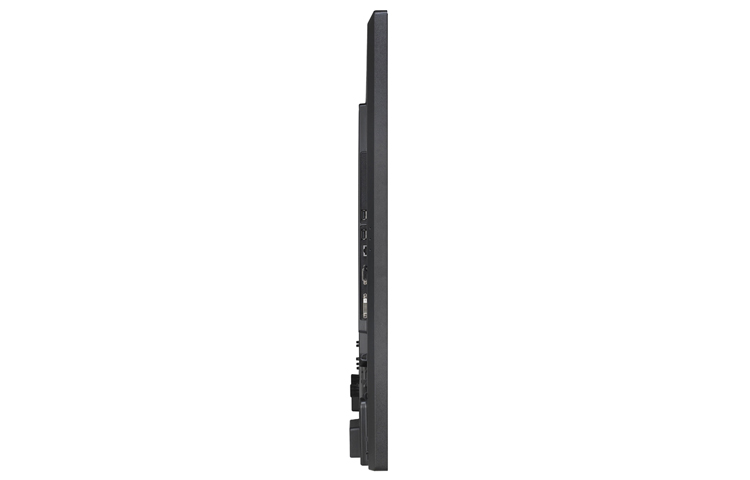

- Depth: 54 mm
- Orientation: Landscape & Portrait mode
- Interface: HDMI(2), DVI, DP, RGB, RJ45, IR, RS232C, USB
- Built-in Speaker: 10W + 10W

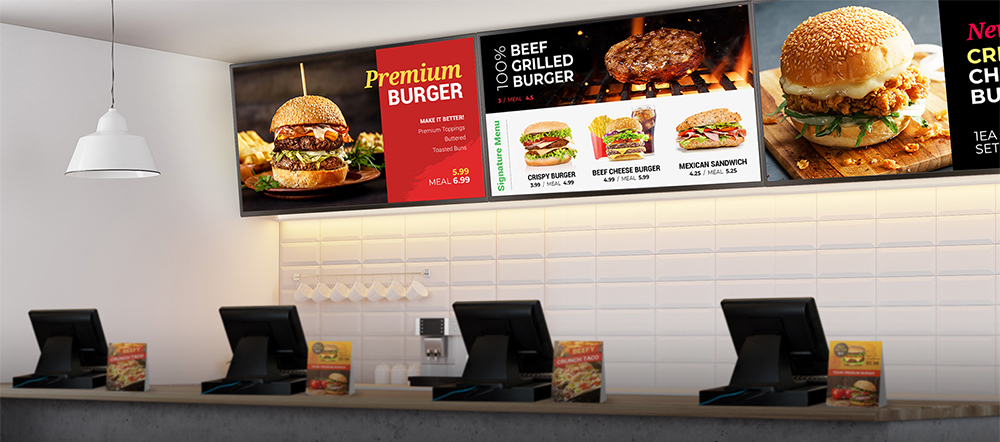

High Performance Smart Platform with Quad Core SoC
Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

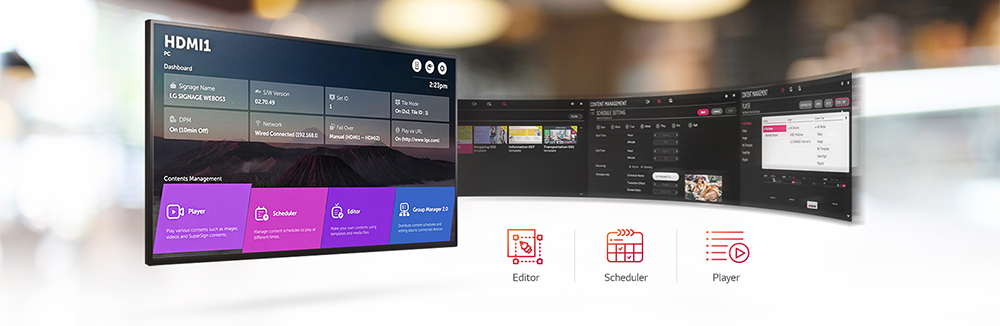

Easy Contents Management
Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.
Enhanced Usability
A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.
Real-time Streaming
Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.

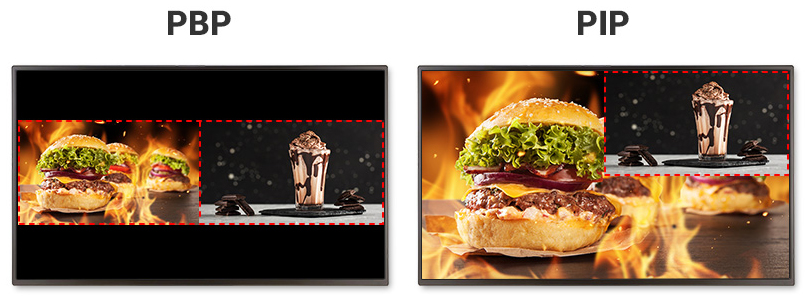

Multiple Screen Composition
PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

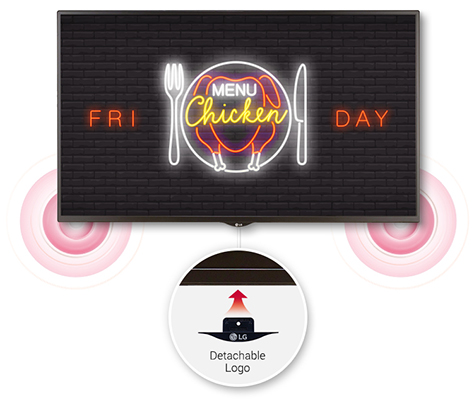

Suited for Industrial Design
The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
Wireless Solutions
Content Sharing
Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.
Features:
Smart Platform
Quad Core SoC*
The high-performance SoC can execute several tasks at the same time and provides smooth content playback without an external media player.

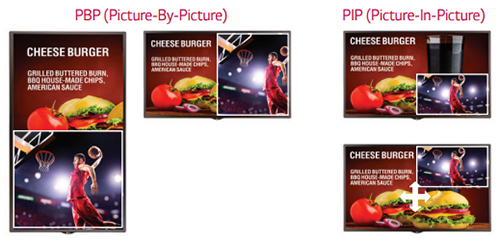

PBP (Picture-By-Picture) / PIP (Picture-In-Picture)
The PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.
webOS 3.0+

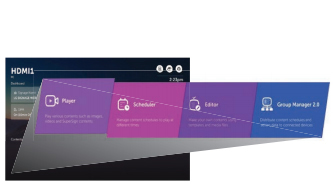

Integrated CMS (Contents Management System)
You can edit content, check your schedule and use group manager functions (among other functionality) without the need for a separate PC. This CMS enables one-stop, easy management of your signage.

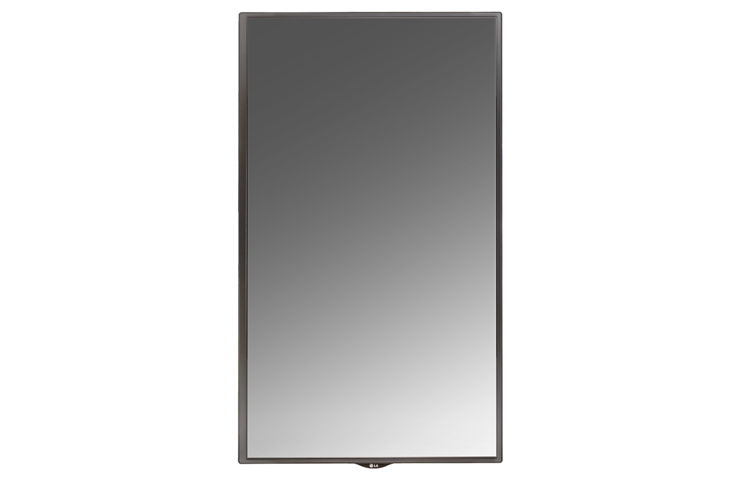

Portrait & Landscape Mode
When using the SM5KD in portrait mode, the display adjusts to show the images without affecting the original ratio and resolution of the images.

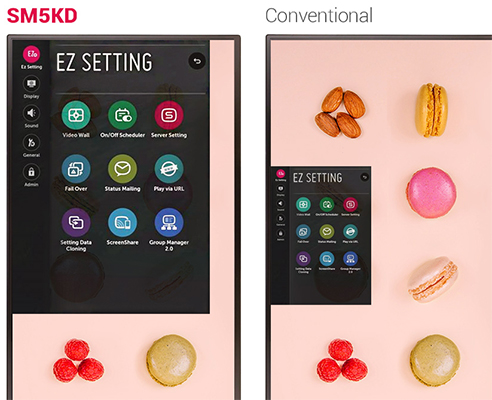

EZ Setting
All of the unique functions on the SM5KD are indexed in EZ Setting, providing convenient access to these settings for efficient management.
Support Network Protocol
IP Streaming Protocol
Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.
Secure Communication Protocol
By supporting HTTPS* protocol, communication between server and signage is more secure.
Proxy Server
Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Built-in Wi-Fi
Mirroring
Content sharing is more convenient on a Wi-Fi network.
SoftAP
The SM5KD with SoftAP software can operate as a wireless access point for mobile devices.
Convenient Management
Enhanced Connectivity
Through its diverse interface, the signage lets you connect more than one device for optimal use.
Supportive Convenience
BEACON
With BEACON and Bluetooth Low Energy (BLE) supported by SM5KD*, retail stores can provide coupons and information in real time.
Enhanced Maintenance
Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Industrial Design

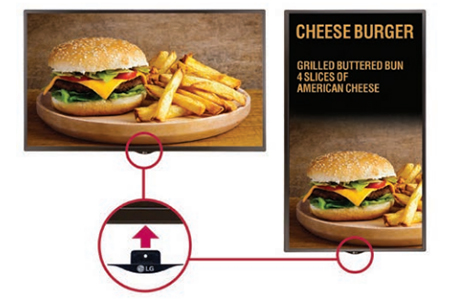

Detachable logo
The detachable logo allows for installation in the desired orientation: landscape or portrait mode.
Specifications:
| 55SM5KD Specifications | |
|---|---|
| Panel | |
| Screen Size | 55" |
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 450 cd/m2 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 12 ms (G to G BW), 9.0 ms (WOT) |
| Surface Treatment | Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 1 % (Typ.)) |
| Guaranteed Operating Hour | 24 Hours |
| Orientation | Portrait & Landscape |
| Connectivity | |
| Input | HDMI (2), DP, DVI-D, RGB, Audio, USB 3.0 |
| Output | DP, Audio |
| External Control | RS232C in/out, RJ in, IR Receiver, Pixel Sensor |
| Physical Specification | |
| Bezel Color | Black |
| Bezel Width | 11.9 mm (T/R/L), 18 mm (B) |
| Monitor Dimension (W x H x D) | 48.7" x 28.1" x 2.1" |
| Weight (Head) | 38.6 lbs |
| Monitor with Optional Stand Dimensions (W x H x D) | 48.7" x 30.4" x 8.6" |
| Weight (Head + Stand) | 45.9 lbs |
| Carton Dimensions (W x H x D) | 52.4" x 31.8" x 6.7" |
| Packed Weight | 47.8 lbs |
| VESA Standard Mount Interface | 300 mm x 300 mm |
| Special Features | |
| Special Features | Temperature Sensor, Auto Brigtness Sensor, Tile Mode (Up to 15x15), DPM Select, DPM Wake Up, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory (8 GB), USB Cloning, Easy Brightness Control, Holiday Schedule, Limited Mode, Wake on LAN, Fail Over, Mirroring, SoftAP, BEACON, Embedded Template |
| Environmental Conditions | |
| Operating Temperature Range | 32 °F to 104 °F |
| Operating Humidity Range | 10 % to 80 % |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Type | Built-In Power |
| Power Switch | No |
| Power Consumption - Typ. | 100W |
| Power Consumption - Smart Enegy Saving | 70W |
| Audio Power | 20 W (10 W x 2) for Internal Speaker (6 ohm) |
| Standard (Certification) | |
| Safety | UL / cUL / CB / TUV / KC |
| EMC | FCC Class "A" / CE / KCC |
| ErP / Energy Star | NA / Yes (Energy Star 7.0) |
| Media Player Compatibility | |
| OPS Type Compatible | Yes |
| External Media Player Attachable | Yes (MP500/MP700) |
| Software Compatibility | |
| SuperSign Premium | Yes |
| SuperSign Link | Yes |
| Accessory | |
| Basic | Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover |
| Optional | Stand (ST-492T), Pixel Sensor (KT-SP0), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T550) |
| Warranty | |
| Warranty | 2-Year Limited Warranty Parts/Labor |
Views:
Documentation:
Download the LG Standard Performance Digital Signage - SM5KD Series Datasheet (.PDF)
