LG 75UV340C
75” Class UHD Commercial TV with Essential Smart Function


LG 75UV340C

Sorry, this product is no longer available, please contact us for a replacement.



Click here to jump to more pricing!

Overview:

LG's latest Public Display TV, the UV340C supports UHD/4K resolution to provide optimal viewing in diverse business environments. With enhanced management functions including WOL (Wake On LAN), SNMP (Simple Network Management Protocol), and SuperSignTM Link, managers can increase management efficiency while the edge-lit LED display and UHD picture quality improve the digital viewing experience.

  • Size: 75"
  • Ultra HD
  • WOL and SNMP
  • Crestron Connected Certified Display
  • DPM (Display Power Management)

Features:

Ultra HD TV

4K Upscaler
Enjoy Full HD content in Ultra HD quality. The 4K Upscaler automatically upgrades Full HD content to Ultra HD through the six steps of the upscaling processes.

4K Upscaler

4K IPS Wide Viewing Angle
One of the secret behind LG TVs outstanding viewing experience is the specially designed TV panel. 4K IPS delivers true colour from any angle with 4 times the resolution of Full HD. With 4K IPS, every seat is the best for watching content in your space.

4K IPS Wide Viewing Angle


Signage Dedicated Features


Dpm (Display power management)
From now on, you can configure the DPM (Display Power Management) function by setting the function to on. When there is no signal, the TVs enters to DPM mode to manage power efficiently.

Dpm (Display power management)

Compatibility with AV Control system*
The LG UV340C series is compatible with AV control system, with which users can easily manage, monitor and control LG commercial displays from one location.
* Available AV control systems may differ by regions.

Compatibility with AV Control system


Features


WOL (Wake on LAN)

WOL (Wake on LAN)
WOL (Wake on LAN) helps you remotely turn on TVs over the internet. Connect TVs and a PC in the same network, and send Magic Packet program to the MAC addresses of registered TVs. Then, it will wake up the TVs via LAN port.

Public Display Mode

Public Display Mode
From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.

SNMP

SNMP
SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.

Self Diagnostics via USB

Self Diagnostics via USB
Enables service engineers to analyze the data and identify technical issues quickly and easily through a USB memory device.

RS-232C Control

RS-232C Control
Via the TV's RS-232C port, you can remotely control power and volume settings simultaneously.

USB Cloning

USB Cloning
Clone all Public Display with astonishing speed and ease. The USB Cloning feature allows you to simply copy the TV settings to all TVs using a USB memory device.


Specifications:


75UV340C Specifications
Display
Screen Size 75"
Diagonal Size 74.6"
Type Edge LED
Resolution 3,840 x 2,160 (4K UHD)
Brightness 400cd/m2
Dynamic Contrast Ratio 1,000,000:1
Static (Panel) Contrast Ratio 1,200: 1
Viewing Angle (H x V) 178° / 178°
Response Time (G to G, ms) 8
Frame Rate T120
Broadcasting System
Analog NTSC
Digital ATSC / VSB / Clear QAM
Video
XD Engine Yes
Real Cinema 24p (3:3 Pull down) Yes
Aspect Ratio 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
Audio
Audio Output 10W + 10W
Speaker System 2.0 ch
Sound Mode 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Clear Voice Yes
General Features
Installation USB Cloning
Management WOL, SNMP, Self Diagnostics via USB, Multi IR Code, HTNG/HDMI-CEC* *HDMI-CEC : Compatibility can differ by equipment.
USB Moving Picture Playback (.asf, .wmv, .avi, .mp4, .m4v, .mov, .3gp, .3g2, .mkv, .mpg, .mpeg, .dat, etc.), Picture (jpeg, jpg, jpe, BMP, PNG), Audio Codec (.mp3, .wav, .OGG, .WMA, .flac)
Setting Option Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care
Hospitality Features
Hospitality Features PDM (Public Display Mode), Lock Mode, Welcome Screen (Splash Image) / Video, Insert Image, External Speaker Out, RJP Compatibility, Crestron Connected Certification, DPM (Display Power Management) mode, Time Scheduler
Interface
Set Side HDMI In (2), USB 2.0
Set Rear RF In, AV In (Sharing with Component In), Component In + Video, Optical Digital Audio Out, HDMI In, RS-232C In, RJ45 (SNMP), External Speaker Out
Dimension
Bezel Width (L / R, U, B) : on bezel based (mm) 14.7, 14.7, 14.7
Bezel Width (L / R, U, B) : off bezel based (mm) 12.7, 12.7, 12.7
Vesa (mm) 600 x 400
W x H x D / weight (with stand) 66.8" x 38.6" x 1.5" / 91.1lb
W x H x D / weight (without stand) 66.8" x 41.4" x 11.7" / 92.6lb
W x H x D / weight (Packing) 72.4" x 46.0" x 9.1" / 116.8lb
Power
Voltage, Hz 100 ~ 240V, 50/60Hz
Typical (Watts) 86.8
Stand-by (Watts) < 0.5
Standard Approval
Safety UL
Environment FCC
Etc. RoHS, UL, NOM, ENERGY STAR Qualified

* Specifications are subject to change without notice, so please reach LG salesteam to ensure before order.

Views:

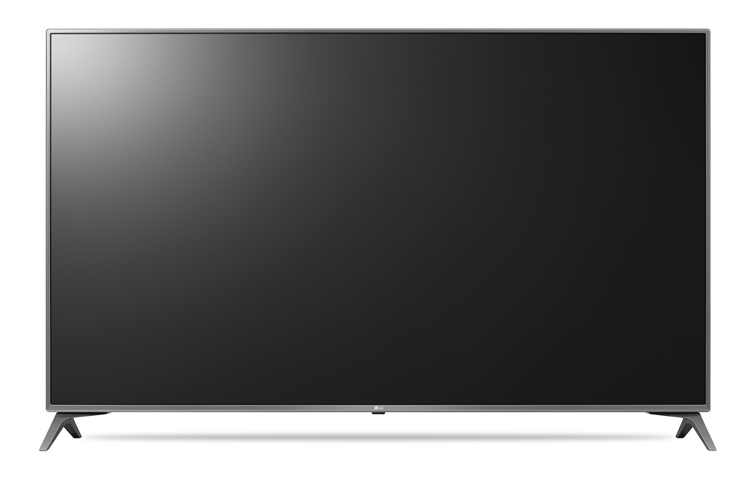

Front

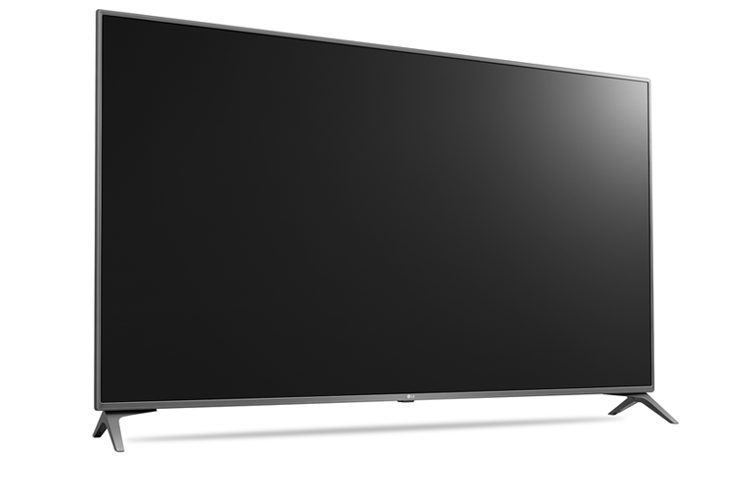

Right Perspective

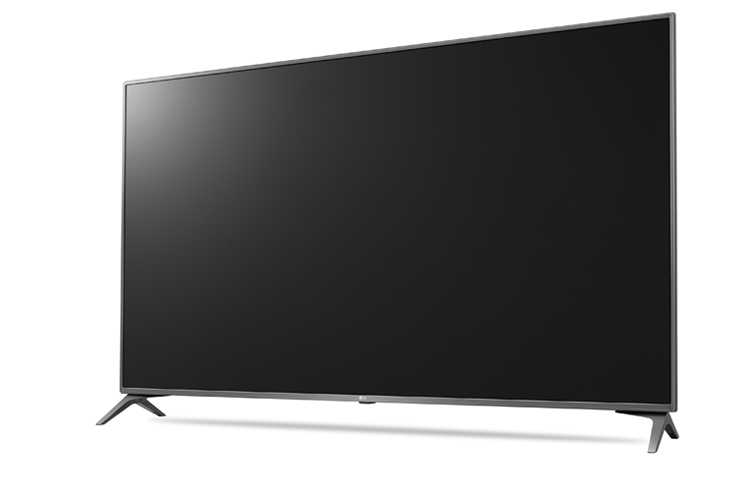

Left Perspective

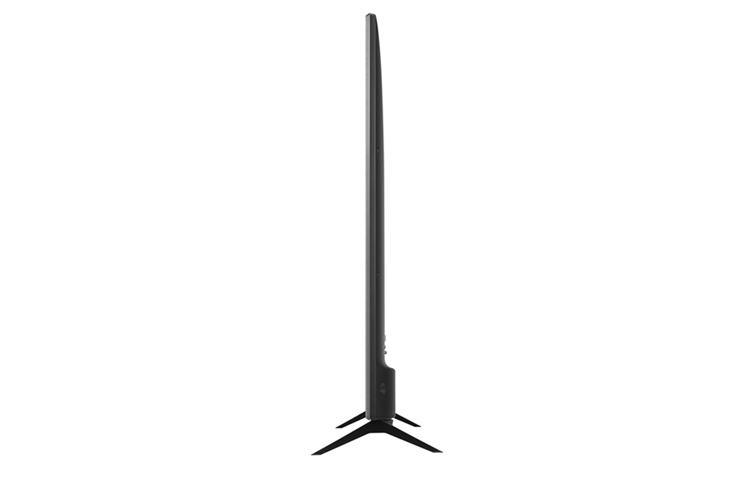

Side

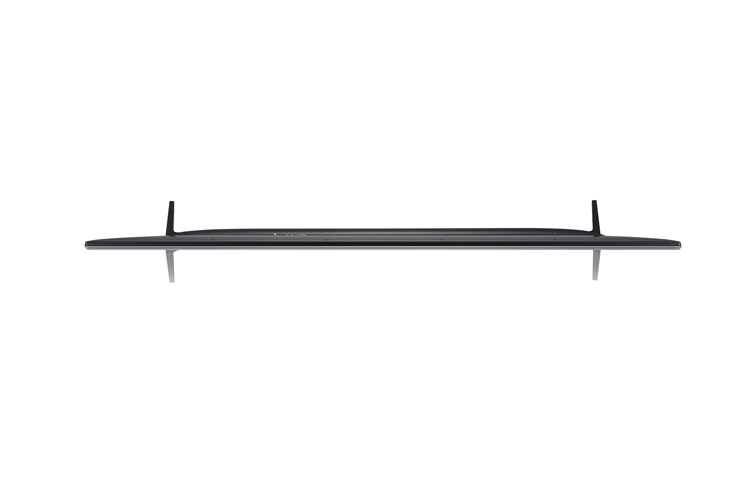

Top

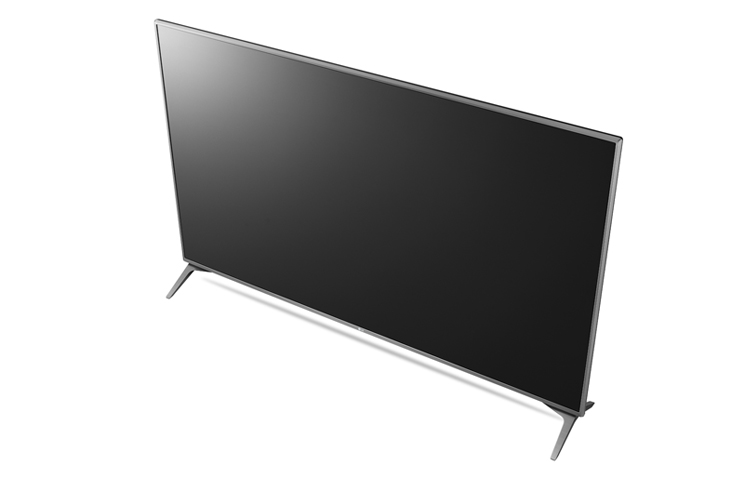

Top Angle

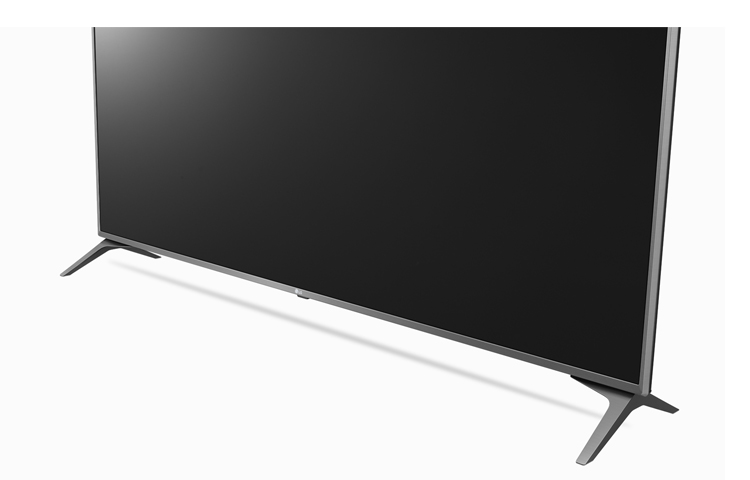

Bottom Corner
