LG 75XS2E
75" Ultra HD Outdoor Signage


LG 75XS2E

LG Display Products

High Bright & Outdoor Options
  • LG 75XS2E 75" Ultra HD Outdoor Signage
    75" LCD, 3840x2160, LED, 2,500 Nit, 4K Ultra HD, HDMI (2), DisplayPort, DVI-D, Audio, USB, SD Card, Wi-Fi & Ethernet, Black, 3-Year Warranty
    #75XS2E-B
    Our Price: $10,995.00

Click here to jump to more pricing!

Overview:

Outstanding Visiblity with Quiet Operation

Easily installed in store windows, LG’s XS series of window facing digital signage captivates customers with its vivid image quality and quiet operation. The XS series helps businesses enhance their brand image while enriching the customers’ shopping experience.

  • Size: 75"
  • Brightness: 2,500cd/m2 (Typ)
  • Life Time : 50,000 hours
  • Bezel Width: 11.8 mm(Even, Off-Bezel)
  • Depth : 116mm
  • Interface: HDMI(2)/ DP/ DVI-D/ RJ45/ USB/ SD Card/ IR/ RS232C/ External Speaker Out

Features:

Outstanding Visibility

High Brightness
With a great brightness of 2,500 cd/m2, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

High Brightness

Visible with Polarized Sunglasses
QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

Quiet Operation

Fan-less Design
By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of typical daily conversation.

Fan-less Design

Space Efficiency

Slim Design
Thanks to its thin depth, the XS series takes up minimal space, which leads to space efficiency in an in-window environment.

Slim Design


User Convenience

High-Performance with webOS
The Quad Core SoC* technology can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

High-Performance with webOS

Smart Brightness Control
The auto brightness sensor and preset time scheduler save power consumption by adjusting the brightness.

Smart Brightness Control


Specifications:


75XS2E Specifications
Panel
Screen Size 75" (74.52" Measured Diagonal)
Panel Technology IPS, M+ (WRGB)
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness 2,500 cd/m2 (Typ.), 2,250 cd/m2 (Min.)
Contrast Ratio 1,200:1
Viewing Angle (H x V) 178 x 178
Surface Treatment Haze 3%, QWP
Lifetime 50,000 Hours
Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI(2), DP, DVI-D, Audio, USB, SD Card
Output DP, Externel Speaker (L/R)
External Control RS232C In/out, RJ45 In, IR Receiver In
Physical Specification
Bezel Color Black
Bezel Width 11.8 mm (Even)
Monitor Dimension (W x H x D) 1,675.2 x 953.6 x 116 mm
Weight (Head) 94.8 lbs / 43 kg
Carton Dimensions (W x H x D) 1,816 x 1,106 x 285 mm
Packed Weight 115.1 lbs / 52.2 kg
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features Internal Memory (8GB, System 4GB + Available 4GB), Wi-Fi Dongle Ready, Temperature Sensor, Auto Brightness Sensor, Smart Energy Saving, USB Auto Playback, Local Contents Scheduling, Content Sync (RS232C, Local Network), OSD Rotation, Content Rotation, Tile Mode (Up to 15x15), Firmware Update by Network, SNMP, ISM Mode, Control Manager, DPM, PM Mode, Wake on LAN, HDMI-CEC
Environmental Conditions
Operating Temperature Range1 32 °F to 113 °F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 585 W / 600 W
Power Consumption - Smart Enegy Saving 280 W
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC / VCCI
ErP / Energy Star No / No
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control / Control+
Accessory
Basic Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)
Optional Wall Mount (LSW630), Wi-Fi Dongle (AN-WF500)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:

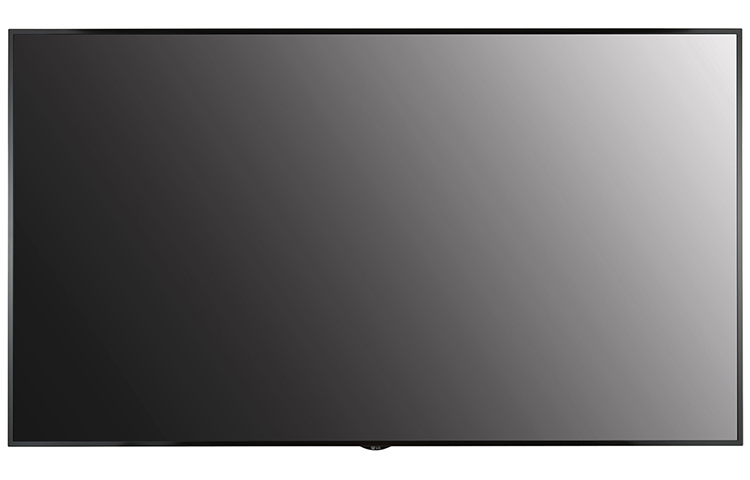

Front

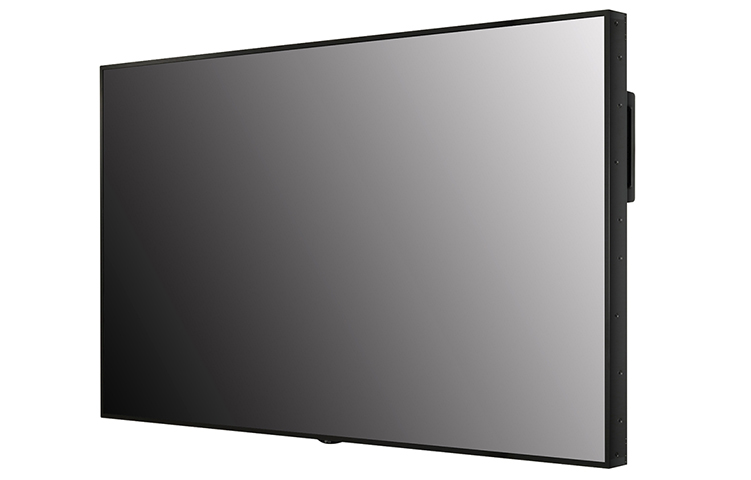

Right Perspective

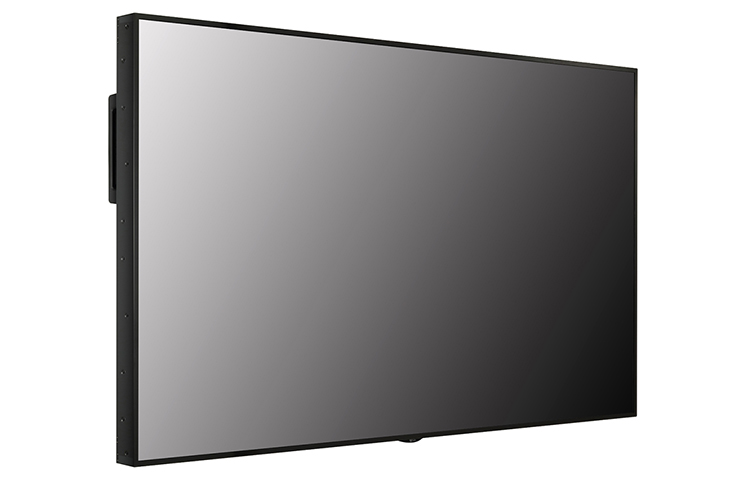

Left Perspective

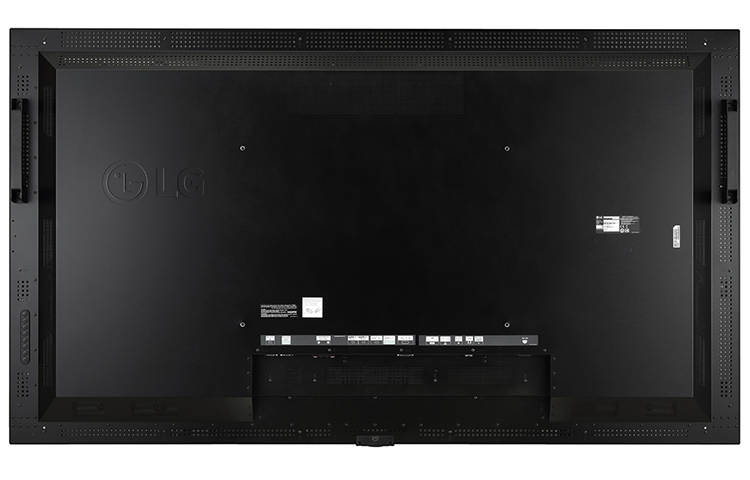

Rear

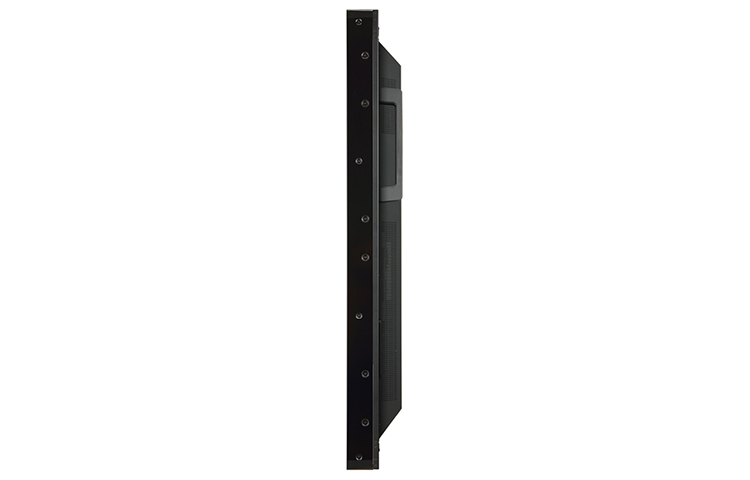

Right Side

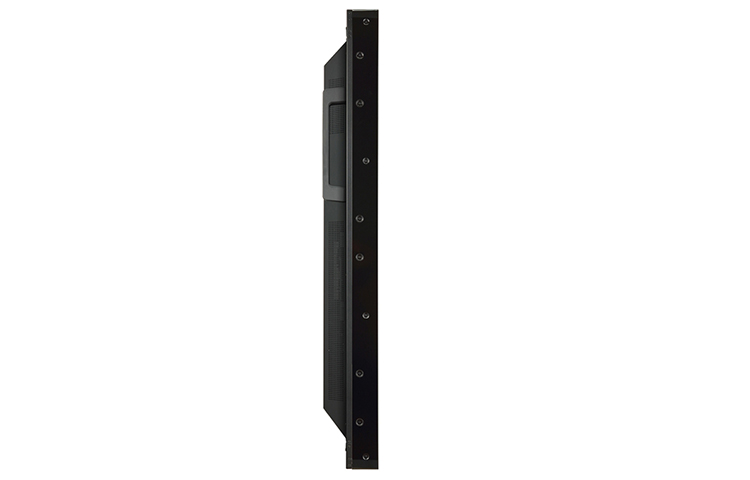

Left Side

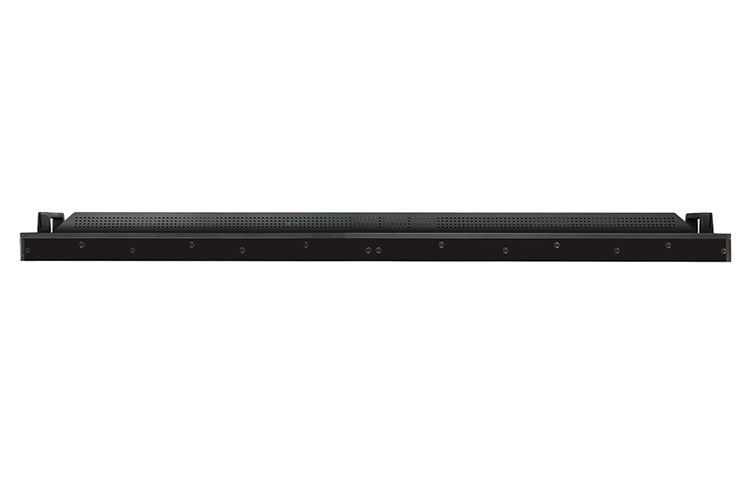

Top

Documentation:

Download the LG Outdoor Signage - XS Series Datasheet (.PDF)
