LG 86UH5C
86" Multiple Screen Split Ultra HD Signage Display


LG 86UH5C

Sorry, this product is no longer available, please contact us for a replacement.



Click here to jump to more pricing!

Overview:

The new Ultra HD large display, UH5C Series supports displaying Ultra HD content as well as a divided content layout to show up to 4 split images on one screen. Its benefit enables you to create various formats of content to deliver commercial message effectively. Also, it is enhanced in content management. With embedded basic content templates, you can create and edit content simply and quickly on your mobile device or signage display.

  • Size: 86"
  • Brightness(Typ.): 500 cd/m²
  • Bezel: 14.7mm Even Bezel
  • Depth: 60.6mm / without logo, handle
  • Interface: HDMI, DVI, DP, RJ45, RS232C, Pixel Sensor, SD Card, USB

Outstanding Picture Quality

UHD large screen delivers immersive viewing with four times higher definition than FHD. UH5C ensures stable UHD video playback with HEVC (High Efficiency Video Coding) and double the data compression ratio of H.264.

Outstanding Picture Quality

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

High Performance Smart Platform

Simply Play and Schedule Content

There is no need for additional server or media player connections as UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

Simply Play and Schedule Content

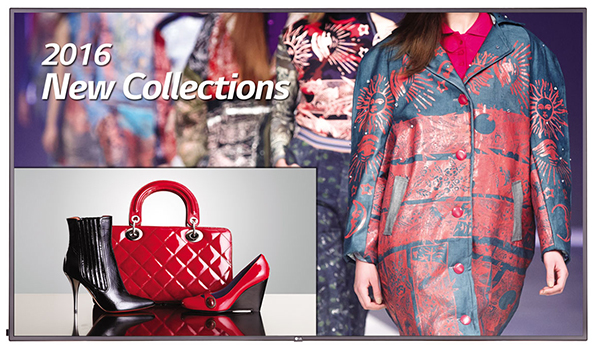

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Multiple Screen Composition

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.

Content Sharing

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Real-time Promotion


Real-Time Remote Monitoring

In case of malfunctions or errors, real-time remote care is available. When an alarm occurs, an e-mail notification is sent using SuperSign SW or SI SW via the SNMP Protocol.

Real-Time Remote Monitoring

Easy Content Management

The LG group manager allows users to distribute content and set data on a selected group within the same network without the need for a separate PC or a server.

Easy Content Management

High Compatibility

UH5C provides an optional OPS (Open Pluggable Specification) Kit to connect a third-party OPS player or HDBaseT box. Users have the flexibility to choose any media player as long as it complies with the OPS.

High Compatibility

Features:

Ultra HD

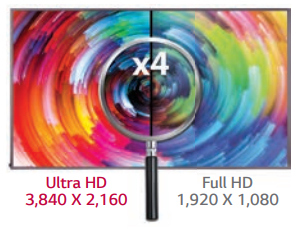

Ultra HD Resolution (3,840 x 2,160)

Ultra HD Large screen delivers immersive viewing experience by 4 times higher defi nition picture quality than FHD.

Ultra HD Resolution (3,840 x 2,160)

High Efficiency Video Coding

Supports HEVC-based content which has the double data compression ratio than the H.264, so network traffic can be reduced by half.


High Efficiency Video Coding


Multiple Screen

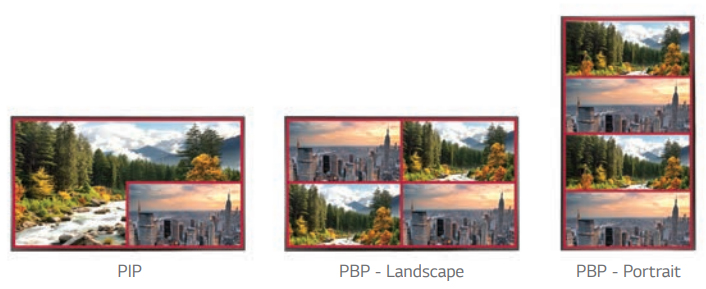

Multiple Screen with PBP or PIP

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 4 divided split screen on landscape or portrait display format.

Multiple Screen with PBP or PIP

Built-in Wi-Fi

Mirroring

Content sharing is more convenient on a Wi-Fi network.

Mirroring

SoftAP

The UH5C with Soft AP software can operate as a wireless access point for mobile devices.

SoftAP


Smart Platform

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback without an external media player.


Quad Core SoC

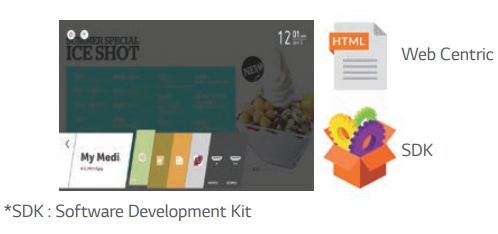

webOS Smart Signage Platform

The LG webOS smart signage platform supports HTML5 as a web-based platform and offers SDK*, so SIs can easily build and execute their own apps.

webOS Smart Signage Platform


Space Management Effi ciency

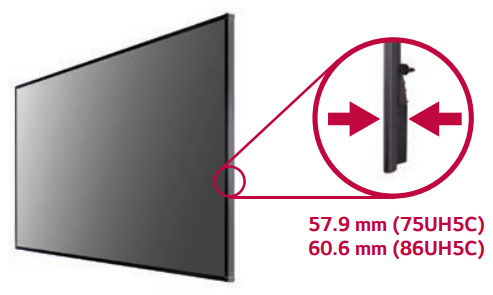

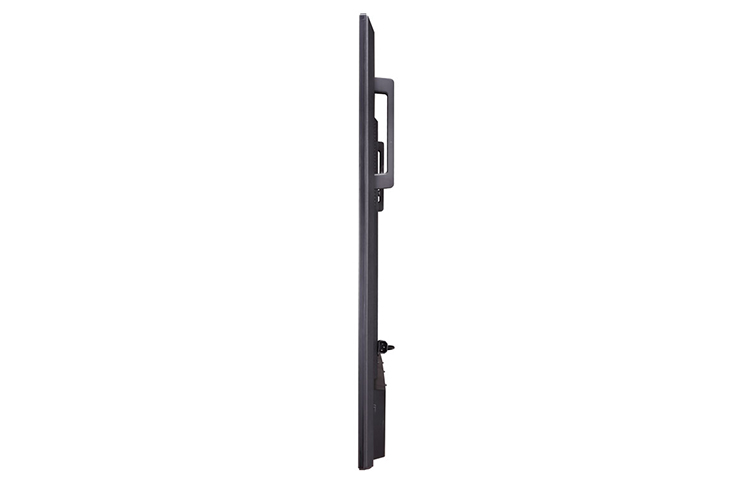

Slimmer Depth

With its slim depth and built-in speaker, which increases space effi ciency, you don’t need to install an extra media player. Also, you can move it conveniently with its handle on the back side.

Slimmer Depth

Easy Maintenance

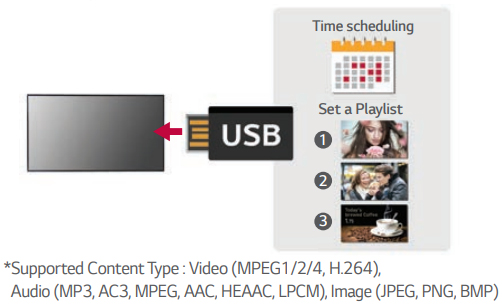

USB Content Scheduling

There is no need for additional server or media player connections because UH5C supports USB playback and scheduling. Users can set a playlist and timing for playing content using a USB.

USB Content Scheduling

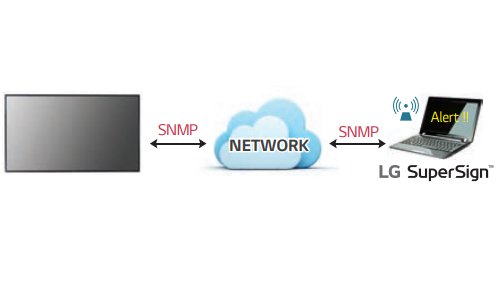

Real-Time Remote Monitoring

When an alarm occurs, an e-mail notifi cation is sent using SuperSign C or SI SW through the SNMP Protocol. In case of malfunctions or errors, real-time remote care is available.

Real-Time Remote Monitoring


Support Network Protocol

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.

IP Streaming Protocol

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.

Secure Communication Protocol

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)

Proxy Server


Specifications:


86UH5C Specifications
Panel
Screen Size 86"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness 500 cd/m2
Contrast Ratio 1,200:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Low Haze 3%
Life Time (Min.) 50,000 hours
Guaranteed Operating Hour 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI (3), DP, DVI-D, Audio, USB 3.0, SD Card
Output DP, Audio
External Control RS232C In/out, RJ45 In, IR Receiver In, Pixel Sensor In
Physical Specification
Bezel Color Black
Bezel Width 14.7mm (Even)
Monitor Dimension (W x H x D) 75.8 x 43.2 x 2.4" (without Handle)
Weight (Head) 108 lbs
Carton Dimensions (W x H x D) 82.0 x 50.5 x 11.15"
Packed Weight 138.0 lbs
VESA Standard Mount Interface 600 mm x 400 mm
Special Features
Special Features Temperature Sensor, Auto Brightness Sensor, Tile Mode (up to 15x15), Natural Mode@Tile Mode, ISM Method, Internal Memory (8GB, System 4GB), Wi-Fi Built-in (802.11n), USB Cloning, Content Scheduling, Sync Mode (Time, Content), PM Mode, Fail Over, Wake on LAN, BEACON (On/Off), Embedded Template, PIP/PBP (2/3/4)
Environmental Conditions
Operating Temperature Range 32 °F to 104 °F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption - Typ. 275W
Power Consumption - Smart Enegy Saving 200W
Audio
Audio Power 20 W (10W x 2)
Speaker On/Off Yes
Sound Mode Standard, News, Music, Cinema, Sports, Game
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KCC
ErP / Energy Star No / No
Media Player Compatibility
OPS Type Compatible Yes
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign W
Control and Monitoring Software SuperSign C
Accessory
Basic Remote Controller (2 Batteries Included), Power Cord, QSG, DP Cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover
Optional Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B (Wall Mount)
Warranty
Warranty 3-Year Limited Warranty Parts/Labor/Backlight | Extended warranty options are also available

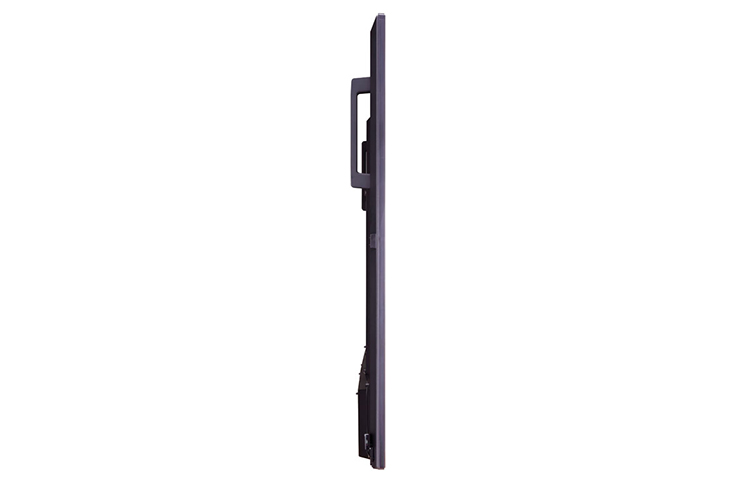

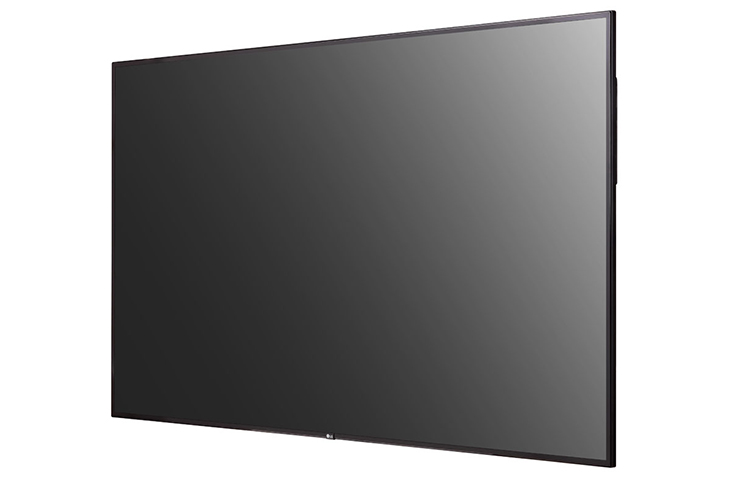

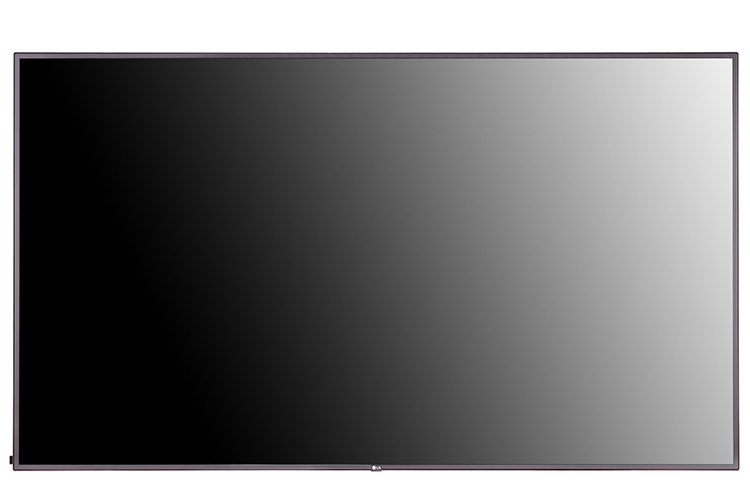

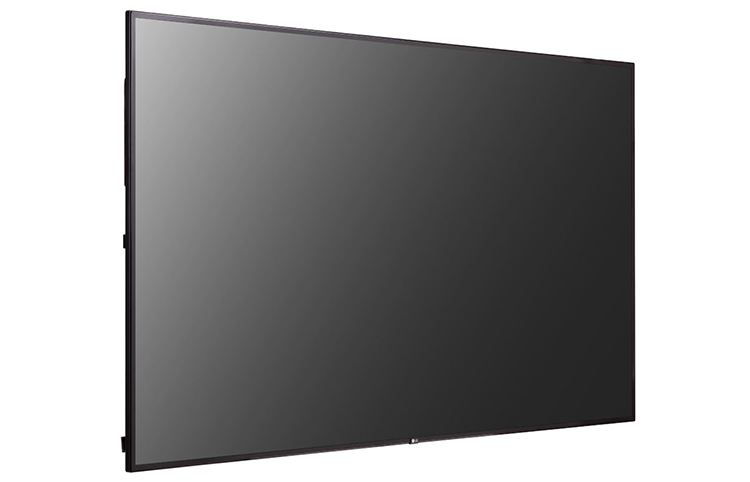

Views:
