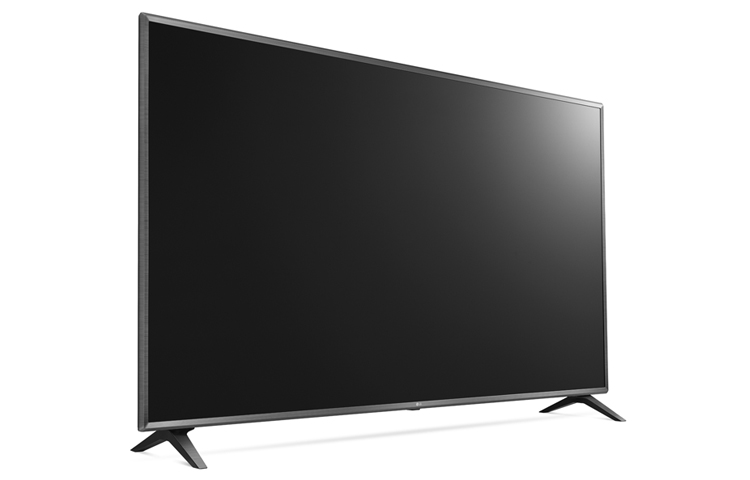

LG 86UU340C
86” UHD Commercial TV with Essential Smart Function
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
LG's latest Public Display TV, the UU340C supports UHD/4K resolution to provide optimal viewing in diverse business environments. With enhanced management functions including WOL (Wake On LAN), SNMP (Simple Network Management Protocol), and SuperSign Solution, managers can increase management efficiency while the edge-lit LED display and UHD picture quality improve the digital viewing experience.
- Size: 86"
- Supersign Control
- Crestron Connected (Network Based Control)
- SNMP
- Wake-up On Lan
Features:
Software Solution
SuperSign Control
SuperSign Control is a basic control software. Up to 100 displays are controlled by one account with a single server. Essential factors such as power, volume, scheduling can be remotely adjusted, with firmware updates supported.
Perfect picture quality and color
Enjoy Full HD content in 4K ULTRA HD quality by 4K Upscaler. The 4K Upscale automatically upgrades Full HD content to ULTRA HD through several steps of the upscaling processes. And also this LG TV can deliver intense highlights, vivid colors and deep black on the screen by HDR10.
Easy Management & Usability
Wake-up On LAN
WOL is the Ethernet computer networking standard to turn on TV or PC by transferring a network message. The message is transferred through another computer connected the same local areas.
SNMP
SNMP (Simple Network Management Protocol) ensures convenient network management for SI and business managers.
Compatibility with AV Control system
This LG TV has Crestron Connected Certification, a function that is dedicated to meeting room and that meets the growing need in corporate meeting space market.
Value Added Features
Time Scheduler
Create your own time scheduler of your Commercial TV. Once you set opening/ closing hours and holidays, the TV will turn on/off according to work schedule.
USB Auto Playback
Create and sequentially play playlists composed of informative media (video, music and image) you choose without PC and any installation.
Welcome Video / Screen
With the capability to display repeatedly various video formats as well as images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.
External speaker out
Enhance the entertainment experience by adding an additional speaker. Guests listen to and control the TV audio from anywhere in the business areas, including restrooms.
Specifications:
| 86UU340C Specifications | |
|---|---|
| Display | |
| Screen Size | 86" |
| Backlight Type | Direct |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Brightness | 350 nits |
| Dynamic Contrast Ratio (Dynamic MCI (Hz)) | 1,000,000:1 |
| Static (Panel) Contrast Ratio | 1,400: 1 |
| Viewing Angle (H x V) | 178° / 178° |
| Response Time (G to G, ms) | 5 |
| Front Bezel Color | MeteoTitan |
| Broadcasting System | |
| Analog | Yes (NTSC) |
| Digital | Yes (ATSC) |
| Video | |
| XD Engine | Yes |
| Aspect Ratio | Yes 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan) |
| HDR 10 / HDR Dolby Vision | HDR 10 |
| Audio | |
| Audio Output | 10W + 10W |
| Speaker System | 2.0 ch |
| Sound Mode | Yes 6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game) |
| Clear Voice | Yes |
| Function | |
| Function | webOS 3.5, Commercial Smart Home, Web Browser, Pre-loaded YouTube Apps, Magic Remote (Optional) |
| Hospitality Features | |
| Hospitality Features | Hotel Mode, Lock Mode, Welcome Video, Welcome screen, Insert Image, External Speaker Out, RJP Interface, RJP Compatibility, USB Auto Playback, Auto Off / Sleep Timer, Smart Energy Saving, Motion Eye Care, Time Scheduler (except for 86, 75 inches) |
| Jack Interface | |
| Set Side | HDMI In 2.0 (2), USB 3.0 |
| Set Rear | RF In, AV In, Component in (Y,Pb,Pr-Video), Digital Audio Out, HDMI/HDCP Input, RS-232C (Control&Service), RJ45, External Speaker Out, Debug |
| Dimension | |
| Vesa | 600 x 400 |
| W x H x D / weight (with stand) | 76.5” x 46.8” x 13.6” / 99.2 lbs 1,943 x 1,188 x 345 / 45kg |
| W x H x D / weight (without stand) | 76.5” x 46.8” x 3.1” (SPK: 3.7”) / 97.4 lbs 1,943 x 1,188 x 77.9 (SPK: 93.3) / 44.2kg |
| W x H x D / weight (Packing) | 83.3” x 49.6” x 11.2 / 130.1 lbs 2,116 x 1,261 x 285 / 59kg |
| Power (Unit : Watts) | |
| Voltage, Hz | 100 ~ 240V, 50/60Hz |
| Max | - |
| Typical | 301.0 |
| Energy saving (Min/Med/Max) | - |
| Stand-by | < 0.5 |
* Specifications are subject to change without notice, so please reach LG salesteam to ensure before order.
Views:
Documentation:
Download the LG UHD Commercial TV with Essential Smart Function - UU340C Series Datasheet (.PDF)
